How to use the slide show, rotate, zoom functions?
Last Update date : Aug 03. 2022
When viewing a picture, you can use additional 3 functions including Slide Show, Rotate, and Zoom function.
Slide Show/Speed
To setup, follow these steps:
1
Insert a JPEG disc into the Disc Slot
• The Menu screen is displayed
• The Menu screen is displayed
2

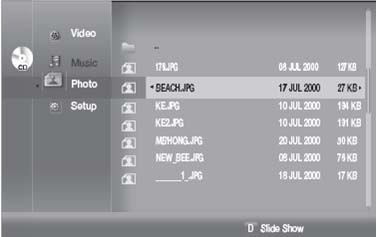

Press the ▲▼ buttons to select Photo, then press the ENTER button
• The Photo List is displayed
• The Photo List is displayed
3

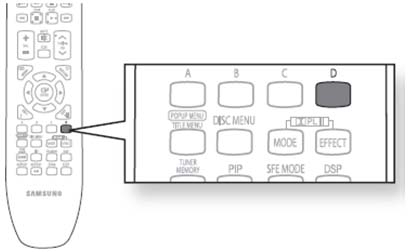

Press the BLUE (D) button
• The slide show starts
![Press the BLUE(D) button]()
• The slide show starts
4

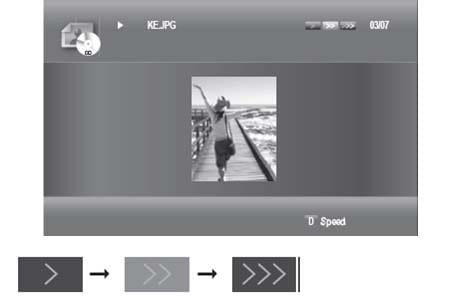

When the SlideShow starts, press the BLUE(D) button to adjust the play speed
• Each time you press the button, the play speed will increase accordingly
![When the SlideShow starts, press the BLUE(D) button to adjust the play speed]()
• Each time you press the button, the play speed will increase accordingly
Please note: To stop the Slide Show, Press the STOP or RETURN button
Rotate
To setup, follow these steps:
1
Insert a JPEG disc into the Disc Slot
• The Menu screen is displayed
• The Menu screen is displayed
2
Press the ▲▼ buttons to select Photo, then press the ENTER button
• The Photo List is displayed
• The Photo List is displayed
3
Press the ▲▼ buttons to select a picture
• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
4

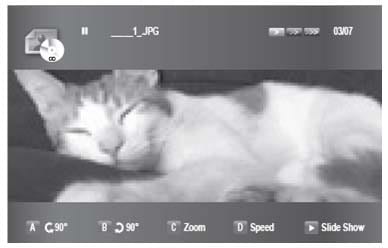

Press the ENTER button
![Press the ENTER button]()
5

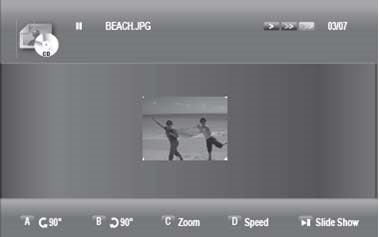

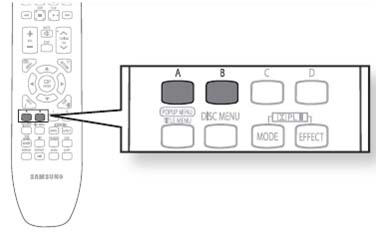

Use the RED (A) and GREEN (B) buttons to rotate the image in a desired direction
![Use the RED (A) and GREEN (B) buttons to rotate the image in a desired direction]()
Zoom
To setup, follow these steps:
1
Insert a JPEG disc into the Disc Slot
• The Menu screen is displayed
• The Menu screen is displayed
2
Press the ▲▼ buttons to select Photo, then press the ENTER button
• The Photo List is displayed
• The Photo List is displayed
3
Press the ▲▼ buttons to select a picture
• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
4
Press the ENTER button
![Press the ENTER button]()
5

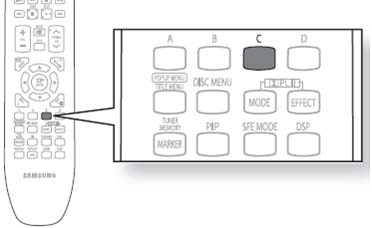

Press the YELLOW (C) button
![Press the YELLOW (C) button]()
6

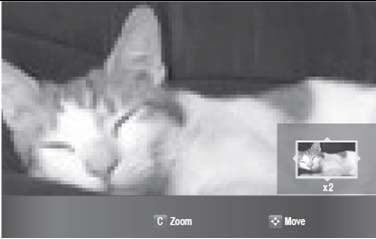

Use the YELLOW (C) or ENTER button to zoom the image in/out
![Use the YELLOW (C) or ENTER button to zoom the image in/out]()
Please note:
• To move the area, press the ▲▼◄ ► buttons to the area you want to enlarge
• To stop the Zoom, press the YELLOW (C) button
And If you want to go to Photo List, follow these steps:
1
Insert a JPEG disc into the Disc Slot
• The Menu screen is displayed
• The Menu screen is displayed
2
Press the ▲▼ buttons to select Photo, then press the ENTER button
• The Photo List is displayed
• The Photo List is displayed
3
Press the ▲▼ buttons to select a picture
• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
• To see the next page, press the SKIP (Forward) button
• To see the previous page, press the SKIP (Backward) button
4
Press the ENTER button
![Press the ENTER button]()
5
To go Photo List, press the RETURN or STOP button
![To go Photo List, press the RETURN or STOP button]()
