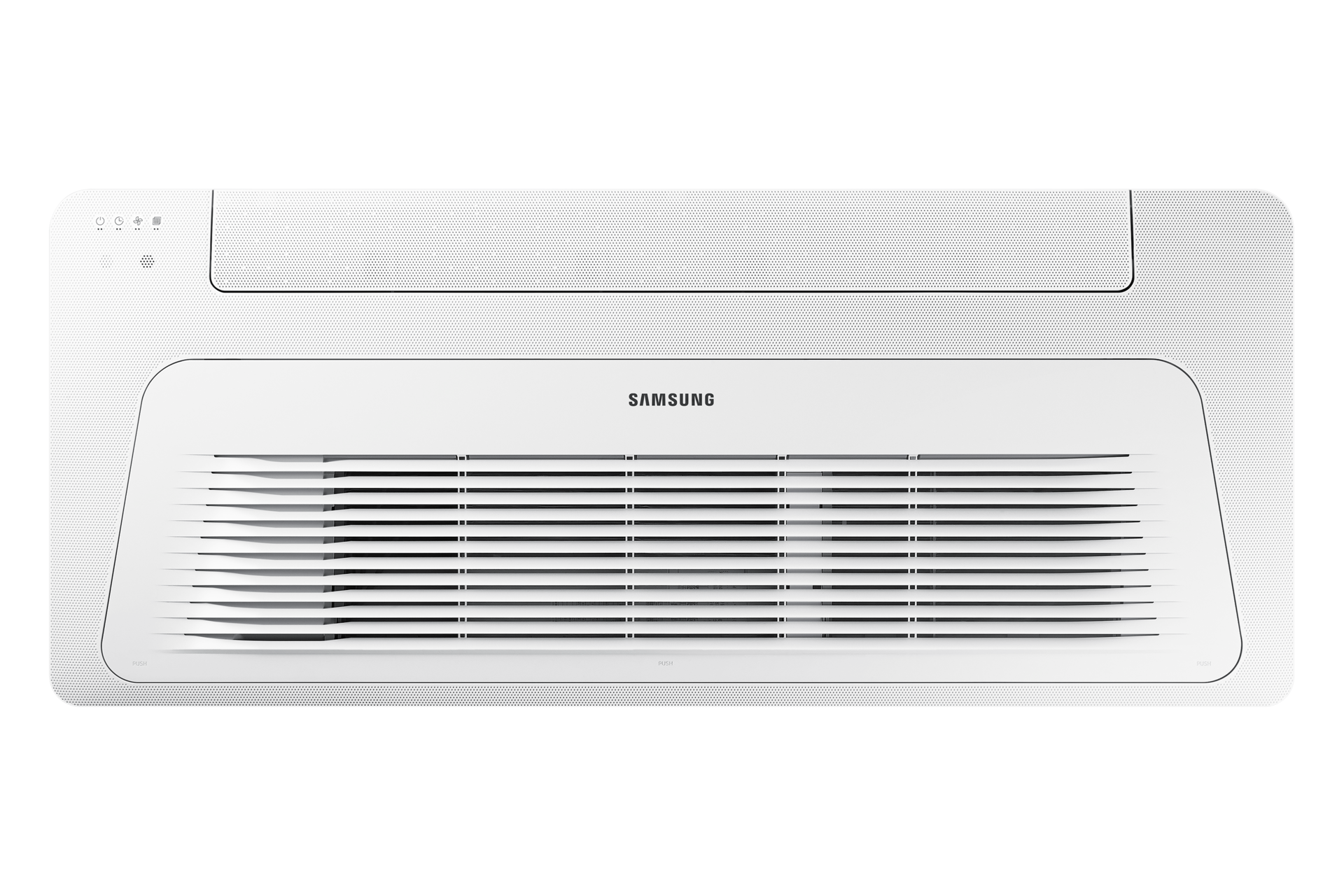

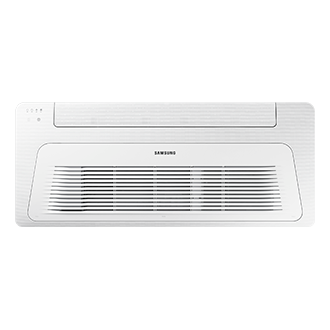

DVM S, Wind-Free 1-Way Cassette, Indoor Unit
AM022NN1DEH/TK
- Flexible Installation with Compact Slim Duct
Pilih Kapasitas Anda
{{tradeInResult.displayModelName}}
{{tradeInResult.discountText1}}
{{tradeInResult.discountText2}}
{{tradeInResult.discountText3}}
{{tradeInResult.description}}
{{priceAnchor.priceWrapper.info.noLineOrignal}}
{{price.priceWrapper.info.totalPrice}}
{{price.priceWrapper.info.orignalPriceAddText}}
Harga Sebelumnya{{price.priceWrapper.info.orignalPrice}}
Harga{{price.priceWrapper.info.savePrice}}
{{price.priceWrapper.info.vatText}}
{{price.priceWrapper.info.salesPitch}}
{{price.priceWrapper.info.text}}
{{price.priceWrapper.info.text2}}
{{delivery.headline}}
{{delivery.errorMessage}}
{{deliveryResult.priorityText}}
{{deliveryResult.mainText}}
{{deliveryResult.decText}}
{{item.disclaimer}}
{{offer.headline}}
-
{{decmain.text}}
{{tieredOption.headline}}
Mendaftar sebagai pengguna toko
- rentang kuantitas{{item.unit}} unit Hemat {{item.formattedSavePrice}} / unit total price {{item.formattedTotalPrice}} total price {{item.formattedVatExclusive}}
{{tieredOption.disclaimer}}
Slim and Compact Design
At a height of only 135mm, the Slim 1Way Cassette is the world's thinnest indoor air cooling unit. The compact, lightweight design makes installation and maintenance in your space easier than ever. These high-performing units are so subtle that they can easily blend into interiors of all types and styles.
Quiet Operation
A quiet workplace is not only more comfortable for employees but it also aids productivity. The innovative blade design of our DVM Slim unit reduces noise levels by 30 per cent, so that users can work or relax in a peaceful, stress-free environment. Whether operating on the high- or low-speed setting, this air conditioning unit offers a virtually silent performance, making it quiet as well as discreet.
Lighter Indoor Unit
Spesifikasi
-
Cooling [Btu/h] 7,500 Btu/h
-
Cooling [kW] 2.20 kW
Detail Spesifikasi
Features
- Type 1Way CASSETTE
Model Name
- Indoor Unit AM022NN1DEH/TK
Power Supply (Indoor Unit) [Φ, #, V, Hz]
- 1,2,220-240,50
System
- Mode HP/HR
Capacity
- Cooling [kW] 2.20 kW
- Cooling [Btu/h] 7,500 Btu/h
- Heating [kW] 2.50 kW
- Heating [Btu/h] 8,500 Btu/h
Power Input
- Cooling 1) [W] 40.00 W
- Heating 2) [W] 40.00 W
Current Input
- Cooling 0.20 A
- Heating 0.20 A
Fan
- Type Crossflow Fan
- Motor (Output) [W] 17 x 1 W
- Air Flow Rate (High / Mid / Low) [CMM] 6.00/5.00/4.00 CMM
- Air Flow Rate(High/Mid/Low)[L/S] 100.00/83.33/66.67
Piping Connections
- Liquid Pipe (Φ, mm) 6.35 mm
- Liquid Pipe (Φ, inch) 1/4"
- Gas Pipe (Φ, mm) 12.70 mm
- Gas Pipe (Φ, inch) 1/2"
- Drain Pipe (Φ,mm) VP20 (OD 25,ID 20)
Refrigerant
- Type R410A
- Control Method EEV INCLUDED
Sound
- Sound Pressure 29 / 26 / 24 dBA
- Sound Power Level 47 dBA
External Dimension (Indoor Unit)
- Panel Net Weight (kg) 10 kg
- Shipping Weight (kg) 12.8 kg
- Net Dimensions (WxHxD) (mm) 970 x 135 x 410 mm
- Shipping Dimensions (WxHxD) (mm) 1173 x 231 x 487 mm
Panel
- Model Name PC1NWFMAN
- Panel Net Weight (kg) 4.3 kg
- Shipping Weight (kg) 6.3 kg
- Net Dimensions (WxHxD) (mm) 1198 x 35 x 500 mm
- Shipping Dimensions (WxHxD) (mm) 1262 x 124 x 568 mm
Field Wiring
- Power Source Wire 1.5 ~ 2.5
- Transmission Cable 0.75 ~ 1.50
