Evenly circulates & cools every corner
Unlike 4-way, cassette type air conditioners that create areas of uneven airflow where cool air can’t reach*, a circular outlet blows cool air in all directions, so every corner of a room is the same temperature**.
Comfortable cool, not unpleasantly cold
A bladeless design softly disperses cool air across the room, making you comfortably cool without feeling a cold draft**. With no blades to block the air flow, it also expels 25% more air* and spreads it further.

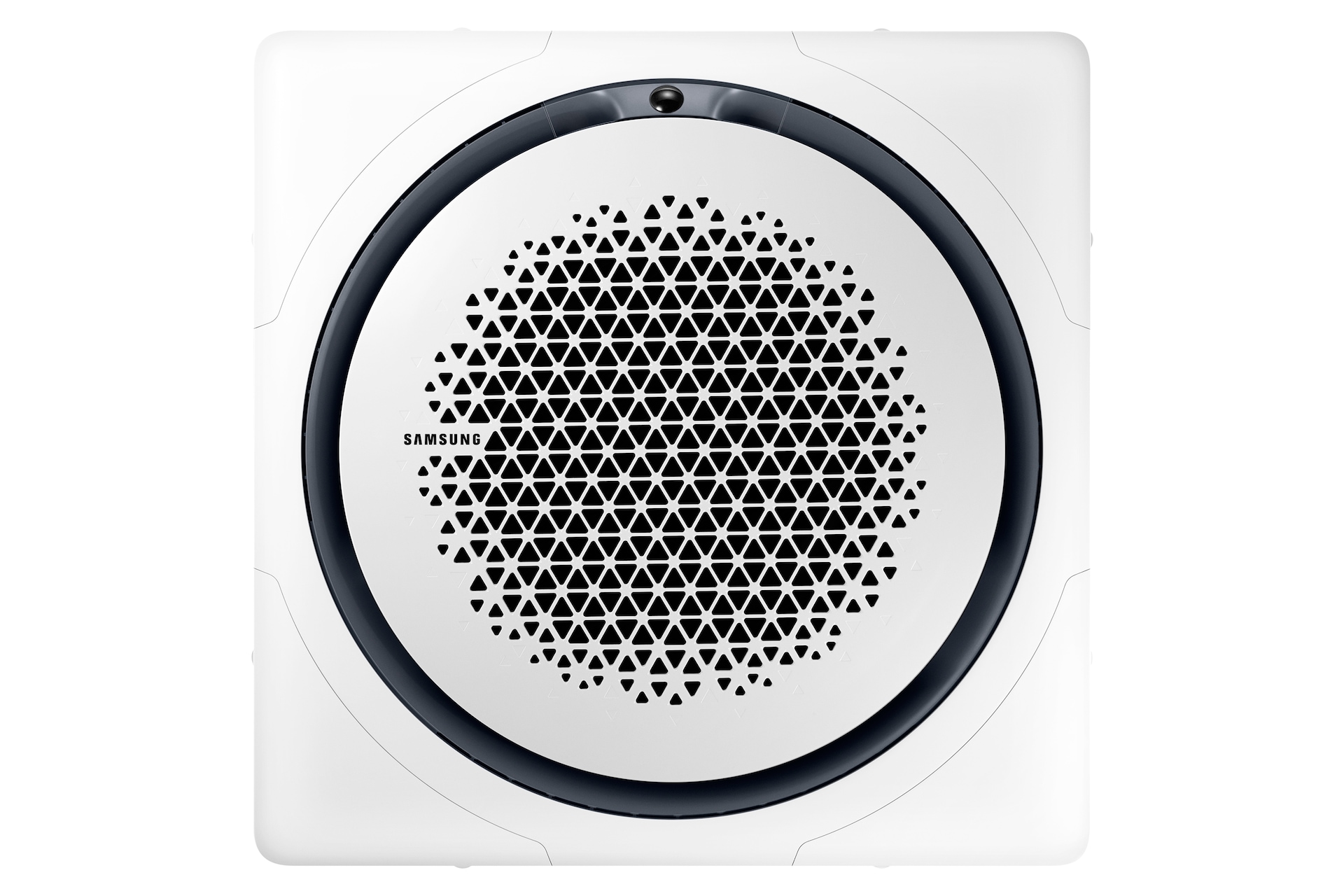

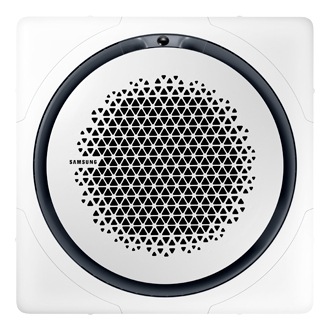

Circular to perfectly fit in everywhere
Its innovative circular design can match a multitude of interior designs, so it perfectly fits in everywhere. Its minimalist modern styling creates a sophisticated look and its circular shape stands out beautifully.
Spreads more air in more ways
An innovative Booster Fan enables cool air to be expelled at much lower angles. It creates a low pressure area around the outlet, so that cool air comes out parallel to the ceiling and disperses across a wider area.
All round simpler & intuitive control
Intuitively control its performance and see where the air is going. The Wireless Remote Controller’s* Jog shuttle and button offer a fun way to adjust the air flow and a Circular LED Display shows its direction.
Specifications
Specifications Detail
Features
- Type 360 Cassette
Model Name
- Indoor Unit AM045KN4DEH/EU
Power Supply (Indoor Unit) [Φ, #, V, Hz]
- 1, 2, 220 - 240, 50
System
- Mode HP / HR
Capacity
- Cooling [kW] 4.5
- Heating [kW] 5
Power Input
- Cooling 1) [W] 26
- Heating 2) [W] 26
Current Input
- Cooling 0.18 A
- Heating 0.18 A
Fan
- Type Turbo Fan
- Motor (Output) [W] 65 x 1
- Air Flow Rate (High / Mid / Low) [CMM] 14.5 / 13.5 / 12.5
Piping Connections
- Liquid Pipe (Φ, mm) 6.35
- Liquid Pipe (Φ, inch) 1/4
- Gas Pipe (Φ, mm) 12.7
- Gas Pipe (Φ, inch) 1/2
- Drain Pipe (Φ,mm) VP25 (OD32 / ID25)
Refrigerant
- Type R410A
- Control Method EEV INCLUDED
Sound
- Sound Pressure 33 / 31 / 29 dBA
External Dimension (Indoor Unit)
- Panel Net Weight (kg) 21
- Shipping Weight (kg) 25
- Net Dimensions (WxHxD) (mm) 947 x 947 x 281
- Shipping Dimensions (WxHxD) (mm) 990 x 990 x 330
Panel
- Model Name PC4NUDMAN
- Panel Net Weight (kg) 3.6
- Shipping Weight (kg) 6
- Net Dimensions (WxHxD) (mm) 1,000 x 1,000 x 66
- Shipping Dimensions (WxHxD) (mm) 1,093 x 1,083 x 85
Additional Accessories
- Drain Pump Built In
- Drain Pump Max. Lifting Height/Displacement 750 / 24
Field Wiring
- Power Source Wire 1.5 ~ 2.5
- Transmission Cable 0.75 ~ 1.5
