Energy Recovery Ventilation(ERV)

Energy Recovery Ventilation(ERV)

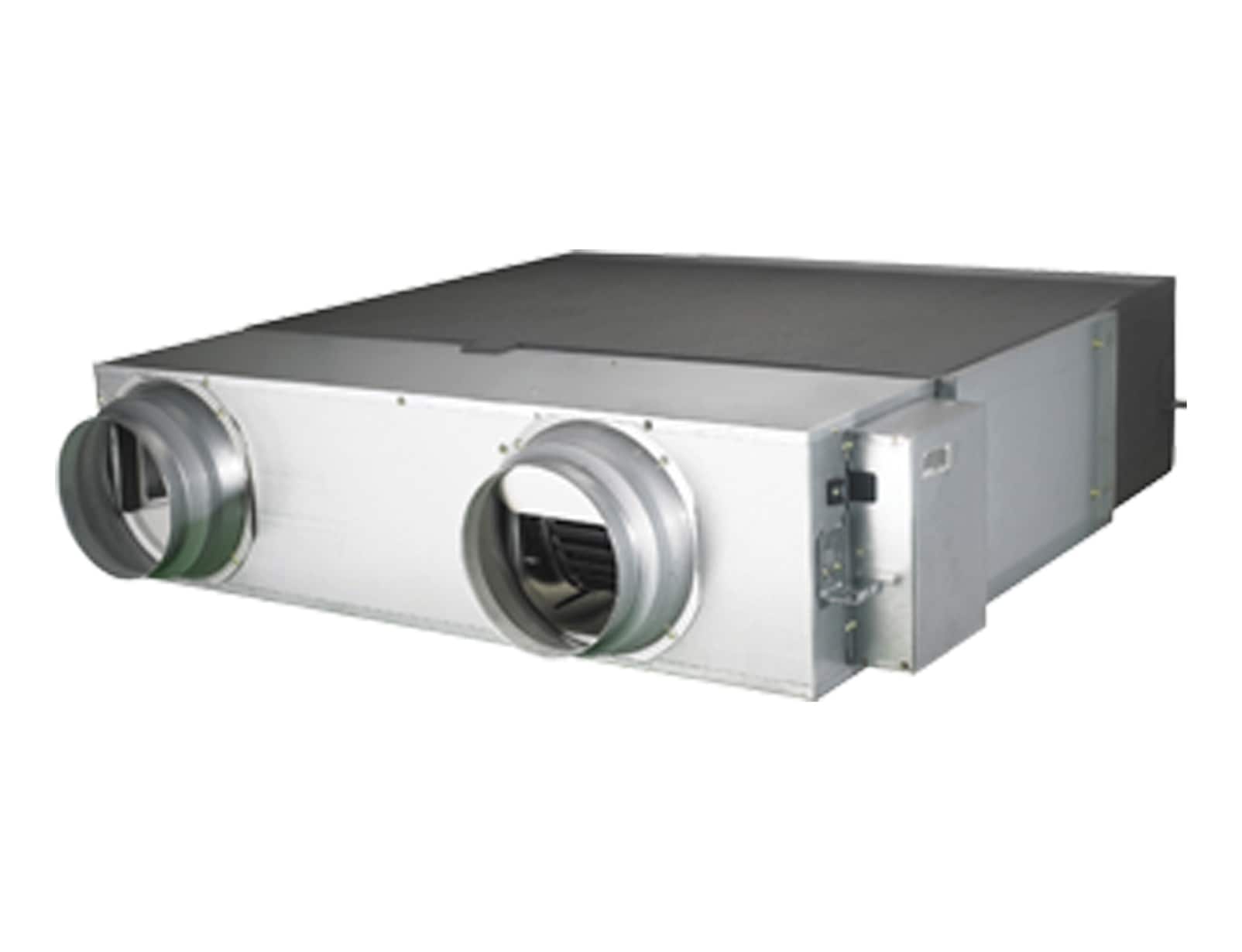

AN050JSKLKN/EU

  • Heat Recovery Method of ERV System
  • Flexible Installation
  • New Diamond Type Heat Exchanger

Choose your Cooling Capacity

Energy Recovery Ventilation(ERV)

5.0 kW

Heat Recovery Method of ERV System

Thanks to air inlets and outlets on both sides, the two-way ventilation design achieves exceptional efficiency. The heat exchange element is specified to recover energy while removing discharged contaminants.

Heat Recovery Method of ERV System Heat Recovery Method of ERV System

Flexible Installation

This flexibility translates into time savings when maintaining multiple units. By introducing ERV with the control boxes facing a single service hole, businesses can reduce the expenditure and space.

Flexible Installation Flexible Installation

New Diamond Type Heat Exchanger

Compact and extremely efficient, the new diamond-type heat exchanger is designed to optimise airflow. Businesses will benefit from reduced costs and a comfortable environment.

New Diamond Type Heat Exchanger New Diamond Type Heat Exchanger

Auto Mode

ERV automatically changes its operation mode depending on the temperature difference between your indoor and outdoor environment to save energy.

Auto Mode Auto Mode

Specifications

Power Supply (Indoor Unit) [Φ, #, V, Hz]

  • 1, 2, 220 - 240, 50 / 60

Temperature Exchange Rate

  • Cooling 70.00 %
  • Heating 74.00 %

Enthalpy Exchange Rate

  • Heating 50.00 %
  • Cooling 70.00 %

Power Input

  • 175.00 W

Current Input

  • 1.1 A

Fan

  • Air Flow Rate (High / Mid / Low) [CMH] 500 / 500 / 360
  • External Static Pressure (Min / Std / Max) [Pa] 85 / 100 / 165

External Dimension (Indoor Unit)

  • Panel Net Weight (kg) 42.5
  • Net Dimensions (WxHxD) (mm) 1,012 x 270 x 1,000
