Control panel, Run calibration, and Cycle chart: WA5*A730*A* / WA5*A550*A*
The panel can be found at the top of the washer, at the back.

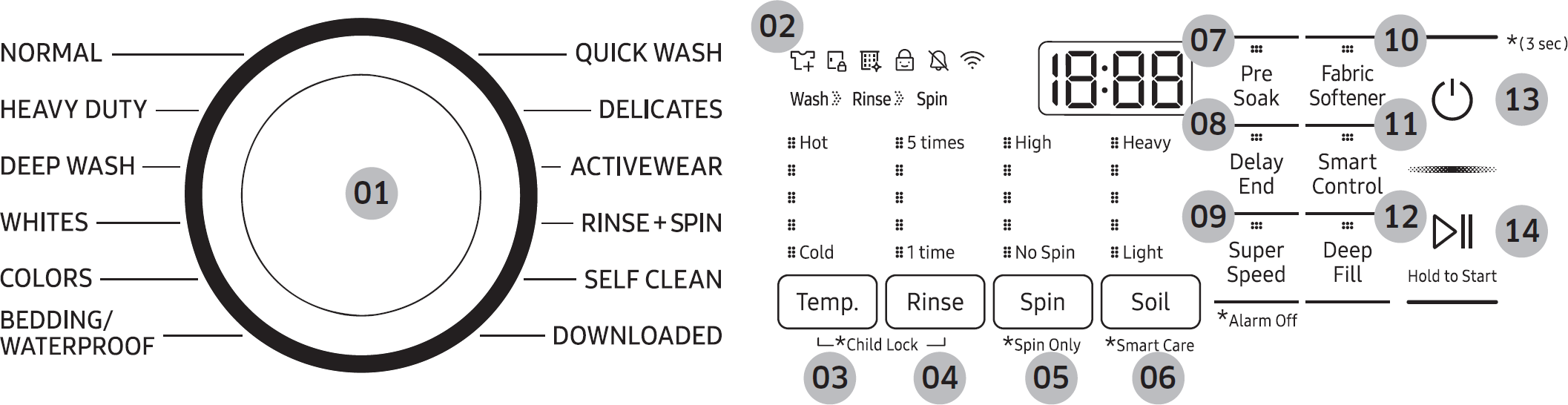

Control panel
- Cycle Selector
- Display
- Temp.
- Rinse
- Spin
- Soil
- Pre Soak
- Delay End
- Super Speed
- Fabric Softener
- Smart Control
- Deep Fill
- Power
- Start/Pause (Hold to Start)
Run Calibration
Calibration ensures accurate weight detection by the washer. Make sure the tub is empty before running calibration.
- Press Power to turn on the washer.
- Press and hold Temp. and Delay End simultaneously for 3 seconds.
- Press and hold Start/Pause (Hold to Start) to start calibration.
- The tub rotates clockwise or counterclockwise for approximately 2 minutes.
- When complete, “ 0 ” appears on the display, and the washer turns off automatically.
Cycle chart
Use this chart to set the best cycle and options for your laundry.
| Setting | Temp. | Rinse | Spin | Soil |
| ● : factory setting | 5: Hot (Level 5) | 5: 5 times (Level 5) | 5: High (Level 5) | 5: Heavy (Level 5) |
| ○: can be selected | 4: (Level 4) | 4: (Level 4) | 4: (Level 4) | 4: (Level 4) |
| 3: (Level 3) | 3: (Level 3) | 3: (Level 3) | 3: (Level 3) | |
| 2: (Level 2) | 2: (Level 2) | 2: (Level 2) | 2: (Level 2) | |
| 1: Cold (Level 1) | 1: 1 time (Level 1) | 1: No Spin (Level 1) | 1: Light (Level 1) |
| Cycle | Temp. | Rinse | ||||||||
| 5 | 4 | 3 | 2 | 1 | 5 | 4 | 3 | 2 | 1 | |
| NORMAL | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
| HEAVY DUTY | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
| DEEP WASH | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
| WHITES | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● | ○ |
| COLORS | - | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● |
| BEDDING/WATERPROOF | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ● | ○ |
| QUICK WASH | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
| DELICATES | - | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● |
| ACTIVEWEAR | - | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ● |
| RINSE+SPIN | - | - | - | - | - | ○ | ○ | ○ | ○ | ● |
| SELF CLEAN | ● | - | - | - | - | - | - | - | ● | - |
| Cycle | Spin | Soil | ||||||||
| 5 | 4 | 3 | 2 | 1 | 5 | 4 | 3 | 2 | 1 | |
| NORMAL | ○ | ● | ○ | - | ○ | ○ | ○ | ● | ○ | ○ |
| HEAVY DUTY | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ |
| DEEP WASH | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | ○ |
| WHITES | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ |
| COLORS | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | ○ |
| BEDDING/WATERPROOF | - | ○ | ● | ○ | ○ | ○ | ○ | ● | ○ | ○ |
| QUICK WASH | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
| DELICATES | - | - | ○ | ● | ○ | - | - | - | - | ● |
| ACTIVEWEAR | - | ○ | ● | ○ | ○ | - | - | ○ | ● | ○ |
| RINSE+SPIN | ○ | ● | ○ | ○ | ○ | - | - | - | - | - |
| SELF CLEAN | - | - | ● | - | - | - | - | - | - | - |
| Cycle | Options | |||
| Pre Soak | Fabric Softener | Deep Fill | Super Speed | |
| NORMAL | ○ | ○ | - | ○ |
| HEAVY DUTY | ○ | ○ | ○ | ○ |
| DEEP WASH | ○ | ○ | ○ | - |
| WHITES | ○ | ○ | ○ | ○ |
| COLORS | - | ○ | ○ | - |
| BEDDING/WATERPROOF | ○ | ○ | - | - |
| QUICK WASH | - | ○ | ○ | - |
| DELICATES | - | ○ | ○ | - |
| ACTIVEWEAR | ○ | ○ | ○ | - |
| RINSE+SPIN | - | ○ | ○ | - |
| SELF CLEAN | - | - | - | - |
