Back Ports and VESA screw hole specs: MU6070
The ports can be found on the back, on the left.
Back Ports
A picture of the back panel of this model was not found. If you come across a picture, please leave feedback on this article with the transaction number (or link to the picture, if it's not attached to a ticket).

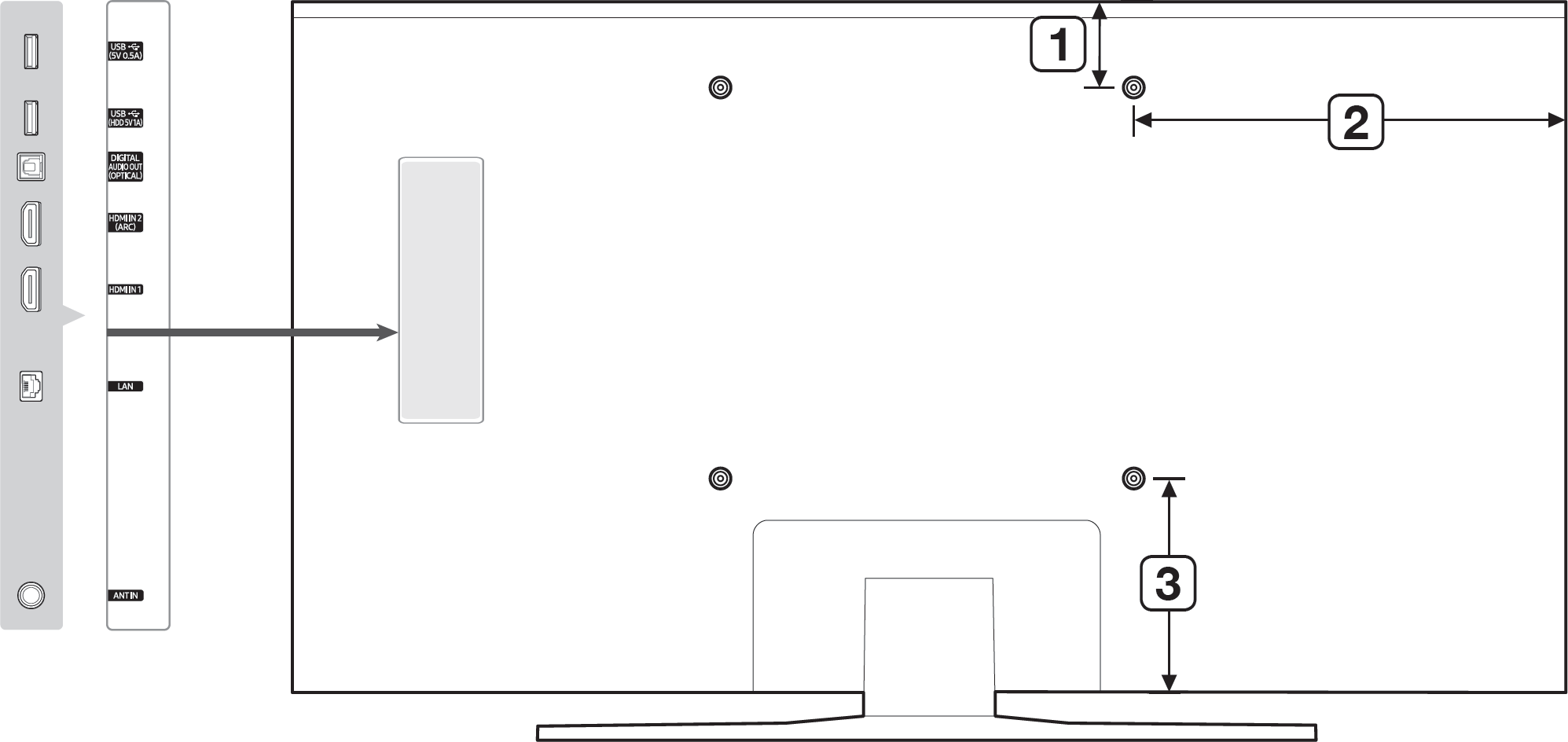

VESA and screw specs
| TV size in inches | VESA screw hole specs (A * B) in millimeters | C (mm) | Standard Screw | Pitch (mm) | Quantity |
| 50 ~ 65 | 400 x 400 | 18 ~ 20 | M8 | 1.25 | 4 |
| 75 | 20 ~ 22 |
