Back Ports and VESA screw hole specs: NU6900, NU6950, 50-65 inch
The ports for the TV are located in the back on the left-hand side.
Port overview
The only picture of the back panel for the 65 inch model that could be found is split into two pictures. If you come across a better picture, please leave feedback on this article with the transaction number (or link to the picture, if it's not attached to a ticket).
50 / 55 inch
50 / 55 inch
65 inch
(Top)
65 inch
(Bottom)

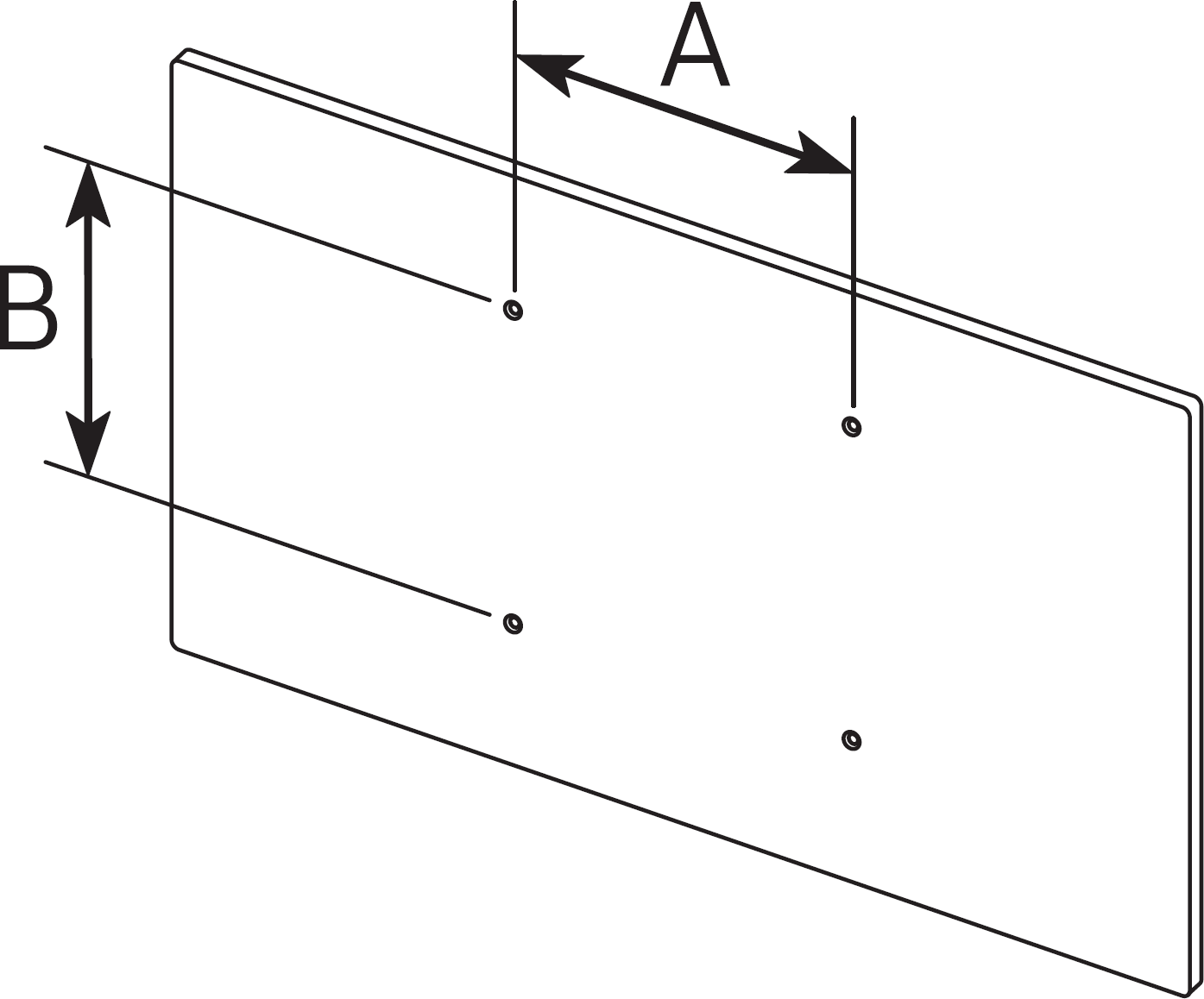

VESA screw hole specs
| TV size in inches | VESA screw hole specs (A * B) in millimeters | C (mm) | Standard Screw | Pitch (mm) | Quantity |
| 50-55 | 200 x 200 | 43-45 | M8 | 1.25 | 4 |
| 65 | 400 x 400 |
