Control panel and Cycle chart: DW80R9950 Series

The controls for the dishwasher can be found on top of the door. You may have to crack the door open slightly to see them.

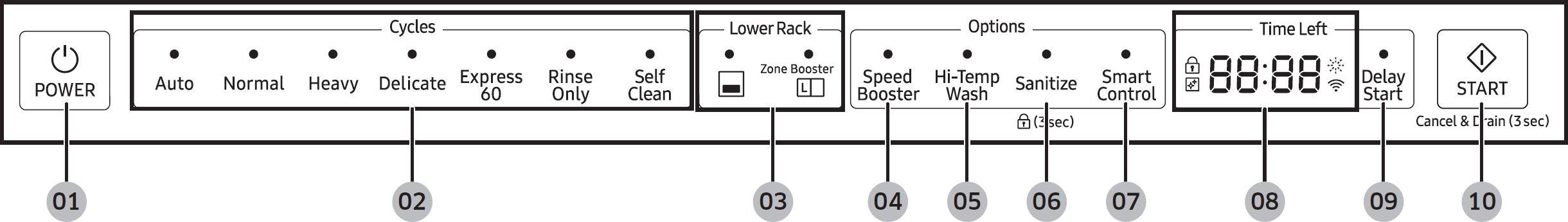

Control panel

- POWER
- Cycle Selector
- Lower Rack
- Speed Booster
- Hi-Temp Wash
- Sanitize / (3sec) (Control Lock)
- Smart Control
- Display
- Delay Start
- START
Cycle Chart
Cycle | Auto | Normal | Heavy | |
Cycle sequence | Prewash > Mainwash > Rinse > Hot Rinse > Dry > End | Prewash > Mainwash > Rinse > Hot Rinse > Dry > End | Prewash > Mainwash > Rinse > Hot Rinse > Dry > End | |
Temp [˚F (˚C)] | Main wash | 122-140 (50-60) | 113-144 (45-62) | 149 (65) |
Hot Rinse *Sanitize 163 ˚F (73 ˚C) | 145-154 (63-68) | 129-149 (54-65) | 154 (68) | |
Water consumption [gal (ℓ)] | 4.1-5.3 (15.6-19.9) | 2.5-5.7 (9.6-21.4) | 5.6 (21.3) | |
Cycle time (min) | 110-136 | 130-148 | 155 | |
Available Options | Lower Rack | O | O | O |
Speed Booster | O | O | O | |
Zone Booster | O | O | O | |
Hi-Temp Wash | O | O | O | |
Sanitize | O | O | O | |
Delay Start | O | O | O |
Cycle | Delicate | Express 60 | Rinse Only | |
Cycle sequence | Prewash > Mainwash > Rinse > Hot Rinse > Dry > End | Mainwash > Rinse > Hot Rinse > Dry > End | Rinse > End | |
Temp [˚F (˚C)] | Main wash | 122 (50) | 126 (52) | - |
Hot Rinse *Sanitize 163 ˚F (73 ˚C) | 149 (65) | 140 (60) | 104 (40) | |
Water consumption [gal (ℓ)] | 4.5 (17.0) | 2.9 (11.1) | 1.1 (4.1) | |
Cycle time (min) | 112 | 60 | 14 | |
Available Options | Lower Rack | O | O | O |
Speed Booster | O | X | X | |
Zone Booster | X | O | X | |
Hi-Temp Wash | X | O | X | |
Sanitize | X | O | X | |
Delay Start | O | O | O |
