Port panel detail and VESA screw hole specs: N5200

The ports for the TV are located in the back on the left-hand side.

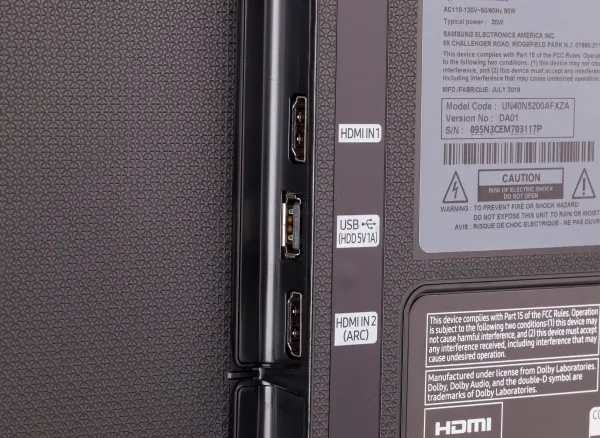

Port panel detail

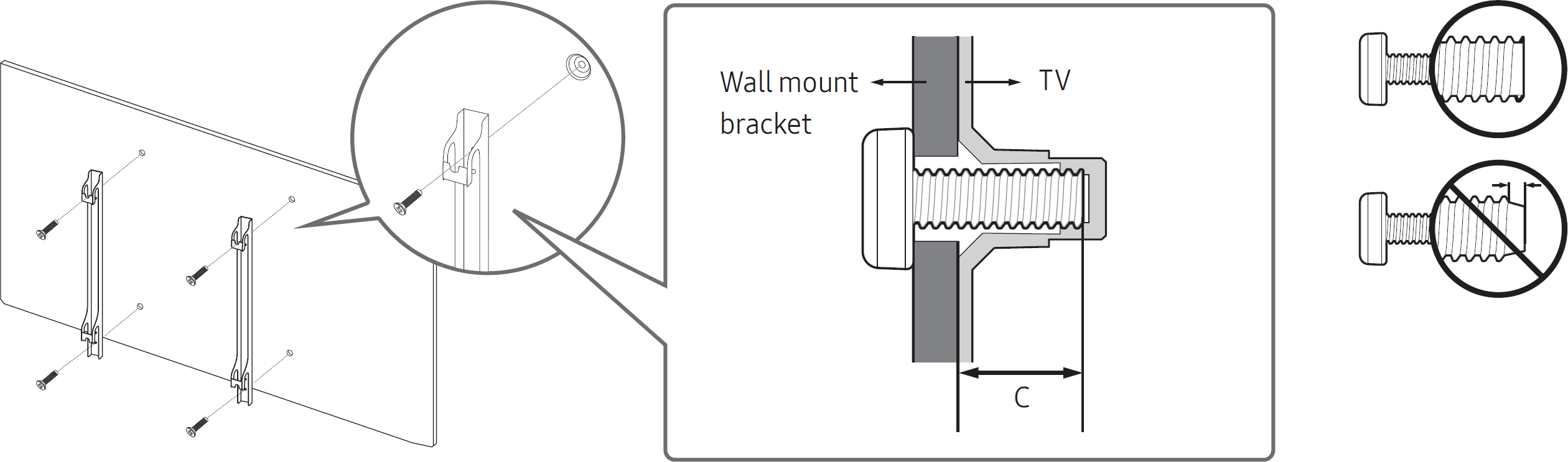

VESA screw hole specs

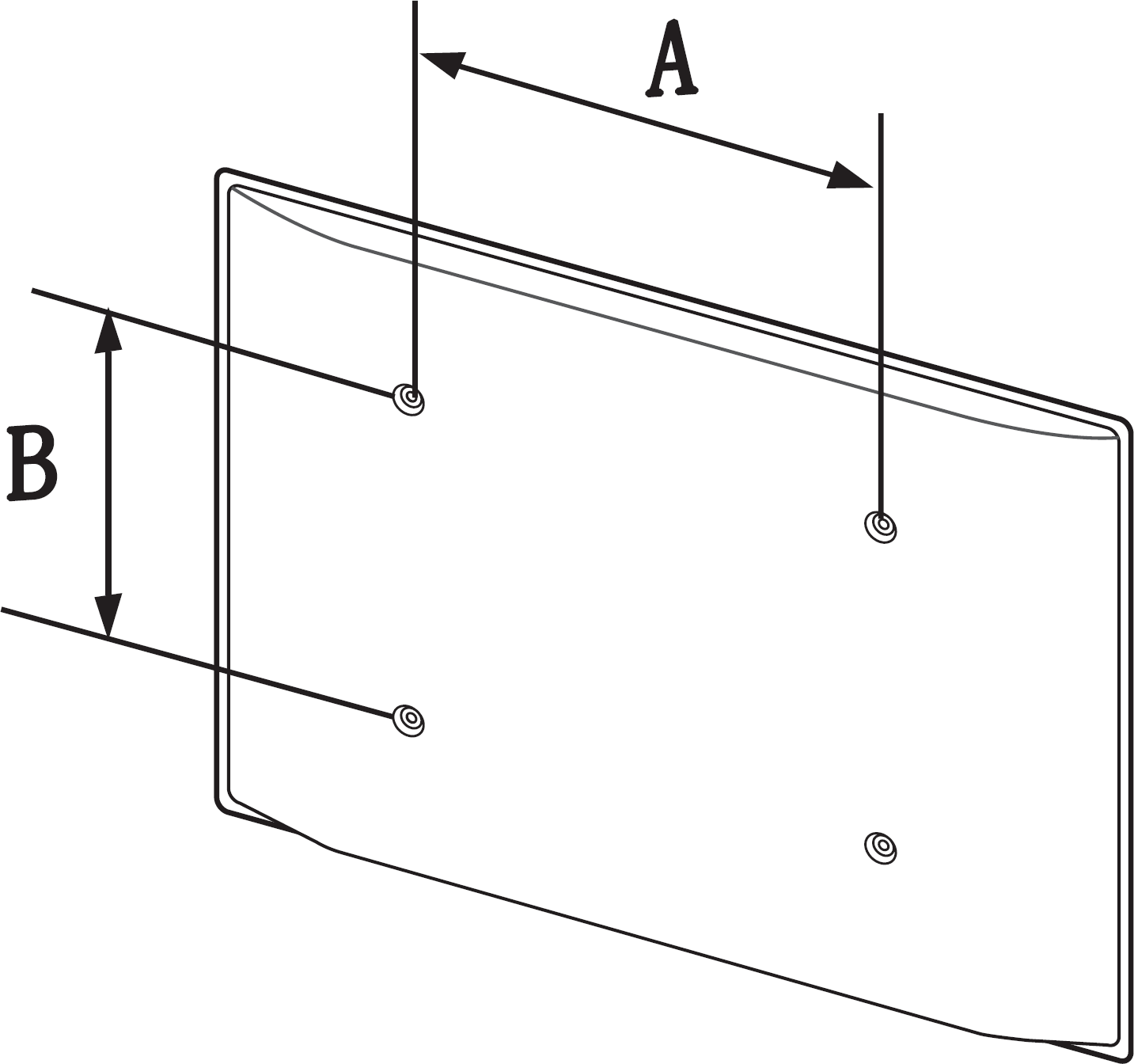

*VESA screw hole specs (A B) in millimeters**	C (mm)	Standard Screw	Pitch	Quantity
200 X 200	20 - 21	M8	1.25	4
