Back Ports, One Connect Mini, and VESA screw hole specs: JS8500
The ports are located on the back, on the left. More ports are available on the One Connect Mini.
Back Ports
A picture of the back panel of this model was not found. If you come across a picture, please leave feedback on this article with the transaction number (or link to the picture, if it's not attached to a ticket).
- EX-LINK: This port allows serial control of the TV and is typically only used by service technicians.
- USB 3.0 (TV CAMERA): This USB port is for connecting a webcam.
- ONE CONNECT MINI: This port connects the One Connect Mini to the TV.
- LAN: A wired connection that can be used to link the TV to your home's Local Area Network (LAN).
- COMPONENT IN / AV IN: Provides an audio and video signal for older devices using RCA plugs. Two connection types are possible, either three cables (red/white/yellow) for standard AV signal, or five cables (red/white for audio and red/green/blue for video) for a superior component connection, which provides a better quality image.
- AUDIO OUT: This port can be used to connect to an audio output device, such as a soundbar or home theater, or for TV's 27 inch and smaller, headphones.
- ANT IN: The Antenna In port provides both video and audio input from an over-the-air (OTA) antenna.
One Connect Mini
- USB (HDD 5V1A): This USB port provides a full amp in order to power a hard drive.
- STB: Works with any HDMI device, but is recommended to connect a Set Top Box (or cable box) to help keep track of which device is connected to which port.
- DVI: Works with any HDMI device, but is recommended to connect a DVI device (such as a PC) to help keep track of which device is connected to which port.
- MHL: Works with any HDMI device, but is recommended to connect an MHL device (such as a phone) to help keep track of which device is connected to which port.
- ARC: Audio Return Channel (ARC) indicates the HDMI port to use to connect to an audio output device, such as a soundbar or home theater. It also allows video input that passes through that device to be displayed on the TV. This port supports more channels and sound quality options than the optical connection. It can also work as a regular HDMI input port for any HDMI device.
- DIGITAL AUDIO OUT (OPTICAL): This port can be used to connect to an audio output device, such as a soundbar or home theater. It supports up to 5.1 channel audio.
- ONE CONNECT MINI: This port connects the One Connect Mini to the TV.

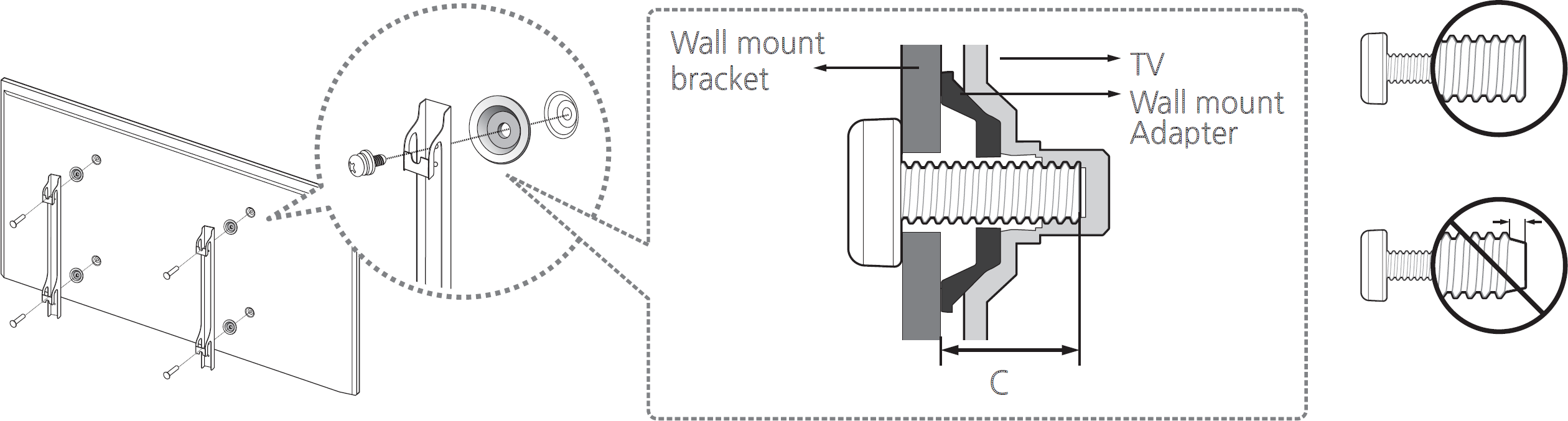

VESA and screw specs
| TV size in inches | VESA screw hole specs (A * B) in millimeters | (C) (mm) | Standard Screw | Quantity |
| 48 | 400 x 400 | 20.7 ~ 21.7 | M8 | 4 |
| 55 | ||||
| 65 |
