One Connect and VESA screw hole specs: HU9000
The ports are located on the One Connect box.
One Connect
- USB (HDD 5V1A): This USB port provides a full amp in order to power a hard drive.
- USB (5V 0.5A): This USB port provides half an amp.
- IR OUT: This TV has a universal remote control feature that lets you control cable boxes, Blu-ray players, home theaters, and other third-party external devices connected to the TV using the TV's remote control. Insert the IR Extender’s plug into the IR Out port on the One Connect. Place the other end of the IR Extender (the Transmitter) no more than 2 inches from the external device. Face the IR Extender’s transmitter toward the external device’s remote control signal receiver. Note that there should be no obstacles between the IR Extender and the external device. Any obstacles will interfere with the transmission of the remote control signal.
- DIGITAL AUDIO OUT (OPTICAL): This port can be used to connect to an audio output device, such as a soundbar or home theater. It supports up to 5.1 channel audio.
- ANT IN: The Antenna In port provides both video and audio input from an over-the-air (OTA) antenna.
- STB: Works with any HDMI device, but is recommended to connect a Set Top Box (or cable box) to help keep track of which device is connected to which port.
- DVI: Works with any HDMI device, but is recommended to connect a DVI device (such as a PC) to help keep track of which device is connected to which port.
- ARC: Audio Return Channel (ARC) indicates the HDMI port to use to connect to an audio output device, such as a soundbar or home theater. It also allows video input that passes through that device to be displayed on the TV. This port supports more channels and sound quality options than the optical connection. It can also work as a regular HDMI input port for any HDMI device.
- MHL: Works with any HDMI device, but is recommended to connect an MHL device (such as a phone) to help keep track of which device is connected to which port.
- LAN: A wired connection that can be used to link the TV to your home's Local Area Network (LAN).
- COMPONENT IN / AV IN: Provides an audio and video signal for older devices using RCA plugs. Two connection types are possible, either three cables (red/white/yellow) for standard AV signal, or five cables (red/white for audio and red/green/blue for video) for a superior component connection, which provides a better quality image.
- EX-LINK: This port allows serial control of the TV and is typically only used by service technicians.
- ONE CONNECT: This port connects the One Connect to the TV.
VESA and screw specs

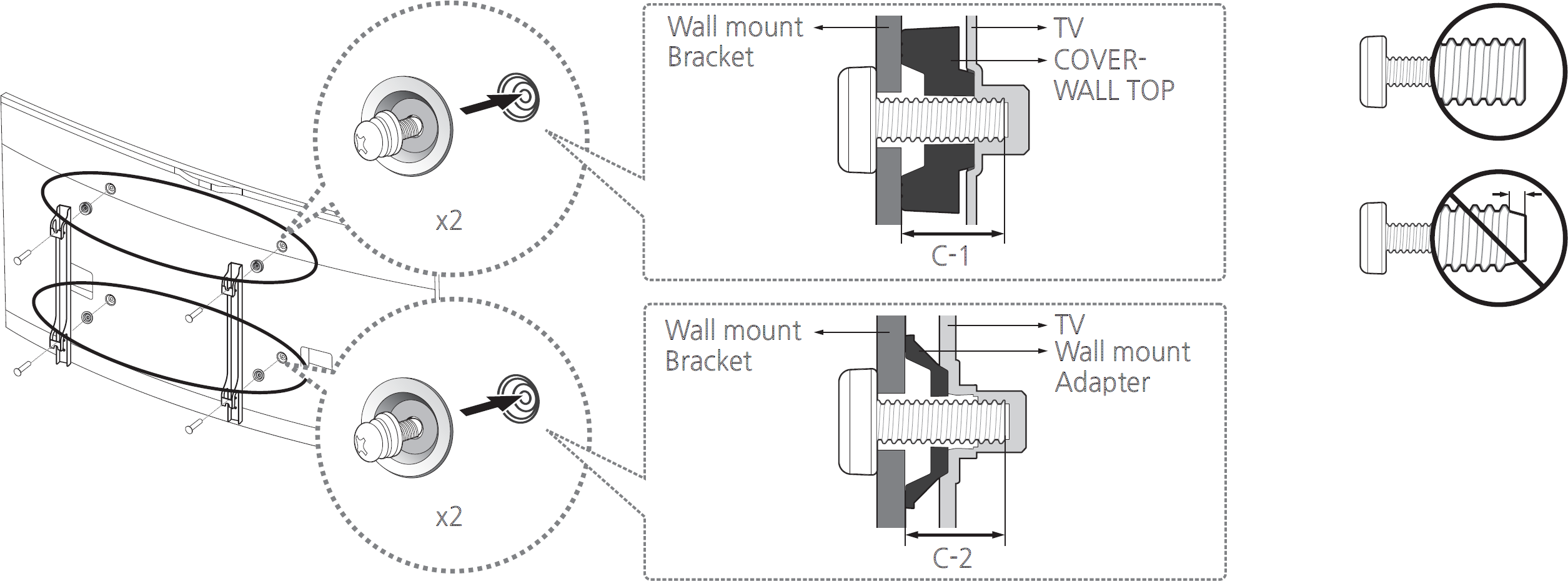

UN55HU9000F

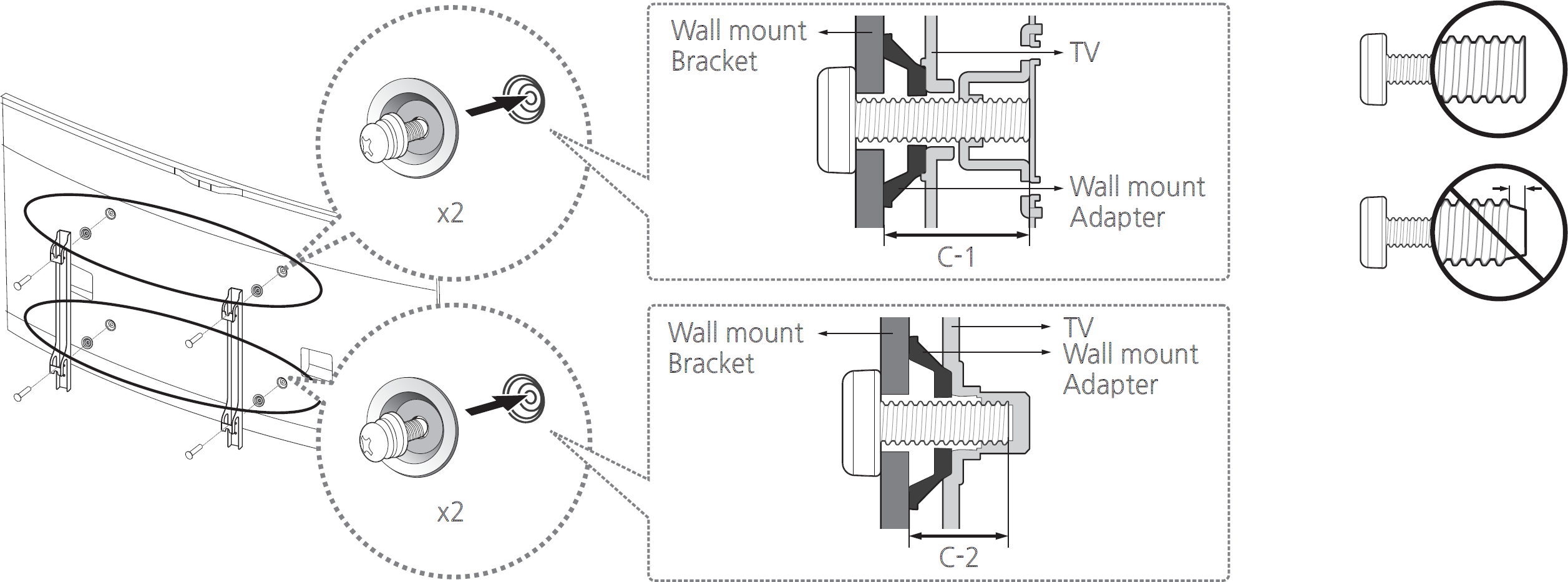

UN65HU9000F
| TV size in inches | VESA screw hole specs (A * B) in millimeters | C (mm) | Standard Screw | Quantity | |
| C-1 | C-2 | ||||
| 55 | 400 x 400 | 25.4 ~ 31.3 | 23.3 ~ 27.8 | M8 | 4 |
| 65 | 22.1 ~ 34.1 | 22.1 ~ 26.5 | |||
| 78 | 600 x 400 | 31.3 ~ 34.6 | |||
