Control panel, Calibration mode, and Cycle chart: WA54R7200A* / WA50R5200A*

The panel can be found at the top of the washer, at the back.

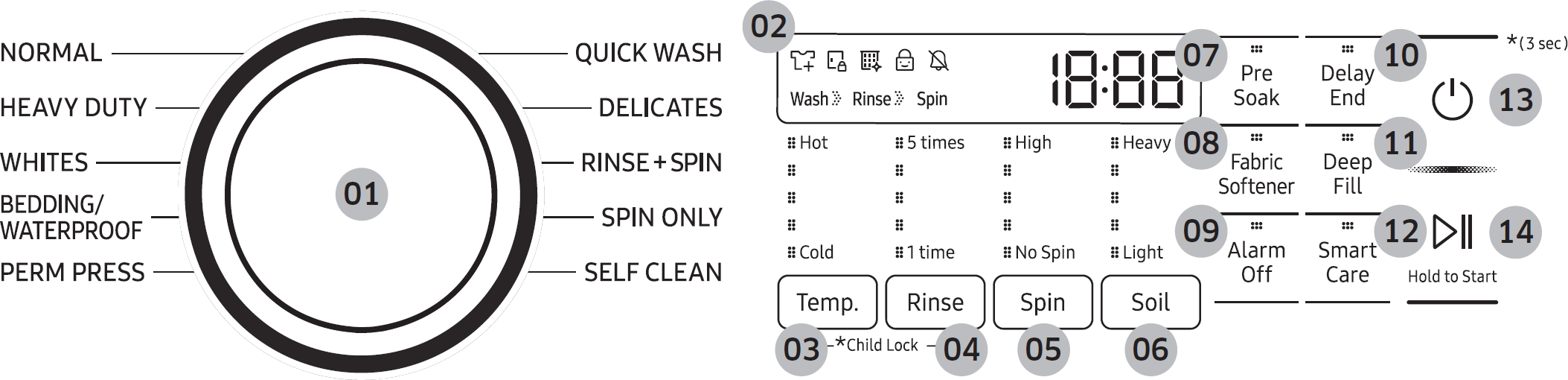

Control panel

- Cycle Selector
- Display
- Temp.
- Rinse
- Spin
- Soil
- Pre Soak
- Fabric Softener
- Alarm Off
- Delay End
- Deep Fill
- Smart Care
- Power
- Start/Pause (Hold to Start)
Run Calibration
Calibration ensures accurate weight detection by the washer. Make sure the tub is empty before running calibration.
- Press Power to turn on the washer.
- Press and hold Temp. and Delay End simultaneously for 3 seconds.
- Press Start/Pause (Hold to Start) to start calibration.
- The tub rotates clockwise for approximately 2 minutes.
- When complete, “0” appears on the display, and the washer turns off automatically.
Cycle chart
Use this chart to set the best cycle and options for your laundry.
Setting | Temp. | Rinse | Spin | Soil |
● : factory setting | 5: Hot (Level 5) | 5: 5 times (Level 5) | 5: High (Level 5) | 5: Heavy (Level 5) |
○: can be selected | 4: (Level 4) | 4: (Level 4) | 4: (Level 4) | 4: (Level 4) |
3: (Level 3) | 3: (Level 3) | 3: (Level 3) | 3: (Level 3) | |
2: (Level 2) | 2: (Level 2) | 2: (Level 2) | 2: (Level 2) | |
1: Cold (Level 1) | 1: 1 time (Level 1) | 1: No Spin (Level 1) | 1: Light (Level 1) |
Cycle | Temp. | Rinse | ||||||||
5 | 4 | 3 | 2 | 1 | 5 | 4 | 3 | 2 | 1 | |
NORMAL | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
HEAVY DUTY | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
WHITES | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● | ○ |
DELICATES | - | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● |
PERM PRESS | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
BEDDING/WATERPROOF | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ● | ○ |
QUICK WASH | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
RINSE+SPIN | - | - | - | - | - | ○ | ○ | ○ | ○ | ● |
SPIN ONLY | - | - | - | - | - | - | - | - | - | - |
SELF CLEAN | ● | - | - | - | - | - | - | - | ● | - |
Cycle | Spin | Soil | ||||||||
5 | 4 | 3 | 2 | 1 | 5 | 4 | 3 | 2 | 1 | |
NORMAL | ○ | ● | ○ | - | ○ | ○ | ○ | ● | ○ | ○ |
HEAVY DUTY | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ |
WHITES | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ |
DELICATES | - | - | ○ | ● | ○ | - | - | - | - | ● |
PERM PRESS | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | ○ |
BEDDING/WATERPROOF | - | ○ | ● | ○ | ○ | ○ | ○ | ● | ○ | ○ |
QUICK WASH | ○ | ● | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ● |
RINSE+SPIN | ○ | ● | ○ | ○ | ○ | - | - | - | - | - |
SPIN ONLY | ○ | ● | ○ | ○ | ○ | - | - | - | - | - |
SELF CLEAN | - | - | ● | - | - | - | - | - | - | - |
Cycle | Options | ||
Pre Soak | Fabric Softener | Deep Fill | |
NORMAL | ○ | ○ | - |
HEAVY DUTY | ○ | ○ | ○ |
WHITES | ○ | ○ | ○ |
DELICATES | - | ○ | ○ |
PERM PRESS | ○ | ○ | ○ |
BEDDING/WATERPROOF | ○ | ○ | - |
QUICK WASH | - | ○ | ○ |
RINSE+SPIN | - | ○ | ○ |
SPIN ONLY | - | - | - |
SELF CLEAN | - | - | - |
