Control panel, Calibration mode, and Cycle chart: WA45T3400**, WA44A34**A*
The controls for this model are found at the top, at the back.

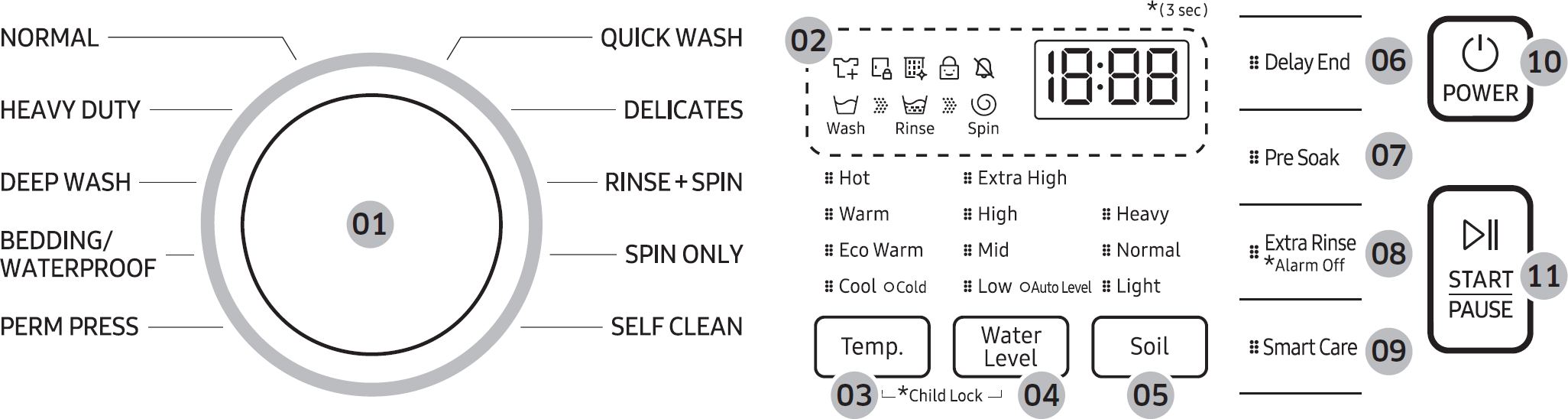

Control panel
- Cycle Selector
- Display
- Temp.
- Water Level
- Soil
- Delay End
- Pre Soak
- Extra Rinse
- Smart Care
- POWER
- START/PAUSE
Run Calibration
Calibration ensures accurate weight detection by the washer. Make sure the tub is empty before running calibration.
- Press POWER to turn on the washer.
- Press and hold Temp. and Delay End simultaneously for 3 seconds.
- Press START/PAUSE to start calibration.
- The tub rotates clockwise for approximately 2 minutes.
- When complete, “0” appears on the display, and the washer turns off automatically.
Run Calibration Mode periodically for more accurate weight detection.
Cycle chart
Use this chart to set the best cycle and options for your laundry.
| Setting | Temp. | Water Level | Soil |
| ●: factory setting | H: Hot | EH: Extra High | H: Heavy |
| ○: can be selected | W: Warm | H: High | N: Normal |
| EW: Eco Warm | M: Mid | L: Light | |
| C: Cool | L: Low | ||
| CD: Cold | AL: Auto Level |
| Cycle | Functions | Option | ||||||||||||||
| Temp. | Water Level | Soil | Pre Soak | Extra Rinse | Delay End | |||||||||||
| H | W | EW | C | CD | EH | H | M | L | AL | H | N | L | ||||
| NORMAL | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ |
| HEAVY DUTY | ○ | ● | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ | ○ |
| DEEP WASH | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ | ||
| BEDDING/WATERPROOF | ○ | ○ | ○ | ● | ○ | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ | |
| PERM PRESS | ○ | ● | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ○ | ○ | |
| QUICK WASH | ○ | ● | ○ | ○ | ○ | ○ | ○ | ● | ○ | ○ | ○ | ● | ○ | ○ | ||
| DELICATES | ○ | ○ | ● | ○ | ○ | ○ | ● | ○ | ● | ○ | ○ | |||||
| RINSE+SPIN | ○ | ● | ○ | ○ | ○ | ○ | ||||||||||
| SPIN ONLY | ● | ○ | ||||||||||||||
| SELF CLEAN | ● | ● | ○ | |||||||||||||
