Control Panel: NQ70*5***D*
The control panel for this model is a digital display with the left side used for the upper (microwave) oven and the right side used for the lower oven. Icons and other information are shown in the middle of the display.

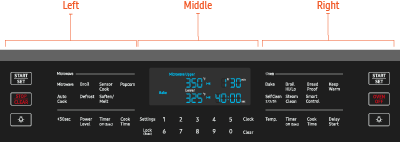

Overview

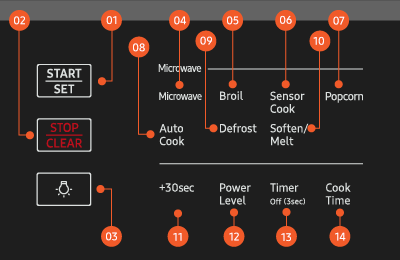

Left - Upper Microwave Oven
- START/SET
- STOP/CLEAR
- Lamp
- Microwave
- Broil
- Sensor Cook
- Popcorn
- Auto Cook
- Defrost
- Soften/Melt
- +30sec
- Power Level
- Timer Off (3sec)
- Cook Time

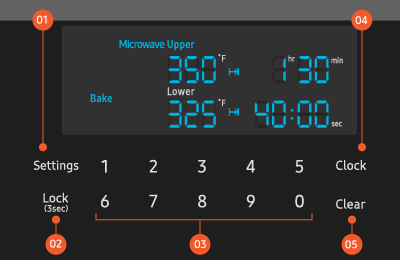

Middle - Display and Number pad
Note: For icons on the panel, see An icon appears on my Samsung oven display. For error codes, see Samsung range or wall oven error codes.
- Settings
- Lock (3sec)
- Number pad
- Clock
- Clear

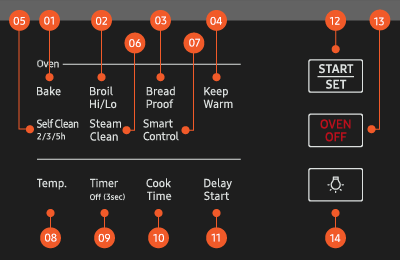

Right - Lower Oven
- Bake
- Broil Hi/Lo
- Bread Proof
- Keep Warm
- Self Clean 2/3/5h - see Clean your Samsung oven
- Steam Clean - see Clean your Samsung oven
- Smart Control
- Temp.
- Timer Off (3 sec)
- Cook Time
- Delay Start
- START/SET
- OVEN OFF
- Lamp
Demo mode
(See Oven does not heat)
- Touch Settings, and then touch 0 on the number pad.
- Touch 1 (On) or 2 (Off) on the number pad.
- Touch START/SET to save the changes.
Temp Adjust
(See Oven does not cook well)
- Touch Settings, and then touch 1 on the number pad.
- Touch Settings to select higher or lower than the current temperature.
- Enter the adjustment you want to make using the number pad. (±35)
- Touch START/SET to save the changes.
Sabbath feature
(See Use Sabbath mode on your refrigerator or oven)
- Touch Bake. The default temperature is 350 degrees Fahrenheit.
- Enter the temperature you want, eg. 375 degrees Fahrenheit, by using the number pad.
- Touch START/SET. The temperature display will start to change once the oven temperature reaches 175 degrees Fahrenheit.
- Touch Bake and the Number 1 at the same time for 3 seconds.
The display will show "SAb".- Note: Once "SAb" appears in the display, the oven will not beep or display any further changes. You may change the oven temperature once baking has started.
Remember that the oven will not beep or display any further changes once the Sabbath feature is engaged.
- Note: Once "SAb" appears in the display, the oven will not beep or display any further changes. You may change the oven temperature once baking has started.
- To deactivate the Sabbath feature, touch Bake and the Number 1 at the same time for 3 seconds. "SAb" will disappear from the display.
- Note: You can turn the oven off at any time by touching OVEN OFF. This will turn only the oven off.
