The oven control panel, Setting the clock, Temp Adjust, Demo mode, and Using the Sabbath feature: NE63*611*S*

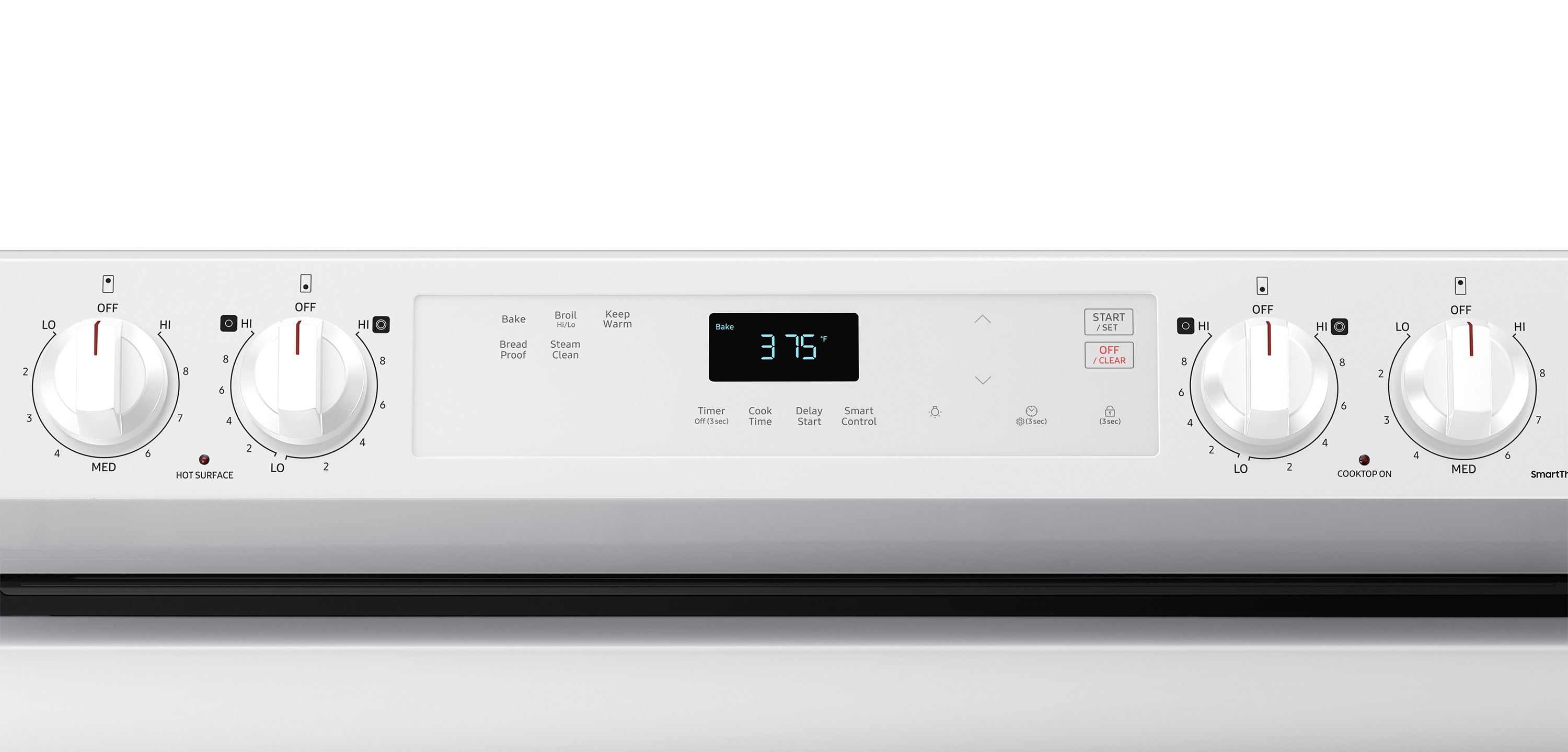

The range knobs and oven control panel are behind and above the cooktop.

The oven control panel, Setting the clock, Temp Adjust, Demo mode, and Using the Sabbath feature: NE63*611*S*

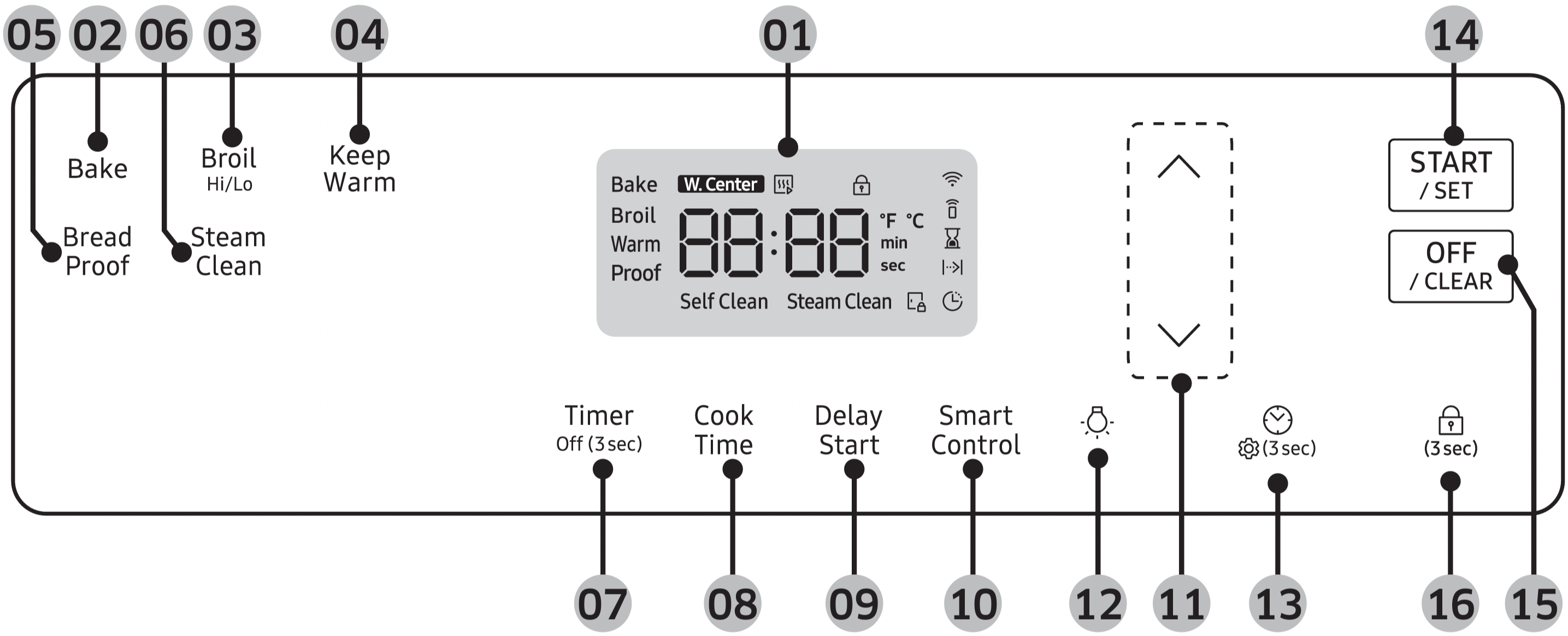

Control Panel

  1. Display
  2. Bake
  3. Broil
  4. Keep Warm
  5. Bread Proof
  6. Steam Clean
  7. Timer
  8. Cook Time
  9. Delay Start
  10. Smart Control
  11. Up / Down
  12. Lamp
  13. Clock / Setting
  14. START / SET
  15. OFF / CLEAR
  16. Oven lock

Setting the clock

  1. Press and hold the Clock/Setting button.
  2. Enter the current time using Up/Down.
  3. Press Clock or START/SET to save the changes.

Temp Adjust

The oven temperature can be adjusted ±35 °F (±19 °C ).


  1. Press and hold the Clock/Setting button for 3 seconds.
  2. Press Up or Down to select 1, and then press START/SET.
  3. Press Up or Down to select the desired temperature you want to adjust. (-35~35)
  4. Press START/SET to save the changes.

Demo mode

  1. Press and hold the Clock/Setting button for 3 seconds.
  2. Press Up or Down to select 0, and then press START/SET.
  3. Press Up or Down to select ON or OFF.
  4. Press START/SET to save the changes.

Sabbath feature

  1. Press Bake.
    The default temperature is 350 °F.
  2. Enter the temperature you want, e.g., 375 °F.
  3. Press START/SET.
    The temperature display will start to change once the oven temperature reaches 175 °F.
  4. Press Bake and Up at the same time for 3 seconds.
    The display will show SAb.
    Once SAb appears in the display, the oven will not beep or display any further changes.
    You may change the oven temperature once baking has started. Remember that the oven will not beep or display any further changes once the Sabbath feature is engaged.
  5. You can turn the oven off at any time by pressing OFF/CLEAR. This will turn only the oven off. If you want to deactivate the Sabbath feature, hold down Bake and Up at the same time for 3 seconds. Sab will disappear from the display.
