Main panel, Cooling Off, and Sabbath Mode: RF32CG****** / RF27CG******

Main panel, Cooling Off, and Sabbath Mode: RF32CG / RF27CG

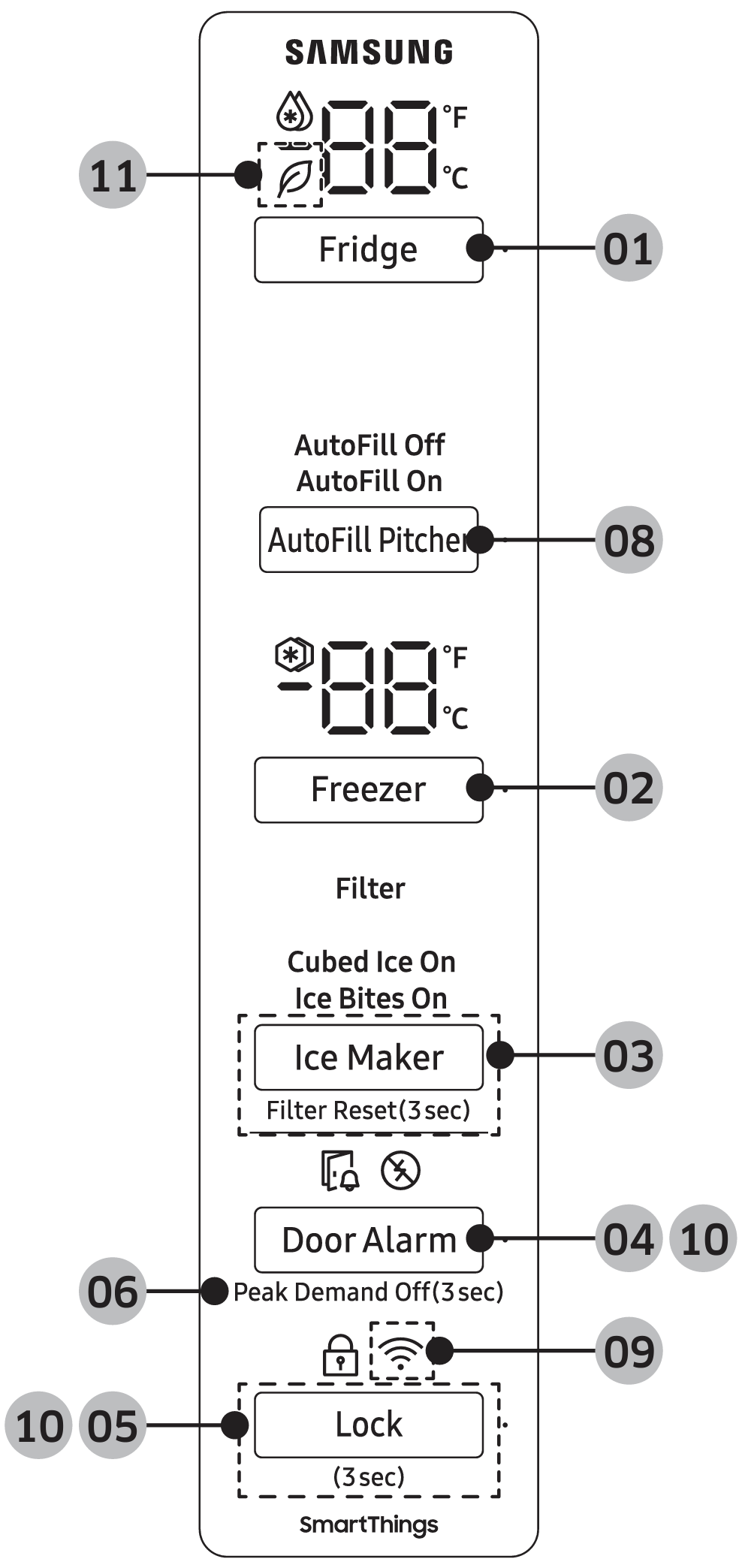

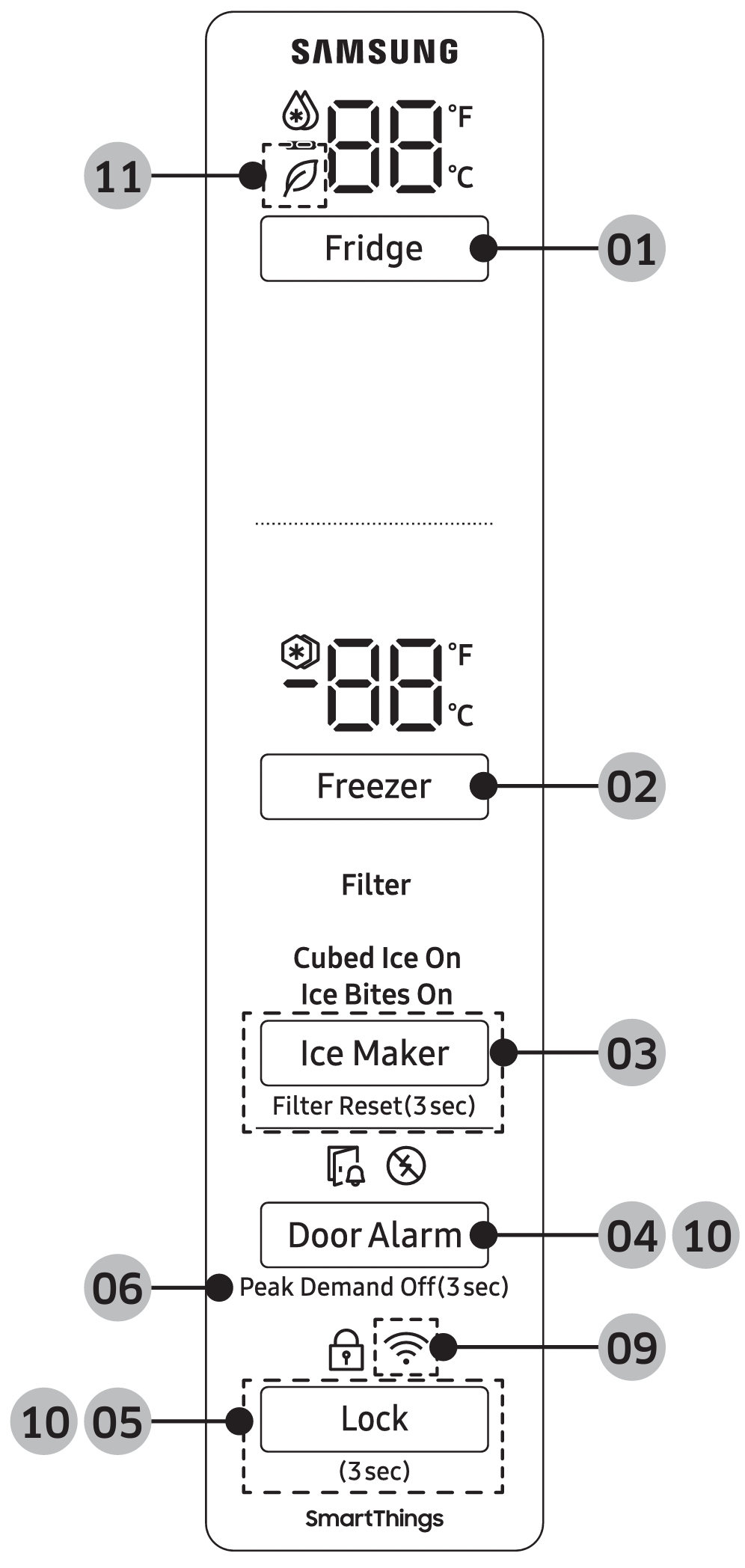

The main panel for the refrigerator is inside on the right.

Main panel, Cooling Off, and Sabbath Mode: RF32CG / RF27CG

5100 - No dispenser

5300 - AutoFill Pitcher

5400 - Water/Ice Dispenser

5100 - No dispenser

5300 - AutoFill Pitcher

5400 - Water/Ice Dispenser

Picture (5100)

Picture (5300)

Picture (5400)

Illustration (5100)

Illustration (5300)

Illustration (5400)

Fridge / °F °C (3 sec)
Freezer
Ice Maker / Filter Reset
Door Alarm
Lock (3 sec)
Peak Demand Off
Water/Ice / Dispenser Lock (5400)
AutoFill Pitcher (5300)
Network connection
Sabbath Mode
AI Energy Mode

Cooling Off mode

Cooling Off mode (also called Shop mode) is designed for retailers to display refrigerators on a retail floor. In the Cooling Off mode, the refrigerator’s fan motor and lights operate normally, but the compressors do not run, so neither the refrigerator nor the freezer become cold.

When the Cooling Off mode is on, the refrigerator chime sounds, and the refrigerator shows "0" on the fridge indicator and "FF" on the freezer indicator.
To enter or exit the Cooling Off mode, follow the below instructions.
- [5400]: Simultaneously press and hold Fridge and the dotted line (A) on the main panel for 6 seconds. Then, when the display blinks, press Door Alarm.
- [5100]: Simultaneously press and hold Fridge and the dotted line (A) on the main panel for 6 seconds. Then, when the display blinks, press Lock.
- [5300]: Simultaneously press and hold Fridge and the AutoFill Pitcher on the main panel for 6 seconds. Then, when the display blinks, press Lock.

Read less

Sabbath mode

The Sabbath mode stays active for 85 hours once it is activated. After that, it will be deactivated automatically.

To activate or deactivate the Sabbath mode, simultaneously press and hold the following buttons for 5 seconds.
- [5400]: Water/Ice and Door Alarm
- [5100, 5300]: Door Alarm and Lock

Note

If the refrigerator powers off and restarts (for example, if there is a power failure), the Sabbath mode remains active. To end Sabbath Mode, you must deactivate it as instructed above.

Read less
