Specs

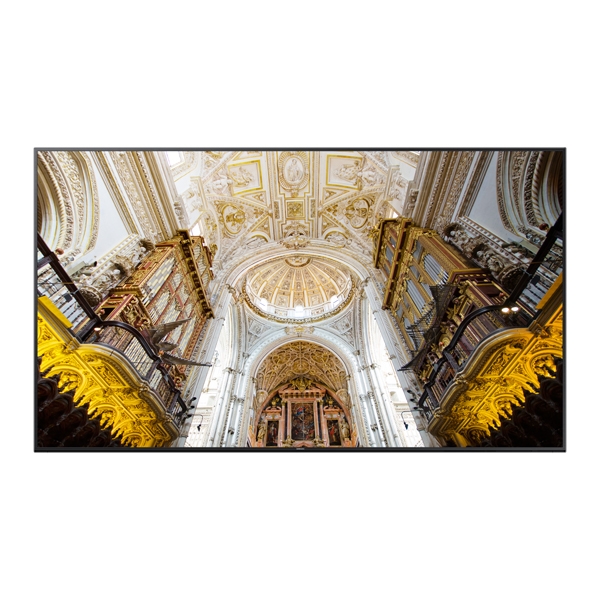

QM-N Series Digital Signage (QM85N)
Specification
QM-N Series Digital Signage (QM85N)
Series Name
QM85N
Display
85"
3840 x 2160
500 nits
3000:1
MEGA
178/178
8ms
Connectivity
RGB: DVI-D, Display Port 1.2 (1)
VIDEO: HDMI 2.0 (2)
HDCP: HDCP2.2
AUDIO: Stereo mini Jack, DVI, HDMI
USB: USB 2.0 x 2
RGB: HDMI 2.0 (Loop-out)
AUDIO: Stereo mini Jack
RS232C(in/out) thru stereo jack, RJ45
IR
Power
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Environmental Conditions
0℃~ 40℃
10~80%
Features
UHD Signage Display
Slim & Light Signage with
Built-in MagicInfo S6, SSSP 6.0
HARDWARE: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT
SOFTWARE: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Yes
Yes
Built in Speaker(10W + 10W)
Internal Player
Coretex A72 1.7GHz Quad-Core CPU
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
1.7GHz
2.5GB
LPDDR4 1.5GHz 64bit
Graphic Resolution: 1920x1080
Output Resolution: 3840x2160 (Scale up from graphic processing result.)
8GB
(3.88GB Occupied by O/S, 4.12GB Available)
Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9
Audio Decoder: AC3 (DD), MPEG
USB 2.0
Tizen 4.0 (VDLinux)
Dimensions
1903.4 x 1090.5 x 105.1 mm
2050 x 1265 x 472 mm
16.2mm (Top, Side) / 19.3mm (Bottom)
Weight
50.7 kg
66.0 kg
Accessories
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
WMN8200SD
Mechancial Specs
600 x 400
