55" VHC-R Series 700nit FHD Video Wall
Check availability in your area:
Finding the perfect fit can be a challenge. Now you can shop worry-free unlike ever before.

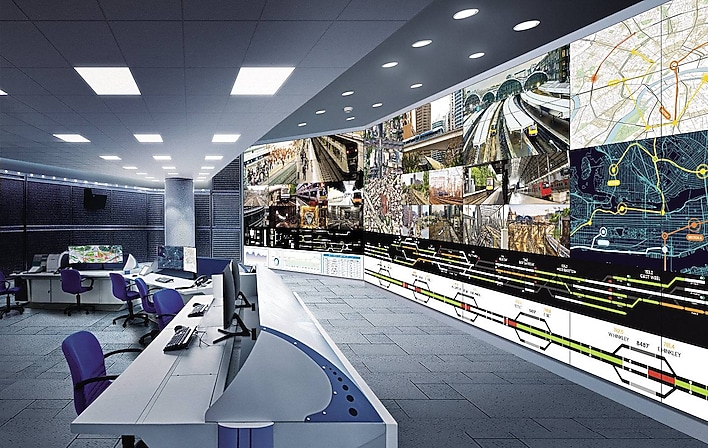

With an exceptionally narrow bezel measuring just 0.44 mm and equipped with Samsung’s advanced picture enhancement technology along with wide viewing angles, the VHC-R delivers an impactful and seamless experience. Its modern, slim design allows the display to blend into any business environment.

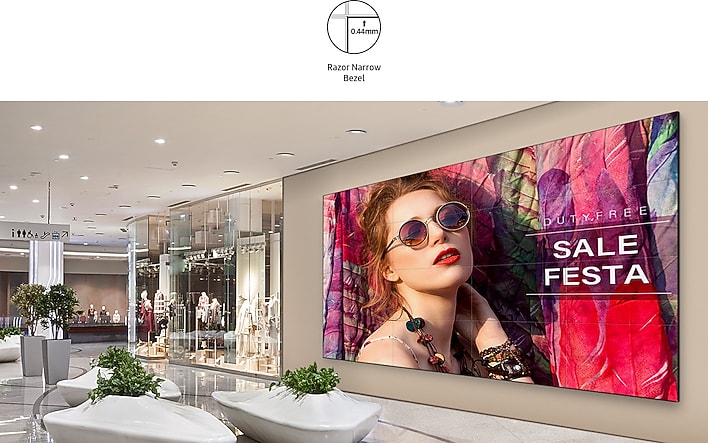

An exceptionally thin 0.44 mm even bezel — a bezel-to-bezel depth of 0.88 mm — enables content to be delivered as one seamless image. Additionally, the display helps to eliminate any potential image distortion and provides a more immersive viewing experience.

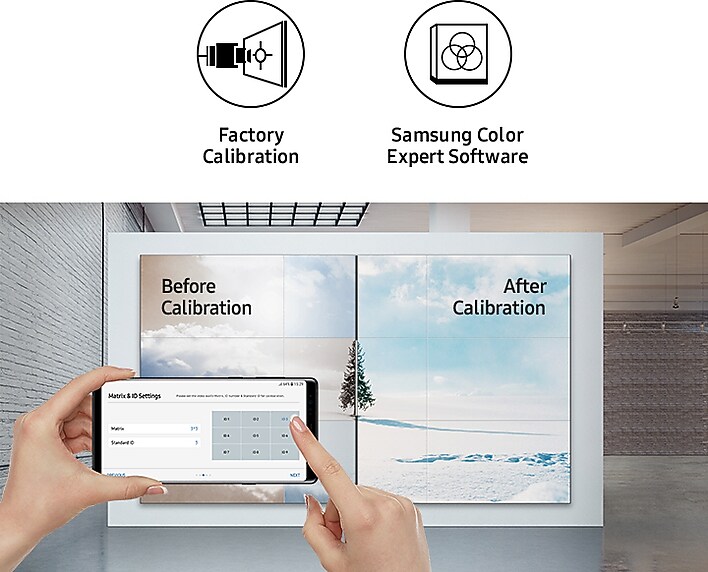

Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 3x3 using a mobile camera.
Samsung’s powerful image enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.
The impressive 700 nit brightness enables businesses to deliver clear, accurate information 24/7, with a brilliant image presentation. The display's non-glare panels provide improved visibility regardless of ambient light, ensuring critical information is always visible.

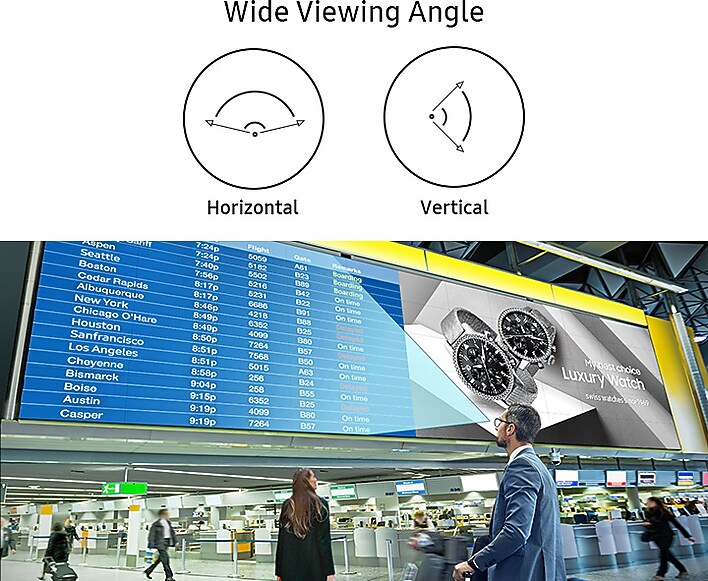

The wide viewing angles ensure that relevant content is easily visible even if viewers aren't standing directly in front of the display. Regardless of the video wall layout or location, the information displayed will be clearly seen by audiences from any angle.

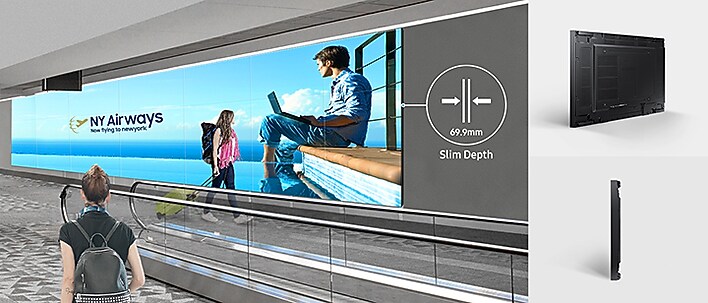

With an ultra-slim depth (less than 70 mm), the space-saving VHC-R display allows for an elevated design aesthetic, creating a clean, modern look for retail and other public spaces.

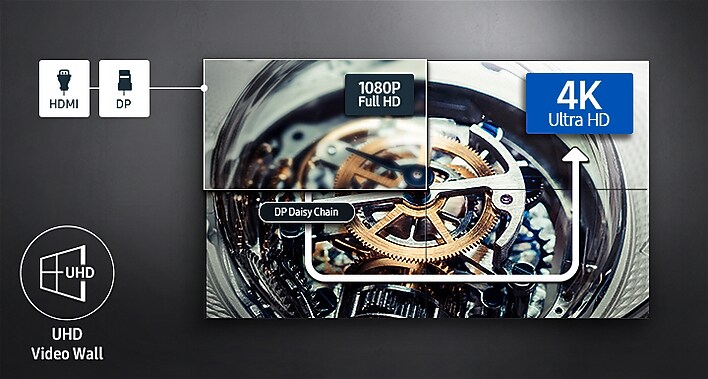

Samsung video walls provide an impressive UHD viewing experience with minimal effort. With daisy chain design utilizing DisplayPort 1.2 and HDMI ports, the VHC-R display can project UHD content across multiple screens, up to 5 x 5, without requiring an external graphics card or UHD splitters.
The VHC-E series is EMC class B compliant*, meeting strict standards of electromagnetic wave emission, while IP5x certification** protects the display against dust and other conditions. The display packaging also passed a rigorous 2-step, ISTA certified*** test to minimize possible damage during delivery.

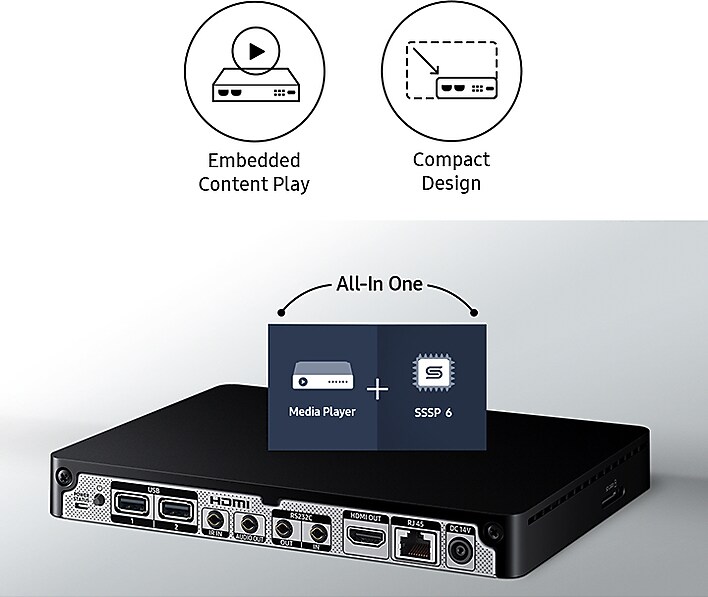

The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing in at just 0.6 kg, including the embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.
Contrast Ratio (Dynamic)
500,000:1
Orientation
Landscape / Portrait
H-Scanning Frequency
65kHz ~ 70kHz
V-Scanning Frequency
47Hz ~ 63Hz
Maximum Pixel Frequency
77MHz
RGB Input
DVI-D, Display Port 1.2
VIDEO Input
HDMI 2.0 (2)
HDCP Input
HDCP 2.2
AUDIO Input
Stereo mini Jack
USB Input
Only F/W upgrade
RGB Output
DP1.2(Loop-out)
AUDIO Output
Stereo mini Jack
External Control
RS232C(in/out), RJ45
External Sensor
Detachable type(IR)
Video Output
DP1.2(Loop-out)
Power Supply
AC 100 - 240 V, 50/60 Hz
Sleep Mode
less than 0.5W
Off Mode
less than 0.5W
Power Consumption Max[W/h]
250
Power Consumption Typical[W/h]
90W
Type
Internal
Power Consumption BTU(Max)
825
Key
Extreme Narrow Bezel
Special
ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 28%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15x15(OSD)), Video Wall Daisy Chain(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(168hrs Clock Keeping) IP5X tested, EMC Class A
Included in Box
Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR
Optional Wall Mount Kit
WMN-55VD
VESA Mount
600 * 400 (mm)
Media Player Option Type
Signage player box
Set Dimension (mm)
1211.5 x 682.3 x 70
Package Dimension (mm)
1398 x 844 x 257
Set Weight (kg)
19.4
Package Weight (kg)
27.6
Bezel Width (mm)
0.9mm (Even)
Safety
60950-1
EMC
Class A
IP Rating
IP5X
Pixel Pitch(mm)
0.63mm(H) * 0.63mm(V)
Response Time(G-to-G)
8ms
Diagonal Size Class
55"
Diagonal Size Measured
54.6" / 138.7cm
Type
IPS
Resolution
1920*1080
Active Display Area(mm)
1209.6 * 680.4mm
Brightness
Max 500 cd/m2
Contrast Ratio
1,200:1
Viewing Angle(H/V)
178/178
Display Colors
8 bit - 16.7M
Color Gamut
72%
Operation Hour
24/7
Haze
28%
Operating Temperature
0℃~ 40℃
Humidity
10~80%
