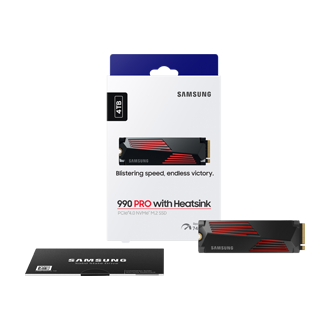

990 PRO with Heatsink PCIe 4.0 M.2

Features
Gallery
Specs
Reviews
Support
Compare

Superb SSD for gaming enthusiasts

Reach max performance of PCIe® 4.0.Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.

* PCIe 4.0’s best theoretical sequential read is 8000 MB/s - 990 PRO reaches 7450 MB/s as of Q3, 2022.

PCIe 4.0 speed maximised

Huge speed boost. 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.

* Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center * Test system configuration: AMD Ryzen 7 5800X 8-Core Processor CPU@3.80GHz, DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS - Windows 10 Pro 64bit, Chipset - ASRock-X570 Taichi* To maximize the performance of the 990 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.*4TB to be released in 2023.

Improved power efficiency

Higher performance often consumes more power. Not with the 990 PRO. Experience low power consumption with over 50% improved performance per watt over the previous model, 980 PRO.

* 980 PRO Sequential Read/Write - 1,129/877 MB/Watt, 990 PRO Sequential Read/Write - 1380/1319 MB/Watt based on internal test result of 1TB capacity model.

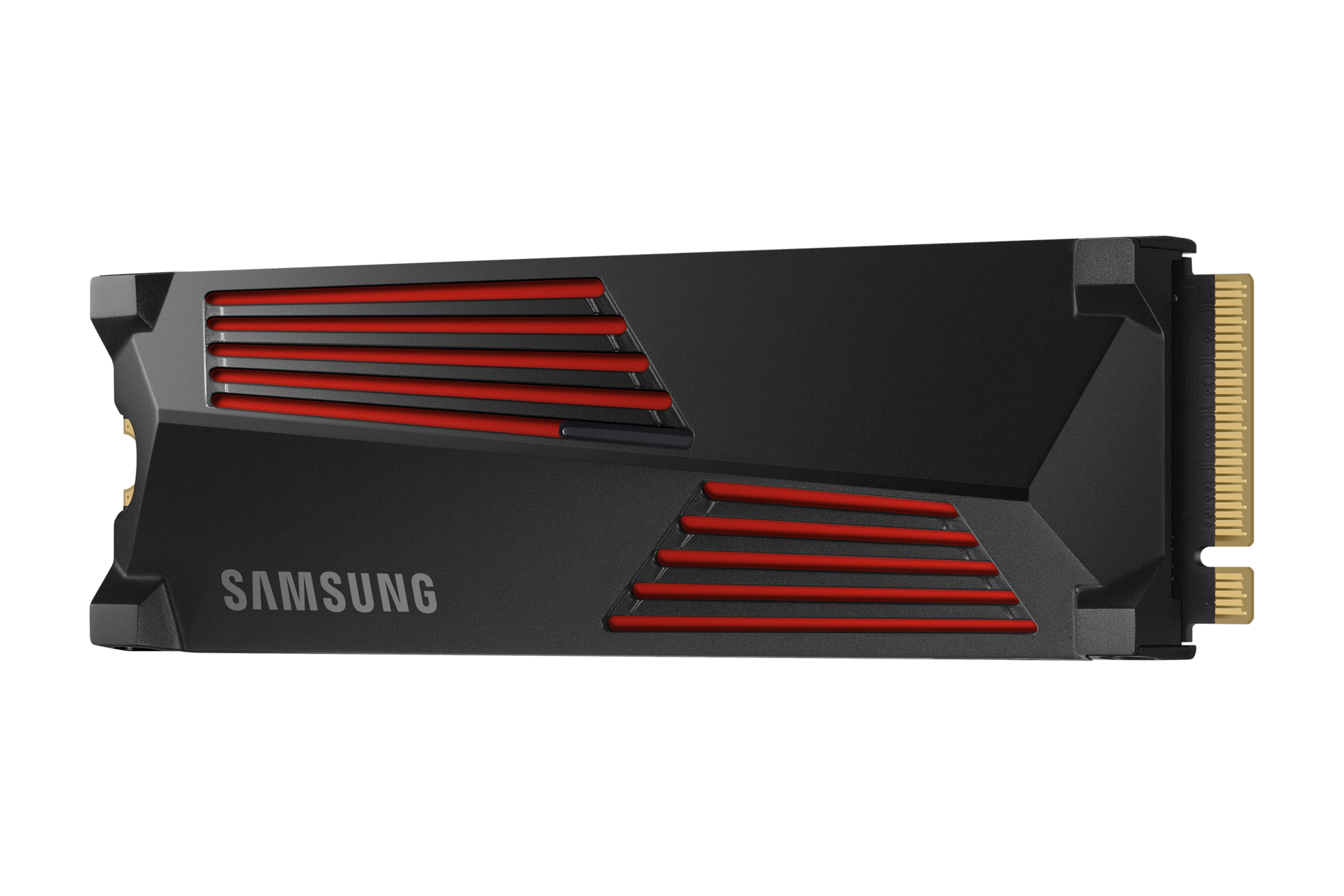

Smart thermal solution

Sink that heat. The slim heatsink dissipates heat to prevent performance drops from overheating. Get stable heat control, and minimal fan noise for heavy-graphic gaming. The thin body is compatible with PlayStation® 5, desktops and laptops meeting the PCI-SIG® D8 standard.

* PCI-SIG®D8 standard spec: 8.8mm

Game like a pro

Secure victory with 990 PRO with Heatsink's expanded 4TB capacity, empowering you with a random read speed of up to 1,600.000 IOPS. Witness faster loading times on your PC and PlayStation® 5, as it breathes life into your games.

* For M2 SSD requirements for PlayStation® 5, please visit https://www.playstation.com/support/hardware/ps5-install-m2-ssd/ * The images of PUBG: BATTLEGROUNDS have been authorised for use by KRAFTON, Inc. PUBG: BATTLEGROUNDS is a registered trademark of KRAFTON, Inc. * Image simulated for illustrative purposes. Actual usage environment may vary.

Samsung Magician software

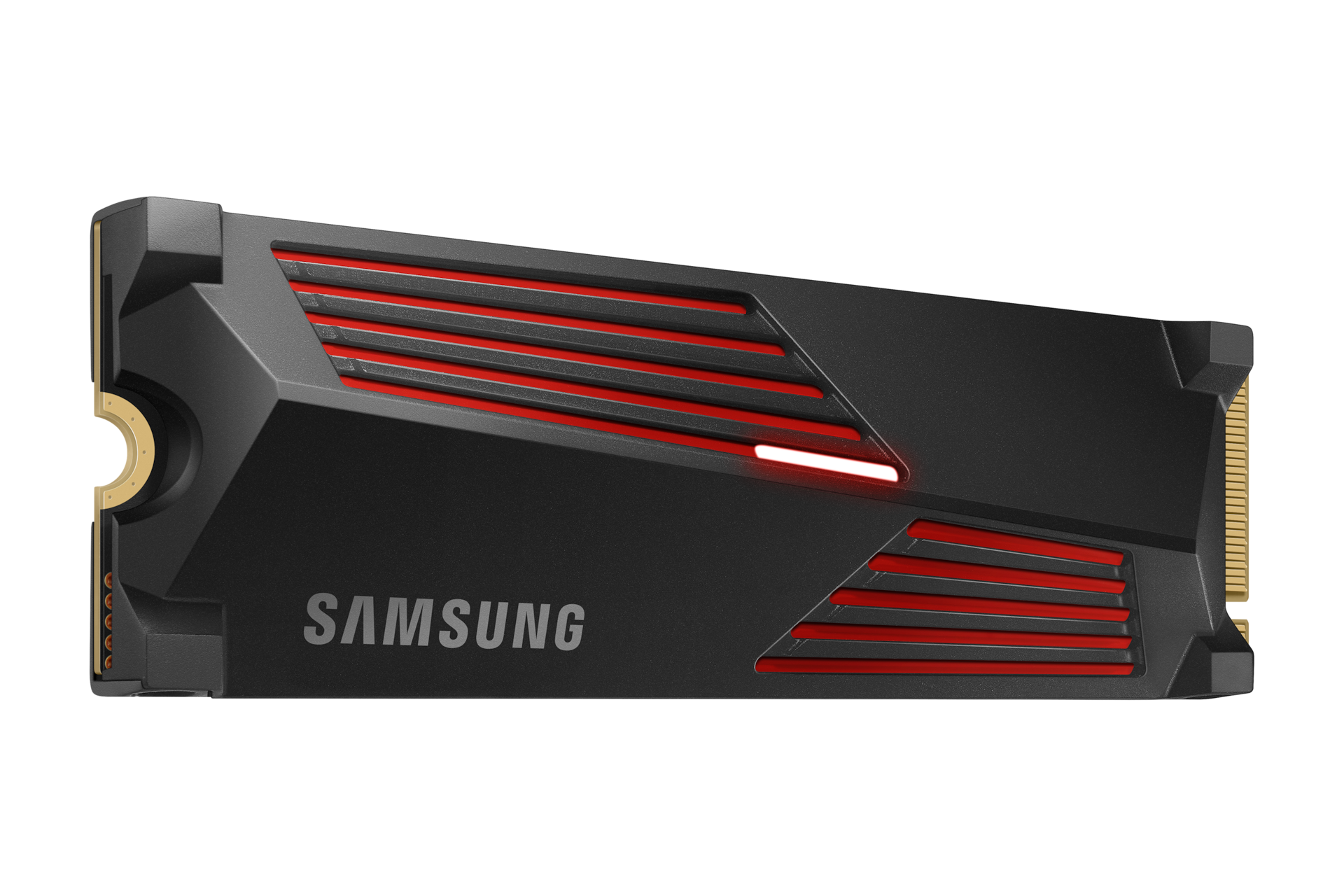

Unlock the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools always gets you the best SSD performance. Protect data, get updates, monitor drive health, and set up LED colour combinations. Your personal SSD toolkit.

* The LED display color may appear different from the color setting due to viewing angles and/or environmental factors

World's No. 1 Flash Memory

Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

* Source: 2003-2022 OMDIA data: NAND suppliers' revenue market share.

Specifications

Interface PCIe Gen 4.0 x4, NVMe 2.0
Sequential Read Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
Warranty 5-year Limited Warrantyor 2400 TBW Limited Warranty
Application Client PCs, Game Consoles
Weight Max 28.0g Weight

General Feature

Application Client PCs, Game Consoles
Capacity 4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor M.2 (2280)
Interface PCIe Gen 4.0 x4, NVMe 2.0
Dimension (WxHxD) Max 80.15 x Max 25 x Max 8.88mm (with heatsink)
Weight Max 28.0g Weight
Storage Memory Samsung V-NAND TLC
Controller Samsung in-house Controller
Cache Memory Samsung 4GB Low Power DDR4 SDRAM

Special Feature

TRIM Support Supported
S.M.A.R.T Support Supported
GC (Garbage Collection) Auto Garbage Collection Algorithm
Encryption Support AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support Not supported
Device Sleep Mode Support Yes

Performance

Sequential Read Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
Random Read (4 KB, QD32) Up to 1,600,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4KB, QD32) Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
Random Read (4 KB, QD1) Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
Random Write (4 KB, QD1) Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level) *Average: 6.5 W*Maximum: 8.6 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle) Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage 3.3 V ± 5 % Allowable voltage
Reliability (MTBF) 1.5 Million Hours Reliability (MTBF)
Operating Temperature 0 - 70 ℃ Operating Temperature
Shock 1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit Not Available

Software

Management SW Magician Software for SSD management

Warranty

5-year Limited Warrantyor 2400 TBW Limited Warranty

Hide All Specs

Support

Find answers to the questions you have about our products

FAQ

Where can I download the Samsung Data Migration Tool to back up my data to an SSD drive?
