24 Inch Interactive Display QBC-T

Contact us

24 Inch Interactive Display QBC-T

LH24QBCTBGCXEN

0 (0)
  • Small display, Big impact
  • 10 point multi-touc. Fast, effective touch capabilities
  • EMS Class B & IP5X. Safe operation & reliable performance

Choose your size

24 Inch Interactive Display QBC-T

24

Contact us

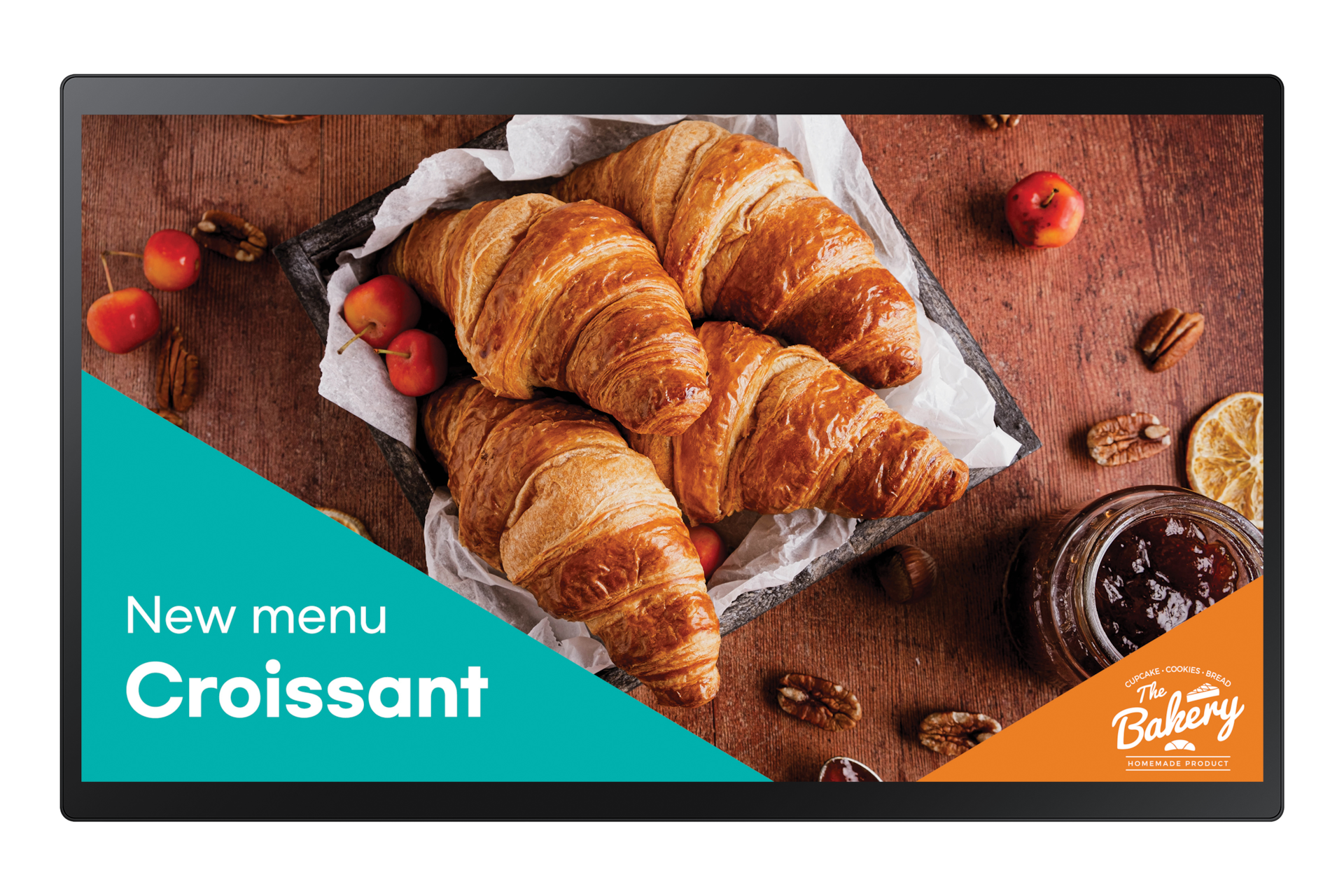

Expand commercial space with compact display

Get the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Expand commercial space with compact display Expand commercial space with compact display

Fast, effective touch capabilities

10 point multi-touch

The QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.

Fast, effective touch capabilities Fast, effective touch capabilities

Connect with convenience

Home UI

QB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Connect with convenience Connect with convenience

Convenient, clean display control

Center IR

With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Convenient, clean display control Convenient, clean display control

Safe operation, reliable performance

IP5X / EMC Class B

QB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Safe operation, reliable performance Safe operation, reliable performance

Change the way to manage your display

Samsung VXT

Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Change the way to manage your display Change the way to manage your display

* Samsung VXT must be purchased separately.

Specifications

Download

Display

  • Diagonal Size 23.8"
  • Panel Type ADS
  • Resolution 1,920 x 1,080
  • Pixel Pitch (HxV) 0.2745 x 0.2745 mm
  • Brightness (Typ) 250 (Typ, w/o glass)
  • Contrast Ratio 1000:1(without glass)
  • Viewing Angle (Horizontal/Vertical) 178/178
  • Response Time 14ms
  • Colour Gamut 72% (NTSC)
  • Glass Haze 25(without glass)
  • H-Scanning Frequency 56~84.5KHz
  • Maximum Pixel Frequency 148.5MHz
  • V-Scanning Frequency 48~75Hz
  • Contrast Ratio (Dynamic) Mega
  • Operation Time Support 16/7

Connectivity

  • HDMI In 1
  • Version of HDMI 1.4
  • Version of DP No
  • Version of HDCP 2.2
  • USB 1
  • IR In Yes
  • Audio In No
  • Audio Out Stereo Mini Jack
  • RS232 In Yes
  • RJ45 In Yes
  • WiFi Yes
  • Bluetooth Yes

Power

  • Power Supply AC100-240V 50/60Hz
  • Power Consumption (On Mode) 38.5W
  • Power Consumption (Sleep Mode) 0.5 W

Dimension

  • Set Dimension (WxHxD) 547.9 x 334.4 x 34.6 mm
  • Package Dimension (WxHxD) 620 x 419 x 122 mm

Weight

  • Set Weight 4.0 kg
  • Package Weight 5.2 kg

Operation Conditions

  • Temperature 0 °C~ 40 °C
  • Humidity 10 ~ 80%, non-condensing

Mechanical Specification

  • VESA Mount 100 x 100 mm
  • Frame Material Non-Glossy

Optional Feature

  • Touch Yes
  • Mount No
  • Stand No

SoC

  • OS Version Tizen 7.0
  • Flash Memory Size 8GB

Touch

  • Touch Technology Capative

Certification and Compliance

  • EMC Class B FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
  • Safety CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950

Support

Find answers to the questions you have about our products

Product Support See More Content
User manual & Downloads
  • User Manual
    ENGLISH, BULGARIAN, CROATIAN, CZECH, DANISH, DUTCH, ESTONIAN, FINNISH, FRENCH(FRANCE), GERMAN, GREEK, HUNGARIAN, ITALIAN, LATVIAN, LITHUANIAN, NORWEGIAN, POLISH, PORTUGUESE(European), ROMANIAN, SERBIAN, SLOVAK, SLOVENIAN, SPANISH, SWEDISH, TURKISH
    Download
  • Quick Setup Guide
    ENGLISH, BULGARIAN, CROATIAN, CZECH, DANISH, DUTCH, ESTONIAN, FINNISH, FRENCH(FRANCE), GERMAN, GREEK, HUNGARIAN, ITALIAN, LATVIAN, LITHUANIAN, NORWEGIAN, POLISH, PORTUGUESE(European), ROMANIAN, SERBIAN, SLOVAK, SLOVENIAN, SPANISH, SWEDISH, TURKISH
    Download
