Type

10kW-1Φ-4Way

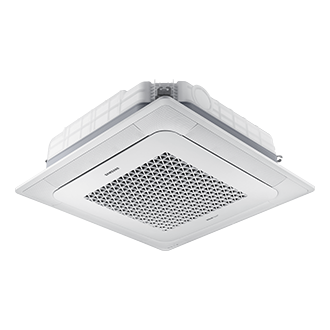

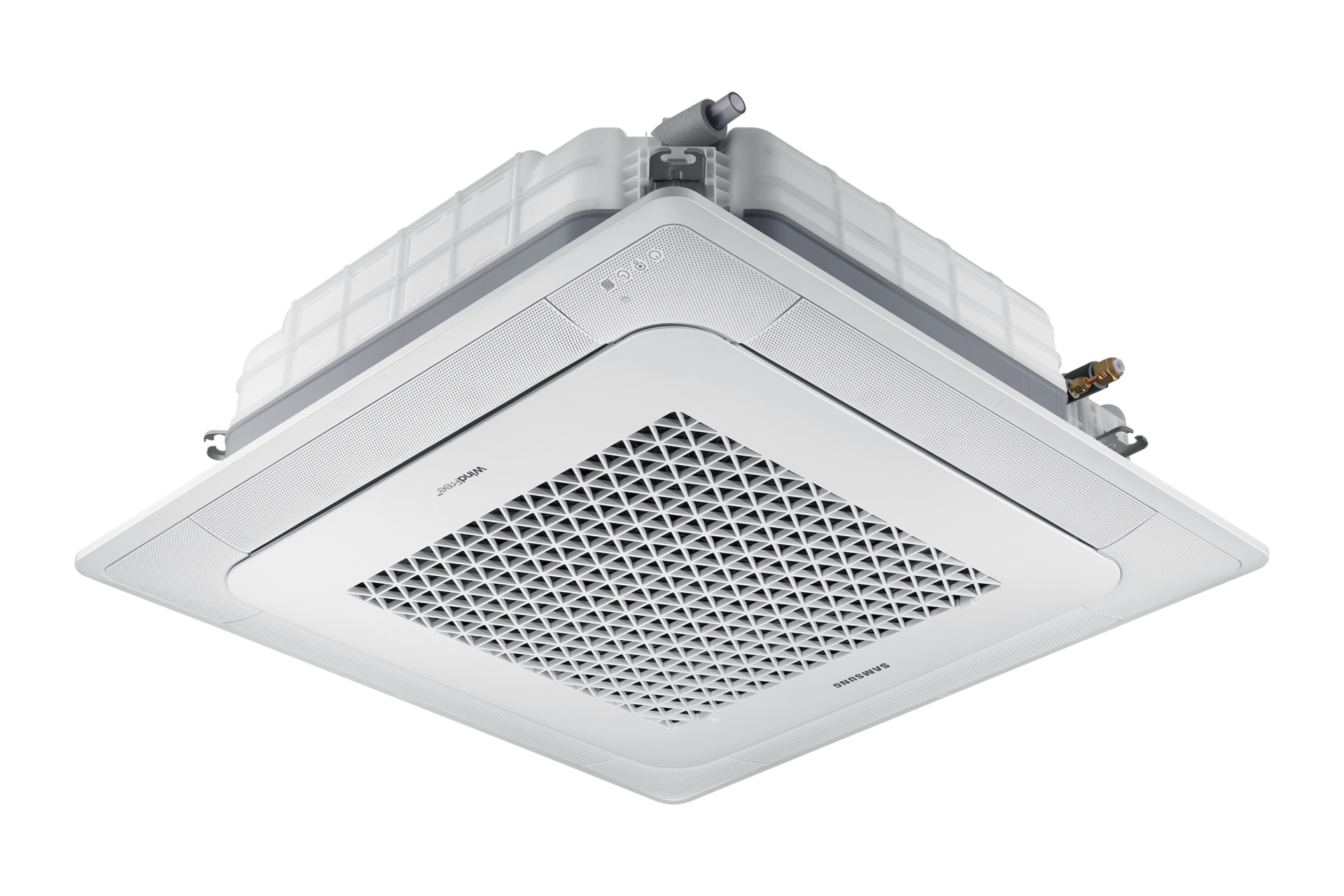

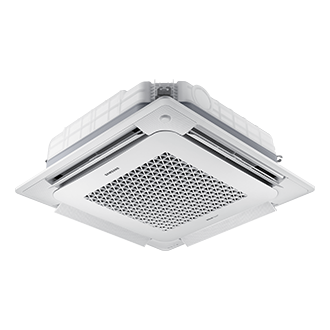

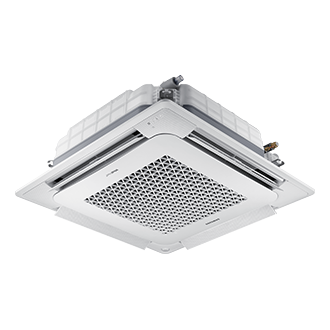

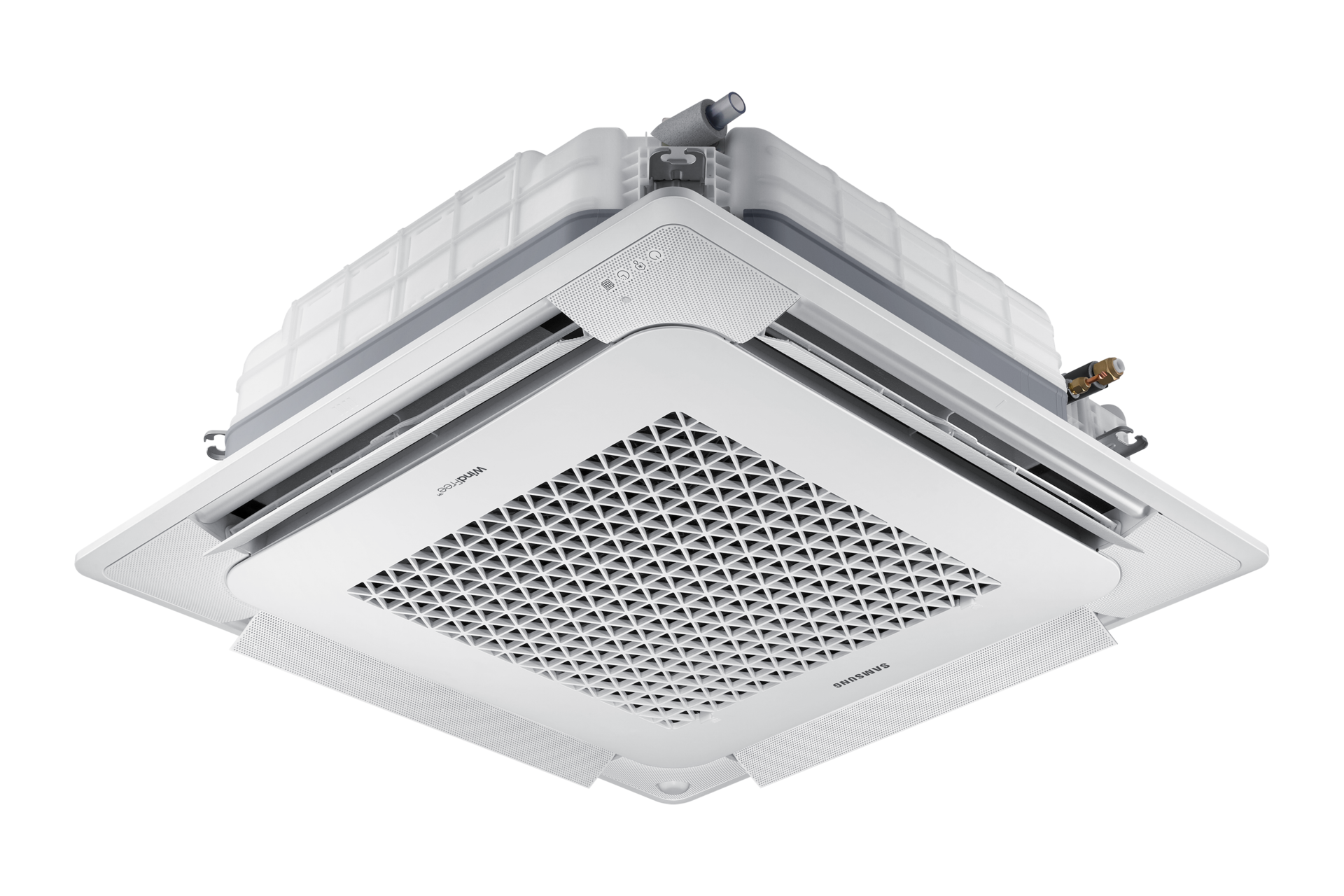

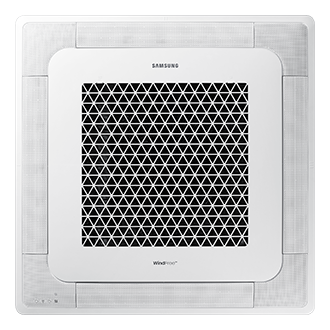

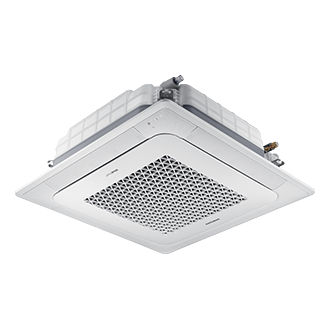

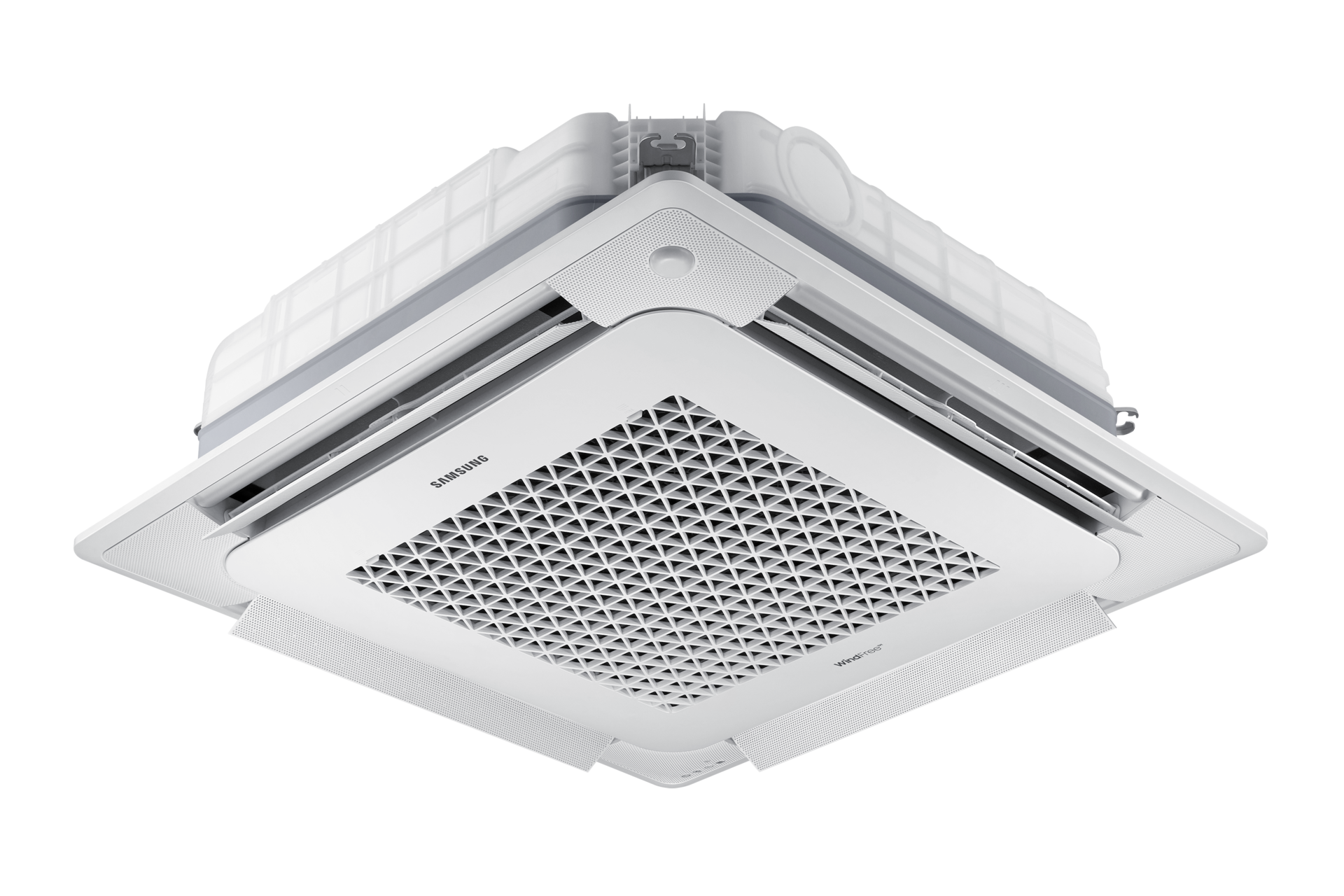

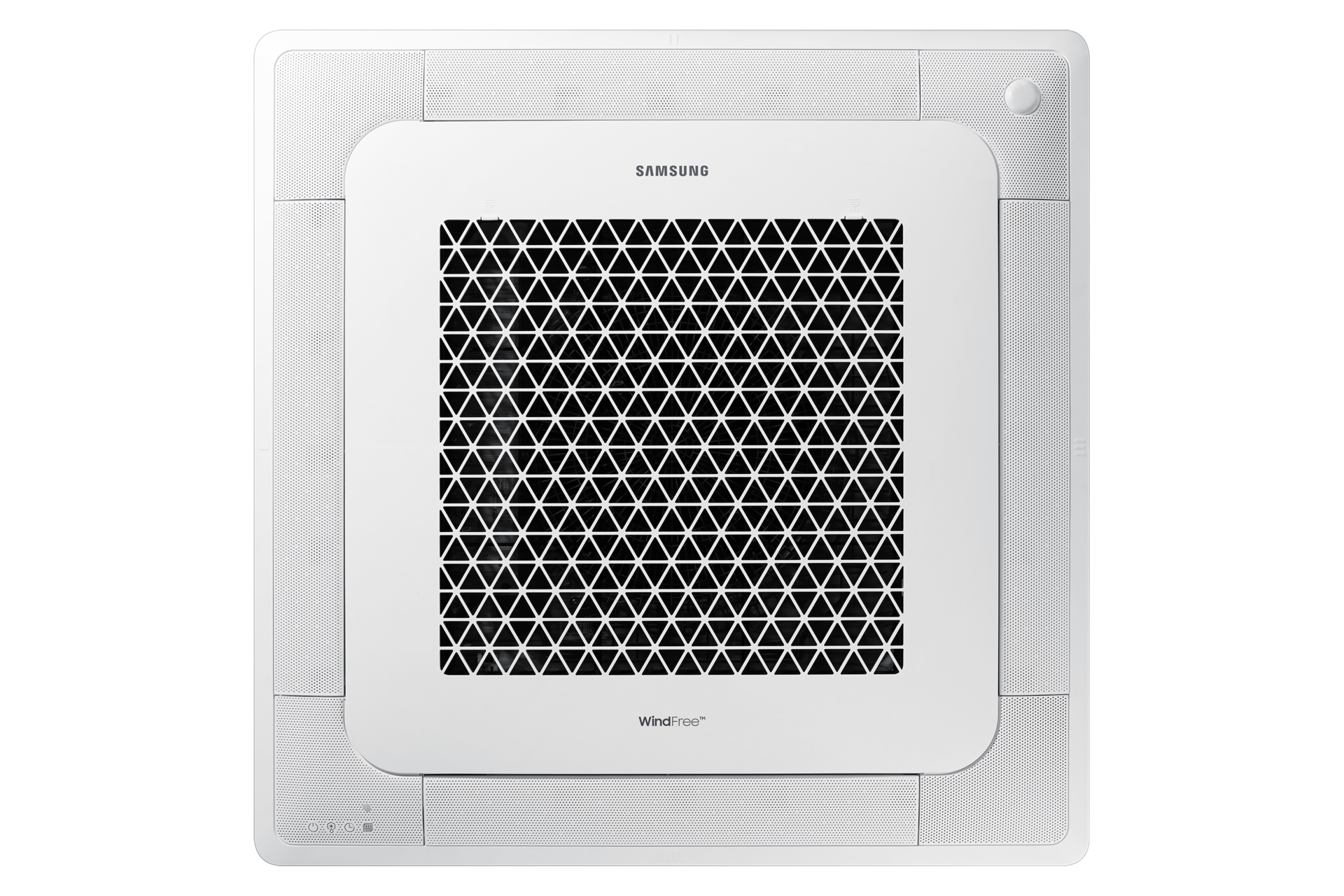

Indoor Unit

AC100TN4DKC/TS

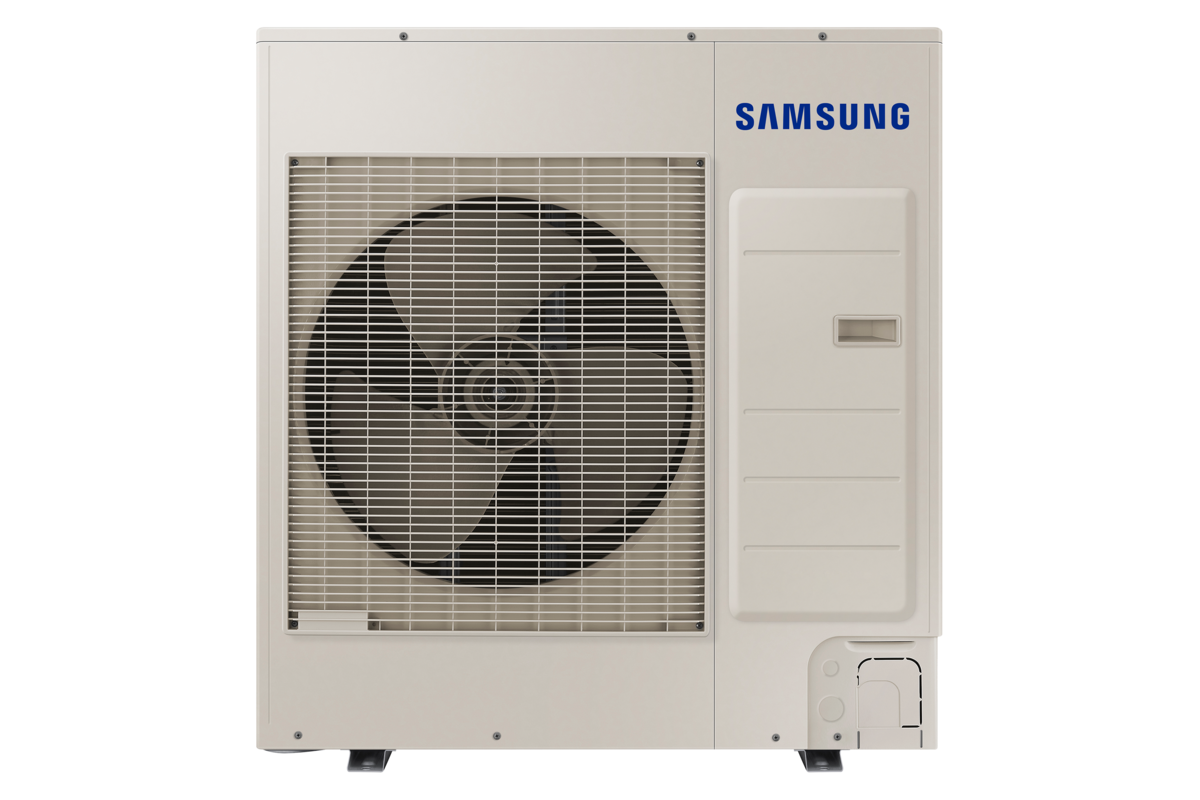

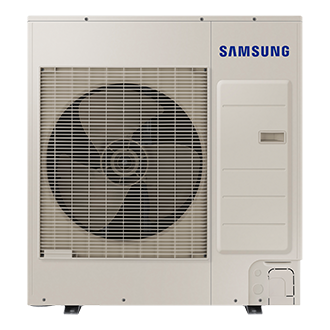

Outdoor Unit

AC100TXADKC/TS

Mode

COOLING ONLY

Cooling [kW]

3.0 / 10.0 / 12.0 kW

Cooling [Btu/h]

10,240 / 34,000 / 40,940 Btu/h

Cooling 1)

0.6/3.125/4.7 kW

Cooling

3.0/14.8/20.4 A

MCA [A]

26.0 A

MFA [A]

30.0 A

EER (Nominal Cooling)

3.20

Liquid Pipe (Φ, mm)

9.52 mm

Liquid Pipe (Φ, inch)

3/8"

Gas Pipe (Φ, mm)

15.88 mm

Gas Pipe (Φ, inch)

5/8"

Installation Max. Length [m]

50 m

Installation Max. Height [m]

30 m

Transmission Cable

0.75↑

Type

R410A

Control Method

EEV

Factory Charging (kg)

3.00 kg

1,2,220-240,50

Type

Turbo Fan

Motor (Output) [W]

97 W

Number of Unit (EA)

1 EA

Air Flow Rate (High / Mid / Low) [CMM]

30.3/24.3/19.4 CMM

1,2,220-240,50

Drain Pipe (Φ,mm)

VP25 (OD 32,ID 25)

Sound Pressure (High / Mid / Low) [dB(A)]

43 / 38 / 33 dBA

Panel Net Weight (kg)

20.0 kg

Shipping Weight (kg)

23.5 kg

Net Dimensions (WxHxD) (mm)

840 x 288 x 840 mm

Shipping Dimensions (WxHxD) (mm)

898 x 357 x 898 mm

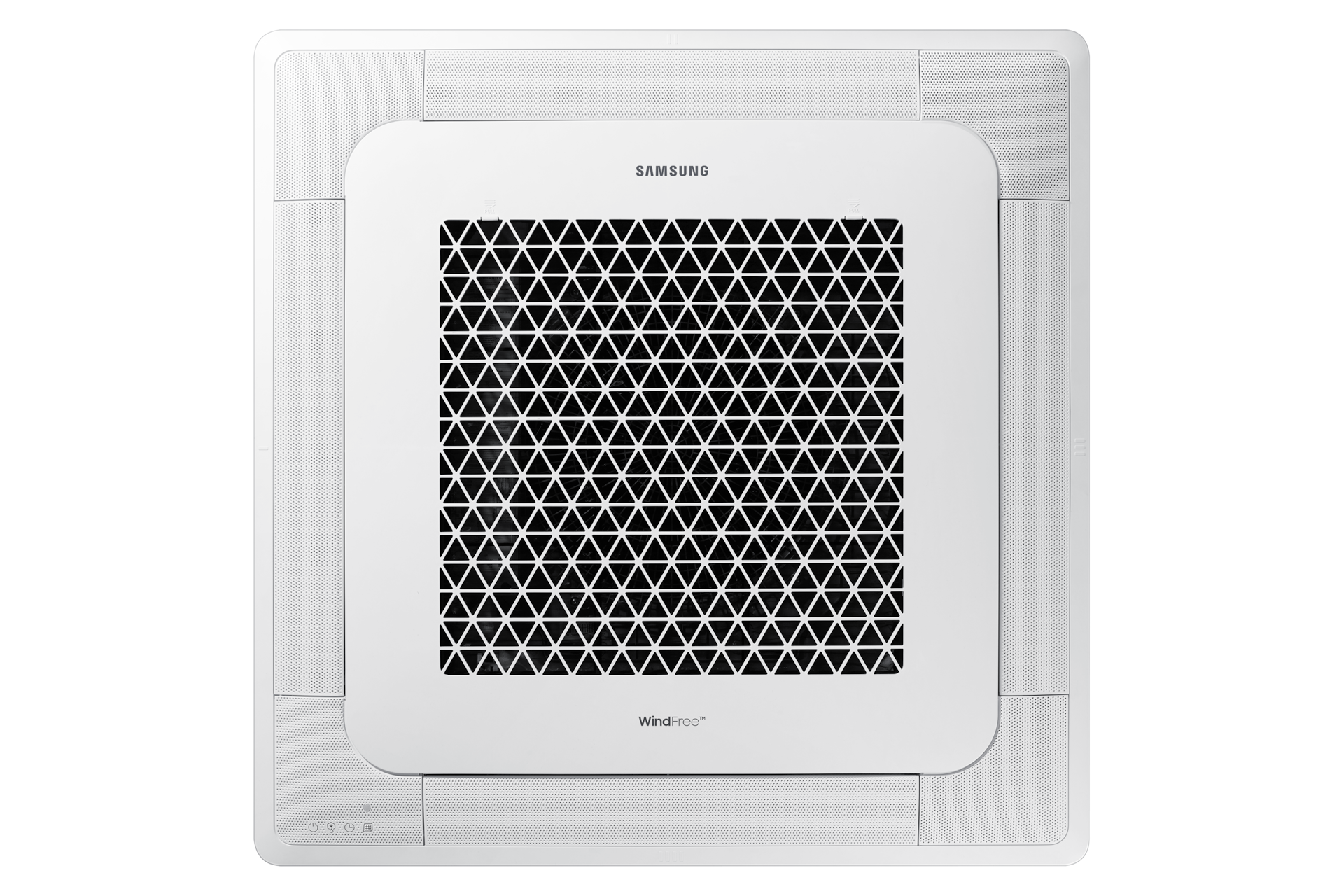

Model Name

PC4NUFDAN

Panel Net Weight (kg)

6.3 kg

Shipping Weight (kg)

8.7 kg

Net Dimensions (WxHxD) (mm)

950 x 48 x 950 mm

Shipping Dimensions (WxHxD) (mm)

1010 x 117 x 1000 mm

Drain Pump

Built in

Drain Pump Max. Lifting Height/Displacement

750 /24

Type

Twin BLDC Rotary

Model Name

UG8T300FUBJU

Output(kW)

2.82 kW

Oil (Type)

POE

Oil (Initial Charge) [cc]

1200 cc

Air Flow Rate (Cooling) [m³/min]

72 CMM

Sound Pressure (Cooling / Heating) [dB(A)]

53 dBA

Panel Net Weight (kg)

71.0 kg

Shipping Weight (kg)

76.0 kg

Net Dimensions (WxHxD) (mm)

940 x 998 x 330 mm

Shipping Dimensions (WxHxD) (mm)

995 x 1096 x 426 mm

Cooling (℃)

-15 ~ 50 ℃

WiFi Kit

Yes
