Type

4Way

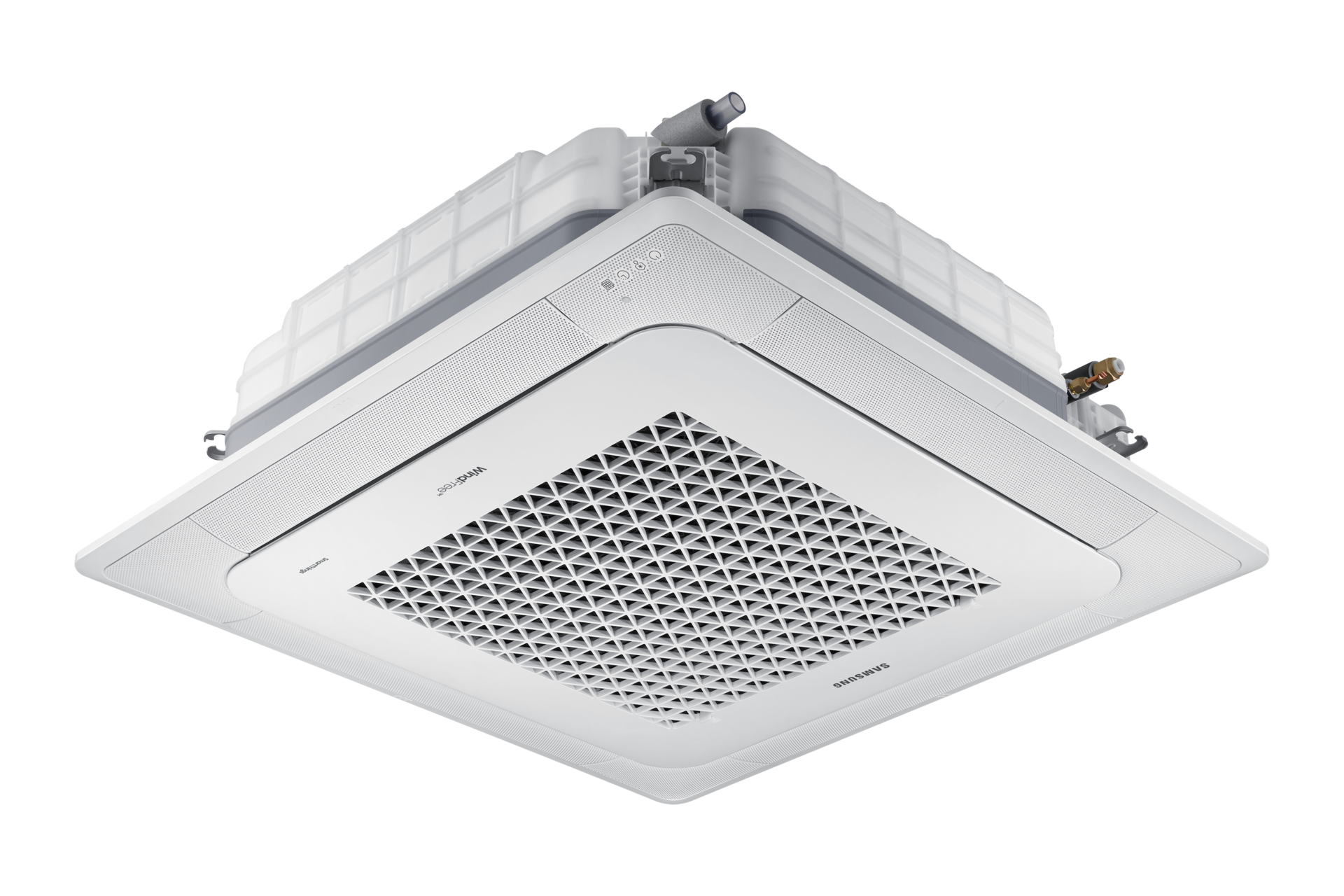

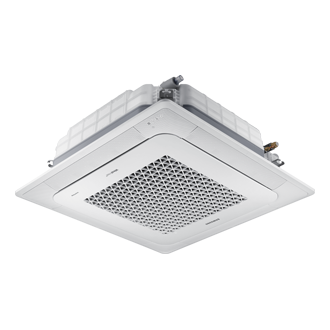

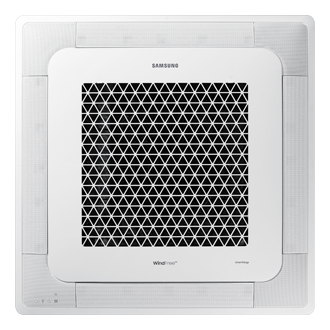

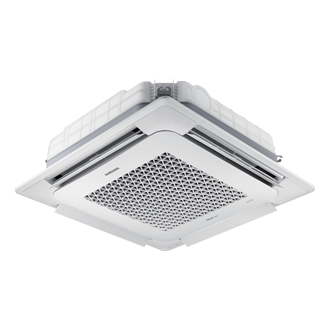

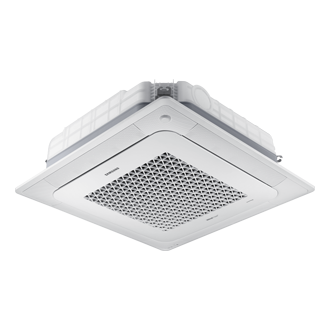

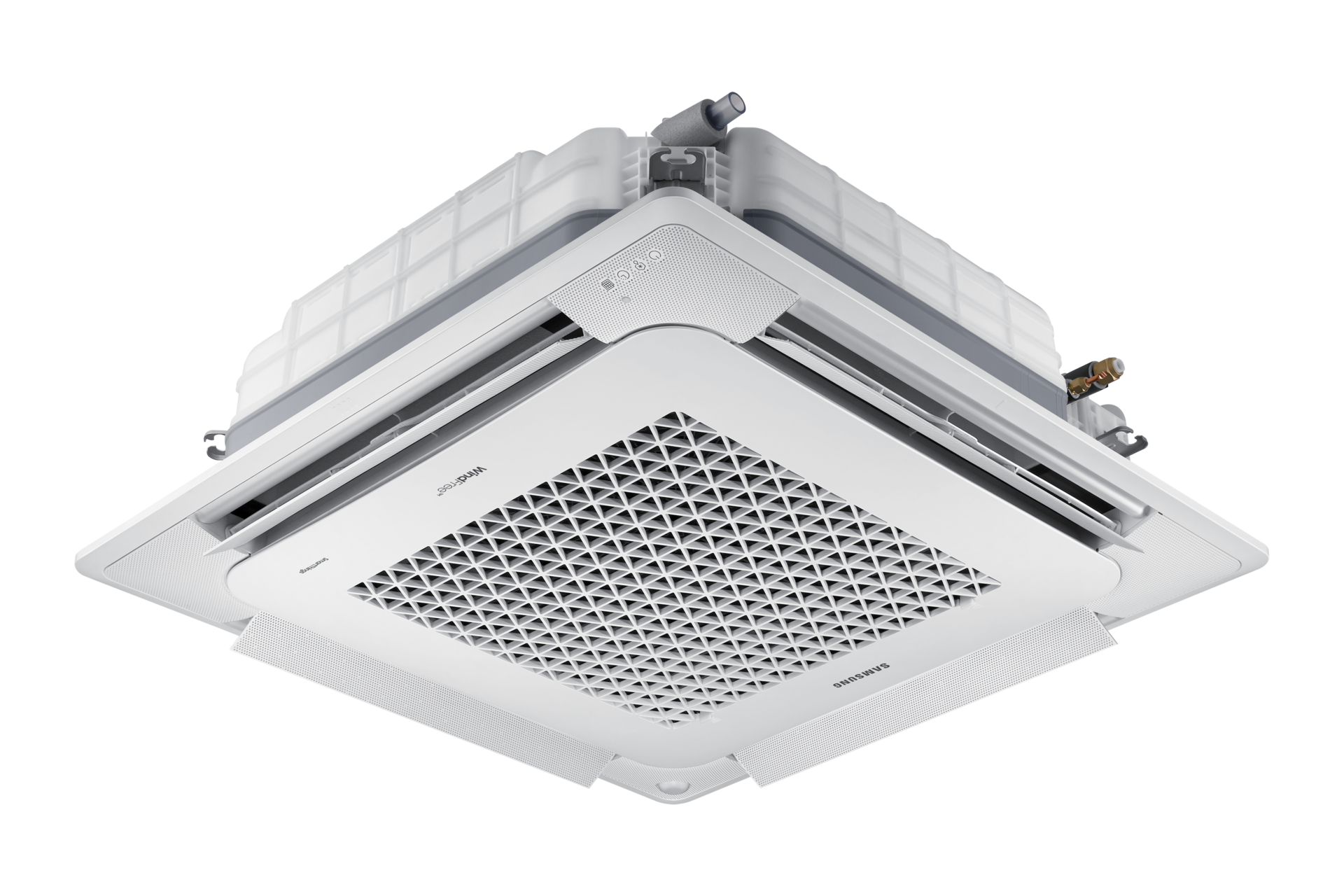

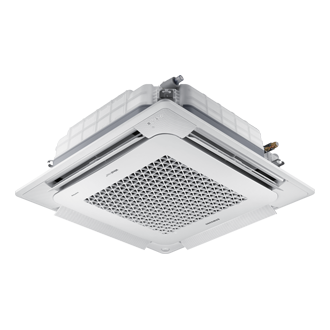

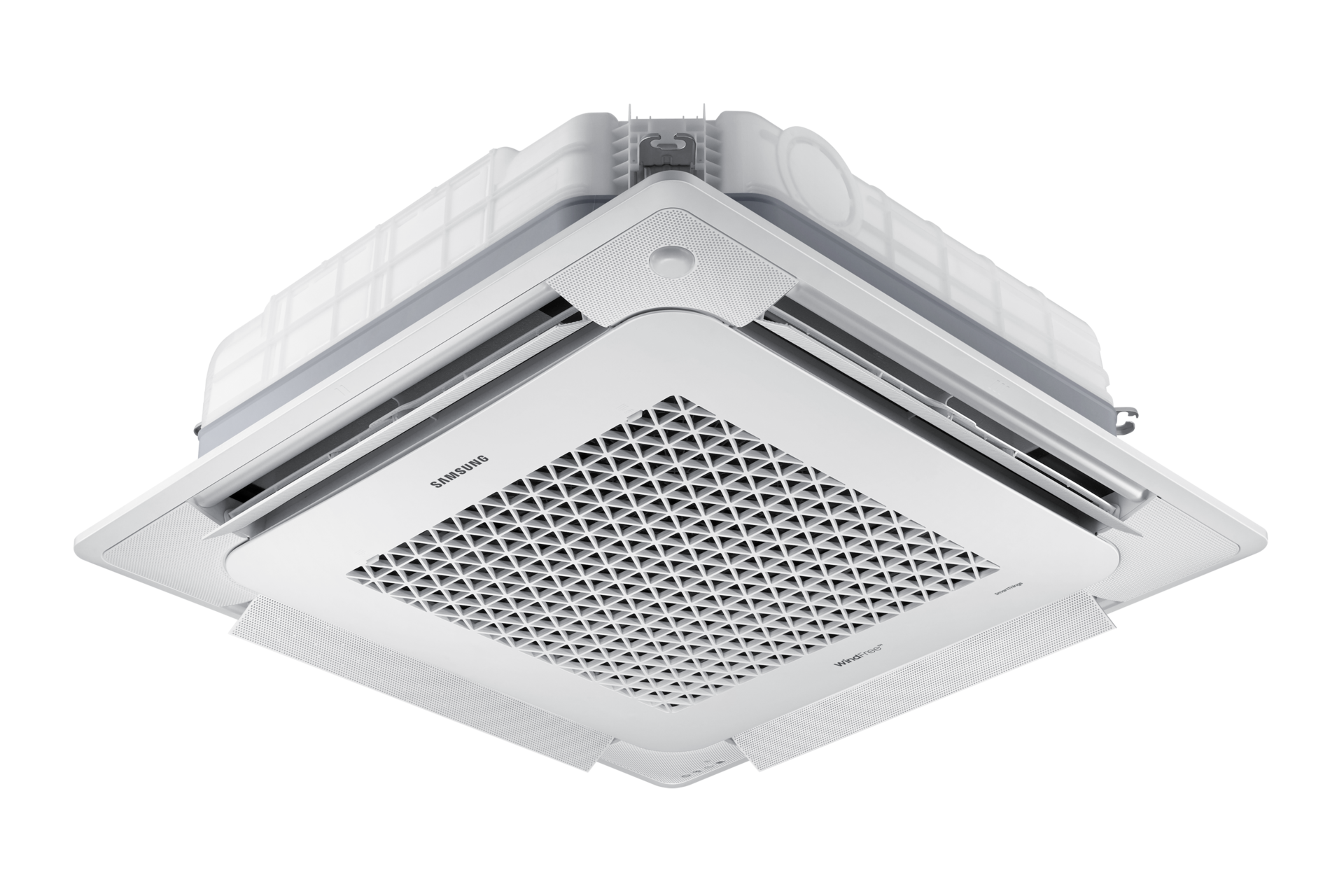

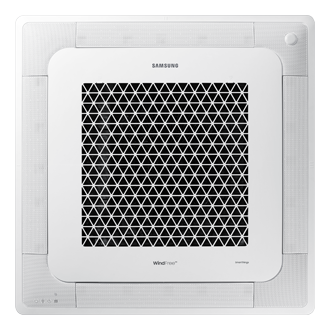

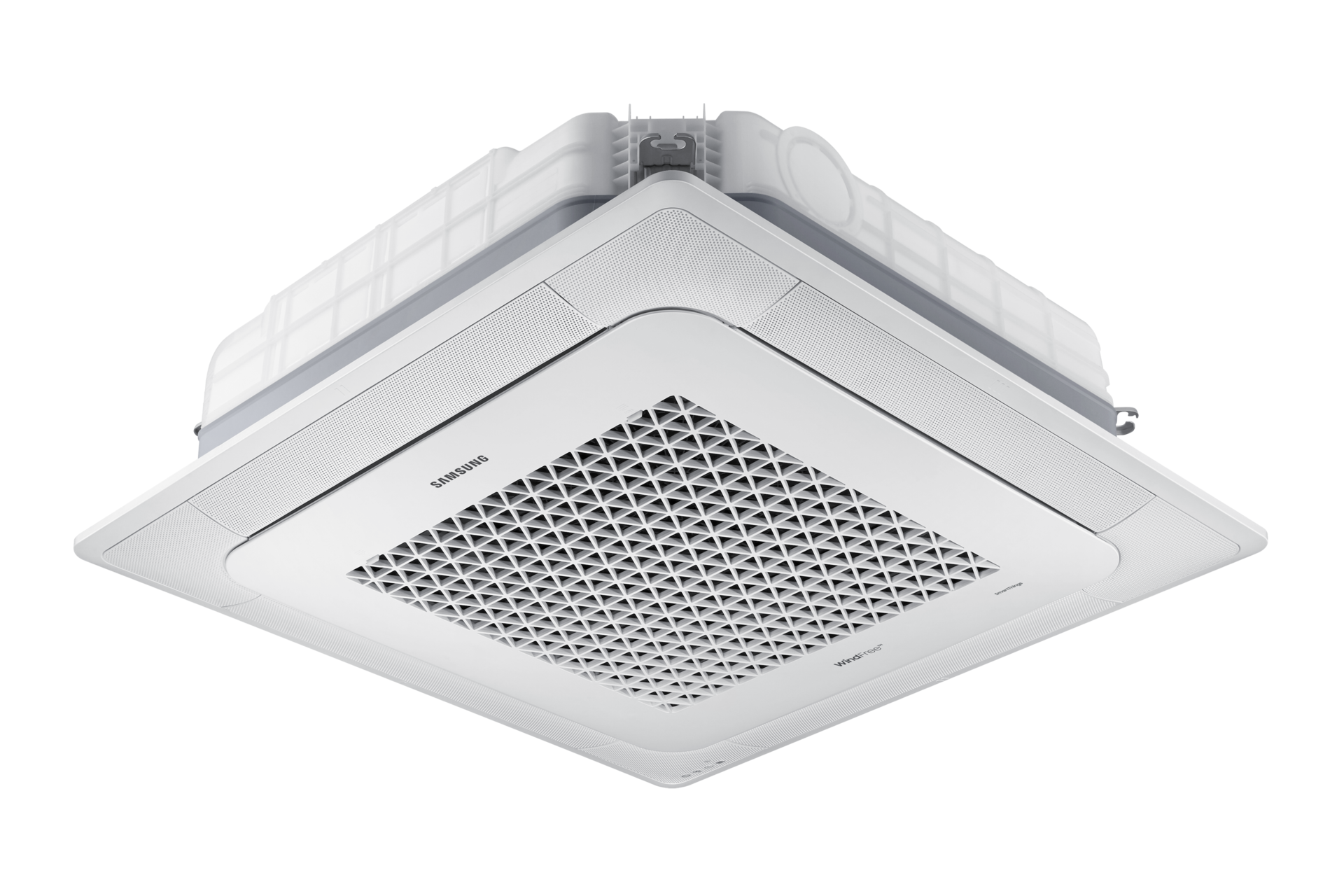

Indoor Unit

AC160DN4DKF/TS

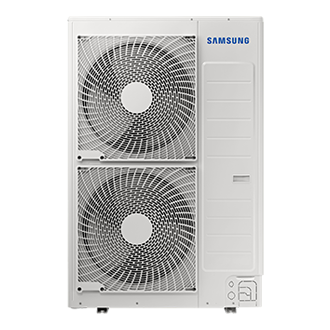

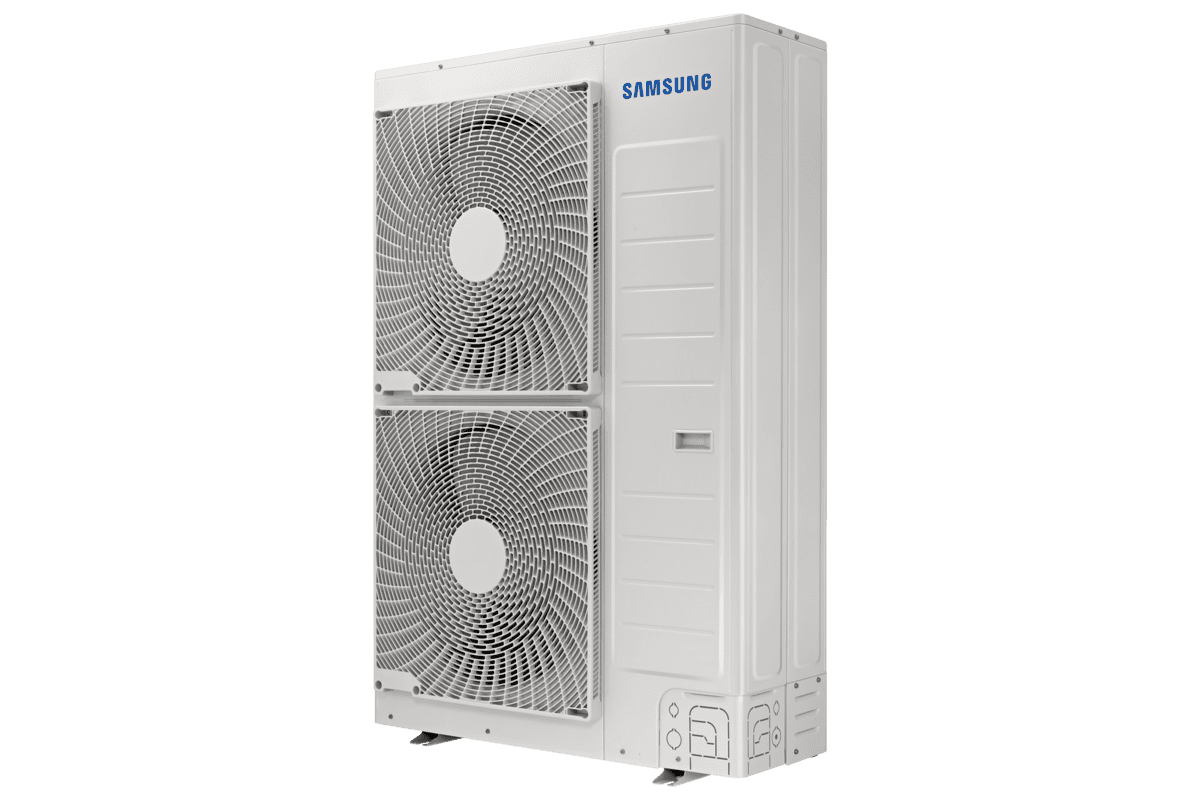

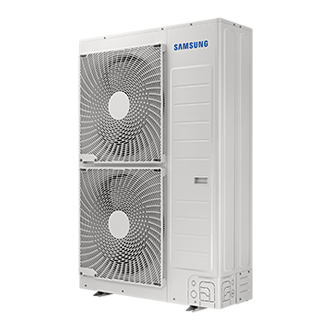

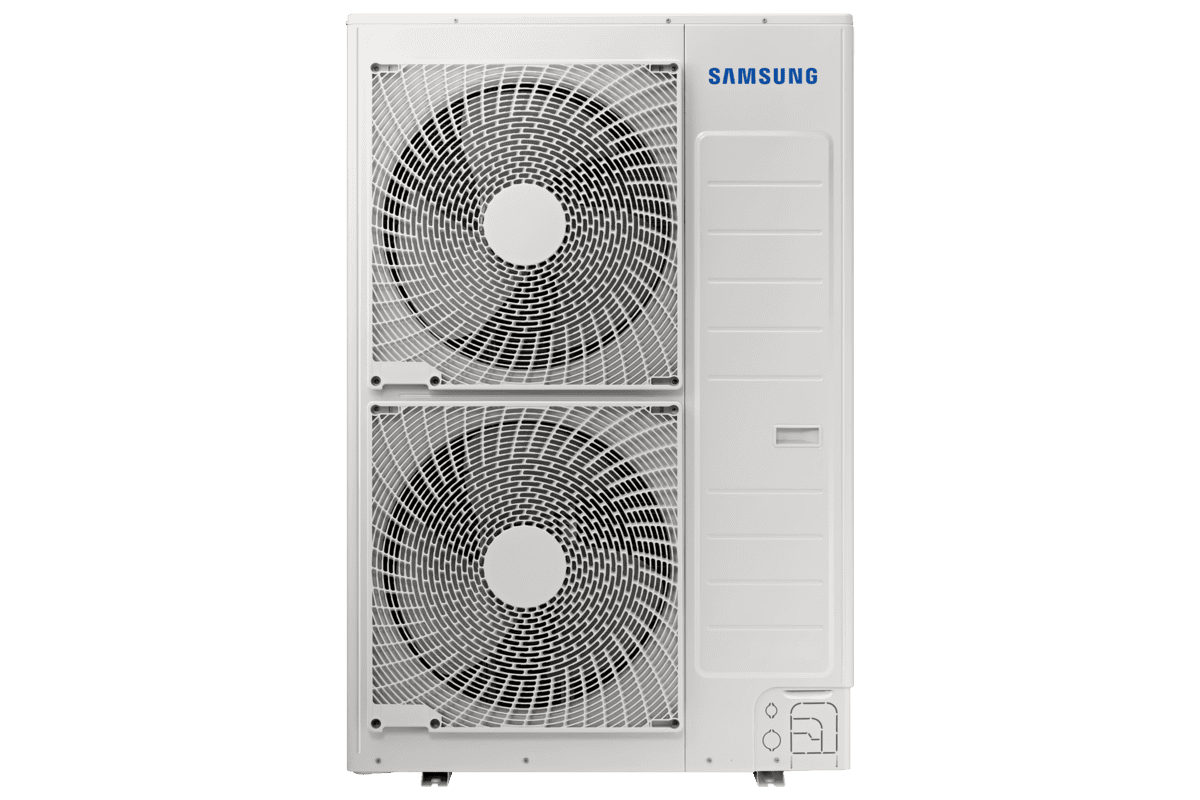

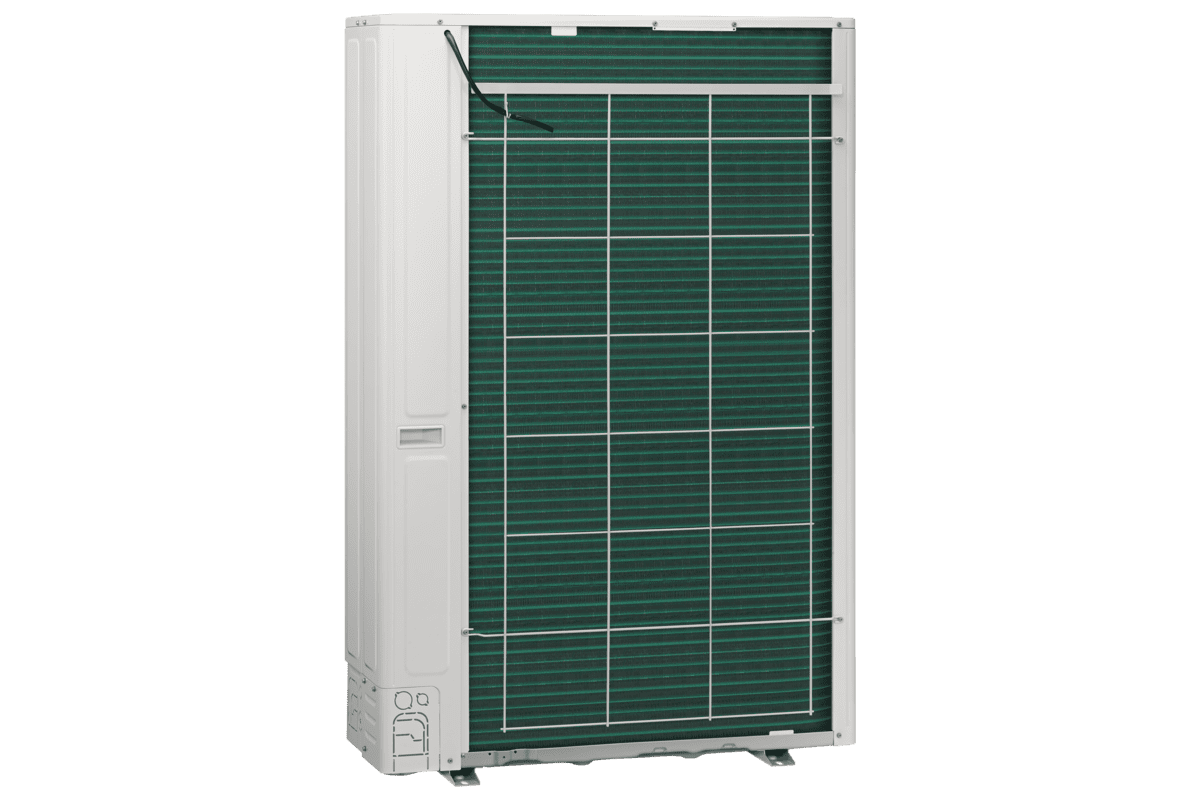

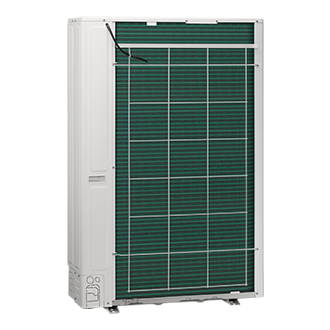

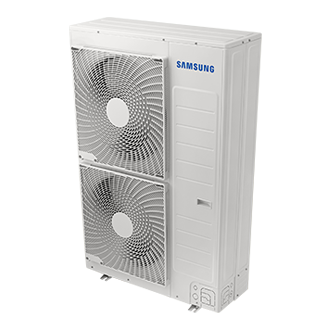

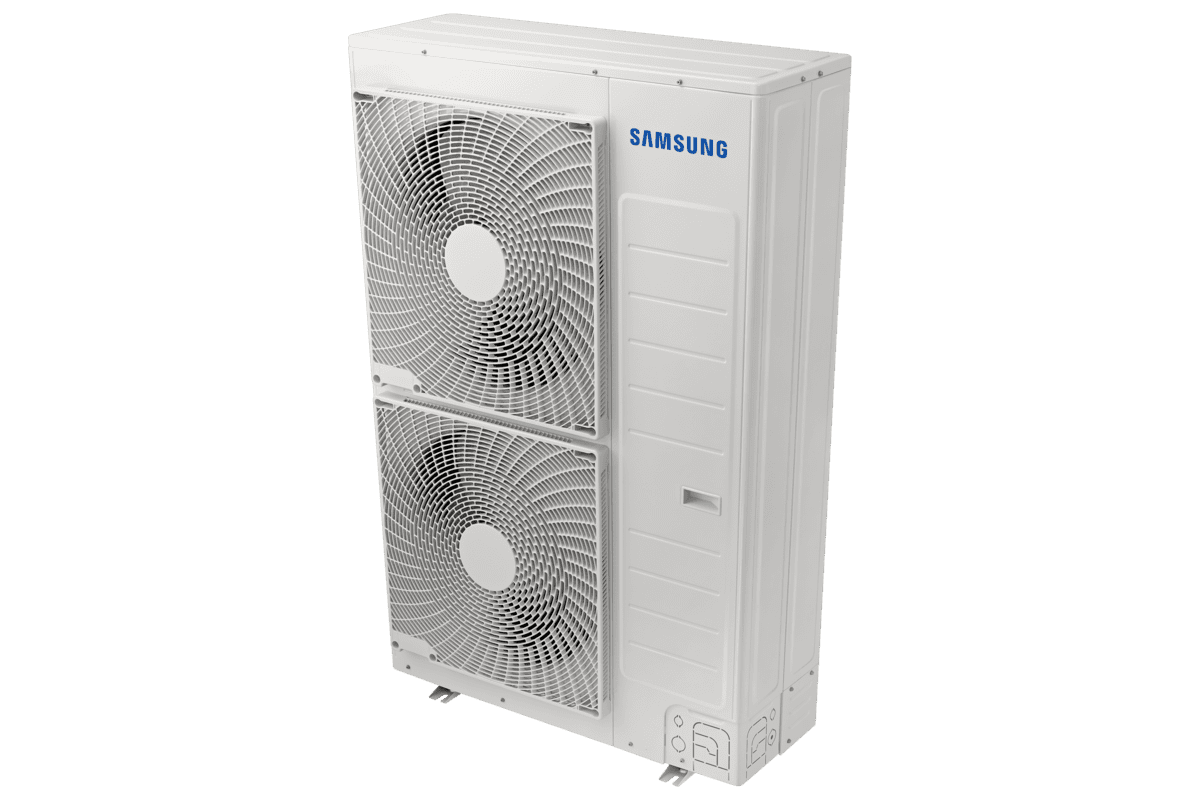

Outdoor Unit

AC160DXADNF/TS

Mode

Cooling Only

Cooling [kW]

4.00 / 17.00 / 19.00 kW

Cooling [Btu/h]

13,600 / 58,000 / 64,800 Btu/h

MCA [A]

18.1 A

Cooling Power Input (Min/Std/Max)

0.93 / 6.08 / 7.85 kW

MFA [A]

20.0 A

Cooling Current Input (Min/Std/Max)

1.8 / 9.5 / 12.0 A

EER (Nominal Cooling)

2.80 W/W

SEER (Cooling) [Btu/Wh]

17.00 Btu/Wh

Energy Grade (Cooling)

5-1★

Liquid Pipe (Φ, mm)

9.52 mm

Liquid Pipe (Φ, inch)

3/8"

Gas Pipe (Φ, mm)

19.05 mm

Gas Pipe (Φ, inch)

3/4"

Installation Max. Length [m]

75 m

Installation Max. Height [m]

30 m

Transmission Cable

0.75

Type

R32

Control Method

EEV

Factory Charging (kg)

3.1 kg

1,2,220-240,50

Type

3D Turbo

Air Flow Rate Cooling (H/M/L) [m³/min]

35.0 / 33.0 / 29.0 ㎥/min

Motor (Output) [W]

97 W

Number of Unit (EA)

1 EA

3,4,380-415,50

Drain Pipe (Φ,mm)

VP25 (OD32 / ID25)

Sound Pressure (High / Mid / Low) [dB(A)]

45/41/36 dBA

Panel Net Weight (kg)

21.5 kg

Shipping Weight (kg)

25.0 kg

Net Dimensions (WxHxD) (mm)

840 x 288 x 840 mm

Shipping Dimensions (WxHxD) (mm)

898 x 357 x 898 mm

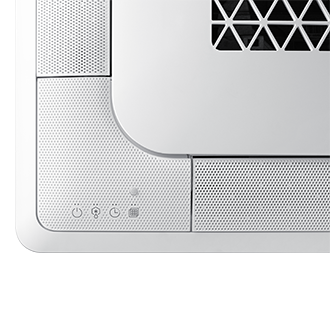

Model Name

PC4NUFDANW

Panel Net Weight (kg)

6.3 kg

Shipping Weight (kg)

8.4 kg

Net Dimensions (WxHxD) (mm)

950 x 48 x 950 mm

Shipping Dimensions (WxHxD) (mm)

1010 x 117 x 1000 mm

Drain Pump

Built in

Drain Pump Max. Lifting Height/Displacement

750 /24

Type

UB5TN5450FJXSG

Model Name

Twin BLDC Rotary

Output(kW)

4.25 kW

Oil (Type)

POE

Oil (Initial Charge) [cc]

1700 cc

Air Flow Rate (Cooling) [m³/min]

110.0 CMM

Sound Pressure (Cooling / Heating) [dB(A)]

58 dBA

Panel Net Weight (kg)

91.5 kg

Shipping Weight (kg)

101.5 kg

Net Dimensions (WxHxD) (mm)

940 x 1420 x 330 mm

Shipping Dimensions (WxHxD) (mm)

995 x 1598 x 426 mm

Cooling (℃)

-15~50 ℃

WiFi Kit

Built-in
