Type

4Way

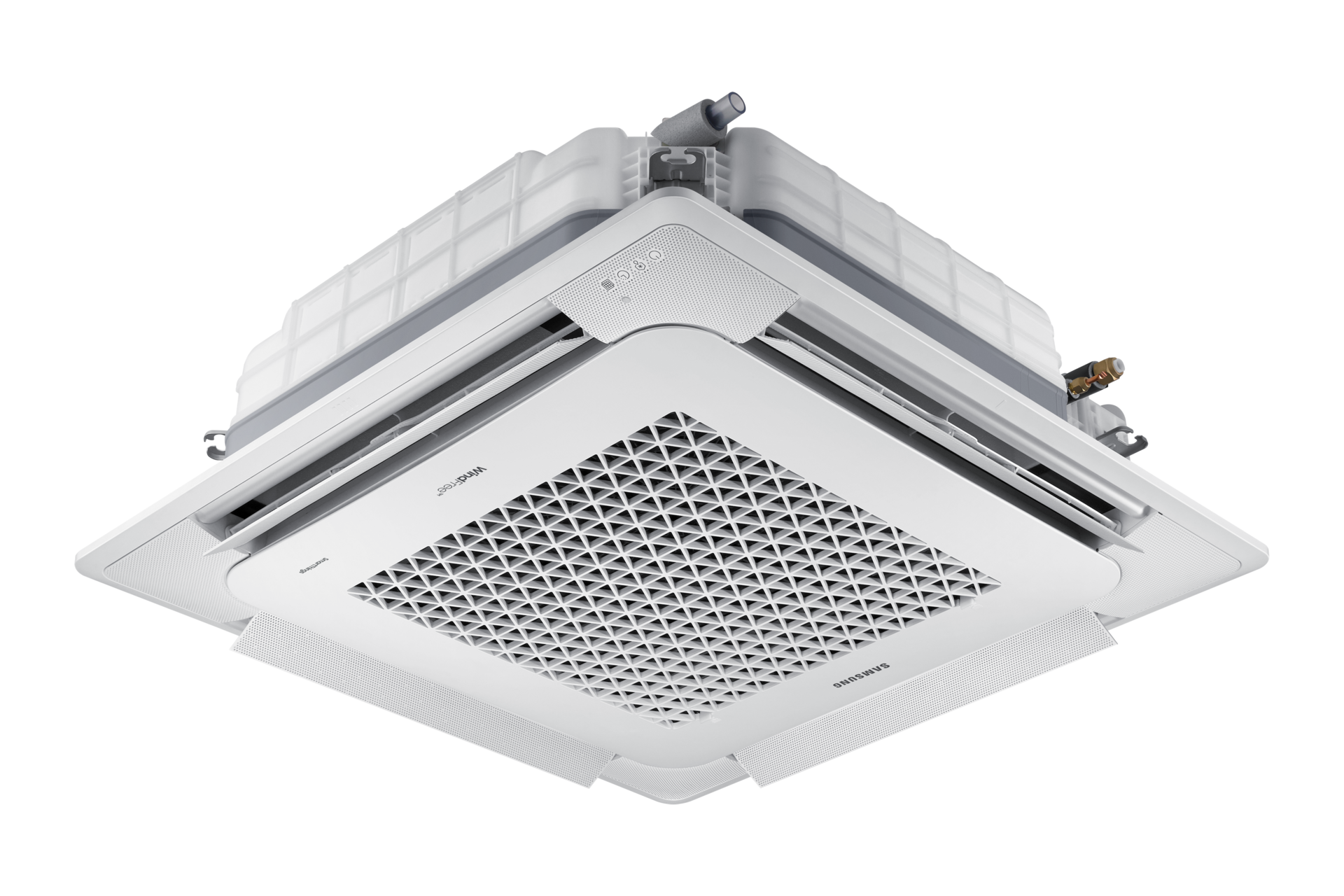

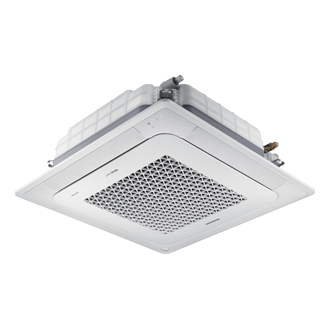

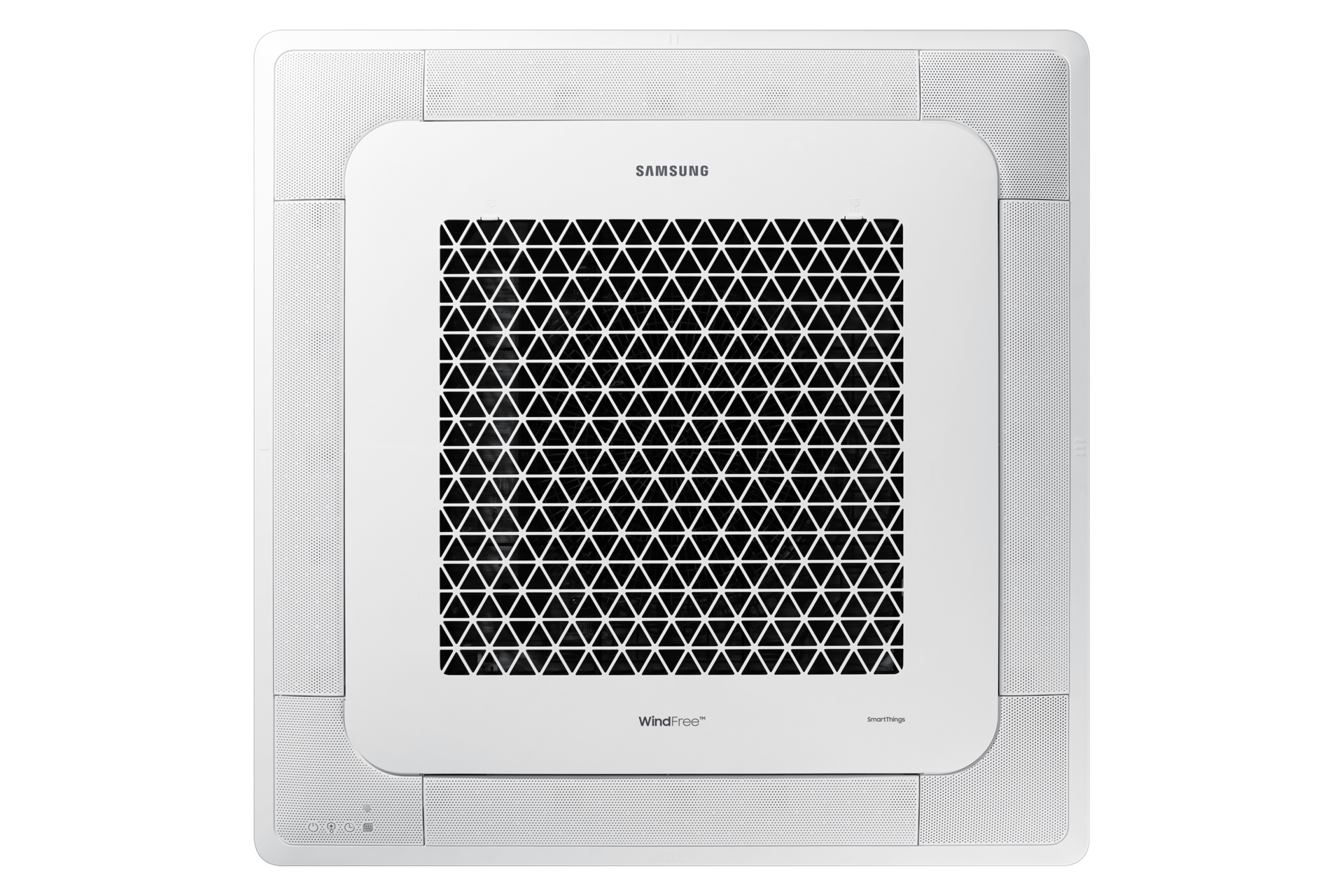

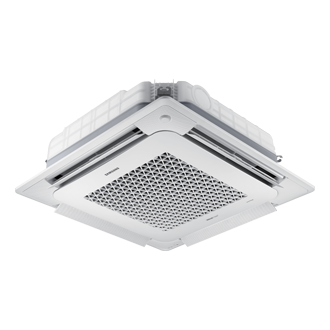

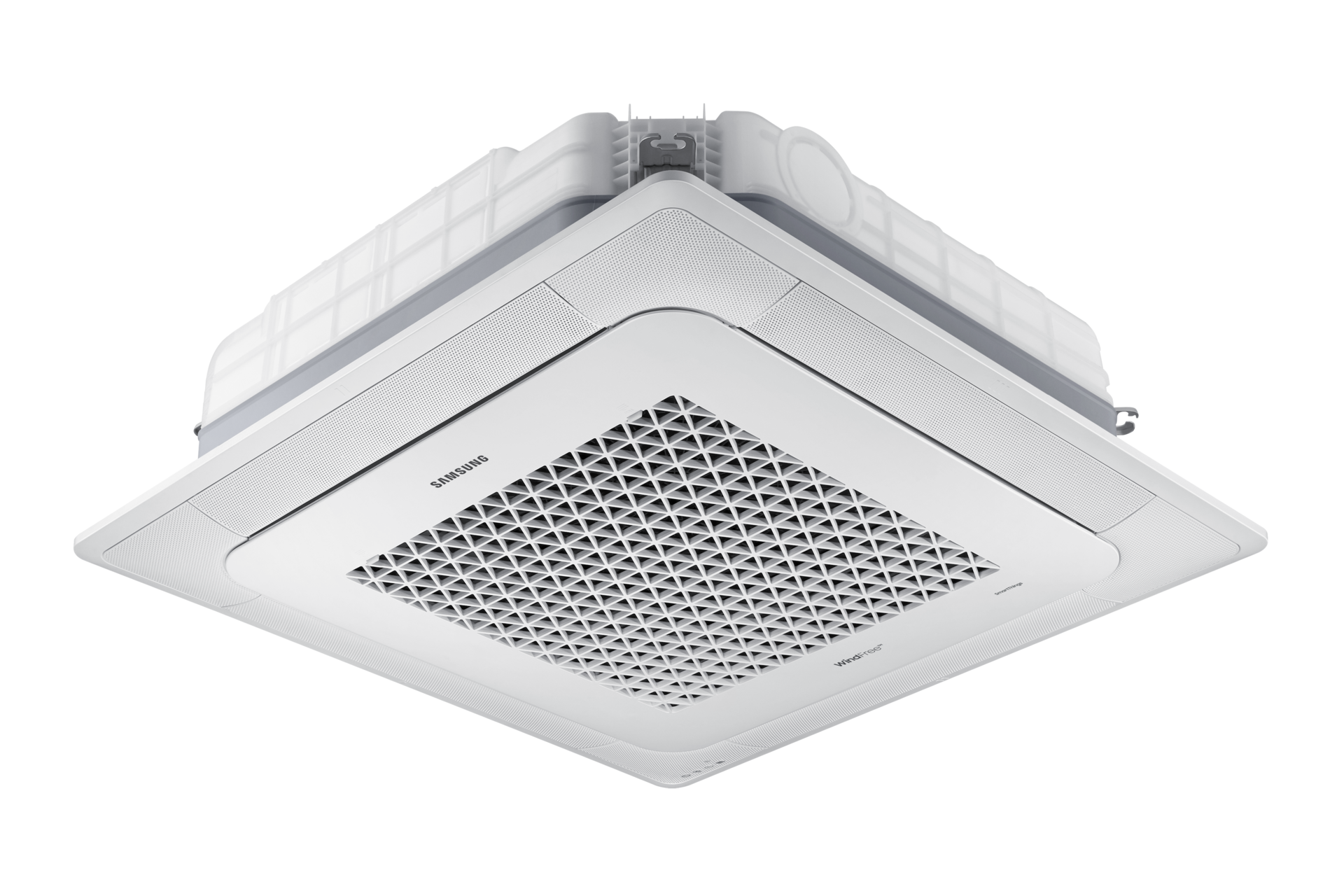

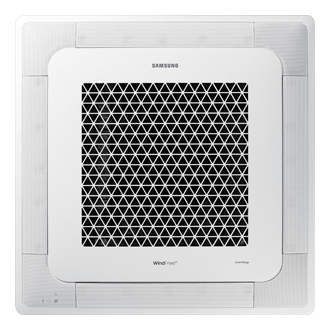

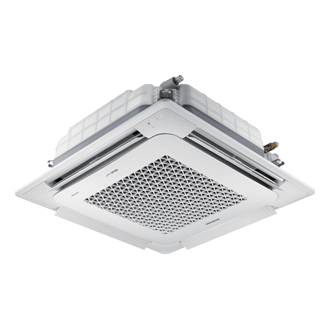

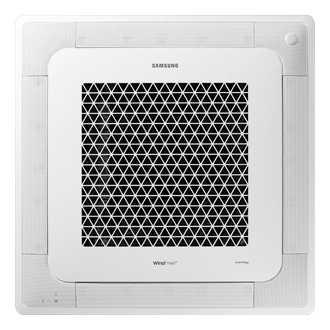

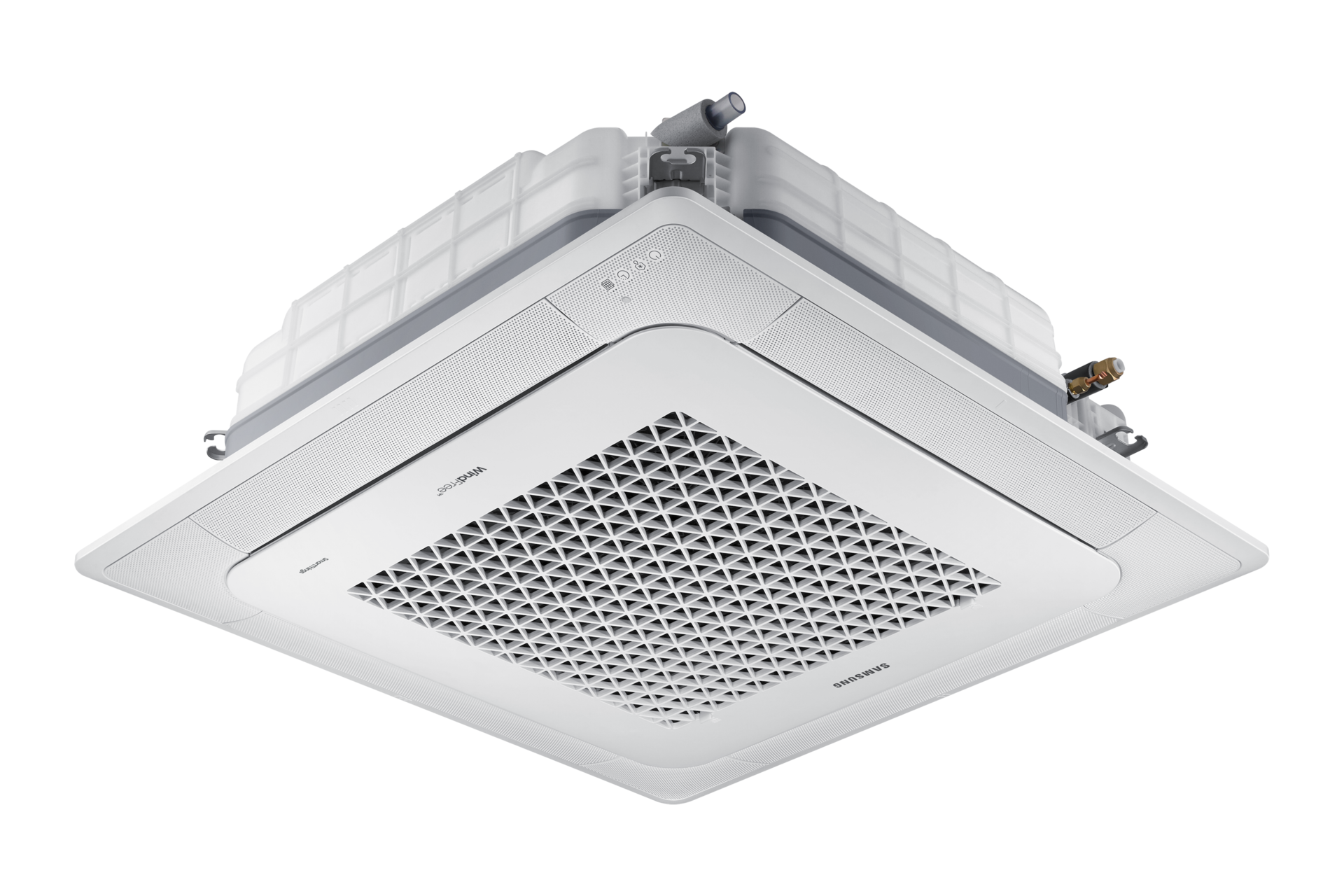

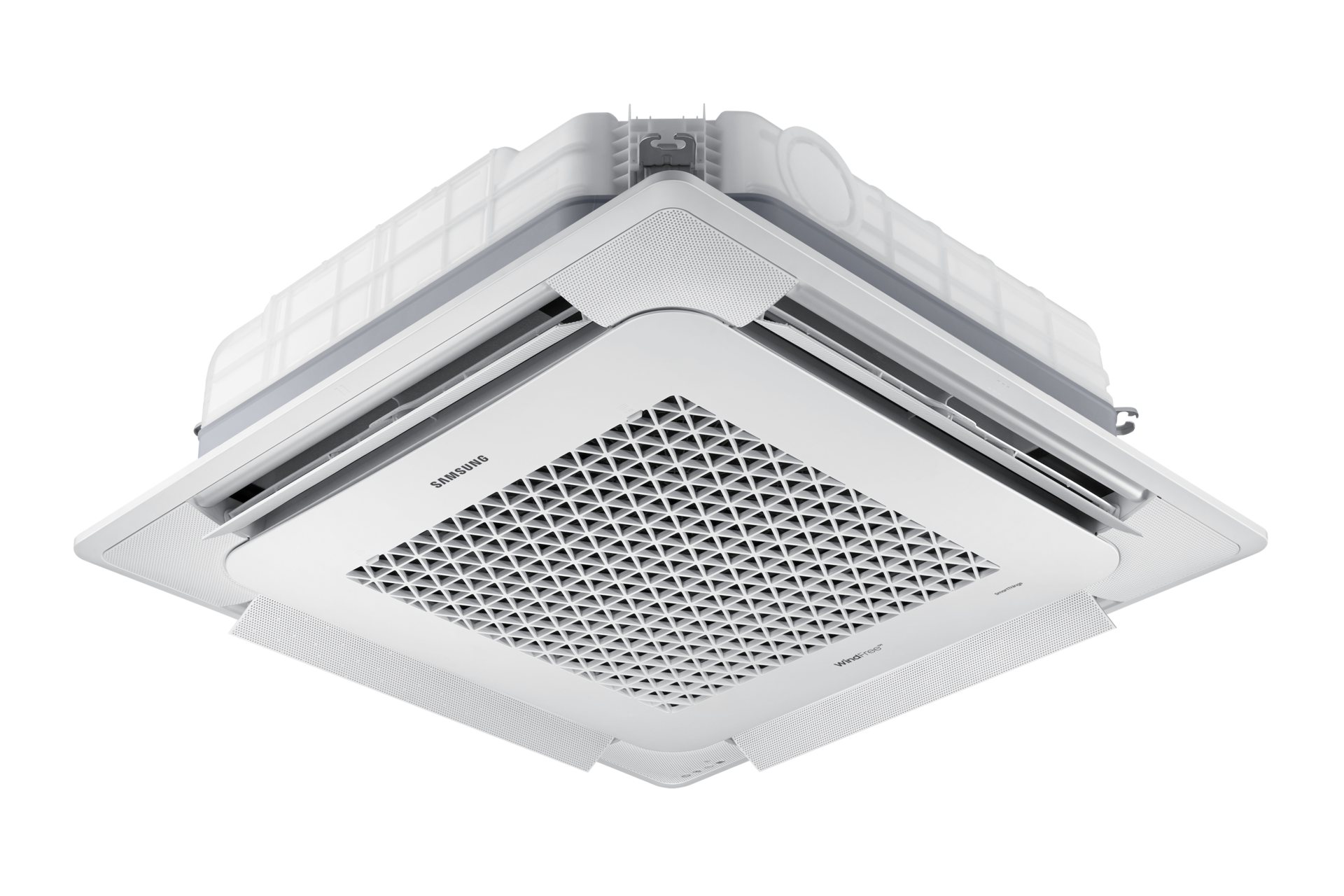

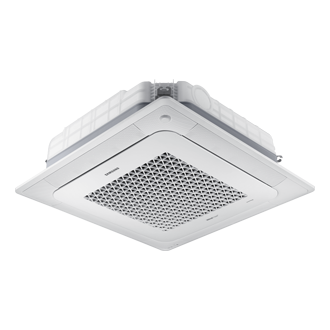

Indoor Unit

AC100DN4DKF/TS

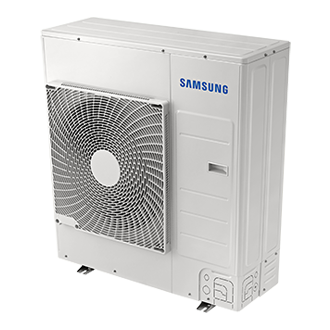

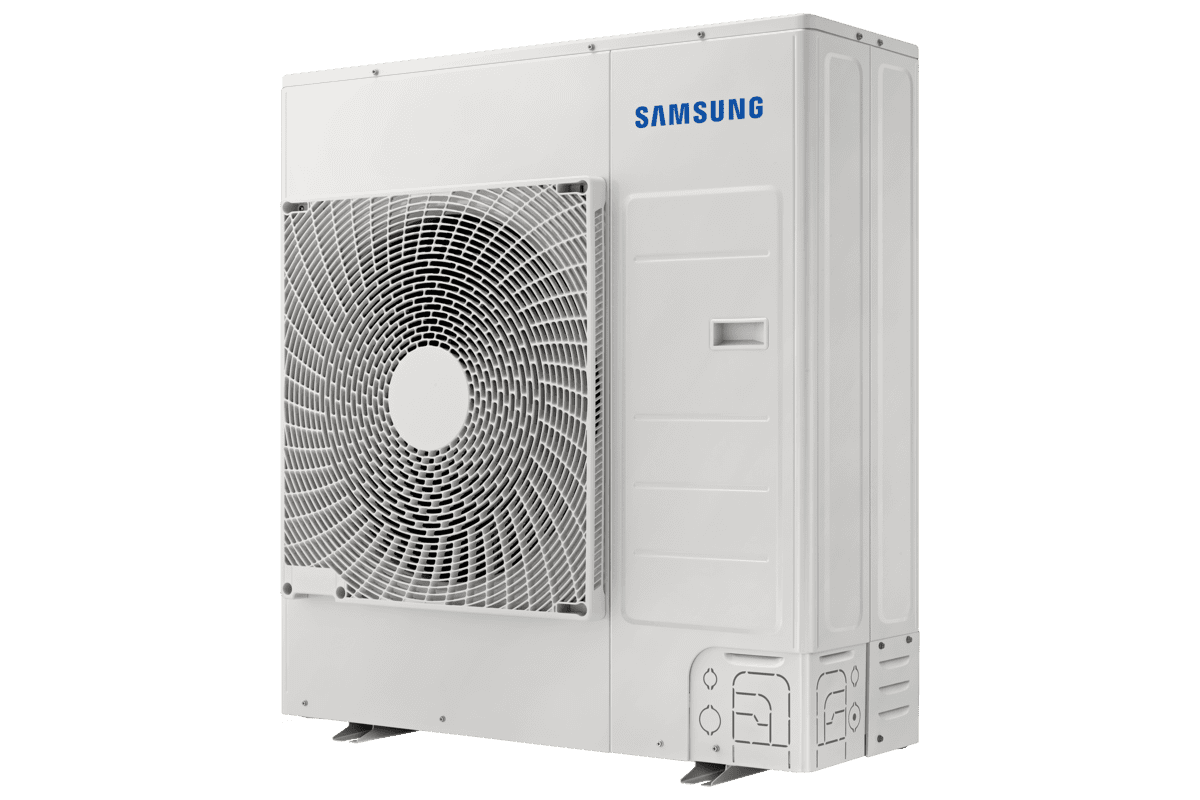

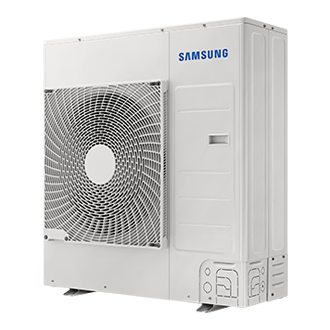

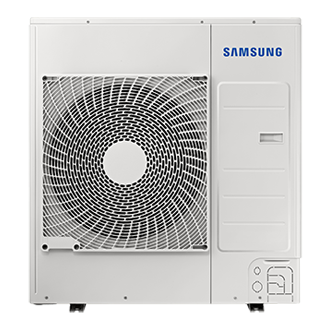

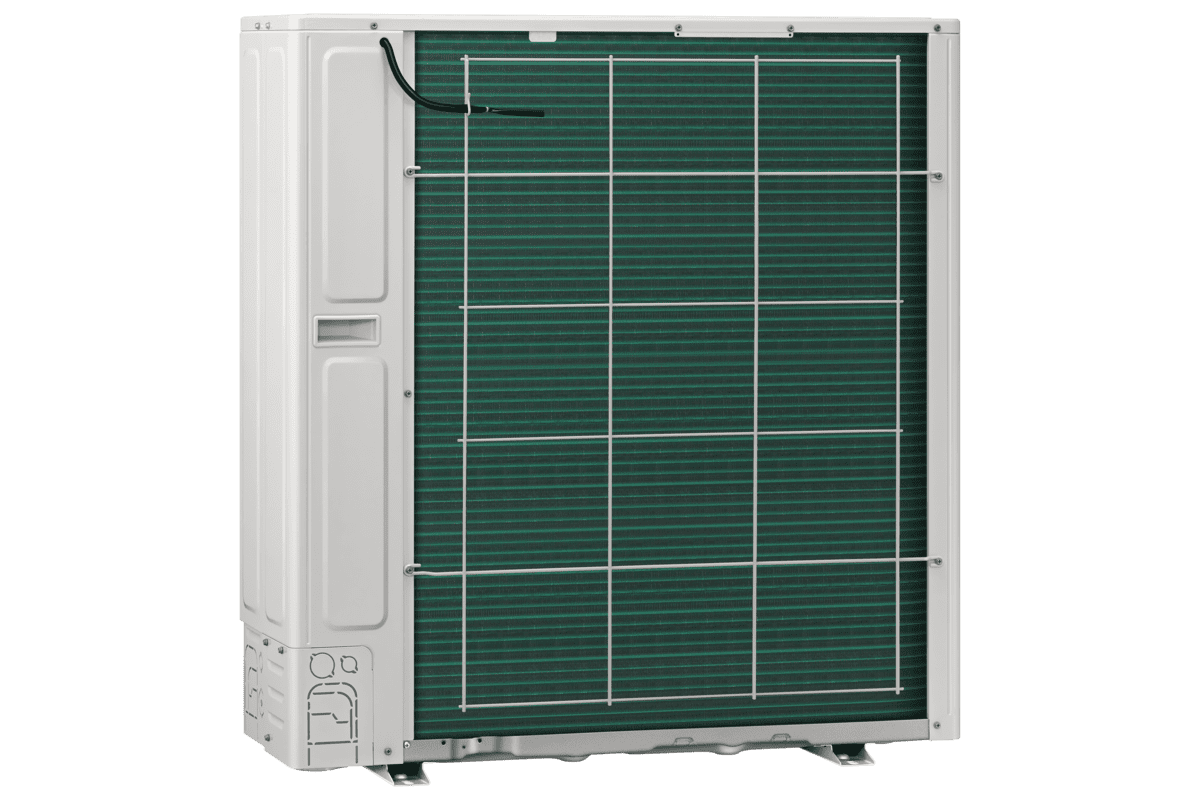

Outdoor Unit

AC100DXADKF/TS

Mode

Cooling Only

Cooling [kW]

3.00 / 10.60 / 13.00 kW

Cooling [Btu/h]

10,200 / 36,200 / 44,400 Btu/h

MCA [A]

26.0 A

Cooling Power Input (Min/Std/Max)

0.53 / 3.27 / 4.85 kW

MFA [A]

30.0 A

Cooling Current Input (Min/Std/Max)

3.0 / 14.6 / 21.0 A

EER (Nominal Cooling)

3.24 W/W

SEER (Cooling) [Btu/Wh]

19.20 Btu/Wh

Energy Grade (Cooling)

5-2★

Liquid Pipe (Φ, mm)

9.52 mm

Liquid Pipe (Φ, inch)

3/8"

Gas Pipe (Φ, mm)

15.88 mm

Gas Pipe (Φ, inch)

5/8"

Installation Max. Length [m]

50 m

Installation Max. Height [m]

30 m

Transmission Cable

0.75

Type

R32

Control Method

EEV

Factory Charging (kg)

2.3 kg

1,2,220-240,50

Type

Turbo

Air Flow Rate Cooling (H/M/L) [m³/min]

25.5 / 23.5 / 21.5 ㎥/min

Motor (Output) [W]

97 W

Number of Unit (EA)

1 EA

3,4,380-415,50

Drain Pipe (Φ,mm)

VP25 (OD32 / ID25)

Sound Pressure (High / Mid / Low) [dB(A)]

43/38/33 dBA

Panel Net Weight (kg)

18.5 kg

Shipping Weight (kg)

21.5 kg

Net Dimensions (WxHxD) (mm)

840 x 288 x 840 mm

Shipping Dimensions (WxHxD) (mm)

898 x 357 x 898 mm

Model Name

PC4NUFDANW

Panel Net Weight (kg)

6.3 kg

Shipping Weight (kg)

8.4 kg

Net Dimensions (WxHxD) (mm)

950 x 48 x 950 mm

Shipping Dimensions (WxHxD) (mm)

1010 x 117 x 1000 mm

Drain Pump

Built in

Drain Pump Max. Lifting Height/Displacement

750 /24

Type

UB8TN8300FJUSG

Model Name

Twin BLDC Rotary

Output(kW)

2.91 kW

Oil (Type)

POE

Oil (Initial Charge) [cc]

1200 cc

Air Flow Rate (Cooling) [m³/min]

72.0 CMM

Sound Pressure (Cooling / Heating) [dB(A)]

53 dBA

Panel Net Weight (kg)

69.0 kg

Shipping Weight (kg)

74.0 kg

Net Dimensions (WxHxD) (mm)

940 x 998 x 330 mm

Shipping Dimensions (WxHxD) (mm)

995 x 1096 x 426 mm

Cooling (℃)

-15~50 ℃

WiFi Kit

Built-in
