Type

360 CST

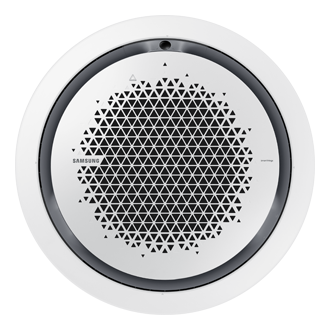

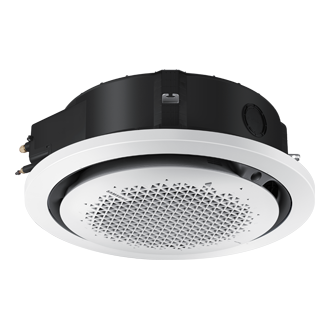

Indoor Unit

AC140DN6DKF/TS

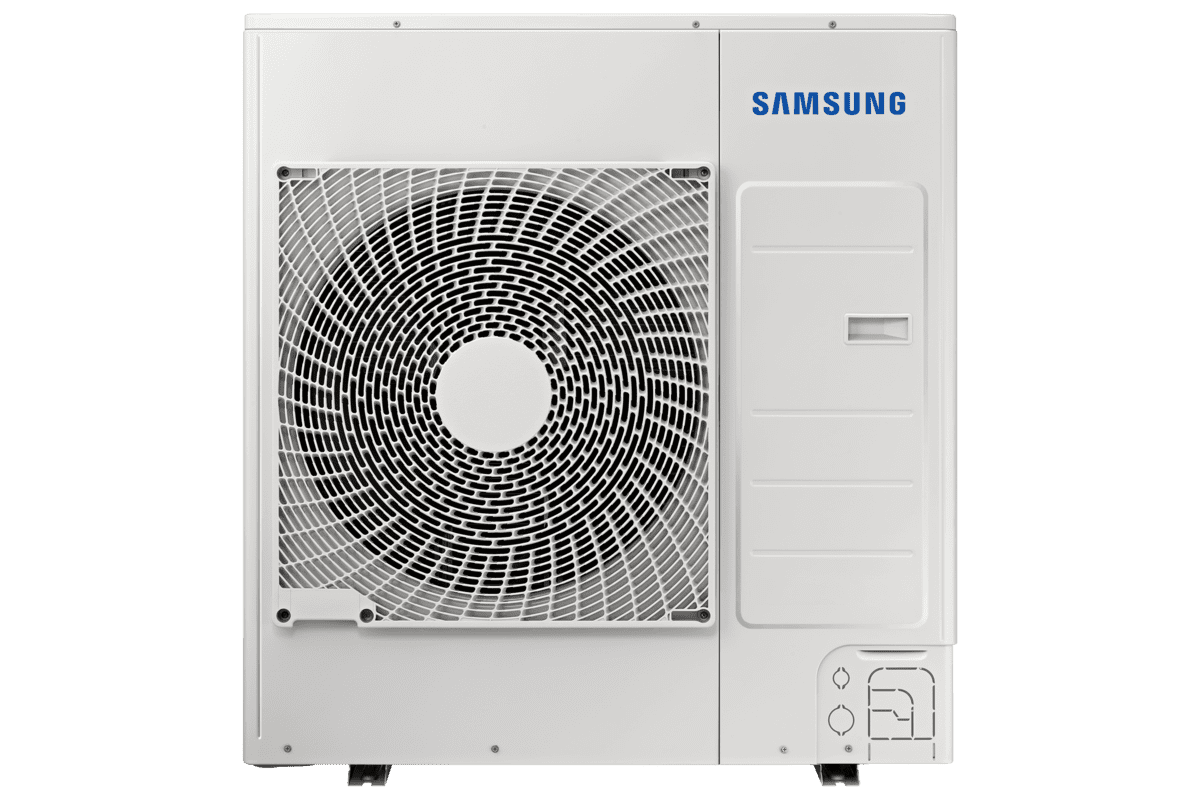

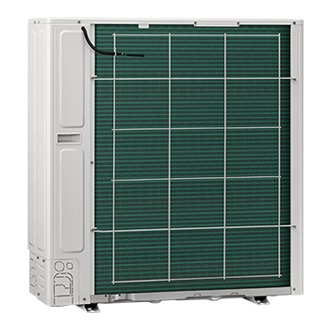

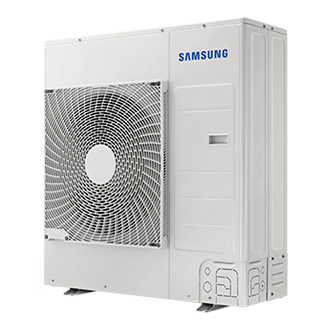

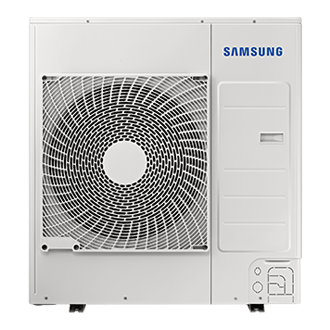

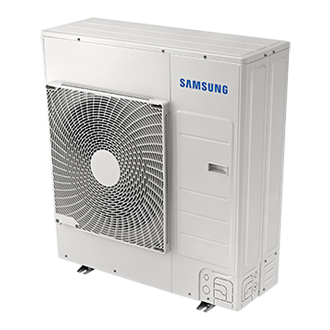

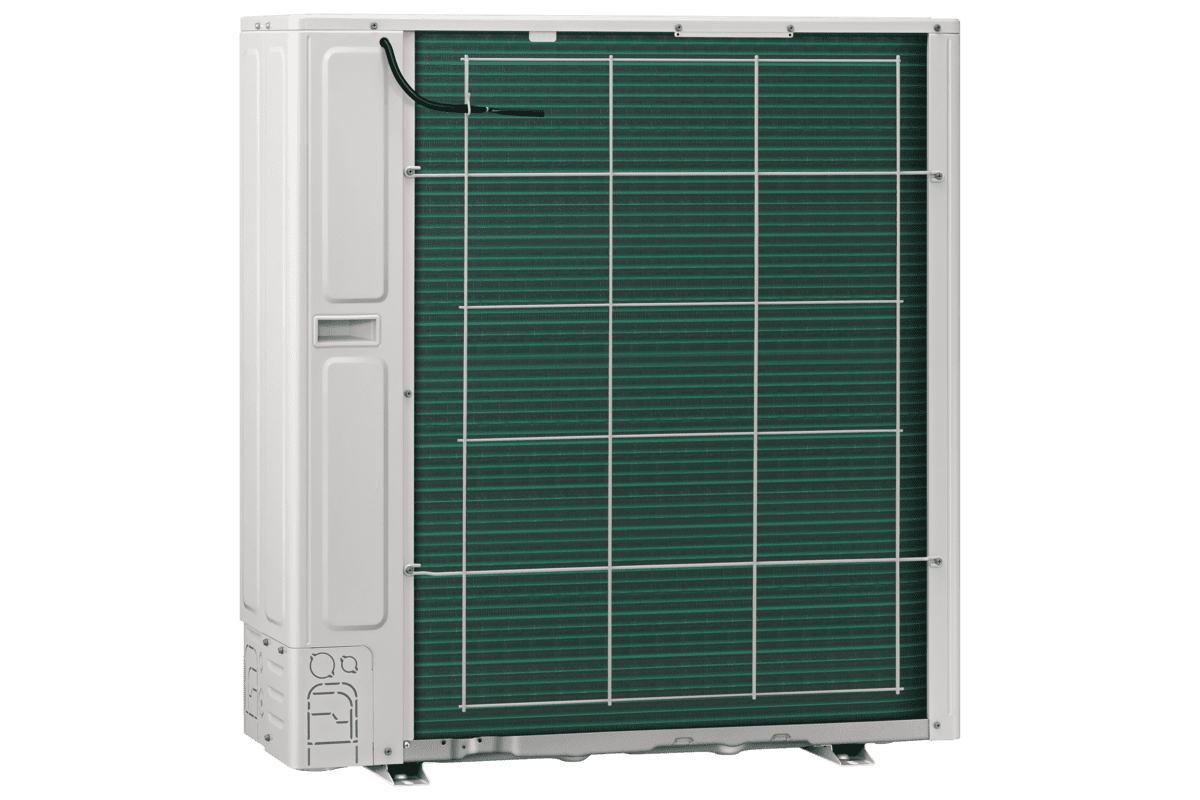

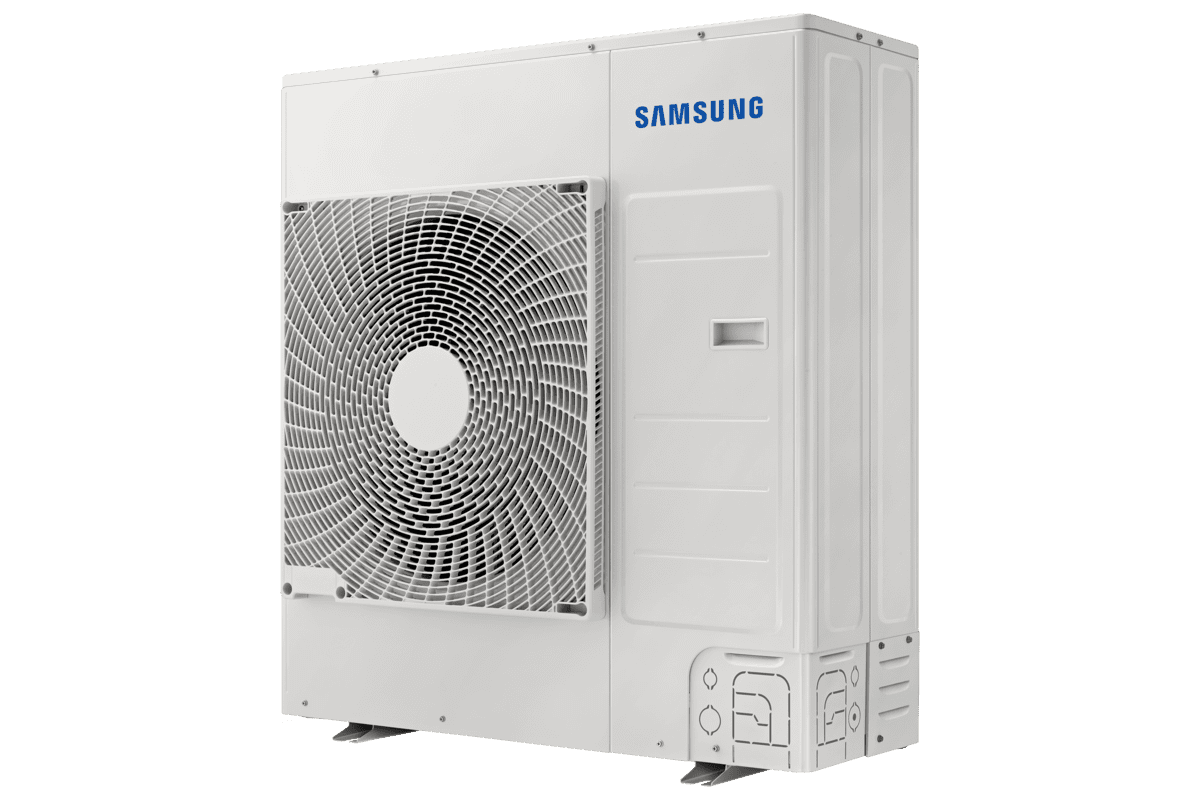

Outdoor Unit

AC140DXADKF/TS

Mode

Cooling Only

Cooling [kW]

4.00 / 13.50 / 16.50 kW

Cooling [Btu/h]

13,600 / 46,100 / 56,300 Btu/h

MCA [A]

34.0 A

Cooling Power Input (Min/Std/Max)

0.85 / 5.08 / 7.25 kW

MFA [A]

40.0 A

Cooling Current Input (Min/Std/Max)

4.3 / 22.2 / 32.0 A

EER (Nominal Cooling)

2.66 W/W

SEER (Cooling) [Btu/Wh]

17.00 Btu/Wh

Energy Grade (Cooling)

5-1★

Liquid Pipe (Φ, mm)

9.52 mm

Liquid Pipe (Φ, inch)

3/8"

Gas Pipe (Φ, mm)

15.88 mm

Gas Pipe (Φ, inch)

5/8"

Installation Max. Length [m]

75 m

Installation Max. Height [m]

30 m

Transmission Cable

0.75

Type

R32

Control Method

EEV

Factory Charging (kg)

2.6 kg

1,2,220-240,50

Type

Turbo

Air Flow Rate Cooling (H/M/L) [m³/min]

97 x 1 ㎥/min

Motor (Output) [W]

1 W

Number of Unit (EA)

29.7 / 25.5 / 19.8 EA

3,4,380-415,50

Drain Pipe (Φ,mm)

VP25 (OD32 / ID25)

Sound Pressure (High / Mid / Low) [dB(A)]

47/43/38 dBA

Panel Net Weight (kg)

25.0 kg

Shipping Weight (kg)

30.0 kg

Net Dimensions (WxHxD) (mm)

947 x 365 x 947 mm

Shipping Dimensions (WxHxD) (mm)

990 x 414 x 990 mm

Model Name

PC6NUSDANW

Panel Net Weight (kg)

4.0 kg

Shipping Weight (kg)

6.2 kg

Net Dimensions (WxHxD) (mm)

1000 x 74 x 1000 mm

Shipping Dimensions (WxHxD) (mm)

1093 x 85 x 1083 mm

Drain Pump

Built in

Drain Pump Max. Lifting Height/Displacement

750 /24

Type

UB5TN5450FJXSG

Model Name

Twin BLDC Rotary

Output(kW)

4.25 kW

Oil (Type)

POE

Oil (Initial Charge) [cc]

1700 cc

Air Flow Rate (Cooling) [m³/min]

72.0 CMM

Sound Pressure (Cooling / Heating) [dB(A)]

53 dBA

Panel Net Weight (kg)

75.5 kg

Shipping Weight (kg)

80.5 kg

Net Dimensions (WxHxD) (mm)

940 x 998 x 330 mm

Shipping Dimensions (WxHxD) (mm)

995 x 1096 x 426 mm

Cooling (℃)

-15~50 ℃

WiFi Kit

Built-in
