Interaktívny displej QB13R-T

LH13QBRTBGCXEN

  • Uhlopriečka 13“
  • Rozlíšenie 1920*1080 (Full HD)
  • Jas 300 nit

Veľkosť uhlopriečky

Interaktívny displej QB13R-T

13"

Improved engagement with intuitive interaction

Samsung’s QB13R-T touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

Improved engagement with intuitive interaction Improved engagement with intuitive interaction

Fast, effective touch capabilities

With integrated capacitive touch functionality, the QB13R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.

Fast, effective touch capabilities Fast, effective touch capabilities

Crisp and visible content

The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

Crisp and visible content Crisp and visible content

Slim, smart design

The compact and slim design of the QB13R-T allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

Slim, smart design Slim, smart design

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB13R-T allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Powerful content playback Powerful content playback

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Comprehensive security setup Comprehensive security setup

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Convenient, clean display control Convenient, clean display control

Safe operation, reliable performance

The QB13R-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Safe operation, reliable performance Safe operation, reliable performance

* IP5x : Product operation is not guaranteed when exposed to particular types of dust, such as metal dust.

Špecifikácie

Displej

  • Uhlopriečka obrazovky 13"
  • Typ panela ADS
  • Rozlíšenie 1,920 x 1,080
  • Rozostup pixelov (HxV) 0.153 (H) x 0.153 (V)
  • Jas (typický) 250
  • Kontrastný pomer 600:1
  • Uhol sledovania (H/V) 178/178
  • Čas odozvy 8ms
  • Farebná škála 45%
  • Matná obrazovka 25%, 10%(glass)
  • Horizontálna frekvencia snímania 30~81kHz
  • Maximálna frekvencia pixelov 594MHz
  • Vertikálna frekvencia snímania 48~75Hz
  • Contrast Ratio (Dynamic) 10000:1

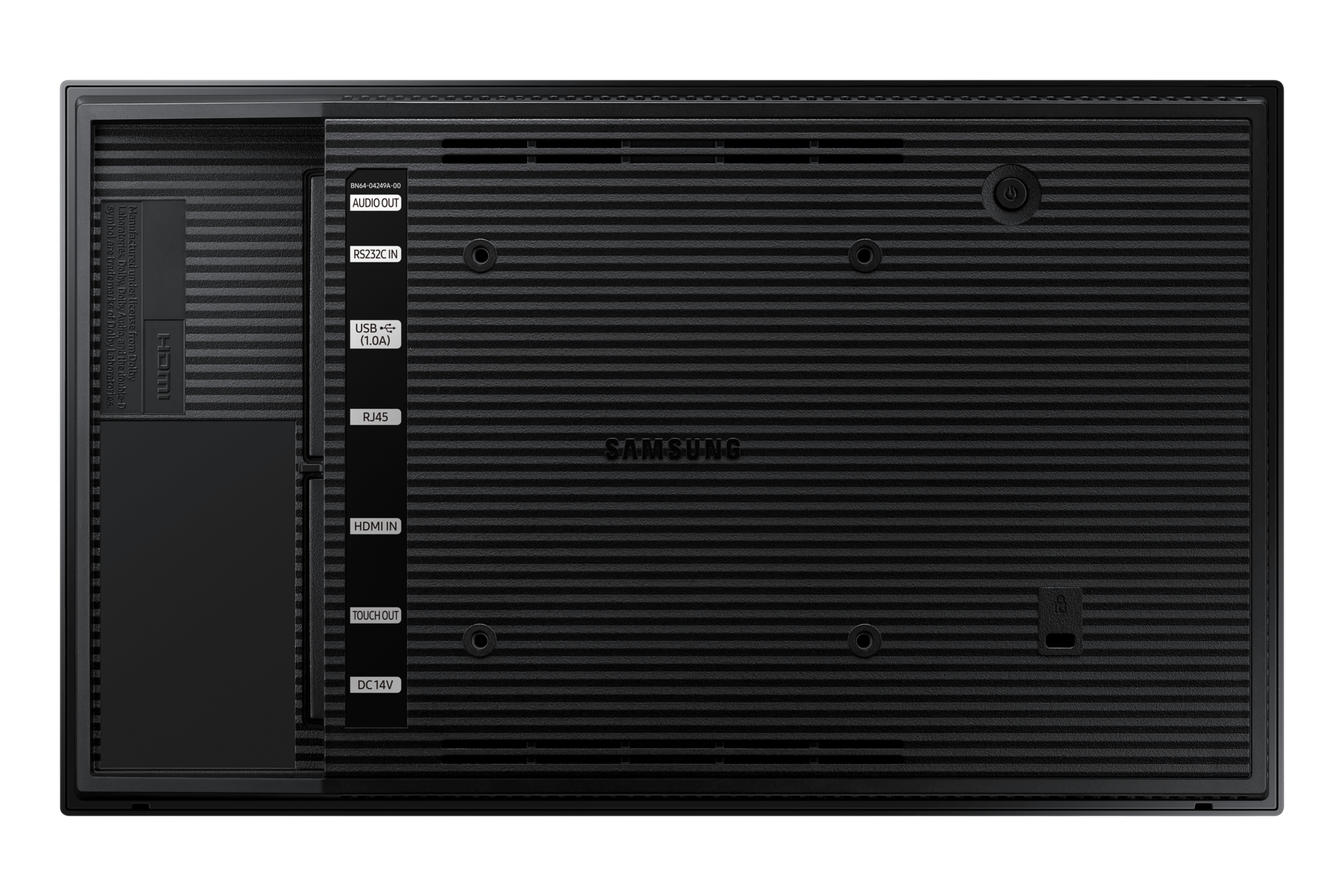

Konektivita

  • HDMI vstup 1
  • DisplayPort vstup No
  • USB 2
  • IR vstup No
  • HDBaseT Vstup No
  • Audio vstup No
  • Audio výstup Stereo Mini Jack
  • Video výstup No
  • RS232 vstup Yes
  • RS232 výstup No
  • RJ45 vstup Yes
  • RJ45 výstup No
  • WiFi Yes
  • 3G Dongle No

Výkon

  • Napájací zdroj AC100-240V 50/60Hz
  • Spotreba energie (režim zapnutia) 27.5W
  • Spotreba energie (úsporný režim) 0.5 W

Rozmery

  • Rozmery setu (Š x V x H) 322 x 193.5 x 29.8 mm
  • Rozmery balenia (Š x V x H) 376 x 132 x 248 mm

Hmotnosť

  • Hmotnosť setu 1.1 kg
  • Hmotnosť balenia 2.0 kg

Podmienky prevádzky

  • Teplota 0℃~ 40℃
  • Vlhkosť 10 ~ 80%, non-condensing

Mechanické špecifikácie

  • VESA montáž / Montáž na stenu 100 x 100 mm
  • Šírka rámu 13.1
  • Materiál rámu Non-Glossy

Všeobecné vlastnosti

  • Slot na externú pamäť No

Voliteľná Funkcia

  • Držiak No
  • Stojan Inbox(Simple Stand) (2ea)

Internal Player (MagicInfo)

  • MagicInfo Daisychain Videowall Support No

Ekologické vlastnosti

  • Trieda energetickej účinnosti B

Certifikácia a súlad s nariadeniami

  • Trieda bezpečnosti Class B FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005
  • Bezpečnosť CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
