Features
The Ultimate SSD
Reach max performance of PCIe® 4.0*. Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.
* PCIe 4.0 best theoretical sequential read is 8000 MB/s - 990 PRO reaches 7450 MB/s.
PCIe 4.0 Speed Maximised
Huge speed boost. 990 PRO offers sequential* read/write speeds up to 7,450/6,900 MB/s reaching near the max performance of PCIe® 4.0. 40% and 55% faster random read/write speeds than 980 PRO 2TB - up to 1,400K/1,550K IOPS, while 4TB has an even higher random read speed of up to 1,600K IOPS.
* Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. Test system configuration: AMD Ryzen 7 5800X 8-Core Processor CPU@3.80GHz, DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS - Windows 10 Pro 64bit, Chipset - ASRock-X570 Taichi. To maximise the performance of the 990 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.
Breakthrough power efficiency
More power-efficient performance. Higher performance usually consumes more power but, 990 PRO uses less power with up to 50% improved performance per Watt over 980 PRO*. This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.
* 980 PRO Sequential Read/Write - 1,129/877 MB/Watt, 990 PRO Sequential Read/Write - 1380/1319 MB/Watt based on internal test result of 1TB capacity model.

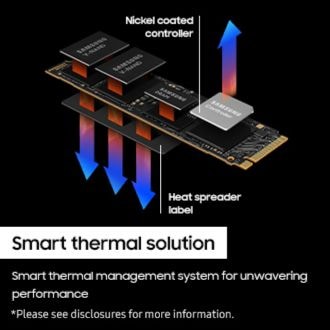

Smart thermal solution
Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance. The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.
The champion maker
The best gameplay experience. A more than 55% improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games.
DirectStorage technology from Microsoft loads games faster than before by leveraging the multiple GB/sec speed of modern NVMe SSDs. Results are based on a comparison with Samsung 980 PRO
Game like a pro
Secure victory with 990 PRO's expanded 4TB capacity, empowering you with a random read speed of up to 1,600,000 IOPS. Witness faster loading times on your PC and PlayStation® 5, as it breathes life into your games.
Samsung Magician Software
Unlock the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools always gets you the best SSD performance. Protect data, get updates, monitor drive health, and set up LED* colour combinations. Your personal SSD toolkit.
* The LED display colour may appear different from the colour setting due to viewing angles and/or environmental factors
* The LED display colour may appear different from the colour setting due to viewing angles and/or environmental factors
World’s No.1 Flash Memory
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003*. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.
* Source: 2003~2021 OMDIA data - NAND suppliers' revenue market share.
* Source: 2003~2021 OMDIA data - NAND suppliers' revenue market share.
Specifications
-
Interface
PCIe Gen 4.0 x4, NVMe 2.0
-
Sequential Read
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
Warranty
5-Year Limited Warrantyor 1200 TBW Limited Warranty
-
Application
Client PCs, Game Consoles
-
Weight
Max 9.0g Weight
-
Application
Client PCs, Game Consoles
-
Rated Capacity
2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe Gen 4.0 x4, NVMe 2.0
-
Dimension (Pack: WxHxD)
80 x 22 x 2.3 mm
-
Weight
Max 9.0g Weight
-
Storage Memory
Samsung V-NAND 3-bit MLC
-
Controller
Samsung in-house Controller
-
Cache Memory
Samsung 2GB Low Power DDR4 SDRAM
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 7,450 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 6,900 MB/s * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD32)
Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD1)
Up to 22,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD1)
Up to 80,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
*Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Installation Kit
Not Available
-
Management SW
Magician Software for SSD management
-
5-Year Limited Warrantyor 1200 TBW Limited Warranty
