Features
Upgrade everyday performance
Top 3 features
Spectacular speed everyday
Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7,250/6,300MB/s1. Huge files, instant transfer.
¹Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service centre.
* Test system configuration: AMD Ryzen9 7950x 16-Core Processor CPU@4.5GHz, DDR5 4800MHz 16GBx2 (PC5-38400), OS-Windows 11 Pro 64bit, Chipset - ASRock X670E Taichi.
* To maximise the performance of the 990 EVO Plus, please check whether your system supports PCIe® 4.0 or PCIe® 5.0 at the Intel or AMD website.
* Product image shown for illustrative purposes only; actual product may differ.
Cool power through your day
Optimised efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73%, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.
Extra space. Extra speed.
Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.

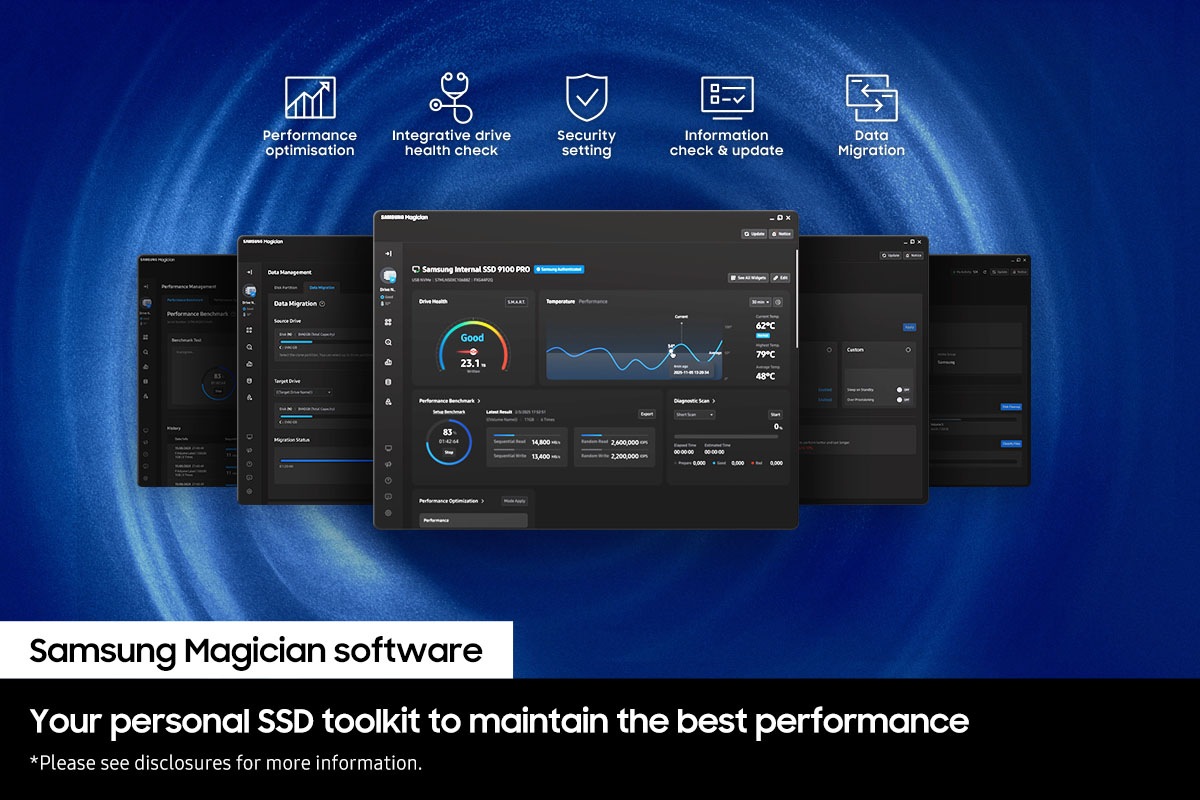

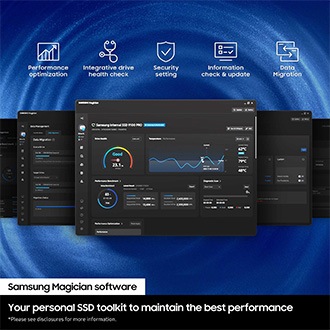

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
For detailed information (e.g., supported models, operating systems and FAQs), please visit the Samsung Magician software website at https://semiconductor.samsung.com/consumer-storage/magician/↗
For detailed information (e.g., supported models, operating systems and FAQs), please visit the Samsung Magician software website at https://semiconductor.samsung.com/consumer-storage/magician/↗
Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered ground-breaking technologies that have changed our daily lives. This NAND flash technology also powers our SSDs, making room for the next big push of innovation.
Specifications
-
Application
Client PCs
-
Interface
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
-
Dimension (Pack: WxHxD)
Max 80.15 x Max 22.15 x Max 2.38 mm
-
Weight
Max 9.0g Weight
-
Performance
Up to 7,150MB/s*
-
Sequential Write
Up to 6,300MB/s*
-
Warranty
5-year Limited Warranty or 600TBW Limited Warranty
-
Application
Client PCs
-
Rated Capacity
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
-
Dimension (Pack: WxHxD)
Max 80.15 x Max 22.15 x Max 2.38 mm
-
Weight
Max 9.0g Weight
-
Storage Memory
Samsung V-NAND TLC
-
Controller
Samsung in-house Controller
-
Cache Memory
HMB(Host Memory Buffer)
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 7,150MB/s*
-
Sequential Write
Up to 6,300MB/s*
-
Random Read (4KB, QD32)
Up to 850,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration
-
Power Consumption (Device Sleep)
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Installation Kit
Not Available
-
Management SW
Magician Software for SSD management
-
5-year Limited Warranty or 600TBW Limited Warranty
