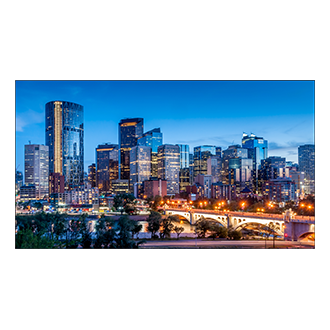

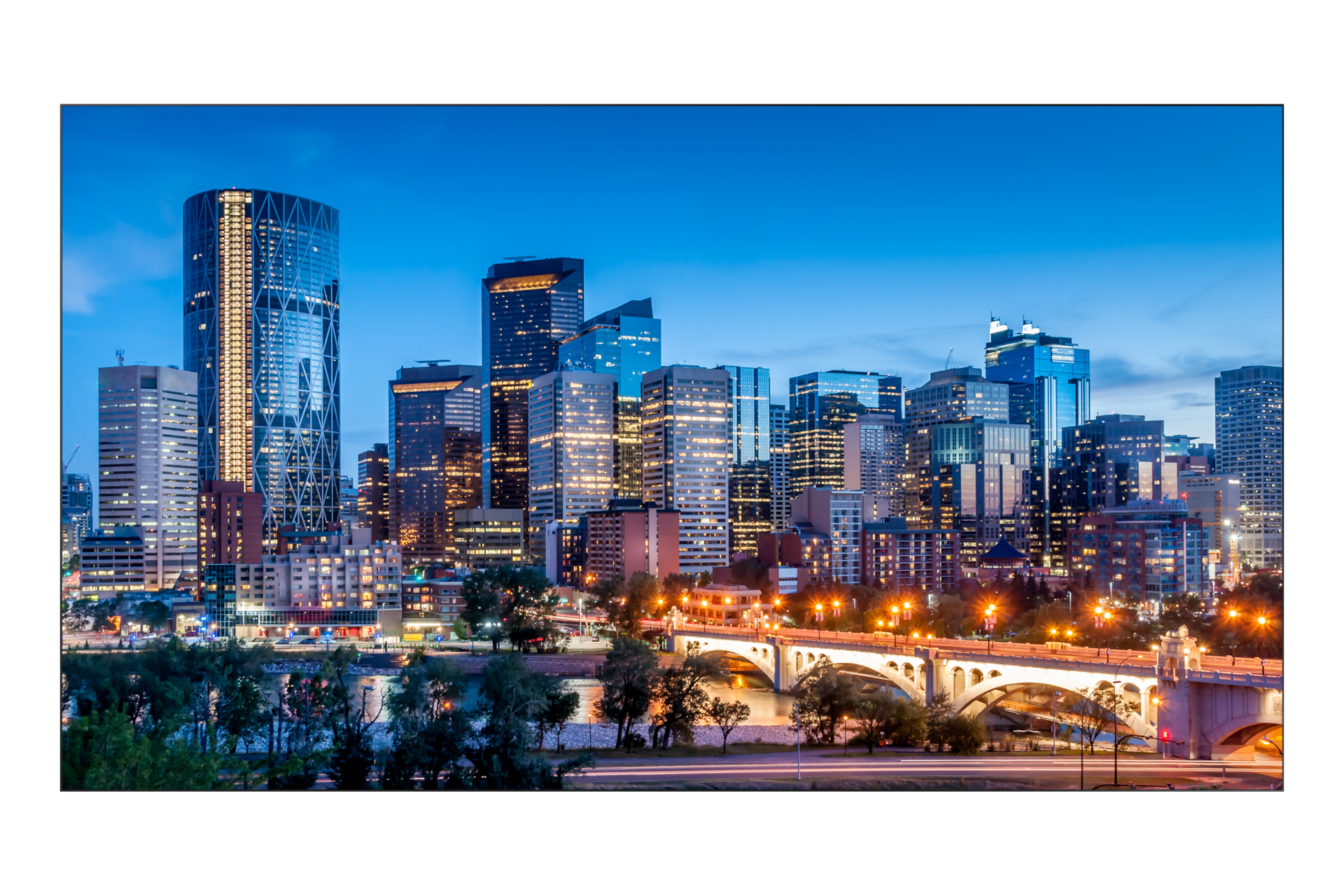

55" Extreme Narrow Bezel Video Wall VM55B-E

Contact us

55" Extreme Narrow Bezel Video Wall VM55B-E

LH55VMBEBGBXXS

  • Transform any space with high impact visuals
  • View content from any angle
  • Vibrant images in any light

Choose your Colour

55" Extreme Narrow Bezel Video Wall VM55B-E

Black

Contact us

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VMB-E series. The display’s slim depth and 500 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

Always-on, space-saving solution with extreme-narrow bezels Always-on, space-saving solution with extreme-narrow bezels

Transform any space with high impact visuals

The slender design and 70.4mm cabinet depth* provide flexibility for installation and an extreme-narrow 1.74mm bezel-to-bezel** width creates a seamless picture opening endless possibilities for designing a captivating visual experience.

Transform any space with high impact visuals Transform any space with high impact visuals

*Exact depth varies by display size. **B-to-B means “Panel Bezel to Panel Bezel”.

View content from any angle

Wide viewing angles mean the content is easily visible even if viewers are not standing directly in front of the display. Audiences can get clear details and vivid colours regardless of where the screen is located.

View content from any angle View content from any angle

Vibrant images in any light

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching at any time of the day or night — regardless of ambient light.

Vibrant images in any light Vibrant images in any light

Image enhancement

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, colour saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.

Image enhancement Image enhancement

Comprehensive calibration to fit your needs

Multi-step factory tuning provides uniform brightness and colour. Users can also fine-tune advanced settings with free powerful Colour Expert Pro software. For quick and simple calibration, Colour Expert Pro Mobile enables white balance adjustments for displays up to 3x3 using a mobile camera.

Comprehensive calibration to fit your needs Comprehensive calibration to fit your needs

Advanced presentation, simplified operation

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung's UHD Signage Player Box streamlines functionality by combining the media player and content management software.

Advanced presentation, simplified operation Advanced presentation, simplified operation

Industry standard certified

The VMB-E series is EMC* class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x** certification protects the display against dust and other conditions. The display packaging also passed a rigorous 2-step; ISTA***-certified test to minimize possible damage during delivery.

Industry standard certified Industry standard certified

*EMC: Electromagnetic compatibility. **IP5x validation ensures satisfactory operation even with a certain level of dust inside the product. However, product operation is not guaranteed when exposed to particular types of dust, such as metal dust. ***ISTA: International Safe Transit Association.

Images are for illustration purposes only.

Specifications

Download

Display

  • Diagonal Size 55"
  • Panel Type IPS
  • Resolution 1,920 x 1,080
  • Pixel Pitch (HxV) 0.63x0.63
  • Brightness (Typ) MAX 500nit
  • Contrast Ratio 1,000:1
  • Viewing Angle (H/V) 178/178
  • Response Time 8ms
  • Colour Gamut 72 %
  • Glass Haze 0.28 %
  • H-Scanning Frequency 57.3kHz ~ 70kHz
  • Maximum Pixel Frequency 78MHz
  • V-Scanning Frequency 47Hz ~ 63Hz
  • Contrast Ratio (Dynamic) 100,000:1
  • Operation Time Support 24/7

Connectivity

  • HDMI In 2
  • DP In 1
  • DVI In 1
  • Version of HDMI 2
  • Version of DP 1.2
  • Version of HDCP 2.2
  • USB 1
  • IR In Yes
  • Audio In Yes
  • Audio Out Stereo Mini Jack
  • Video Out Yes
  • Power Out No
  • RS232 In Yes
  • RS232 Out Stereo Mini Jack
  • RJ45 In Yes
  • WiFi No

Power

  • Power Supply AC100-240V 50/60Hz
  • Power Consumption (On Mode) 220 W
  • Power Consumption (Sleep Mode) 0.5 W

Dimension

  • Set Dimension (WxHxD) 1212.2 x 683.0 x 70.4 mm
  • Package Dimension (WxHxD) 1398 x 844 x 257 mm

Weight

  • Set Weight 19.5 kg
  • Package Weight 27 kg

Operation Conditions

  • Temperature 0℃~ 40℃
  • Humidity 10 ~ 90%

Mechanical Specification

  • VESA Mount 600 x 400 mm
  • Bezel Width B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(U/L), 0.44mm(R/B) A2A : 2.49mm (Active area to Active area), 1.75mm(U/L), 0.74mm(R/B)
  • Frame Material Glossy

Optional Feature

  • Mount Yes
  • Stand No

Certification and Compliance

  • EMC FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NZS CISPR32:2015 CCC (China) : GB/T 9254-2008, GB 17625.1-2012 BSMI (Taiwan) : CNS 13438
  • Safety CB (Europe) : IEC62368-1/EN62368-1 CCC (China) : GB 4943.1-2011 (Singapore ) : PSB+IEC62368-1NOM (Mexico ) : Tunerless : NOM-019-SCFI-1998IRAM (Argentina ) : IRAM+IEC62368-1 SIRC (Saudi Arabia ) : SASO+IEC62368-1 BIS (India) : IEC60950-1 / IS13252KC (Korea) : K 60950-1EAC (Russia) : EAC+IEC60950-1 BSMI (Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC62368-1/AS/NZS 62368-1 UL (USA) : cUL62368-1 CSA (Canada) : cUL

Support

Find answers to the questions you have about the product

Product Support See More Content
User manual & Downloads
  • Quick Guide
    ENGLISH, VIETNAMESE, ARABIC, PORTUGUESE, FRENCH, CHINESE(Traditional)
    Download
  • User Manual
    ENGLISH, VIETNAMESE, ARABIC, PORTUGUESE, FRENCH, CHINESE(Traditional)
    Download
  • Quick Guide
    ENGLISH, VIETNAMESE, ARABIC, PORTUGUESE, FRENCH, CHINESE(Traditional)
    Download
  • User Manual
    ENGLISH, VIETNAMESE, ARABIC, PORTUGUESE, FRENCH, CHINESE(Traditional)
    Download
