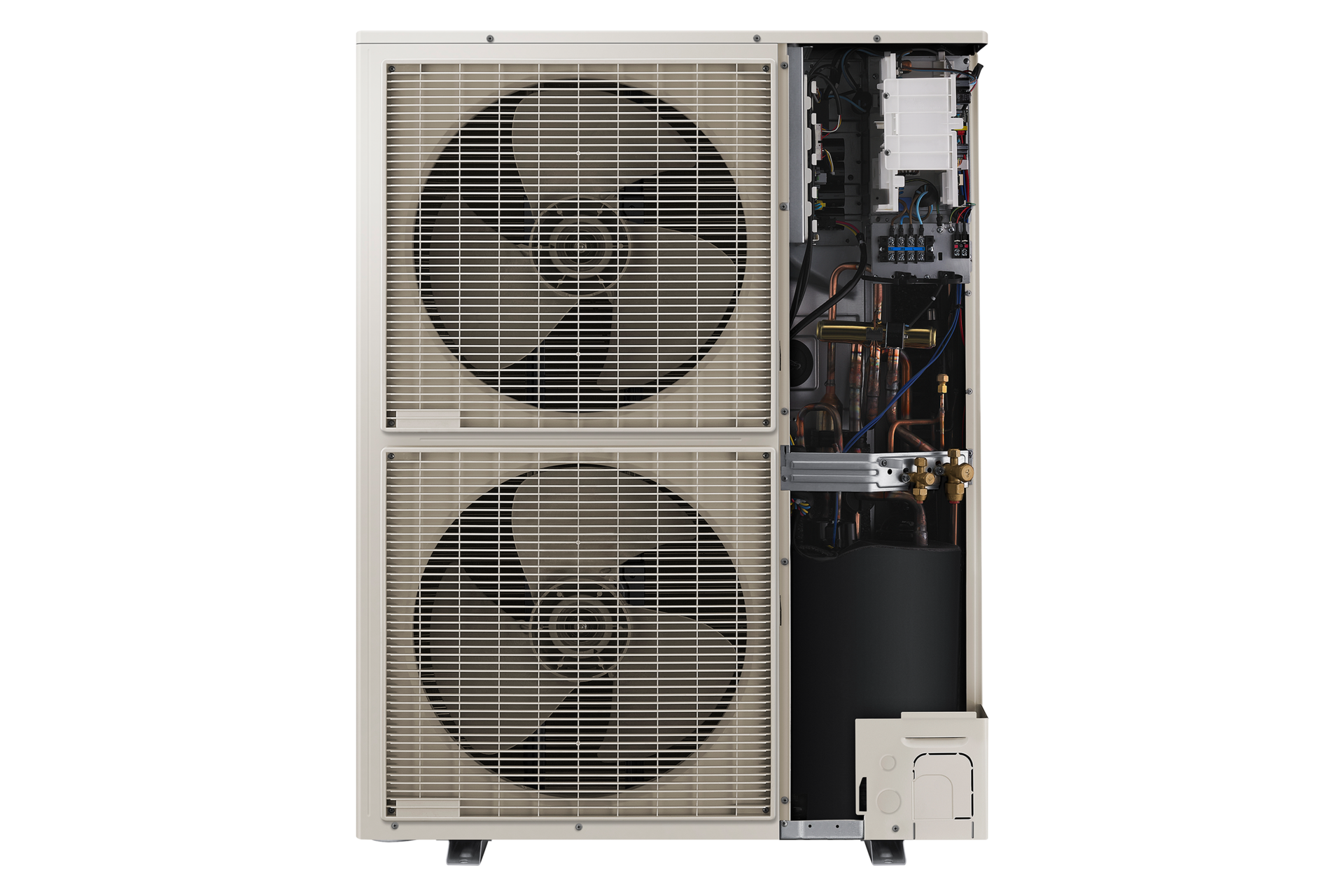

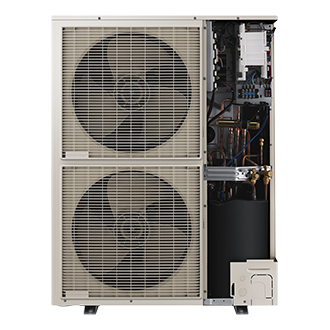

AC Outdoor unit with Digital Inverter Technology,47000 BTU/hr 220 / 1Φ

AC048TXMPCC/SU

Available Capacity

AC Outdoor unit with Digital Inverter Technology,47000 BTU/hr 220 / 1Φ
47,000 Btu/h

Features

Flexibly quiet yet powerful performance

3-step Quiet Mode

Make less noise when you need to. The 3-step Quiet Mode enables adjustable low-noise operation. Simply select from three different steps to reduce the sound level by 3dB, 5dB or 7dB*. So you can enjoy optimal heating and cooling in a wide variety of situations and without disturbing neighbors.

* Based on internal testing. Results may vary depending on environmental factors and individual use.

* Based on internal testing. Results may vary depending on environmental factors and individual use.

Specifications

  • Cooling [Btu/h]

    15000 / 47000 / 60000 Btu/h

  • Capacity

    13.75 kW

  • Net Dimensions (WxHxD) (mm)

    940 x 1420 x 330 mm

  • Features

    Duct

  • Type

    Duct

  • Indoor Unit

    AC048TNMPCC/SU

  • Outdoor Unit

    AC048TXMPCC/SU

  • Mode

    Cooling Only

  • Cooling [kW]

    13.75 kW

  • Cooling [Btu/h]

    15000 / 47000 / 60000 Btu/h

  • Cooling Power Input (Min/Std/Max)

    1.30 / 3.79 / 6.50 kW

  • Cooling Current Input (Min/Std/Max)

    7.10 / 17.40 / 29.80 A

  • EER (Nominal Cooling) [(Btu/h)/W]

    12.4 Btu/Wh

  • SEER (Cooling Energy Grade)

    C

  • SEER (Cooling) [Btu/Wh]

    13.10 Btu/Wh

  • Liquid Pipe (Φ, mm)

    9.52 mm

  • Liquid Pipe (Φ, inch)

    3/8"

  • Gas Pipe (Φ, mm)

    19.05 mm

  • Gas Pipe (Φ, inch)

    3/4"

  • Installation Max. Length [m]

    75 m

  • Installation Max. Height [m]

    30 m

  • Type

    R-410A

  • Factory Charging (kg)

    3.80 kg

  • 1,2,230,60

  • Type

    Sirocco

  • Air Flow Rate Cooling (H/M/L) [m³/min]

    51/43/35 ㎥/min

  • Motor (Output) [W]

    350 W

  • Number of Unit (EA)

    2 EA

  • 1,2,230,60

  • Sound Pressure (High / Mid / Low) [dB(A)]

    43 / 38 / 33 dBA

  • Panel Net Weight (kg)

    53.5 kg

  • Shipping Weight (kg)

    60.5 kg

  • Net Dimensions (WxHxD) (mm)

    1200 x 360 x 650 mm

  • Shipping Dimensions (WxHxD) (mm)

    1456 x 440 x 778 mm

  • Type

    Twin BLDC Rotary

  • Model Name

    UG5TK5450FJX

  • Output(kW)

    4.12 kW

  • Oil (Type)

    POE

  • Oil (Initial Charge) [cc]

    1700 cc

  • Air Flow Rate (Cooling) [m³/min]

    115 ㎥/min

  • Sound Pressure Level (Cooling)

    55 dBA

  • Panel Net Weight (kg)

    96.5 kg

  • Shipping Weight (kg)

    106.5 kg

  • Net Dimensions (WxHxD) (mm)

    940 x 1420 x 330 mm

  • Shipping Dimensions (WxHxD) (mm)

    995 x 1598 x 426 mm

  • Cooling (℃)

    -15~54 ℃
