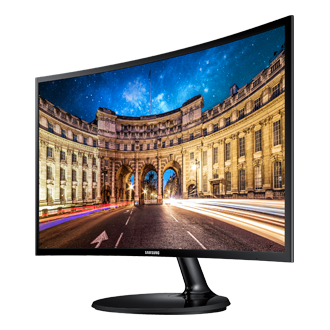

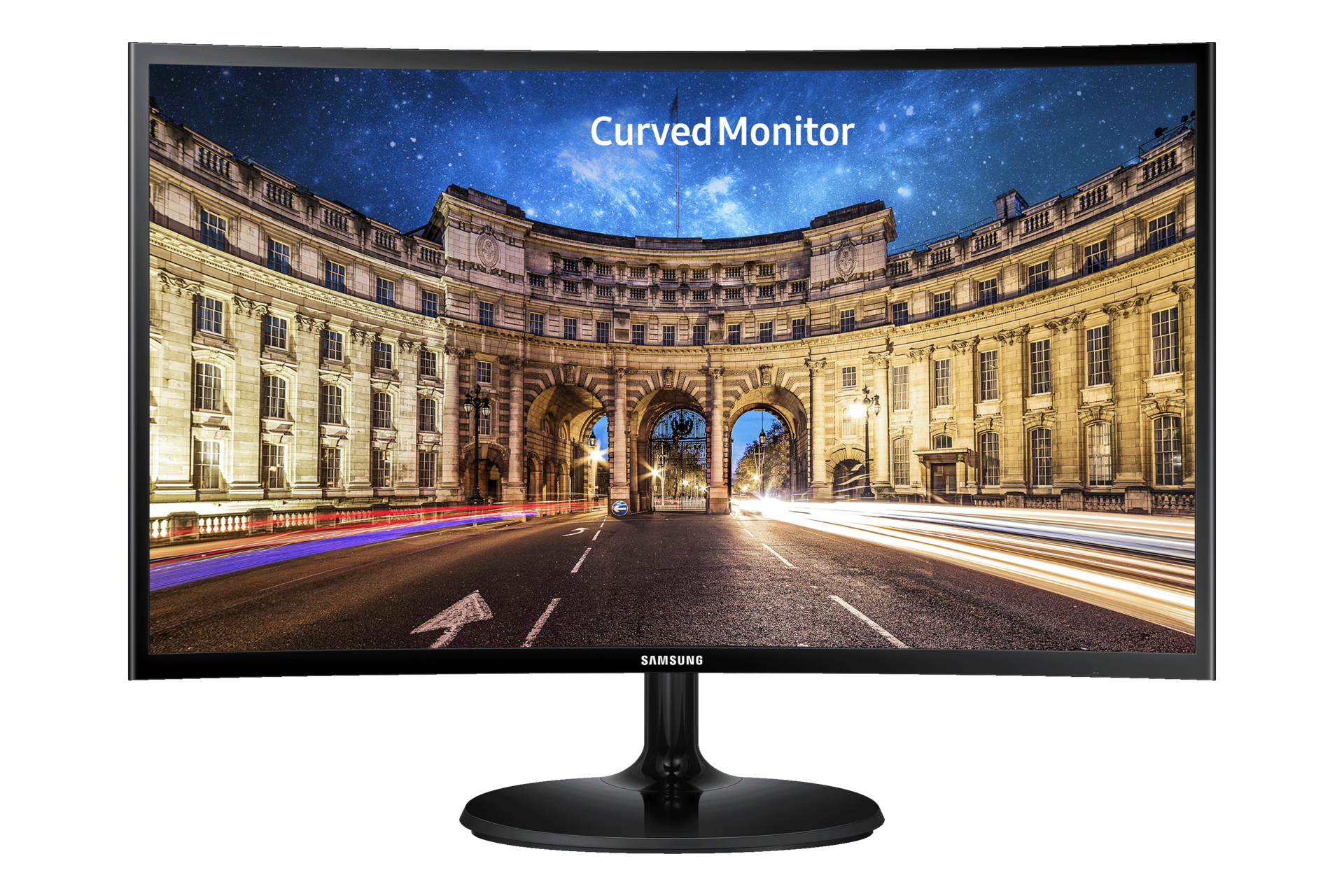

24" Essential Curved Monitor with the deeply immersive viewing experience

LC24F390FHMXUE

Available size

24" Essential Curved Monitor with the deeply immersive viewing experience

Highlights

HDMI Input

HDMI Input

AMD Freesync

AMD Freesync

Game Mode

Game Mode

Eye Saver Mode

Eye Saver Mode

Features

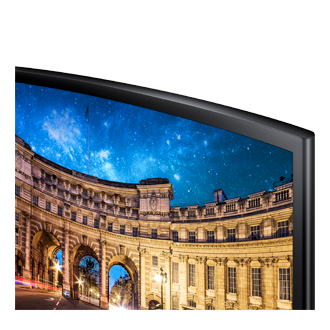

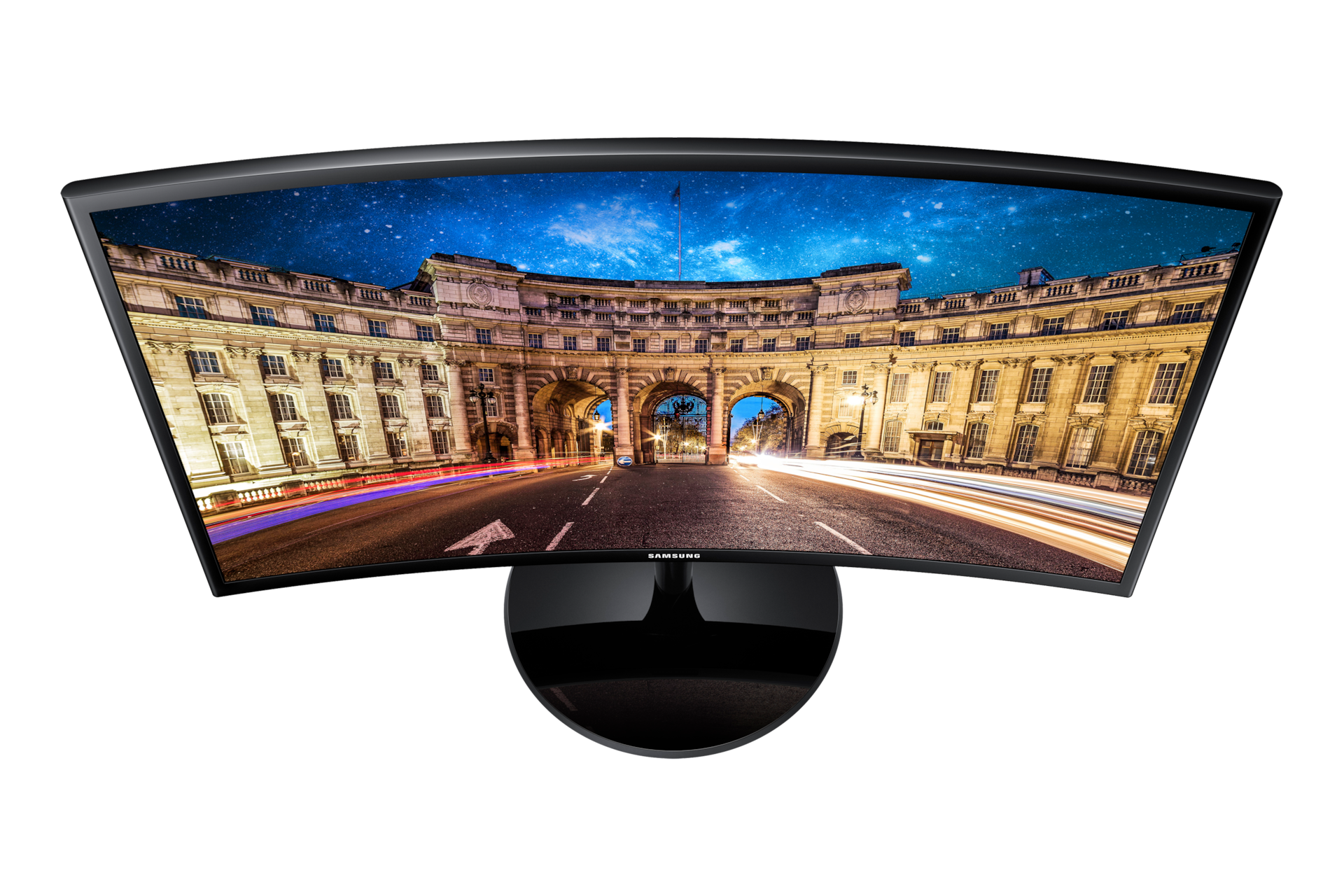

The deepest screen curve for the most deeply immersive viewing experience

Discover a truly immersive viewing experience with the Samsung monitor curved more deeply than any other. Wrapping around your field of vision like your local iMax theater screen, the 1800R screen — with its 1,800 mm radius of arc for greater curvature — creates a wider field of view, enhances depth perception, and minimizes peripheral distractions to draw you deeper in to your content. So whether it is an online movie, a favorite TV show, or a pulse-racing game, Samsung’s deeper screen curve will fully immerse you in all your multi-media content

The deepest screen curve for the most deeply immersive viewing experience The deepest screen curve for the most deeply immersive viewing experience

1800 R screen for increased viewing comfort

• 1800 R screen curve: the greater curvature of the 1800 R screen allows your eyes to track smoothly across the entire display while maintaining a constant viewing distance. • In clinical tests conducted by Seoul National University Hospital Department of Ophthalmology, this was shown to reduce eye strain in users compared to viewing a flat screen monitor

1800 R screen for increased viewing comfort 1800 R screen for increased viewing comfort

Samsung's advanced VA panel for minimized light leakage and deeper, more uniform blacks

The vertically aligned liquid crystals in Samsung’s VA panels block backlighting more effectively than IPS panels as the screen curves to minimize light leakage and deliver deeper, more uniform blacks from edge to edge.

Samsung's advanced VA panel for minimized light leakage and deeper, more uniform blacks Samsung's advanced VA panel for minimized light leakage and deeper, more uniform blacks

Superior image quality with Samsung’s advanced display technology

• Best-in-class 3000:1 contrast ratio: Samsung’s VA panel technology provides a 3000:1 contrast ratio that delivers deeper blacks, more brilliant whites, and richer colors for clearer, more vibrant images • Reduced light leakage: Samsung’s curved display technology minimizes light leakage from the screen edges to ensure more uniform blacks across the entire viewing area

Superior image quality with Samsung’s advanced display technology Superior image quality with Samsung’s advanced display technology

Flawlessly smooth gameplay with AMD FreeSync

• AMD FreeSync: By dynamically syncing screen refresh rate with image frame rate, AMD FreeSync minimizes stutter and ensures flawlessly smooth gameplay • Game Mode: Game mode instantly optimizes screen colors and contrast for gaming to ensure you enjoy every scene at its best

Flawlessly smooth gameplay with AMD FreeSync Flawlessly smooth gameplay with AMD FreeSync

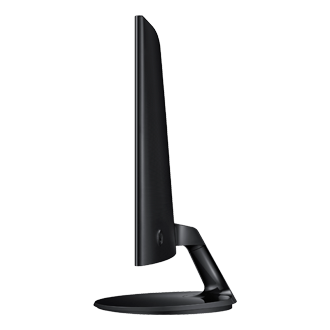

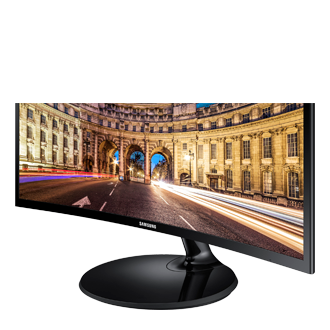

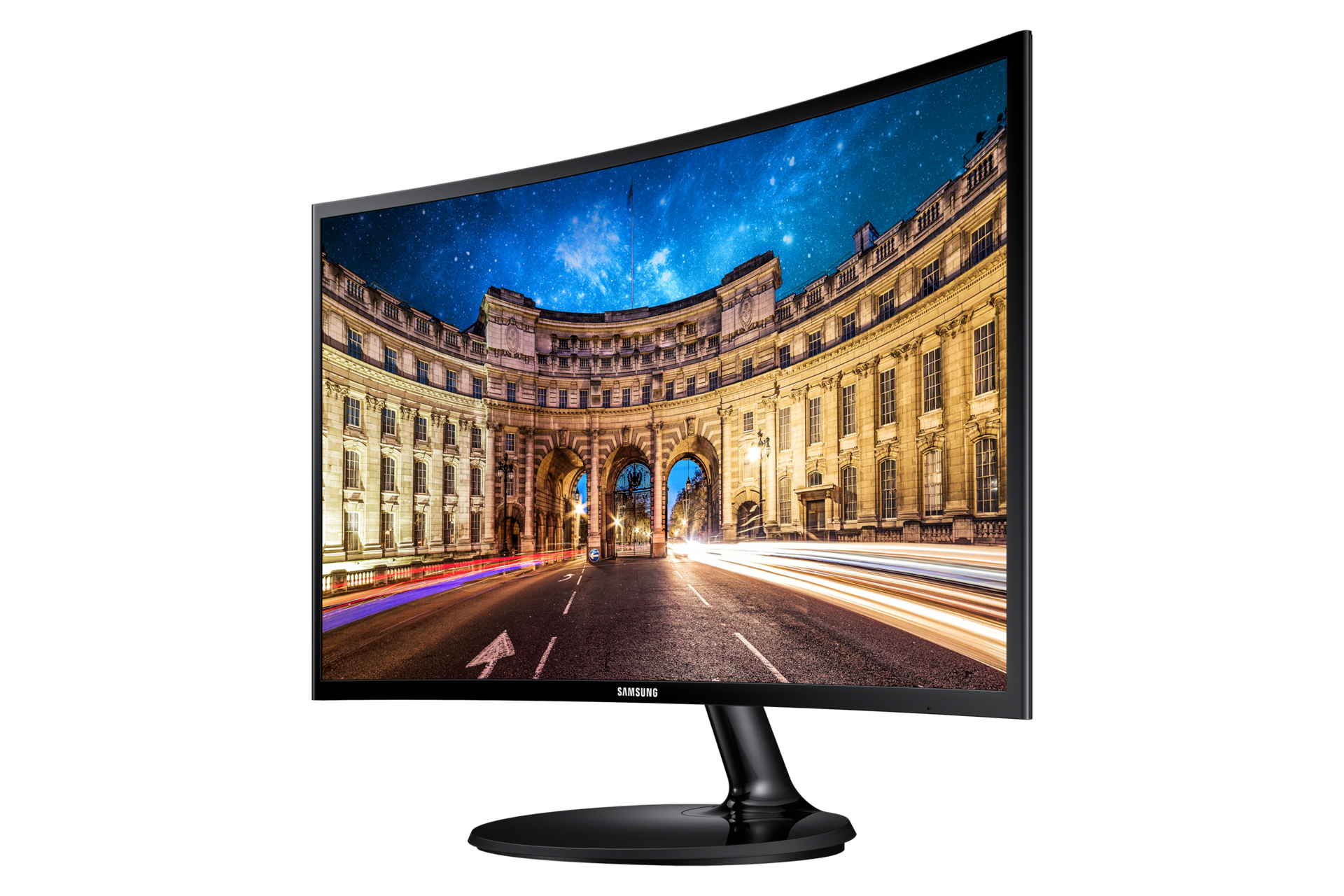

Incredibly slim profile and stylish curved design

• Super slim curved panel: With an astonishingly slim 11.9mm profile — as slender as a ballpoint pen — the solid curved panel is more than half as slim as previous curved-screen models • Simple circular stand: a simple circular stand elegantly complements the slender curved panel

Incredibly slim profile and stylish curved design Incredibly slim profile and stylish curved design

Samsung eco-saving technology reduces energy consumption and environmental impact

• Energy-saving auto brightness setting: Samsung’s eco-saving technology fluidly adjusts display brightness based on the luminescence of screen blacks to reduce energy consumption by up to 10%‡* • Dual manual brightness settings: Screen brightness can also be set manually to 25%‡ or 50%‡ of maximum * Based on internal testing

Samsung eco-saving technology reduces energy consumption and environmental impact Samsung eco-saving technology reduces energy consumption and environmental impact

Easy on the eyes for a more comfortable viewing experience

• Eye Saver Mode: By reducing blue light emissions — which stimulate the retina more than other colors — Eye Saver Mode reduces eye fatigue and provides a more comfortable viewing experience. • Flicker Free: Samsung’s Flicker Free technology minimizes distracting screen flicker to let you work and play for longer in greater comfort.

Easy on the eyes for a more comfortable viewing experience Easy on the eyes for a more comfortable viewing experience

Specifications

  • Flat / Curved

    Curved

  • Screen Curvature

    1,800 R

  • Aspect Ratio

    16:9

  • Brightness (Typical)

    250 cd/m²

  • Contrast Ratio Static

    3,000:1 (Typ.)

  • Resolution

    1920x1080

  • Response Time

    4 (GTG)

  • Viewing Angle (H/V)

    178° / 178°

  • Refresh Rate

    60 Hz

  • Screen Size (Inch)

    23.5

  • Screen Size (cm)

    59.8

  • Screen Size (Class)

    24

  • Flat / Curved

    Curved

  • Active Display Size (HxV) (mm)

    521.40x293.28

  • Screen Curvature

    1,800 R

  • Aspect Ratio

    16:9

  • Panel Type

    VA

  • Brightness (Typical)

    250 cd/m²

  • Brightness (Min)

    200 cd/m²

  • Peak Luminance Ratio

    96 %

  • Contrast Ratio Static

    3,000:1 (Typ.)

  • Contrast Ratio (Dynamic)

    Mega

  • Resolution

    1920x1080

  • Response Time

    4 (GTG)

  • Viewing Angle (H/V)

    178° / 178°

  • Color Support

    16.7 M

  • Color Gamut (NTSC 1976)

    72%

  • Refresh Rate

    60 Hz

  • Samsung MagicBright

    Yes

  • Samsung MagicUpscale

    Yes

  • Eco Saving Plus

    Yes

  • Eye Saver Mode

    Yes

  • Flicker Free

    Yes

  • Game Mode

    Yes

  • Image Size

    Yes

  • Windows Certification

    Windows 10

  • FreeSync

    Yes

  • Wireless Display

    No

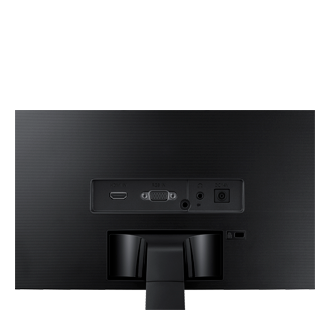

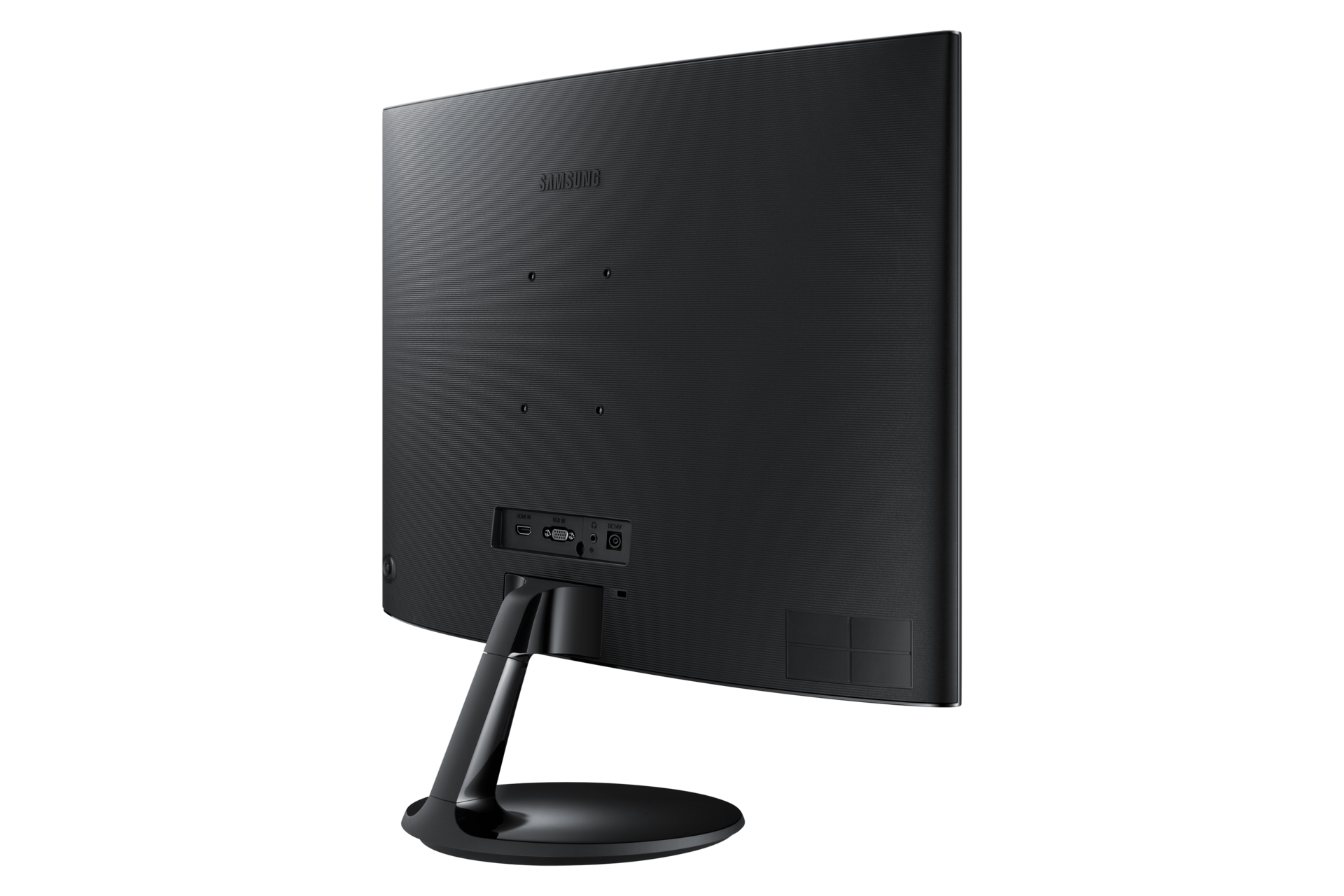

  • D-Sub

    1 EA

  • DVI

    No

  • Dual Link DVI

    No

  • Display Port

    No

  • Mini-Display Port

    No

  • HDMI

    1 EA

  • Audio In

    No

  • Headphone

    1 EA

  • USB Hub

    No

  • Temperature

    10 ~ 40 ℃

  • Humidity

    10 ~ 80% (non-condensing)

  • Color

    Black high Glossy

  • Stand Type

    Simple

  • Tilt

    -2.0°(±2.0°)~22.0°(±2.0°)

  • Wall Mount

    75x75 mm

  • Energy Efficiency Class

    A

  • Power Supply

    AC 100 ~ 240 V

  • Power Consumption (Max)

    25 W

  • Power Consumption (Typ)

    24 W

  • Power Consumption (IEC 62087 Edition 2)

    24 W

  • Power Consumption (DPMS)

    Less than 0.3 W

  • Power Consumption (Off Mode)

    Less than 0.3 W

  • Power Consumption (Yearly)

    35 kWh/year

  • Type

    External Adaptor

  • Set Dimension with Stand (WxHxD)

    547.8x418.2x206.56 mm

  • Set Dimension without Stand (WxHxD)

    547.8x326.3x87.6 mm

  • Package Dimension (WxHxD)

    618x166x394 mm

  • Set Weight with Stand (kg)

    3.3 Kg

  • Set Weight without Stand (kg)

    2.8 Kg

  • Package Weight (kg)

    4.7 Kg

  • Power Cable

    Yes

  • Power Cable Length

    1.5 m

  • D-Sub Cable

    Yes

  • Quick Setup Guide

    Yes
