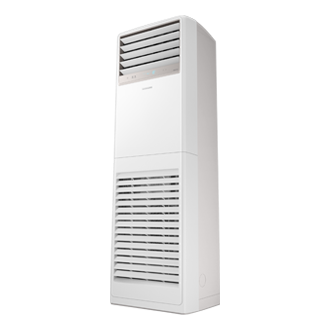

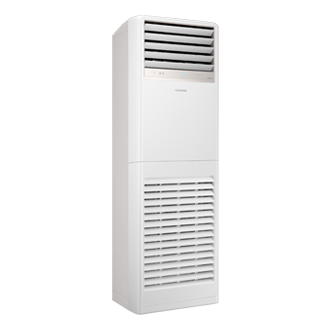

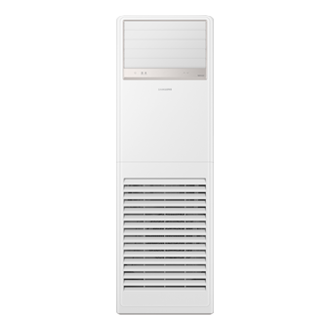

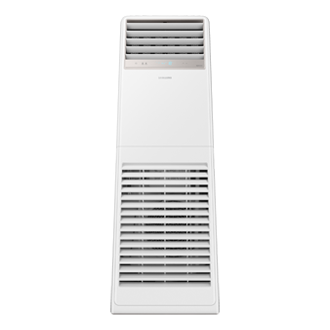

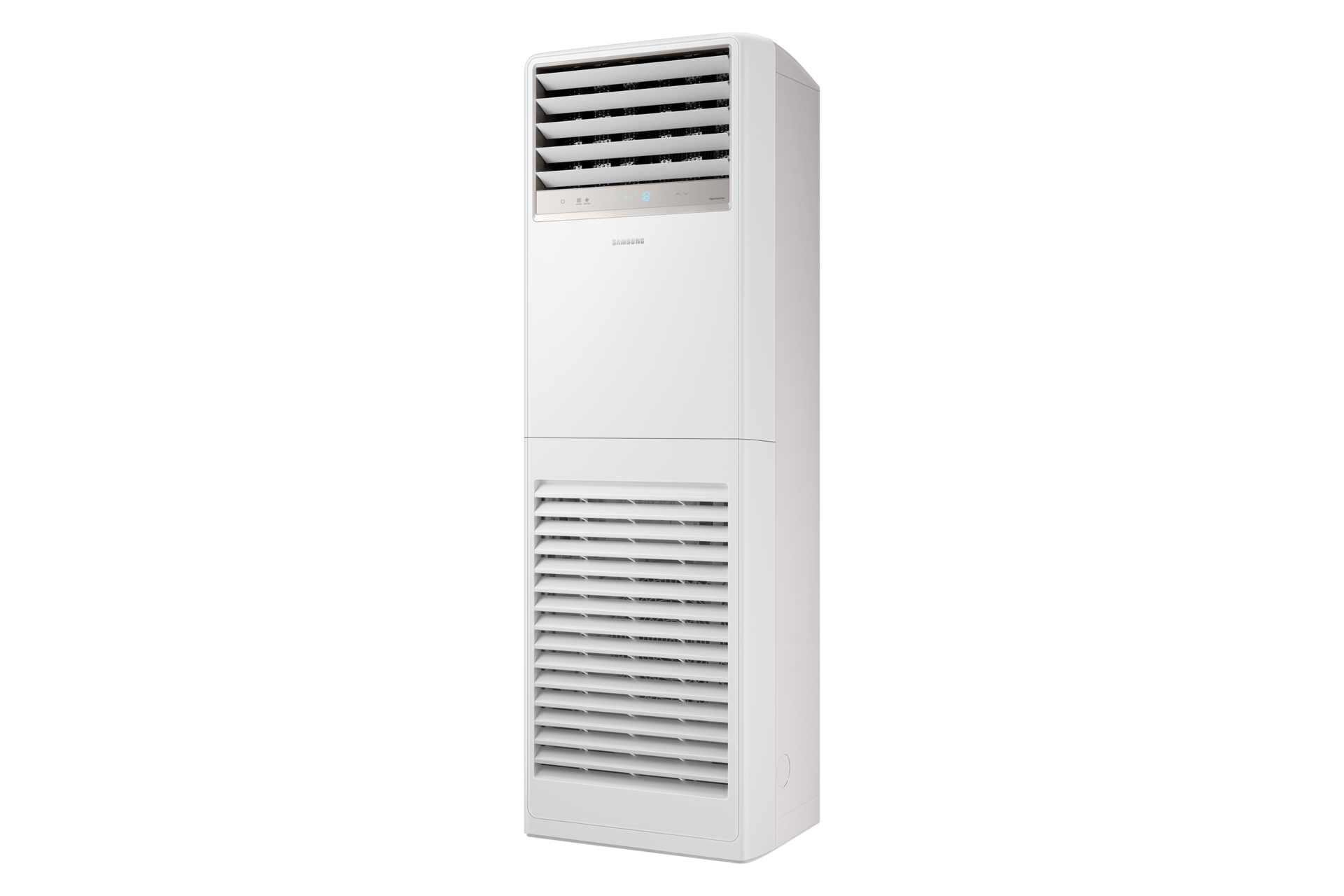

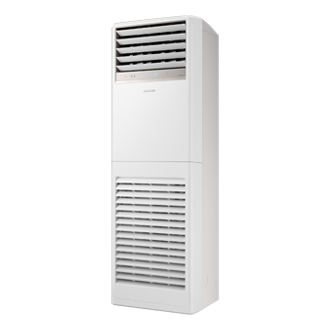

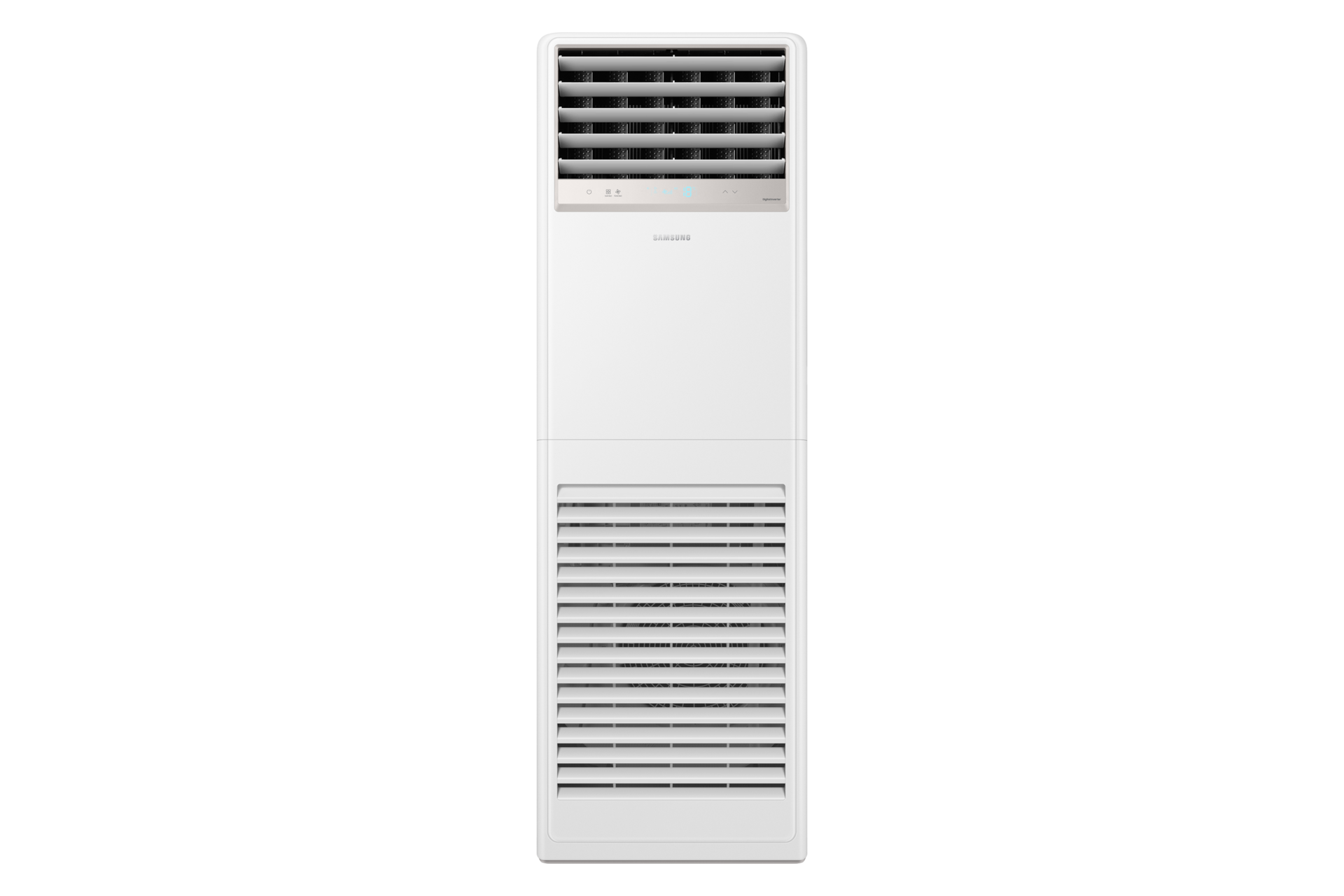

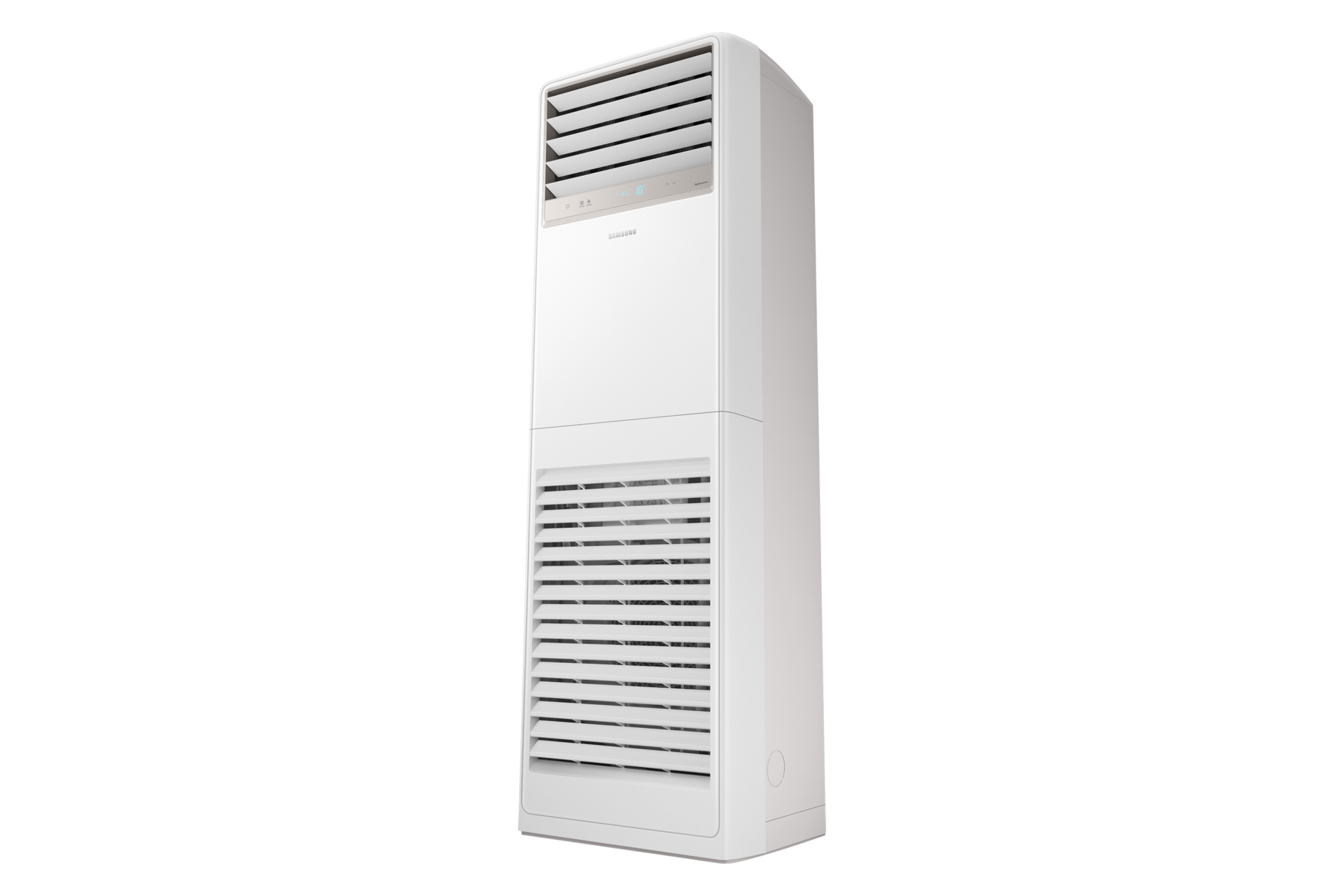

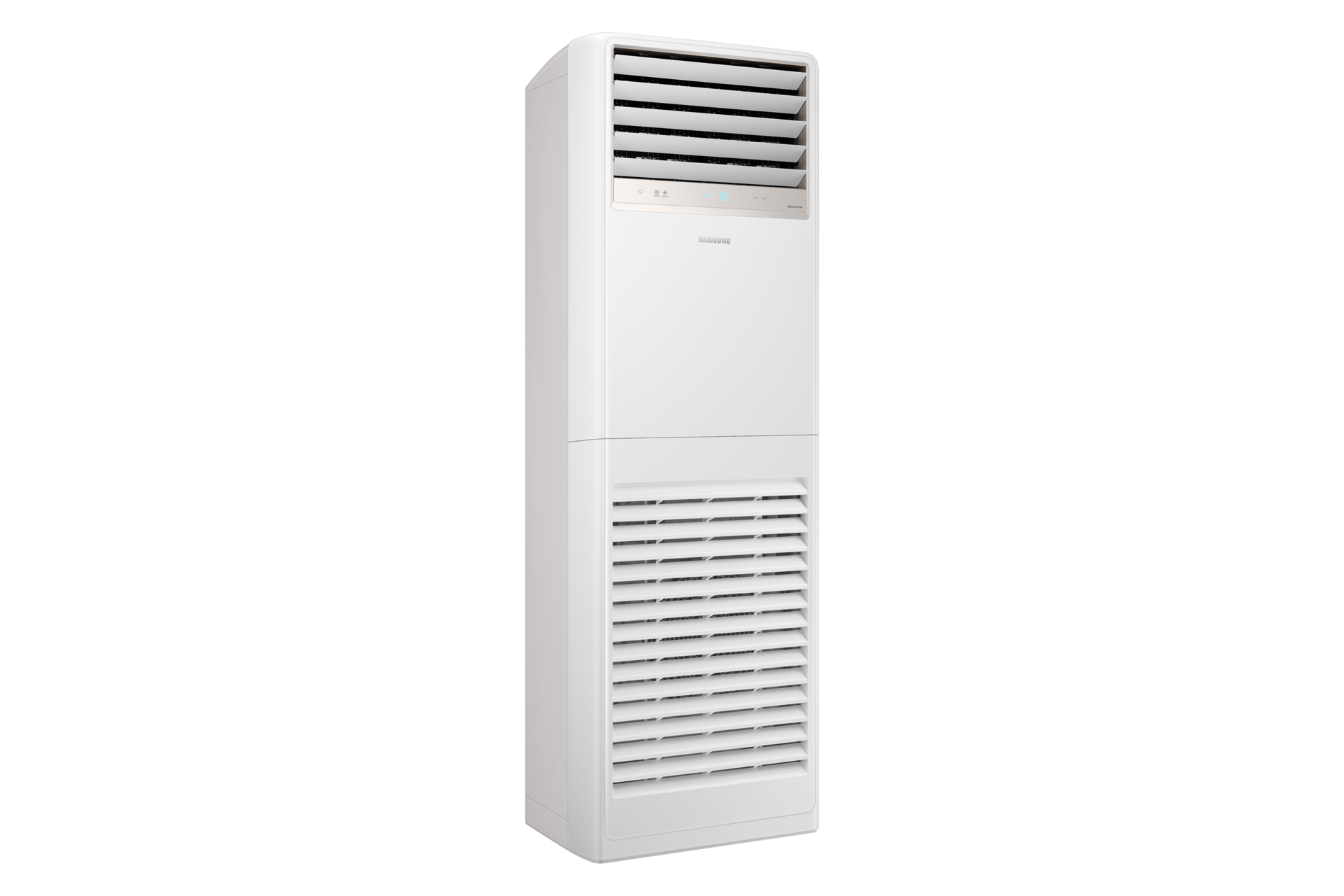

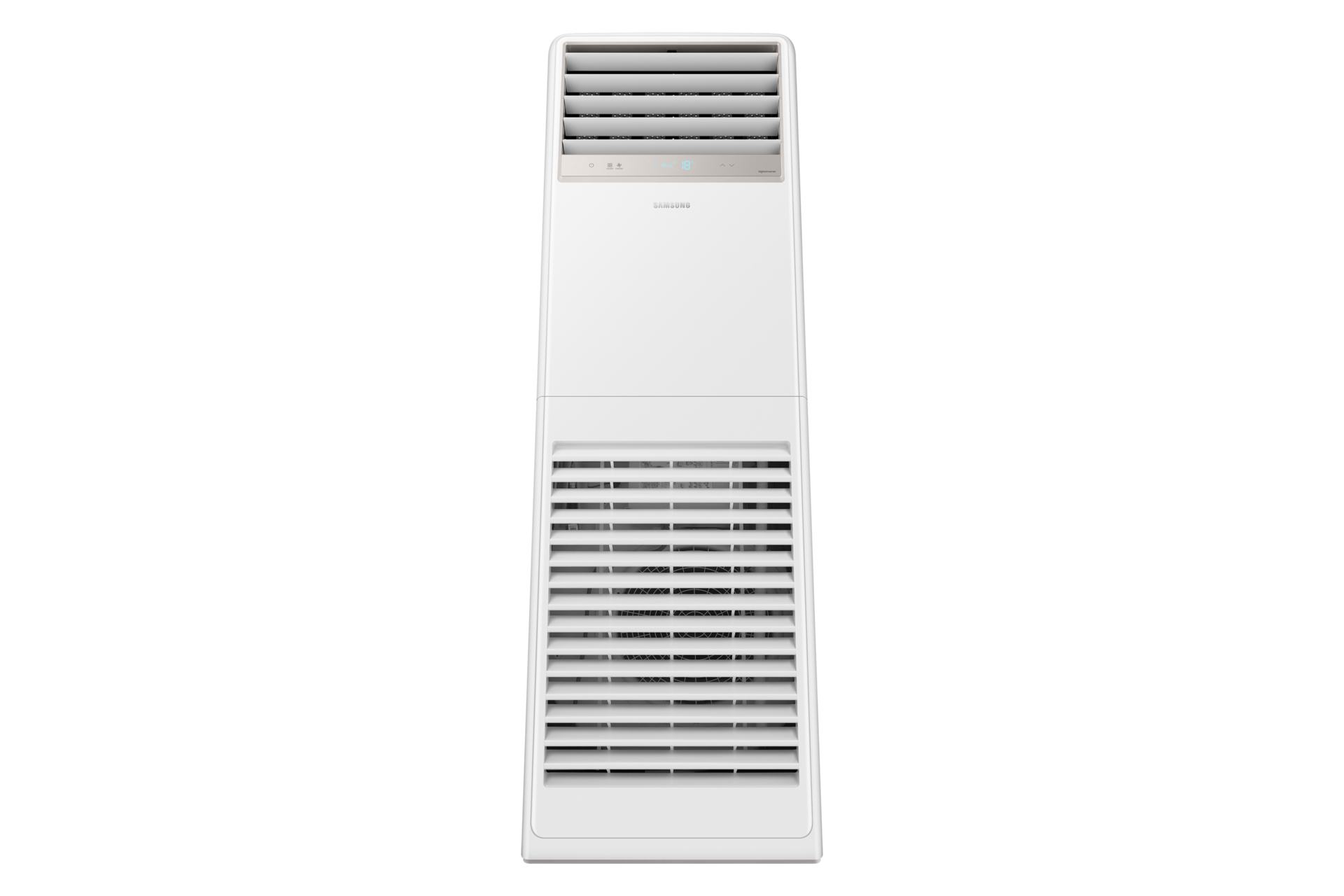

Air Conditioner Floor Standing AC048BNPDKC/TC Digital Inverter Technology 6.0 HP
AC048BNPDKC/TC
Please scan the QR Code with your mobile device, and place the product image in your desired location.
Looking for alternatives?
Highlights
Dehumidifier
4-Way Air Swing
Anti-Corossion Fin
5-Year Warranty on Compressor
Features
A simpler wayto cool bigger spaces
Cool large areas much more evenly, efficiently and easily. It simply stands on the floor, so it can be used in a much wider choice of locations. But it optimizes its speed to maximize comfort and save energy. It can also blow air up to 20 meters* and spreads air evenly in all directions**.
* Based on internal testing. Results may vary depending on environmental factors and individual use.** Only available on the 48kW and 60kW models.
Even more comfort across larger areas
20m Long Wind with 4-way Auto Swing
Cool much larger spaces quickly and evenly from corner to corner. It combines a powerful fan motor and an enlarged air outlet, so it can blow air up to 20 meters*. An Auto Swing function** also automatically expels cool air in every direction, so air is distributed evenly across the whole room.
* Based on internal testing. Results may vary depending on environmental factors and individual use.** Only available on the 48kW and 60kW models.
Even cleaner air
Auto Shutter
Keep the inside of your air conditioner clean and hygienic, so it always expels clean air. The Auto Shutter function automatically opens the flaps over the air vent when it is turned on. It then closes them when it is turned off, which prevents dust from getting inside and polluting the system.
More control & style

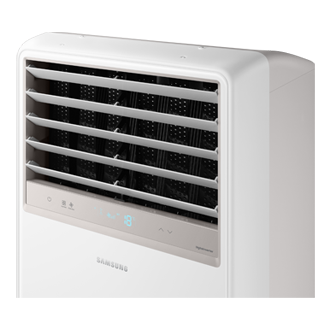

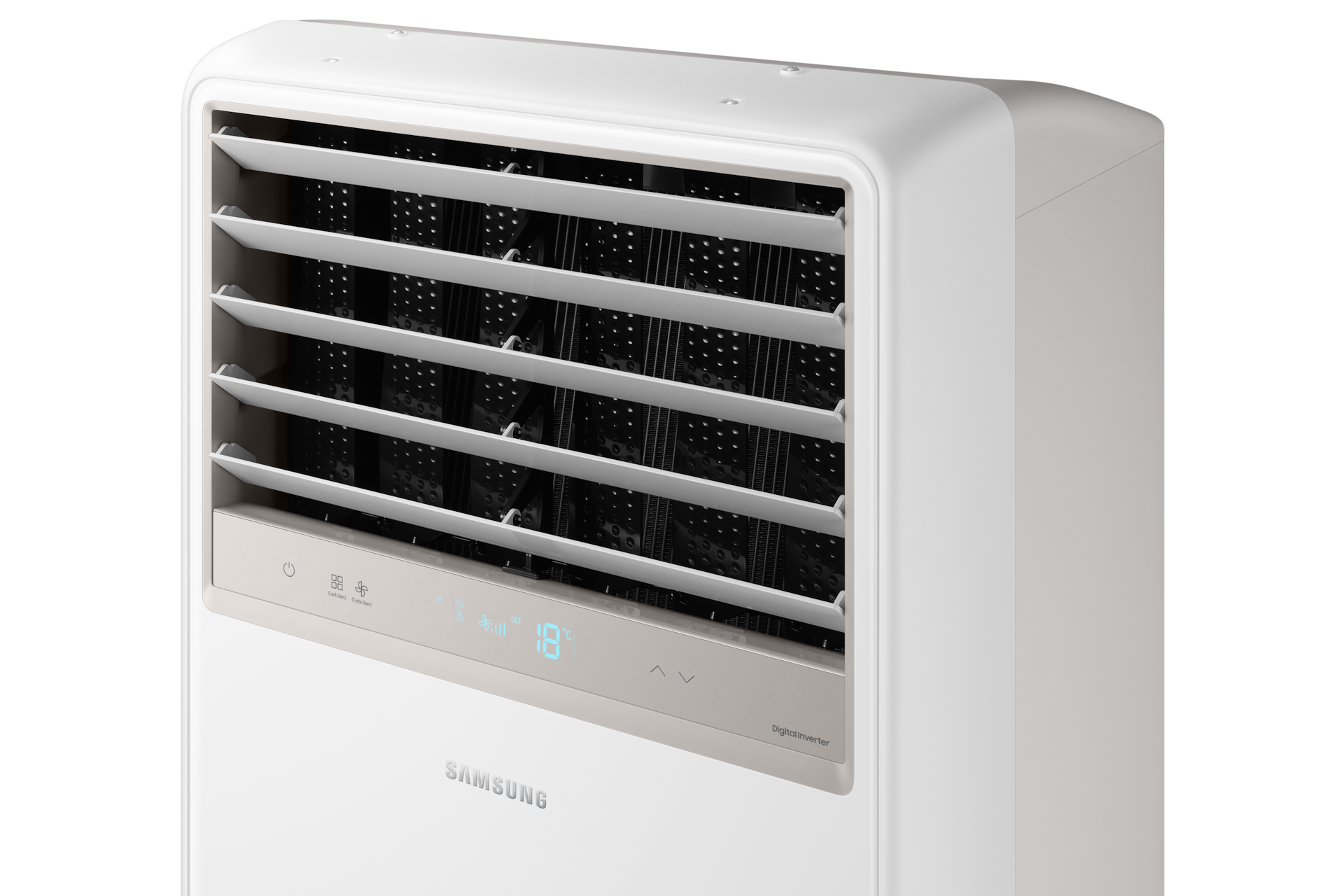

Hidden Display & Touch Control
Enjoy a stylishly modern and minimalist look and much easier control. The Touch Control panel has an intuitive button design and layout that lets you to adjust the settings with just a gentle touch. And its Hidden Display enhances the minimalist design of the front, but is still easy to read.
Specifications
-
Net Dimensions (WxHxD) (mm)
610 x 1850 x 400 mm
-
Shipping Weight (kg)
50.5 kg
-
Power Supply (Indoor Unit) [Φ, #, V, Hz]
1,2,220-240,50/60
-
Cooling [kJ/h]
47500 kJ/hW
-
Control Method
EEV
-
Oil (Type)
PVE
-
Type
PAC
-
Indoor Unit
AC048BNPDKC/TC
-
Outdoor Unit
AC048BXPDKC/TC
-
Mode
Cooling Only
-
Cooling [kW]
13.19 kW
-
Cooling [kJ/h]
47500 kJ/hW
-
Cooling 1)
4.32 kW
-
Cooling
18.9 A
-
MCA [A]
34 A
-
MFA [A]
40 A
-
Energy Star Certification
Yes
-
EER (Nominal Cooling) [(kJ/h)/W]
10.99
-
Energy Grade (Cooling)
5Star
-
Liquid Pipe (Φ, mm)
9.52 mm
-
Liquid Pipe (Φ, inch)
3/8"
-
Gas Pipe (Φ, mm)
15.88 mm
-
Gas Pipe (Φ, inch)
5/8"
-
Installation Max. Length [m]
75 m
-
Installation Max. Height [m]
30 m
-
Transmission Cable
0.75
-
Type
R410A
-
Control Method
EEV
-
Factory Charging (kg)
2.90 kg
-
1,2,220-240,50/60
-
Type
Sirocco
-
Motor (Output) [W]
154 W
-
Number of Unit (EA)
1 EA
-
Air Flow Rate (High / Mid / Low) [CMM]
35.0/30.5/26.5 CMM
-
Drain Pipe (Φ,mm)
ID18 mm
-
Sound Pressure (High / Mid / Low) [dB(A)]
50/47/45 dBA
-
Panel Net Weight (kg)
44.5 kg
-
Shipping Weight (kg)
50.5 kg
-
Net Dimensions (WxHxD) (mm)
610 x 1850 x 400 mm
-
Shipping Dimensions (WxHxD) (mm)
705 x 1963 x 493 mm
-
1,2,220-240,50/60
-
Type
Twin BLDC Rotary
-
Model Name
UG5TK1450FJX
-
Output(kW)
4.19 kW
-
Oil (Type)
PVE
-
Oil (Initial Charge) [cc]
1700 cc
-
Air Flow Rate (Cooling) [CMM]
110 CMM
-
Sound Pressure (Cooling / Heating) [dB(A)]
54/-
-
Panel Net Weight (kg)
86.5 kg
-
Shipping Weight (kg)
96.5 kg
-
Net Dimensions (WxHxD) (mm)
940 x 1210 x 330 mm
-
Shipping Dimensions (WxHxD) (mm)
995 x 1388 x 426 mm
-
Cooling (℃)
-15~54 ℃
