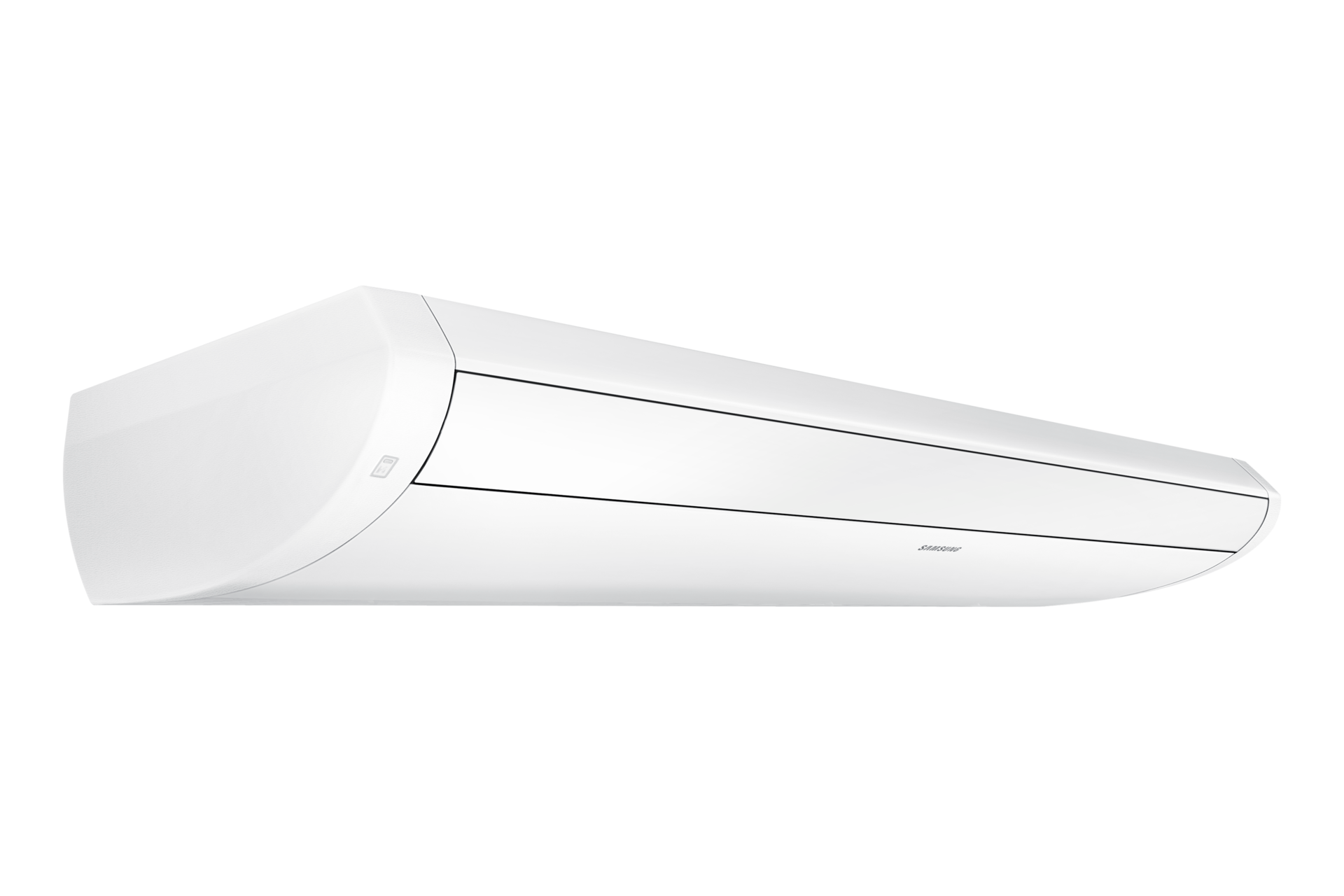

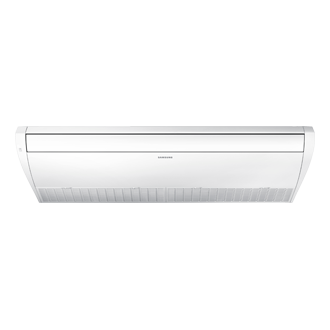

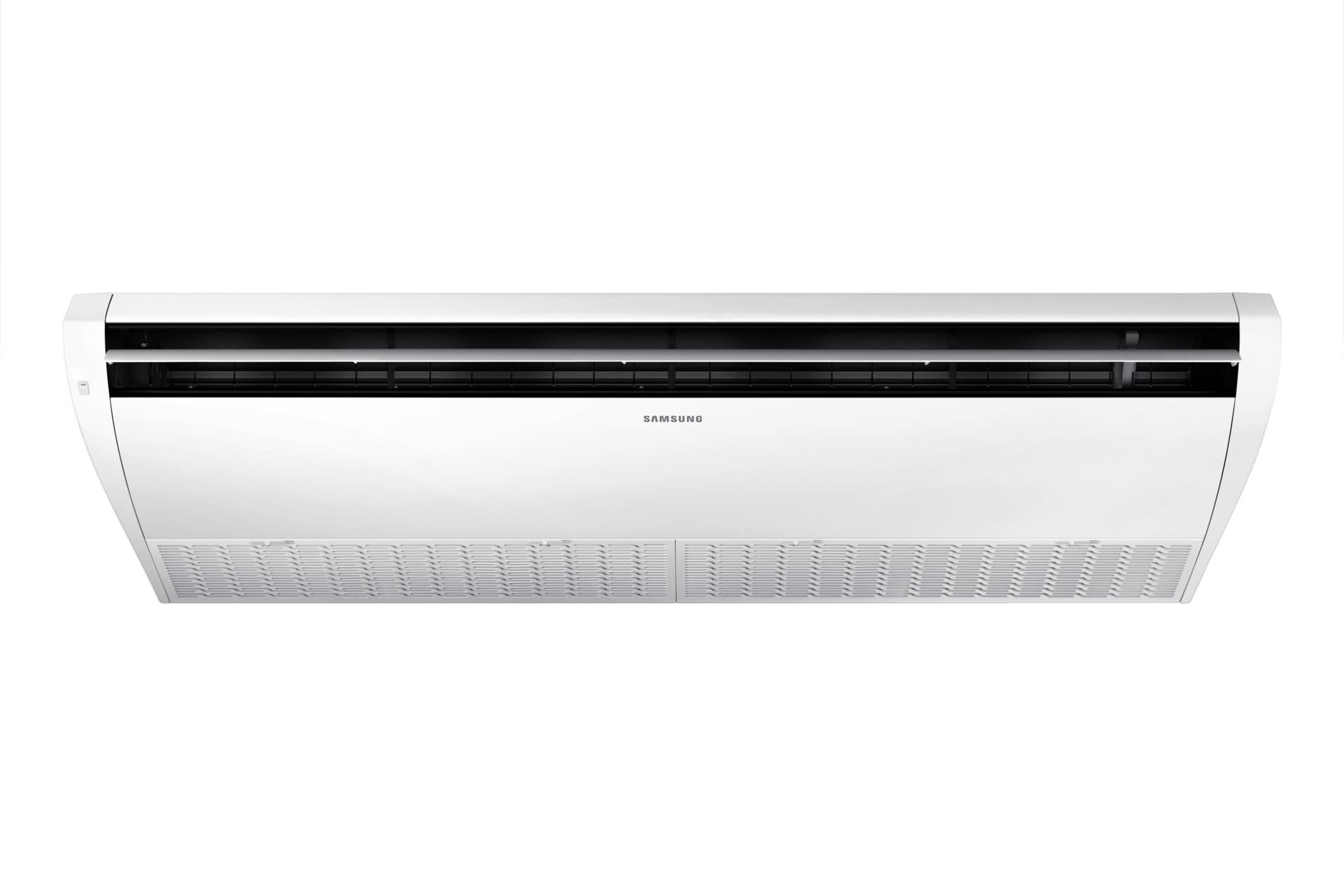

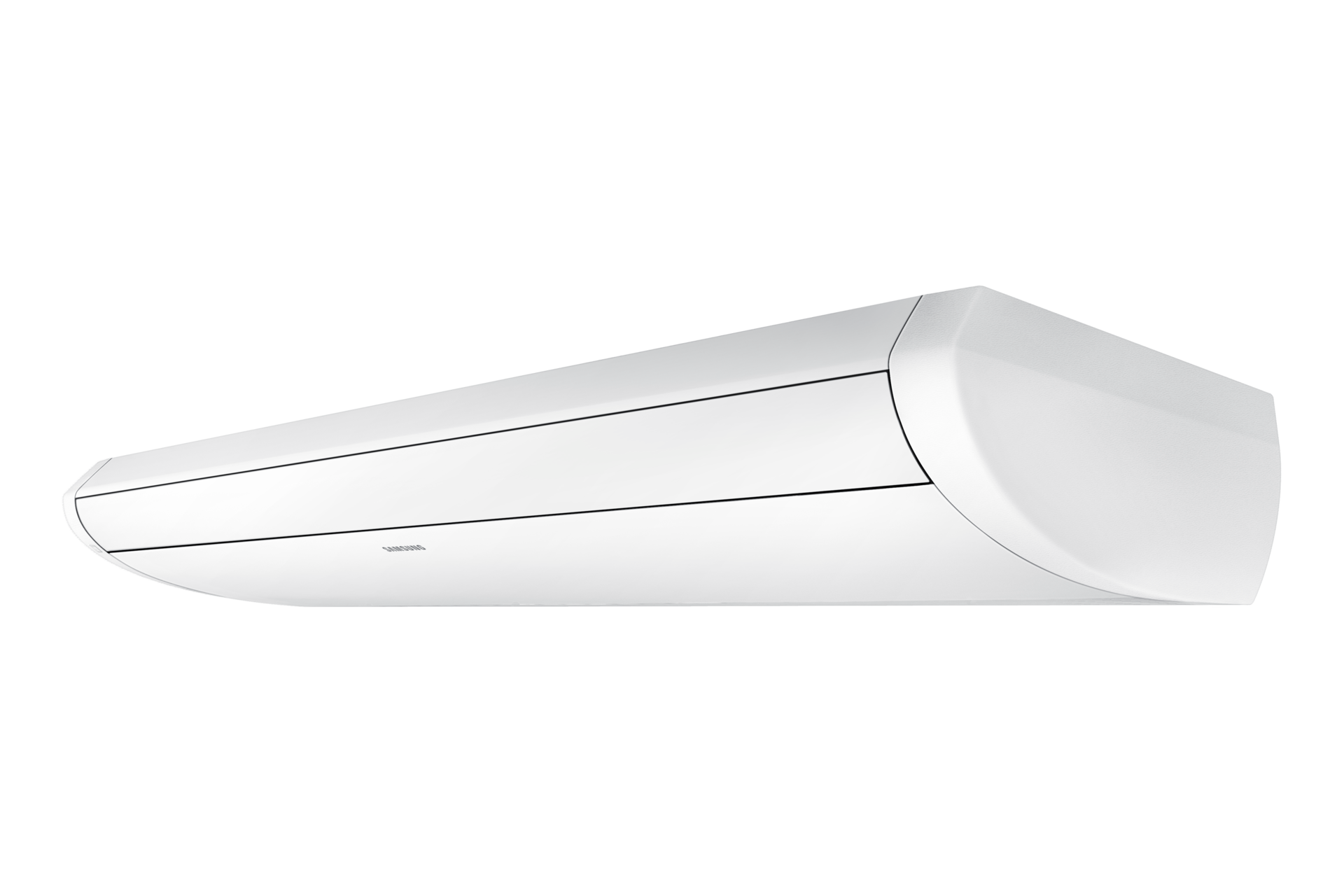

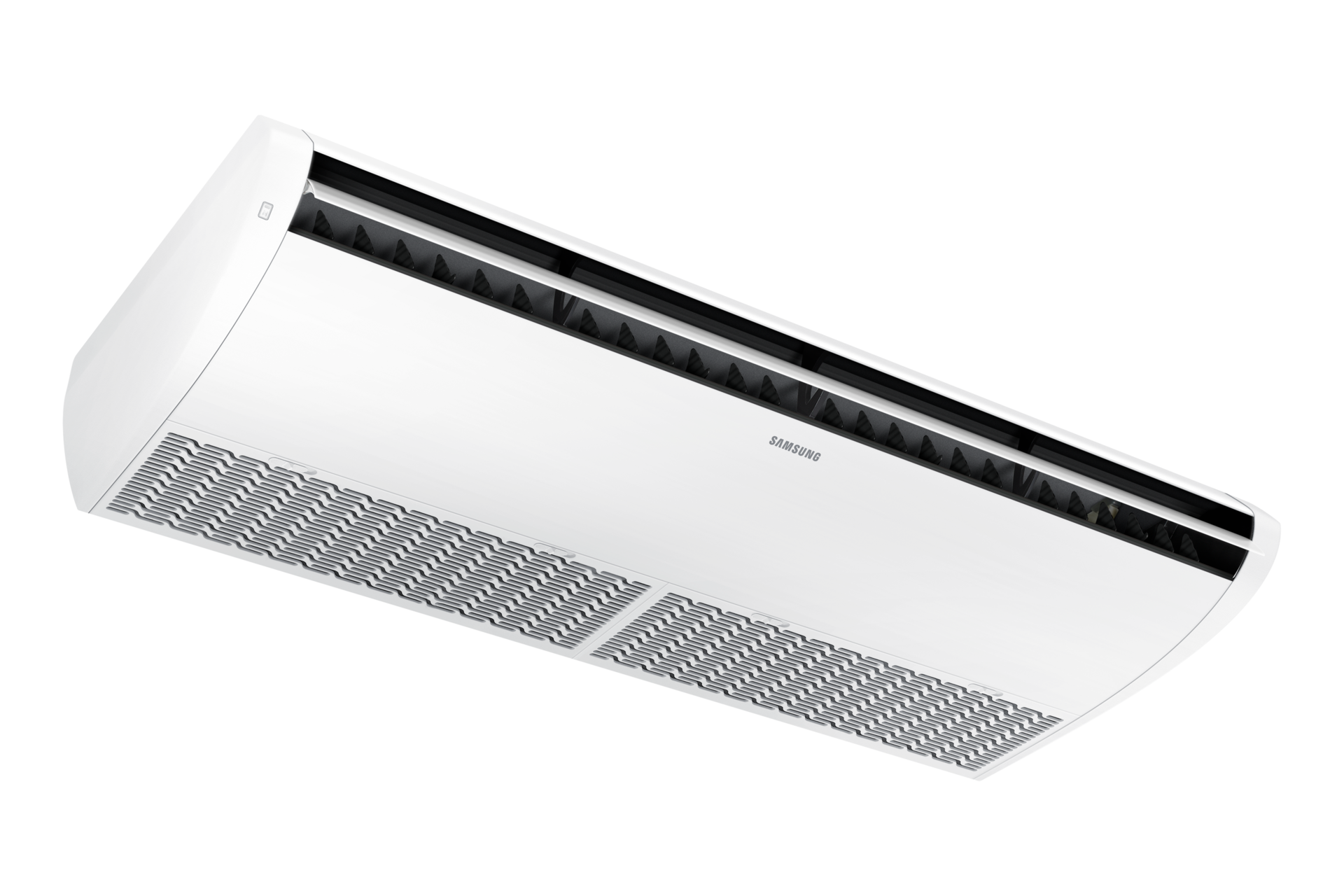

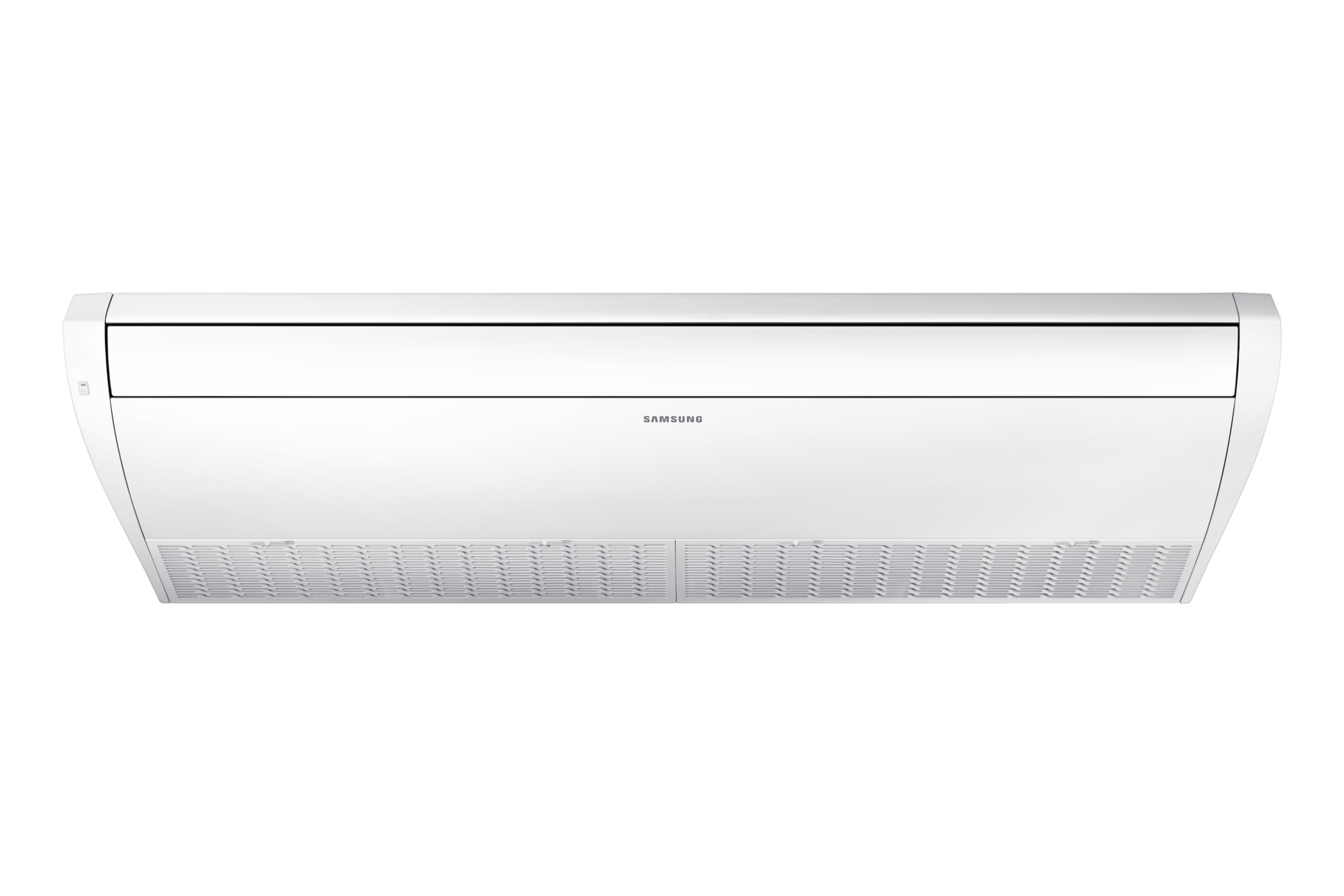

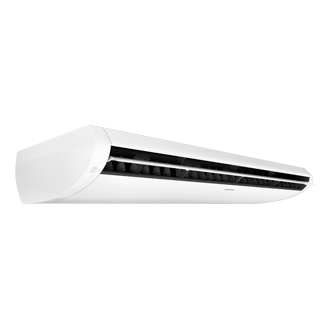

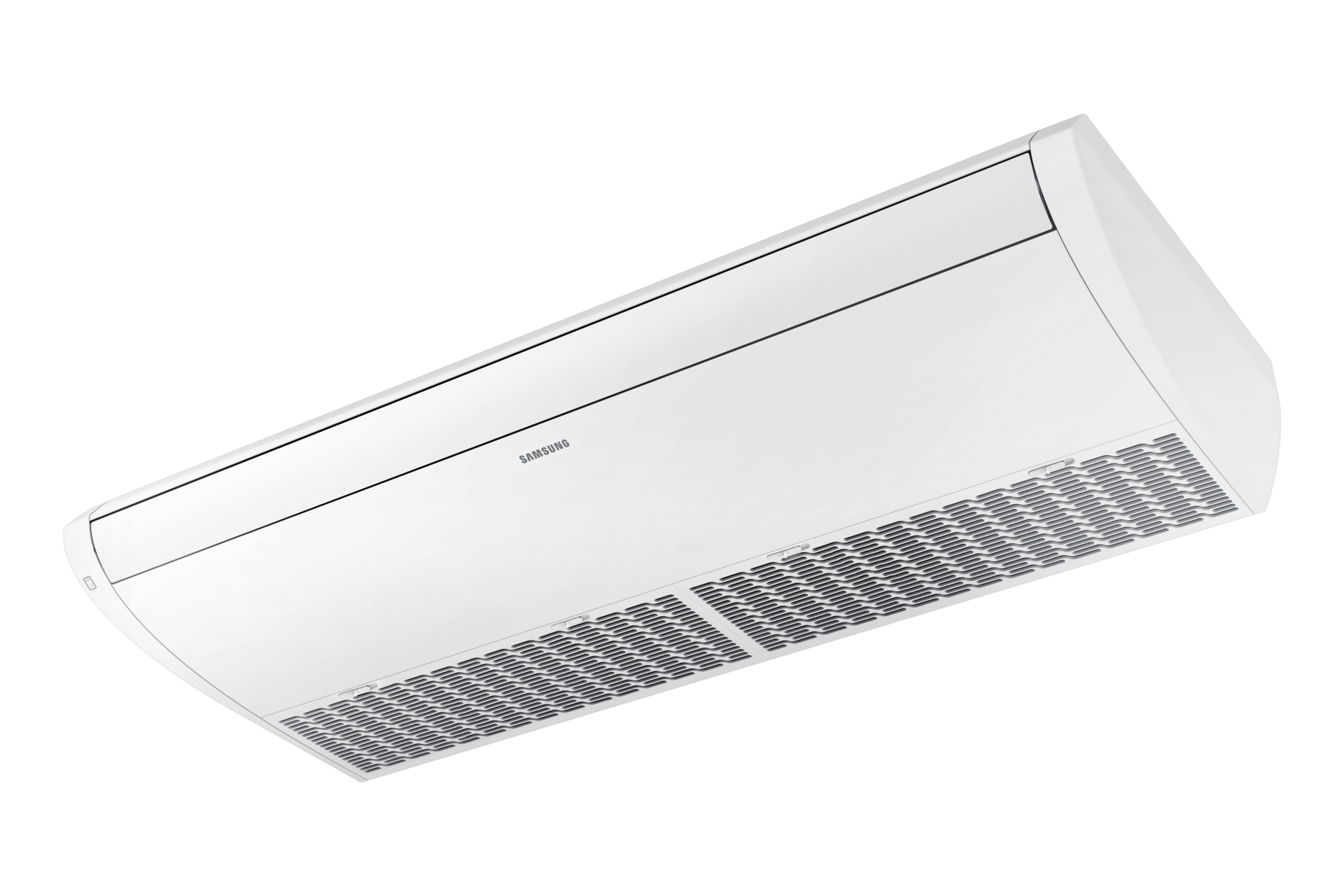

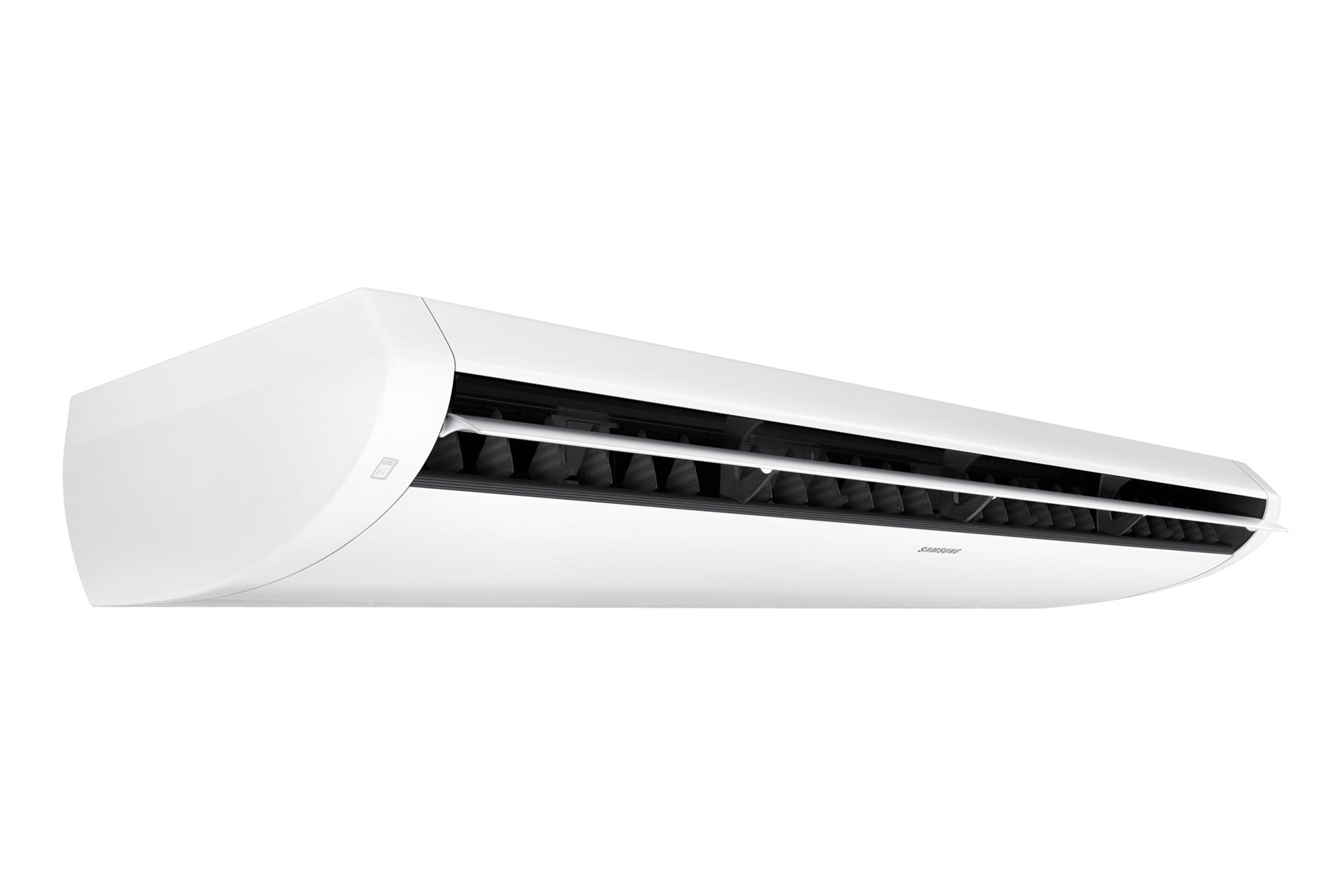

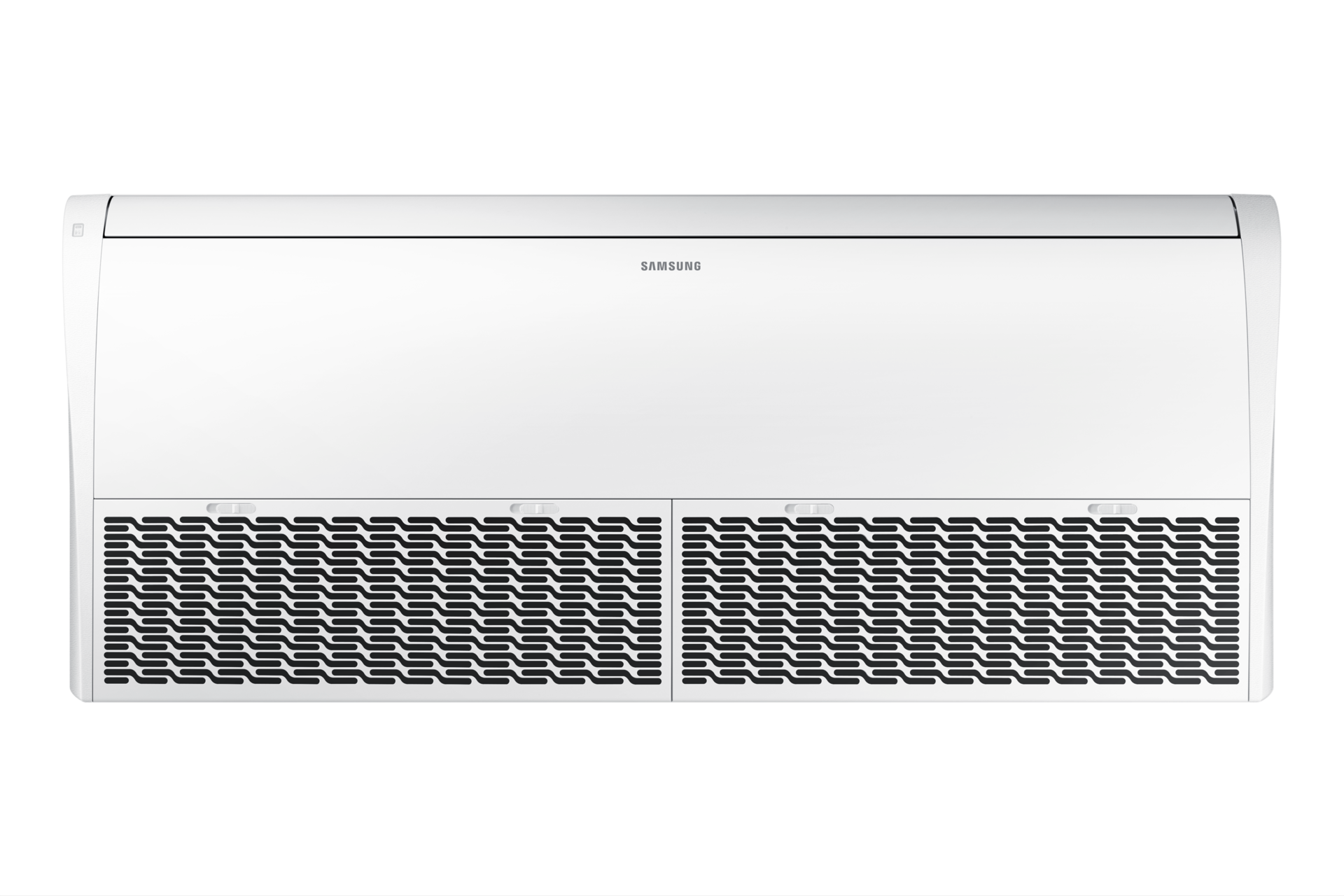

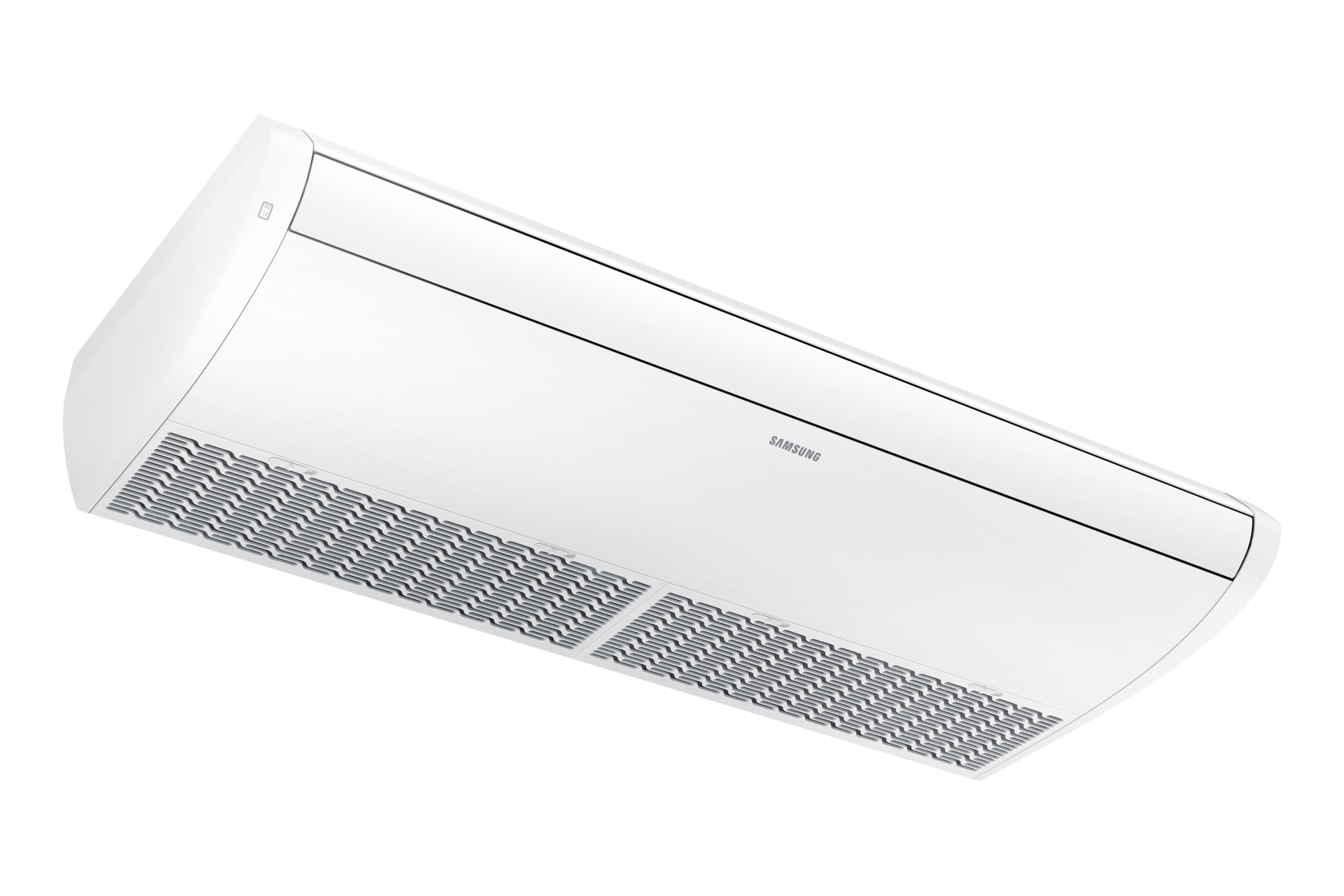

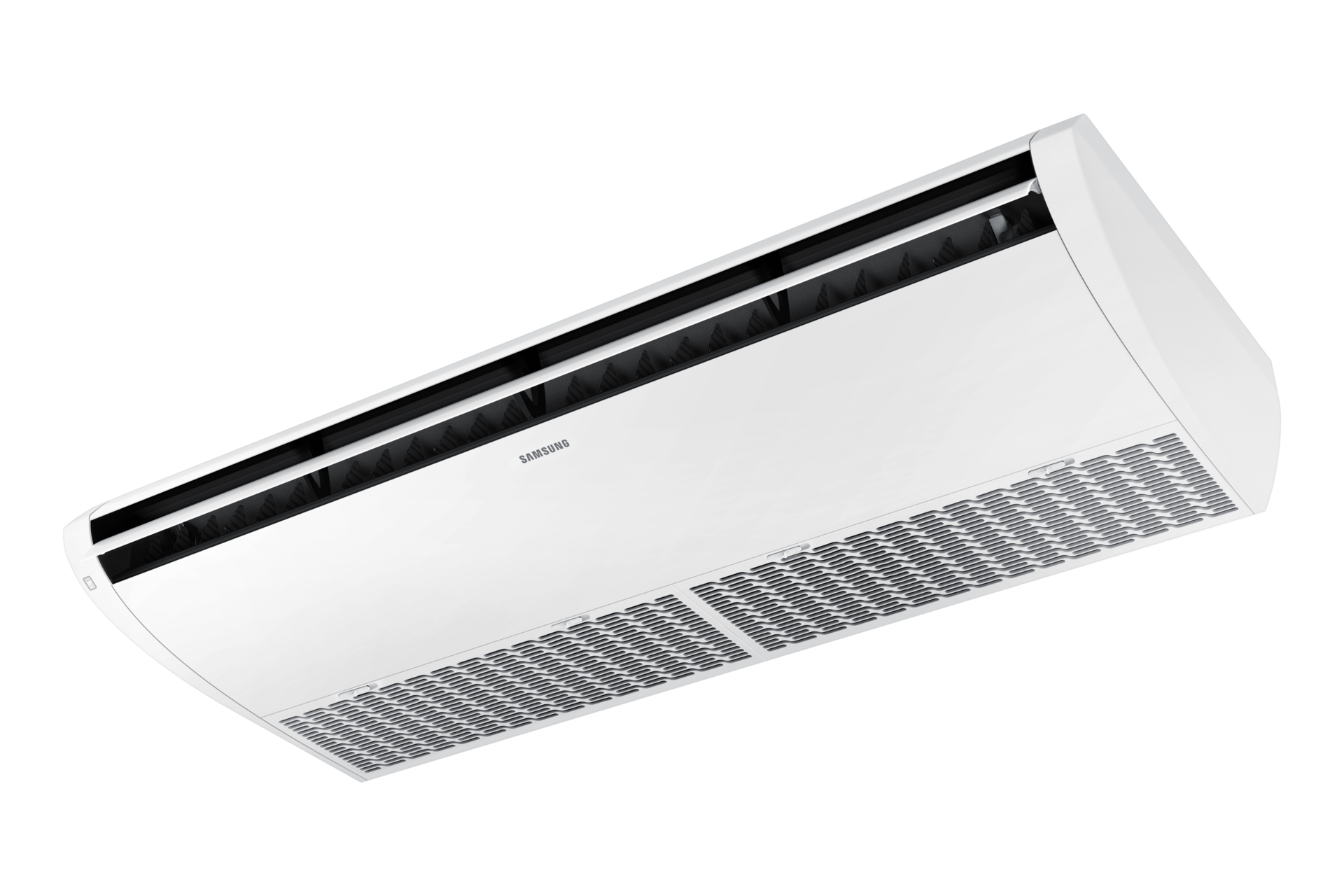

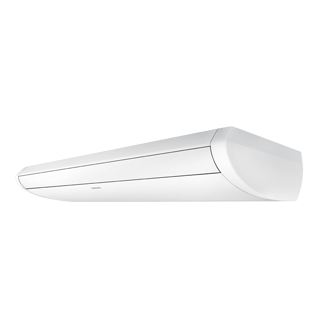

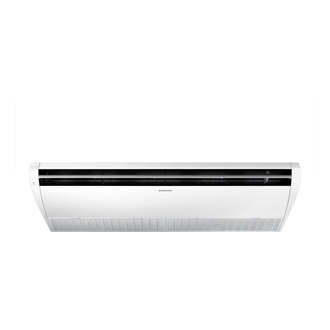

Air Conditioner Ceiling Suspended AC160TNCDKC/TC Digital Inverter Technology 6.0 HP
AC160TNCDKC/TC
Please scan the QR Code with your mobile device, and place the product image in your desired location.
Features
Cools more, cools faster
Samsung Big Ceiling is a simple and stylish indoor unit that delivers a powerful cooling performance. So as well as blending harmoniously into any workplace, it cools a larger area much faster.
Wide & long distance cooling
Samsung Big Ceiling air conditioner’s powerful cooling means you can cool a larger space in a shorter time. It blows cool air over a long distance, up to 15m.
Gentle drive
It creates a much more comfortable and productive work environment than ever before. An enlarged blade, single motor and enhanced fan mean its noise level is lower than other conventional models.
Simple & unique design

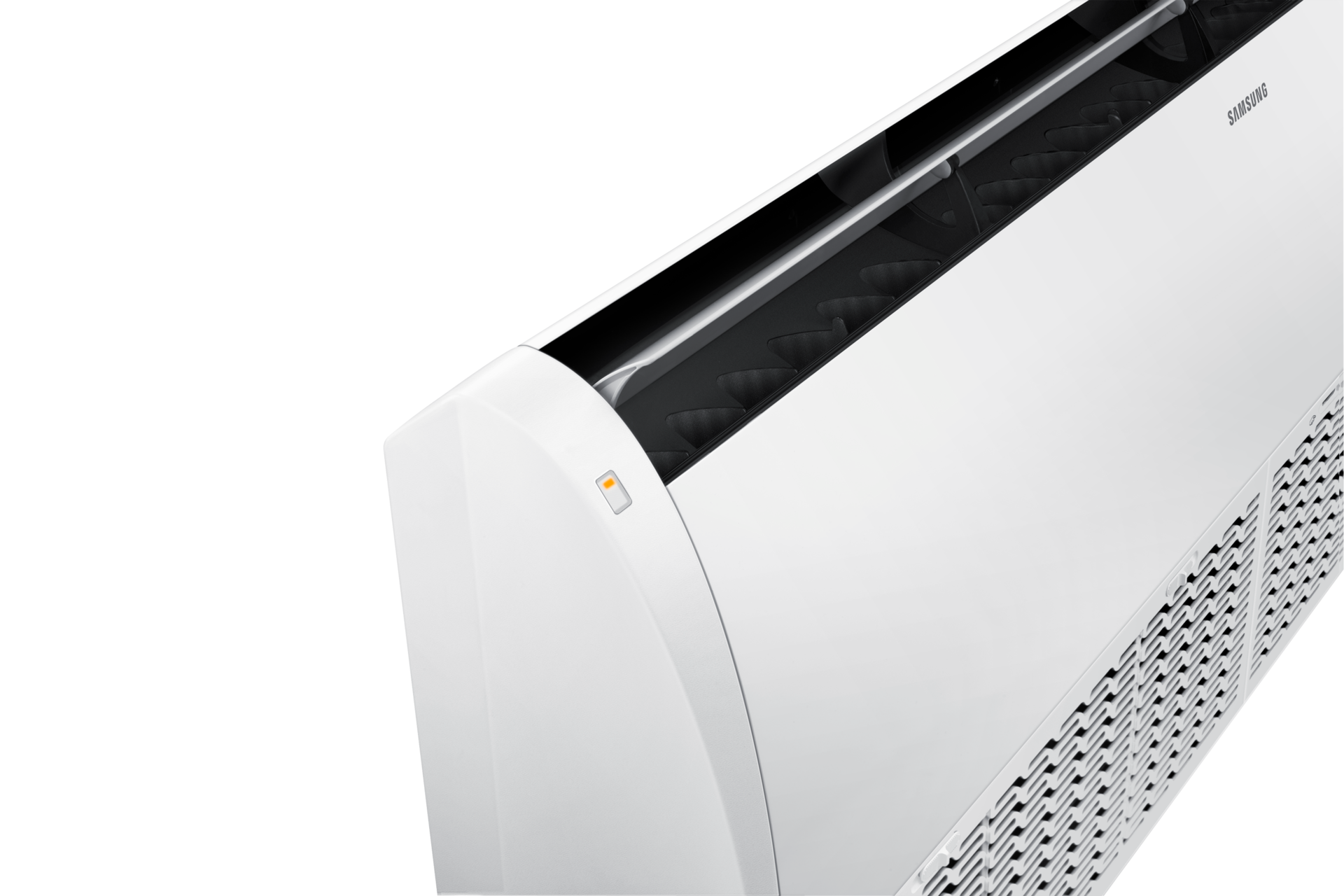

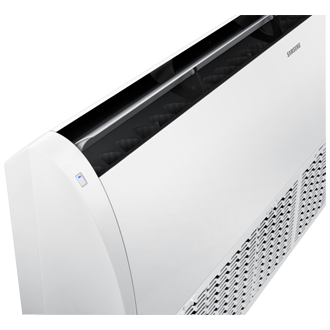

Air conditioning is essential in modern workplaces, so it might as well look good! Also, the simple & colorful display adds to the overall aesthetic, while also providing clear status information.
Filter Dust Alarm + Virus Doctor
It has Filter Dust Alarm that monitors the running time and air volume to precisely calculate when the filter needs cleaning. Also its optional Virus Doctor system also eliminates up to 99.7%.
* Based on internal testing. Effective on 4 viruses, including Subtype H1N1, and certain bacteria. Data has been measured under specific testing conditions and results may vary based on environmental factors and individual use.** Tested in Kitasato Environmental Science Center (Japan) & Yonsei Univ.(Korea) / Korea test lab (FITI/KEMTI) and Japan test lab(ITEA).
High elevation (up to 15m)
It provides much greater flexibility as it can be installed even in places where the elevation is up to a height of 15m – which is higher, or two storeys more, than conventional air conditioners.
Specifications
-
Cooling [kW]
4.3 / 15.0 / 17.6 kW
-
EER (Nominal Cooling) [W/W]
3.03
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Type
16kW-1Φ-Ceiling
-
Indoor Unit
AC160TNCDKC/TC
-
Outdoor Unit
AC160TXADKC/TC
-
Mode
COOLING ONLY
-
Cooling [kW]
4.3 / 15.0 / 17.6 kW
-
Cooling 1)
0.95/4.95/6.8 kW
-
Cooling
4.0/22.6/31.0 A
-
MCA [A]
35.0 A
-
MFA [A]
40.0 A
-
EER (Nominal Cooling) [W/W]
3.03
-
Liquid Pipe (Φ, mm)
9.52 mm
-
Liquid Pipe (Φ, inch)
3/8"
-
Gas Pipe (Φ, mm)
19.05 mm
-
Gas Pipe (Φ, inch)
3/4"
-
Installation Max. Length [m]
75 m
-
Installation Max. Height [m]
30 m
-
Transmission Cable
0.75↑
-
Type
R410A
-
Control Method
EEV
-
Factory Charging (kg)
3.80 kg
-
1,2,220-240,60
-
Type
Sirocco
-
Motor (Output) [W]
244 W
-
Number of Unit (EA)
4 EA
-
Air Flow Rate (High / Mid / Low) [CMM]
37.0/31.0/26.0 CMM
-
Drain Pipe (Φ,mm)
VP25 (OD 32,ID 25)
-
Sound Pressure (High / Mid / Low) [dB(A)]
50/47/43 dBA
-
Panel Net Weight (kg)
42.0 kg
-
Shipping Weight (kg)
48.0 kg
-
Net Dimensions (WxHxD) (mm)
1650 x 235 x 675 mm
-
Shipping Dimensions (WxHxD) (mm)
1739 x 321 x 758 mm
-
1,2,220-240,60
-
Type
Twin BLDC Rotary
-
Model Name
UG5TK5450FJX
-
Output(kW)
4.12 kW
-
Oil (Type)
POE
-
Oil (Initial Charge) [cc]
1700 cc
-
Air Flow Rate (Cooling) [CMM]
115 CMM
-
Sound Pressure (Cooling / Heating) [dB(A)]
56 dBA
-
Panel Net Weight (kg)
96.0 kg
-
Shipping Weight (kg)
106.0 kg
-
Net Dimensions (WxHxD) (mm)
940 x 1420 x 330 mm
-
Shipping Dimensions (WxHxD) (mm)
995 x 1598 x 426 mm
-
Cooling (℃)
-15 ~ 50 ℃
-
WiFi Kit
Yes
-
SmartThings App Support
Yes
