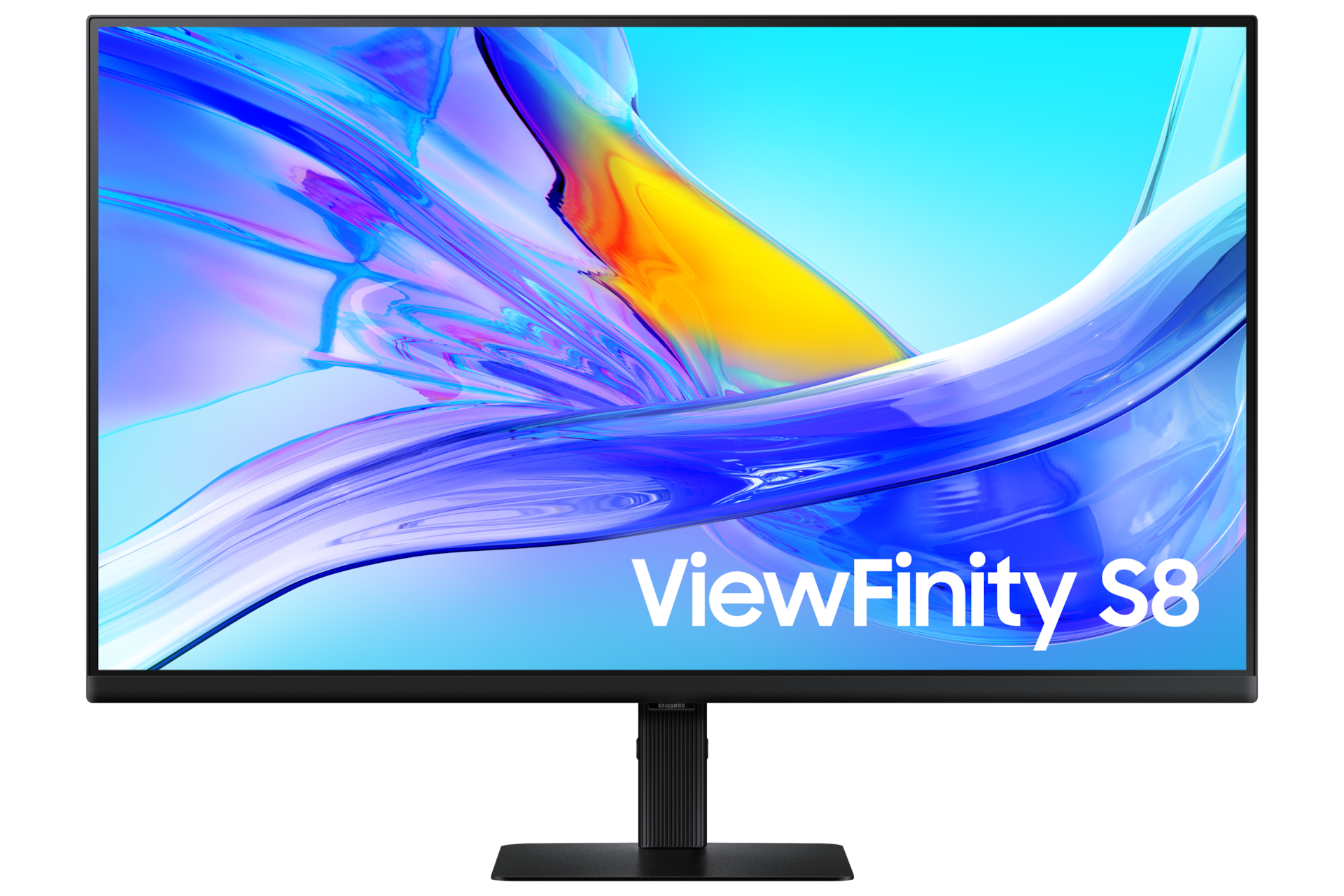

32" ViewFinity S8 S80UD UHD Monitor

LS32D804UAEXXP

Looking for alternatives?

Choose your Color

Color : Black

Choose your size

32" ViewFinity S8 S80UD UHD Monitor
Black 32"

Discover the deeper details

UHD resolution

Visual excellence that professionals demand. UHD (3840x2160) resolution reveals greater levels of detail with higher pixel density. Professionals can dive into greater color detail and more screen space to build intricate designs, complex diagrams and dynamic video content with a smoother workflow.

The monitor is shown with a photo editing software on it, editing an image of colorful balls and blocks. A square inside outlines part of the image, with the text "FHD" on it, showing that FHD would only show part of the screen. The text "QHD" shows that QHD would only show part of the screen. And, the text "UHD" is in the bottom right of the monitor, showing the full size is UHD. The monitor is shown with a photo editing software on it, editing an image of colorful balls and blocks. A square inside outlines part of the image, with the text "FHD" on it, showing that FHD would only show part of the screen. The text "QHD" shows that QHD would only show part of the screen. And, the text "UHD" is in the bottom right of the monitor, showing the full size is UHD.

* Images simulated for illustrative purposes.

Enhanced realism through more color

1.07 billion colors with HDR10

See a wider gamut of colors for stunning accuracy and detail. HDR10 provide near limitless hues and true-to-life color representation, with darker darks and the brighter brights. Every piece of content becomes a joy to look at and can be experienced exactly as intended.

* Images simulated for illustrative purposes.
A screen lays on top of another screen, with a colorful abstract image seen across both screens. The smaller screen reads "SDR" and the larger screen reads "HDR10". The colors on the HDR10 screen are brighter. A screen lays on top of another screen, with a colorful abstract image seen across both screens. The smaller screen reads "SDR" and the larger screen reads "HDR10". The colors on the HDR10 screen are brighter.

Connect and adjust to meet your needs

USB-C and LAN Port

Connect it all to elevate your workspace. A USB-C port allows for 90W charging and data transfer at the same time, while a built-in LAN port offers seamless Ethernet connectivity for laptops.

A laptop, monitor, keyboard, mouse and mobile phone are all connected on a desk by a wire. Above the monitor, there are 4 icons, which are USB-C, LAN, Display Port, USB-A and USB-B. A laptop, monitor, keyboard, mouse and mobile phone are all connected on a desk by a wire. Above the monitor, there are 4 icons, which are USB-C, LAN, Display Port, USB-A and USB-B.

Master multiple sources in harmony

Built-in KVM Switch

A built-in KVM switch lets you connect and control two sources to your monitor at once, with just one keyboard and mouse. You choose: split screen, Picture in Picture or Picture by Picture are all possible. Be more efficient and remove multi-device hassle with easy input switching and multitasking.

A monitor is seen, with a keyboard and mouse in front of it,  a PC to its left and a laptop to its right. When KVM switch turns on, the PC is connected by a line reading "Source A", and the left of the monitor screen is activated. When KVM switch turns on once again, the laptop by a line that says "Source B", and the right side of the monitor screen is activated. A monitor is seen, with a keyboard and mouse in front of it,  a PC to its left and a laptop to its right. When KVM switch turns on, the PC is connected by a line reading "Source A", and the left of the monitor screen is activated. When KVM switch turns on once again, the laptop by a line that says "Source B", and the right side of the monitor screen is activated.

Effortless and instant setup

Easy Setup Stand

The Easy Setup Stand effortlessly creates an ideal workspace without any tools or screws. When it's time to change things up, simply push a button and enjoy flexible convenience.

View with enhanced versatility

Ergonomic Design

A height-adjustable screen that tilts gives you the best angle and ultimate utility. Now you can also pivot the screen 90 degrees, which is perfect for viewing long documents with less scrolling.

In the top left of a grid, the monitor is shown from the side, with the text "TILT" next to it. The monitor head is shown tilting. The top right of the grid shows the monitor from the top down with the word "Swivel" next to it. The monitor is shown swiveling. The bottom left of the grid shows the front of the monitor on its stand, reading "Height Adjustable Stand." The bottom right of the grid shows the monitor in vertical orientation, with the text "Pivot" above it. In the top left of a grid, the monitor is shown from the side, with the text "TILT" next to it. The monitor head is shown tilting. The top right of the grid shows the monitor from the top down with the word "Swivel" next to it. The monitor is shown swiveling. The bottom left of the grid shows the front of the monitor on its stand, reading "Height Adjustable Stand." The bottom right of the grid shows the monitor in vertical orientation, with the text "Pivot" above it.

Relieve your eyes from strain

TUV certified Intelligent Eye Care

Keep your eyes fresh with less screen strain. For those late-night projects, brightness and color temperature automatically optimize for your environment. TUV-certified for intelligent eye care, Samsung reduces screen flickering and protects eyes against excessive blue light with eye saver mode.

The monitor onscreen brightness becomes adjusted following the exterior light's brightness. TUV Rheinland logo with Intelligent Eye Care certified is included on the right bottom of the monitor. The logo shows the site address, www.tuv.com The monitor onscreen brightness becomes adjusted following the exterior light's brightness. TUV Rheinland logo with Intelligent Eye Care certified is included on the right bottom of the monitor. The logo shows the site address, www.tuv.com

Responsible practice

Thoughtfully designed

The 2024 Samsung ViewFinity monitors* contain at least 14%** recycled plastic. Plus, we use no chemical sprays on the monitor's plastic, and use glue instead of staples in the packaging box joint, making it possible to recycle them.

A cycle is in the background, and a three-step process is shown above it. The first process is 'Sourcing & Production', which explains that the product is manufactured with some recycled materials. The second process relates to 'distribution' and describes 'simple packing for easy disassembly'. The last is about 'Using & Recycling' and mentions 'No use of chemical sprays on plastic furthers recycling efforts'. A cycle is in the background, and a three-step process is shown above it. The first process is 'Sourcing & Production', which explains that the product is manufactured with some recycled materials. The second process relates to 'distribution' and describes 'simple packing for easy disassembly'. The last is about 'Using & Recycling' and mentions 'No use of chemical sprays on plastic furthers recycling efforts'.

* S60UD, S60D, S70D, S80UD, S80D only.** The percentage of recycled material, which may vary by component, is calculated based on total weight of plastic used on the product (weight of recycled materials/total weight of plastic).

Specifications

  • Resolution

    4K (3,840 x 2,160)

  • Aspect Ratio

    16:9

  • Contrast Ratio Static

    3000:1(Typ)

  • Response Time

    5ms

  • Refresh Rate

    Max 60Hz

  • Panel Type

    VA

  • Screen Size (Class)

    32

  • Flat / Curved

    Flat

  • Active Display Size (HxV) (mm)

    697.306 x 392.234mm

  • Aspect Ratio

    16:9

  • Panel Type

    VA

  • Brightness (Typical)

    350 cd/㎡

  • Brightness (Min)

    280 cd/㎡

  • Contrast Ratio Static

    3000:1(Typ)

  • Contrast Ratio (Dynamic)

    Mega ∞ DCR

  • HDR(High Dynamic Range)

    HDR10

  • Resolution

    4K (3,840 x 2,160)

  • Response Time

    5ms

  • Viewing Angle (H/V)

    178°/178°

  • Color Support

    Max 1.07B

  • sRGB Coverage

    99% (Typ)

  • Refresh Rate

    Max 60Hz

  • Eye Saver Mode

    Yes

  • Flicker Free

    Yes

  • Picture-In-Picture

    Yes

  • Picture-By-Picture

    Yes

  • Image Size

    Yes

  • Windows Certification

    Windows11

  • Off Timer Plus

    Yes

  • Auto Source Switch

    Auto Source Switch+

  • Adaptive Picture

    Yes

  • KVM Switch

    Yes

  • Display Port

    1 EA

  • Display Port Version

    1.2

  • HDCP Version (DP)

    2.2

  • HDMI

    1 EA

  • HDMI Version

    2

  • HDCP Version (HDMI)

    2.2

  • Headphone

    Yes

  • USB Hub

    3

  • USB Hub Version

    3.0x3ea

  • USB-C

    1 EA

  • USB-C Charging Power

    90W

  • HDCP Version (USB-C)

    2.2

  • Ethernet (LAN)

    1 EA

  • Temperature

    10~40 ℃

  • Humidity

    10~80, non-condensing

  • Factory Tunning

    Yes

  • Front Color

    BLACK

  • Rear Color

    BLACK

  • Stand Color

    Black

  • Stand Type

    HAS PIVOT

  • HAS(Height Adjustable Stand)

    120mm(±5.0mm)

  • Tilt

    -2.0˚(±2.0˚)~25.0˚(±2.0˚)

  • Swivel

    -30.0˚(±3.0˚)~30.0˚(±3.0˚)

  • Pivot

    -92.0˚(±2.0˚)~92.0˚(±2.0˚)

  • Wall Mount

    100 x 100

  • Recycled Plastic

    Over 10 %

  • Power Supply

    AC 100~240V

  • Power Consumption (Max)

    180 W

  • Type

    Internal Power

  • Set Dimension with Stand (WxHxD)

    713.9 x 585 x 220 mm

  • Set Dimension without Stand (WxHxD)

    713.9 x 424.7 x 41.8 mm

  • Package Dimension (WxHxD)

    798 x 160 x 546 mm

  • Set Weight with Stand

    6.9 kg

  • Set Weight without Stand

    4.5 kg

  • Package Weight

    8.9 kg

  • Power Cable Length

    1.5 m

  • HDMI Cable

    Yes

  • USB Type-C Cable

    Yes

  • TCO Certified

    Yes
