Fast Cooling
Fast Cooling Mode cools much faster by running the compressor at the maximum level with the fastest fan speed for 30 minutes*.
* Tested on AR09MSFHBWKNET compared with Samsung conventional models.
Enjoy good night’s sleep
Good Sleep mode creates the desirable climate for a good night’s sleep. With its temperature control, it keeps you comfortable, so you fall asleep fast, sleep deeply, and wake up refreshed.
Specifications
Specifications Detail
Features
- Type WALL MOUNTED
Model Name
- Indoor Unit AM024KNQDCH/TC
Power Supply (Indoor Unit) [Φ, #, V, Hz]
- 1, 2, 208-230, 60
System
- Mode HEAT PUMP
Capacity
- Cooling [Btu/h] 23,200 Btu/h
- Heating [Btu/h] 23,800 Btu/h
Power Input
- Cooling 1) [W] 60.00 W
- Heating 2) [W] 62.00 W
Current Input
- Cooling 0.32 A
- Heating 0.32 A
Fan
- Type Crossflow Fan
- Air Flow Rate (High / Mid / Low) [CMM] 15.7/14.1/12.9 CMM
Piping Connections
- Liquid Pipe (Φ, mm) 9.52 mm
- Liquid Pipe (Φ, inch) 3/8″
- Gas Pipe (Φ, mm) 15.88 mm
- Gas Pipe (Φ, inch) 5/8″
- Drain Pipe (Φ,mm) ID 18 HOSE
Field Wiring
- Power Source Wire 1.5 ~ 2.5
- Transmission Cable 0.75 ~ 1.50
Refrigerant
- Type R410A
- Control Method EEV INCLUDED
Sound
- Sound Pressure 40 / 38 / 35 dBA
External Dimension (Indoor Unit)
- Panel Net Weight (kg) 13.5 kg
- Shipping Weight (kg) 16.5 kg
- Net Dimensions (WxHxD) (mm) 1065 x 298 x 243 mm
- Shipping Dimensions (WxHxD) (mm) 1128 x 299 x 378 mm
Support
Find answers the question you have about the product
-
User Manual
- ver 1.1
- 12.94 MB
- Nov 09. 2016
ENGLISH -
Installation Guide
- ver 1.0
- 6.4 MB
- Oct 11. 2016
ENGLISH
Compare the models
Compare with similar items

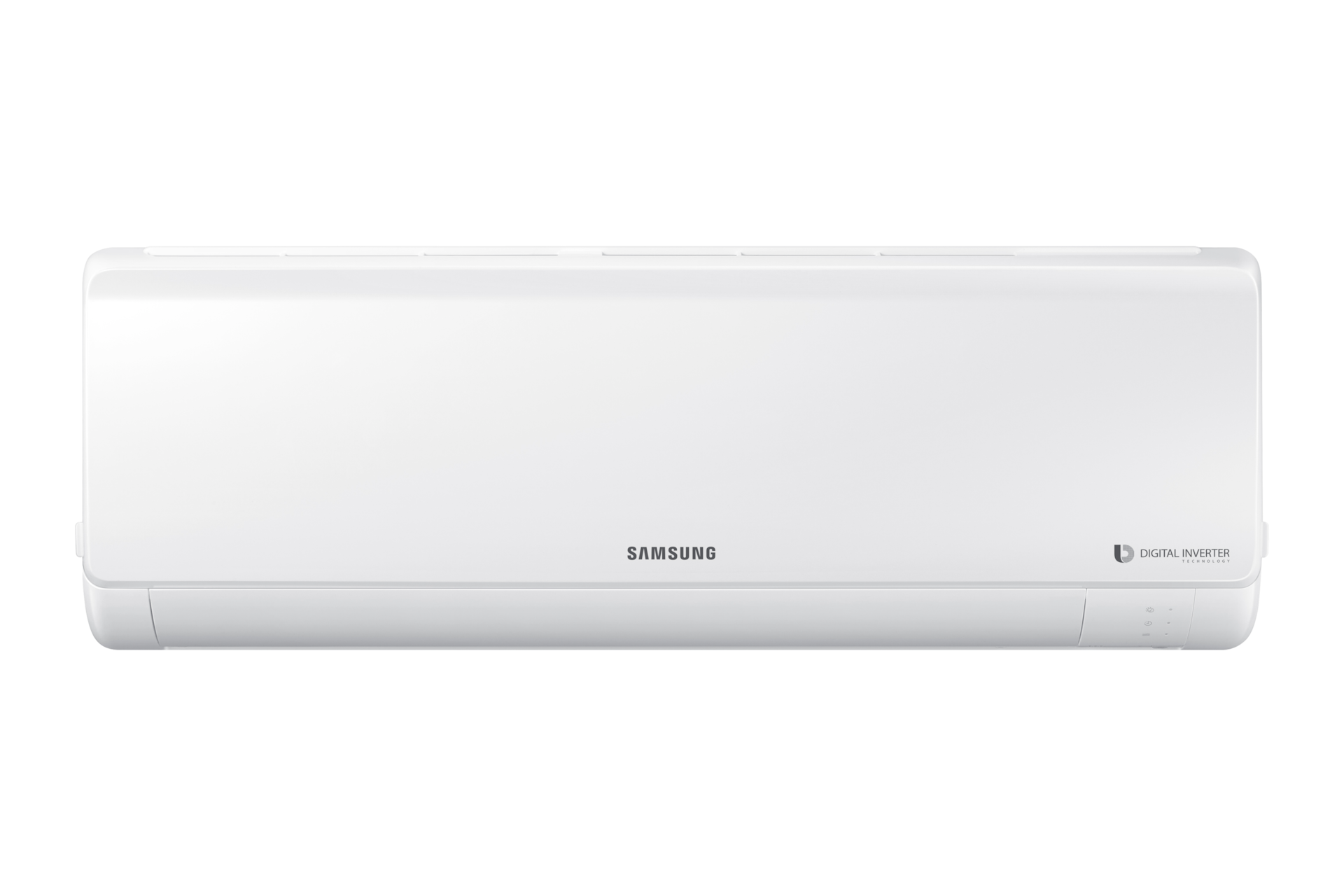

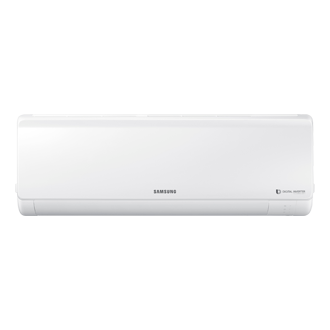

Wall-mount FJM Indoor with Fast cooling, AM024KNQDCH/TC
