More choice of capacity, even less cost
As a single unit, it offers a wide range of capacities – from 8HP to 30HP. It’s the world’s first system to offer a single 30HP unit, so you can reduce the installation and management costs and save valuable space.
More usable space – no compromise
Its compact size leaves you plenty of extra space that can be used for other purposes without compromising on performance thanks to its highly efficient Inverter Scroll Compressor and Hybrid heat exchanger.
Advanced performance & energy efficiency
Its advanced technology radically improves performance and reduces wasted energy. It includes a highly efficient Inverter Scroll Compressor, an innovative Hybrid heat exchanger and a large capacity diffuser.
Improved reliability in cold conditions
An advanced refrigerant control system ensures the compressor continues working reliably – even if everything is frozen. Its flash injection technology provides a great improvement in heating performance at -25°C.
Instant shut off and gas leak protection
There’s no need to worry about gas leaks or the accidental loss of refrigerant. A Gas Leak Operation System quickly detects leaks and automatically takes the pump down a step and cuts off the refrigerant supply.
Flexibly install it almost anywhere
Provides the flexibility to be installed almost anywhere, regardless of its location or distance from the building. It has a piping length of up to 220m (721.79ft) and can reach up to a height of 110m (360.9ft).
Control your cooling anywhere
An optional Wi-Fi Kit lets you remotely control up to 16 indoor units using an App*. Anytime and anywhere you can turn them on and off, select the operating mode and temperature, and utilize their other functions.
Specifications
Specifications Detail
Features
- Type DVM S
Power Supply (Outdoor Unit) [Φ, #, V, Hz]
- 3,4,380,60
System
- Mode HEAT PUMP
Performance (nominal)
- 8 HP
Capacity
- Cooling [kW] 22.4 kW
- Cooling [Btu/h] 76,400 Btu/h
- Heating [kW] 25.2 kW
- Heating [Btu/h] 86,000 Btu/h
Power Input
- Cooling 1) 4.8 kW
- Heating 2) 5.1 kW
Current Input
- Cooling 8.1 A
- Heating 8.6 A
Power
- MCA [A] 18 A
- MFA [A] 25 A
Energy Efficiency
- EER (Nominal Cooling) [W/W] 4.67
- COP (Nominal Heating) [W/W] 4.94
Compressor
- Type SSC Scroll x 1
- Output(kW) -4.96 kW
- Model Name DS-GB052FAVBSG x 1
- Oil (Type) PVE
Fan
- Type Propeller
- Motor (Output) [W] 630 x 1 W
- Air Flow Rate (High / Mid / Low) [CMM] 173 CMM
- Air Flow Rate(High/Mid/Low)[L/S] 2,883.33
- External Static Pressure (Min / Std / Max) [mmAq] 8 mmAq
Piping Connections
- Liquid Pipe (Φ, mm) 9.52 mm
- Liquid Pipe (Φ, inch) 3/8"
- Gas Pipe (Φ, mm) 19.05 mm
- Gas Pipe (Φ, inch) 3/4"
- Installation Max. Length [m] 200(220)
- Installation Max. Height [m] 110(40)
Field Wiring
- Transmission Cable 0.75 ~ 1.5
Refrigerant
- Type R410A(Fluorinated greenhouse gas)
- Factory Charging (kg) 5.5 kg
Sound
- Sound Pressure 57 dBA
- Sound Power Level 77 dBA
External Dimension (Outdoor Unit)
- Panel Net Weight (kg) 190 kg
- Shipping Weight (kg) 206 kg
- Net Dimensions (WxHxD) (mm) 880 x 1,695 x 765 mm
- Shipping Dimensions (WxHxD) (mm) 948 x 1,887 x 832 mm
Operating Temp. Range
- Cooling (℃) -5.0 ~ 48.0 ℃
- Heating (℃) -20.0 ~ 24.0 ℃
Support
Find answers the question you have about the product
Compare the models
Compare with similar items

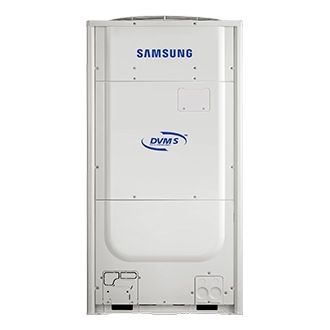

8HP, DVM, DVM S, Outdoor, 380V
