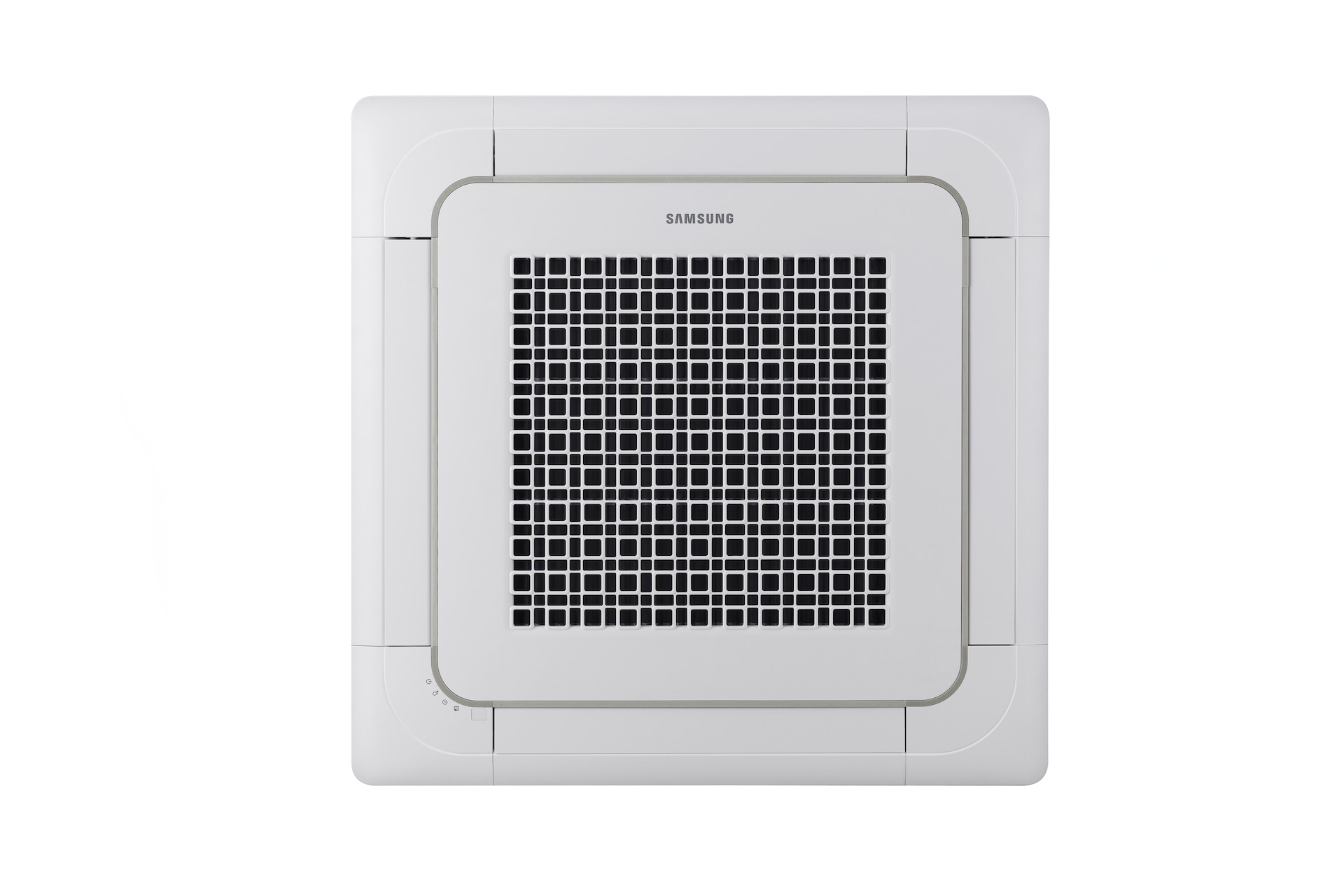

18,000BTU, DVM, 4Way CST, Indoor

18,000BTU, DVM, 4Way CST, Indoor

AM018FN4DCH/AA

  • World Top Class Energy Efficiency
  • World Lightest Weight
  • Interior Design

Choose your Cooling Capacity

18,000BTU, DVM, 4Way CST, Indoor

18,000 BTU/h
World Top Class Energy Efficiency World Top Class Energy Efficiency

World Top Class Energy Efficiency

World Top Class Energy Efficiency

Perfect comfort with new 4Way Cassette S! Samsung''s new 4Way Cassette S has magnificently improved average cooling and heating COP up to 4.8 compared to conventional products, achieving world class energy efficiency. Our highly efficient compressors have made it possible to offer perfect performance in both cooling and heating operation. Enjoy the clean and fresh air without any financial worries!

World Lightest Weight World Lightest Weight

World Lightest Weight

World Lightest Weight

Samsung’s 4Way Cassette S is now lighter in weight at 17kg. It is the lightest indoor unit in the industry, about 35 lighter than the conventional products.Samsung was the first to apply ABS cabinets into its indoor units to provide the lightest units. The slim design makes maintenance a breeze and the world lightest weight helps you to install mush easier, too.

S-Plasma ion S-Plasma ion

S-Plasma ion

S-Plasma ion

Sanitize your indoor air with Samsung’s S-Plasma ion! Priory-filtered air is made even healthier through the S-Plasma ion device which eliminates airborne contaminants, completely eradicates bacteria, eradicates allergies by eradicating airborne allergens and even neutralizes OH-radicals. This optional device can be easily installed by simply inserting the S-Plasma ion kit into the indoor unit.

Surround Air Flow Surround Air Flow

Surround Air Flow

Surround Air Flow

The new 4way Cassette S can cool every portion of your room. The new and practical design of the blades minimizes blind spots at the corners of the panel, and can almost cover a full 360˚ around the indoor unit.

Individual Blade Control Individual Blade Control

Individual Blade Control

Individual Blade Control

By using the new remote controller, the opening angles of the 4 blades can be individually set at the same or different angles within a 32˚~65˚ range for more efficient cooling.

Powerful Airflow

Wide blades in the indoor unit deliver cool or warm air at greater distances up to 5.2 meters to provide cooling and heating throughout the room efficiently
Powerful Airflow Powerful Airflow

Fresh Air Intake

By installing Samsung''s new 4Way Cassette S, fresh air can enter through the unit so that you can enjoy even fresher air in your room.
Fresh Air Intake Fresh Air Intake

Easy installation

Each corner portion of the panel is detachable: this makes it easier for you to adjust the height, and makes installation and leveling much easier and quicker.
Easy installation Easy installation

Specifications

Type

  • 4 WAY CASSETTE

Model Name

  • AM018FN4DCH/AA

Power Supply (Φ, #, V, Hz)

  • 1,2,208-230,60

Mode

  • HP/HR

Performance

  • Capacity (Nominal) Cooling (kW) 5.28 Cooling (Btu/h) 18,000 Heating (kW) 5.86 Heating (Btu/h) 20,000

Power

  • Power Input (Nominal) Cooling (W) 32.00 Heating (W) 32.00
  • Current Input (Nominal) Cooling (A) 0.25 Heating (A) 0.25

Fan

  • Motor Type Turbo Fan Output (W) -
  • Air Flow Rate High / Mid / Low (CMM) 15.50/14.00/12.00 High / Mid / Low (l/s) 258.33/233.33/200.00
  • External Pressure Min / Std / Max (mmAq) - Min / Std / Max (Pa) -

Piping Connections

  • Liquid Pipe (Φ, mm) 6.35
  • Liquid Pipe (Φ, inch) 1/4"
  • Gas Pipe (Φ, mm) 12.70
  • Gas Pipe (Φ, inch) 1/2"
  • Drain Pipe (Φ,mm) VP25 (OD 32,ID 25)

Field Wiring

  • Power Source Wire (mm2) AWG 16 ~ 14
  • Transmission Cable (mm2) AWG 18 ~ 16

Refrigerant

  • Type R410A
  • Control Method EEV INCLUDED

Sound

  • Sound Pressure High / Mid / Low (dB(A)) -
  • Sound Power High / Mid / Low (dB(A)) 34.0/33.0/31.0

Dimensions

  • Net Weight (Kg) 15.00
  • Shipping Weight (kg) 18.50
  • Net Dimensions (WxHxD) (mm) 840 x 204 x 840
  • Shipping Dimensions (WxHxD) (mm) 898 x 275 x 898

Panel Size

  • Panel model PC4NUSKFN
  • Panel Net Weight (kg) 5.80
  • Shipping Weight (kg) 8.40
  • Net Dimensions (WxHxD) (mm) 950 x 45 x 950
  • Shipping Dimensions (WxHxD) (mm) 1005 x 100 x 1005

Additional Accessories

  • Drain Pump -
  • Max. Lifting Height / Displacement (mm/liter/h) -
