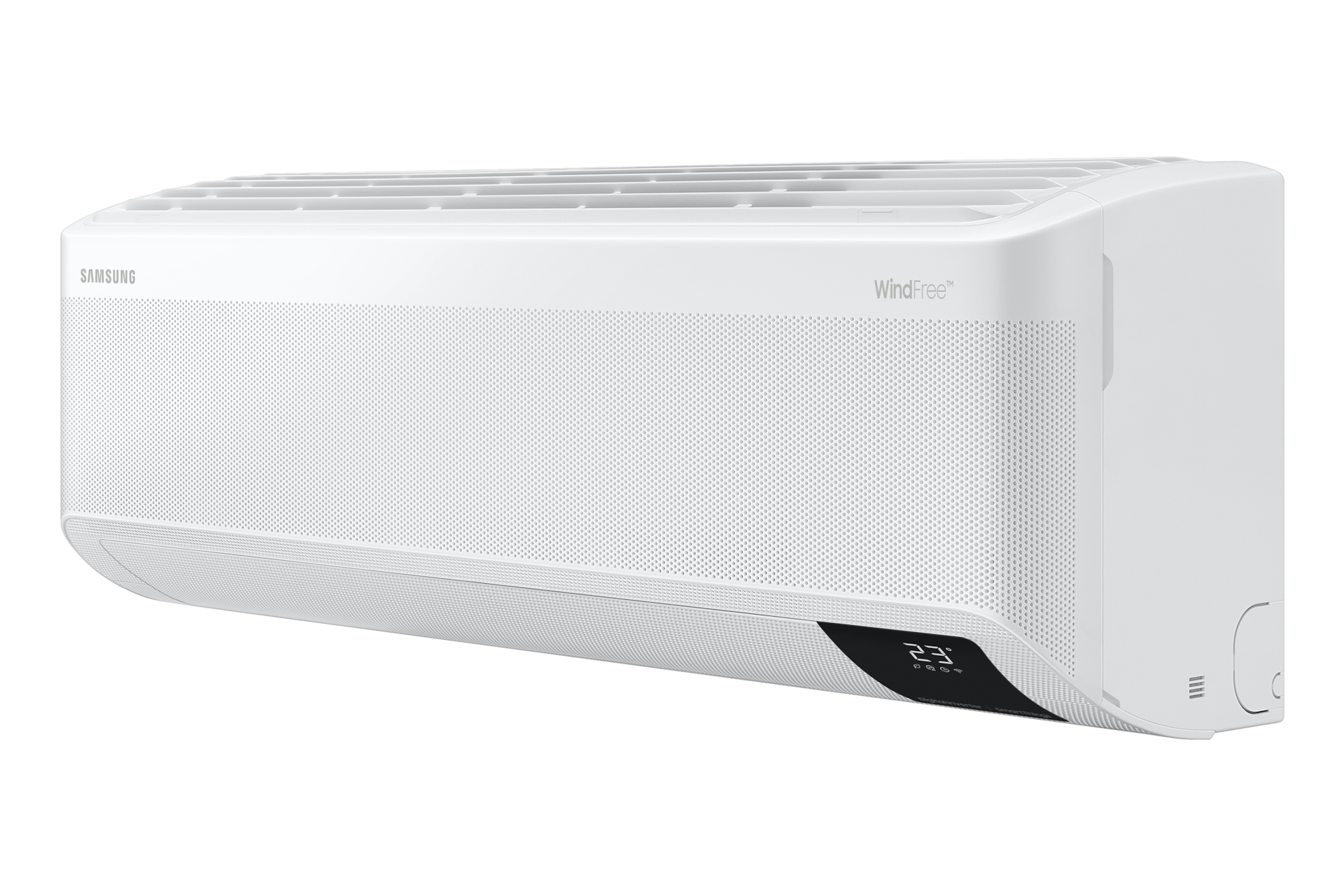

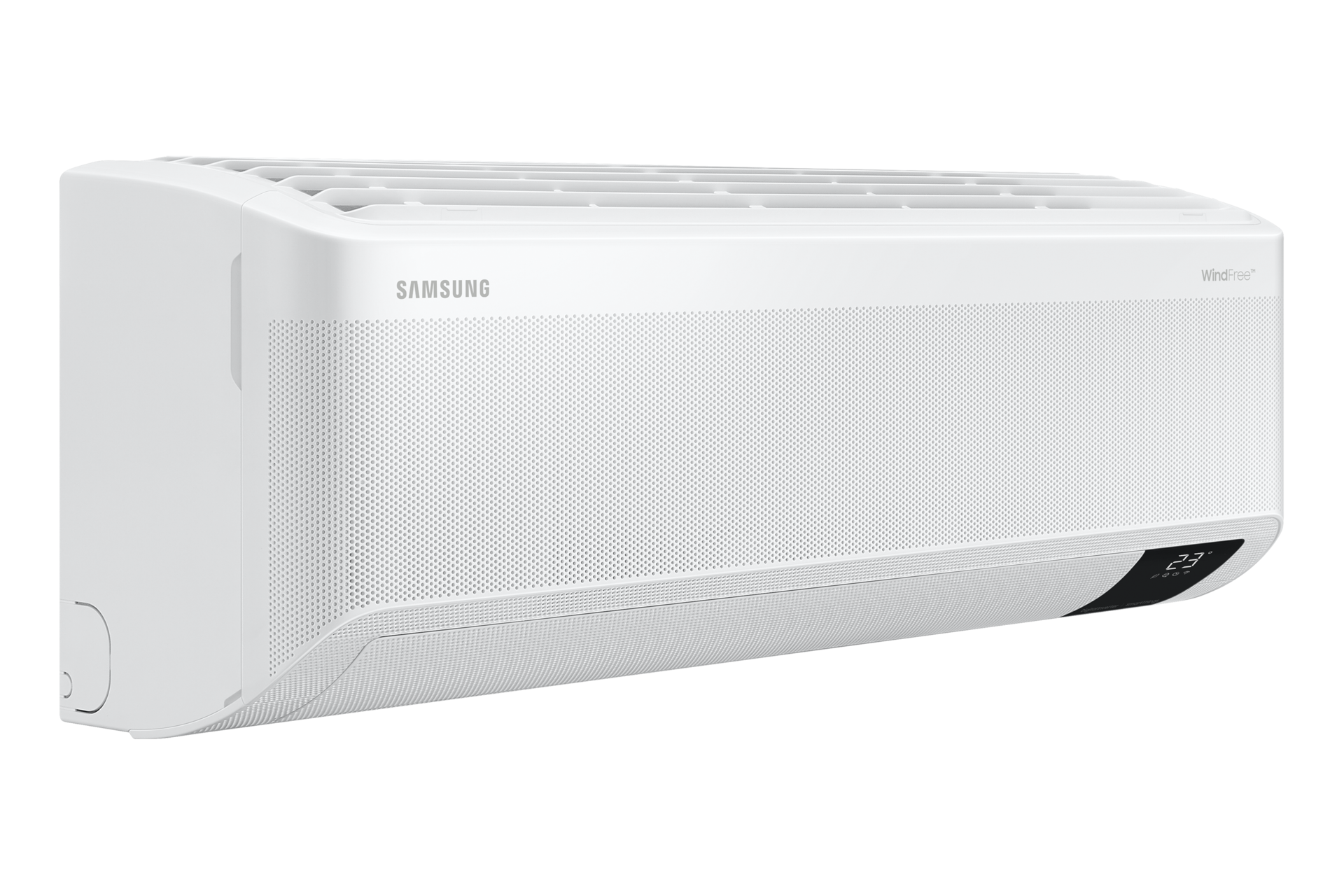

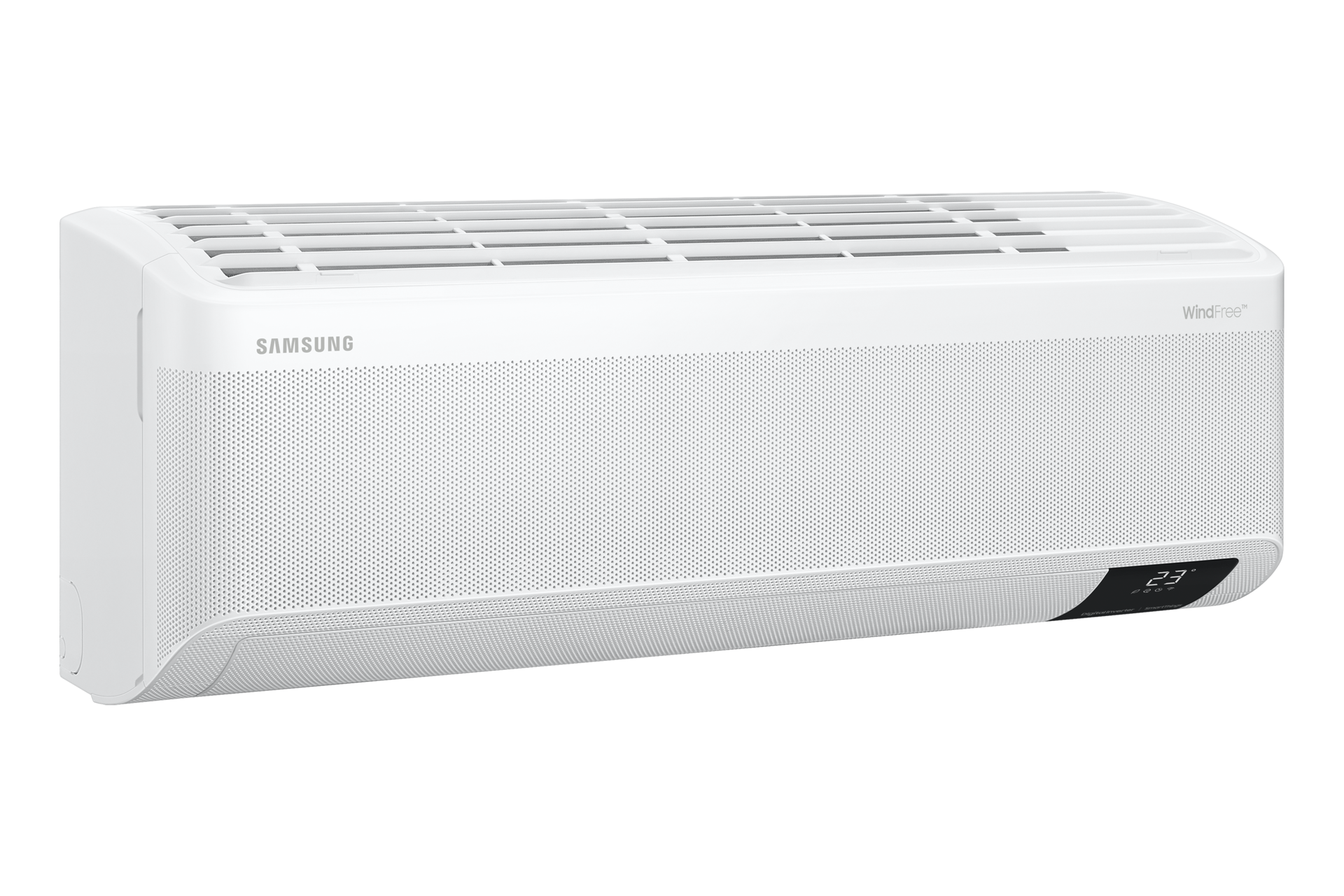

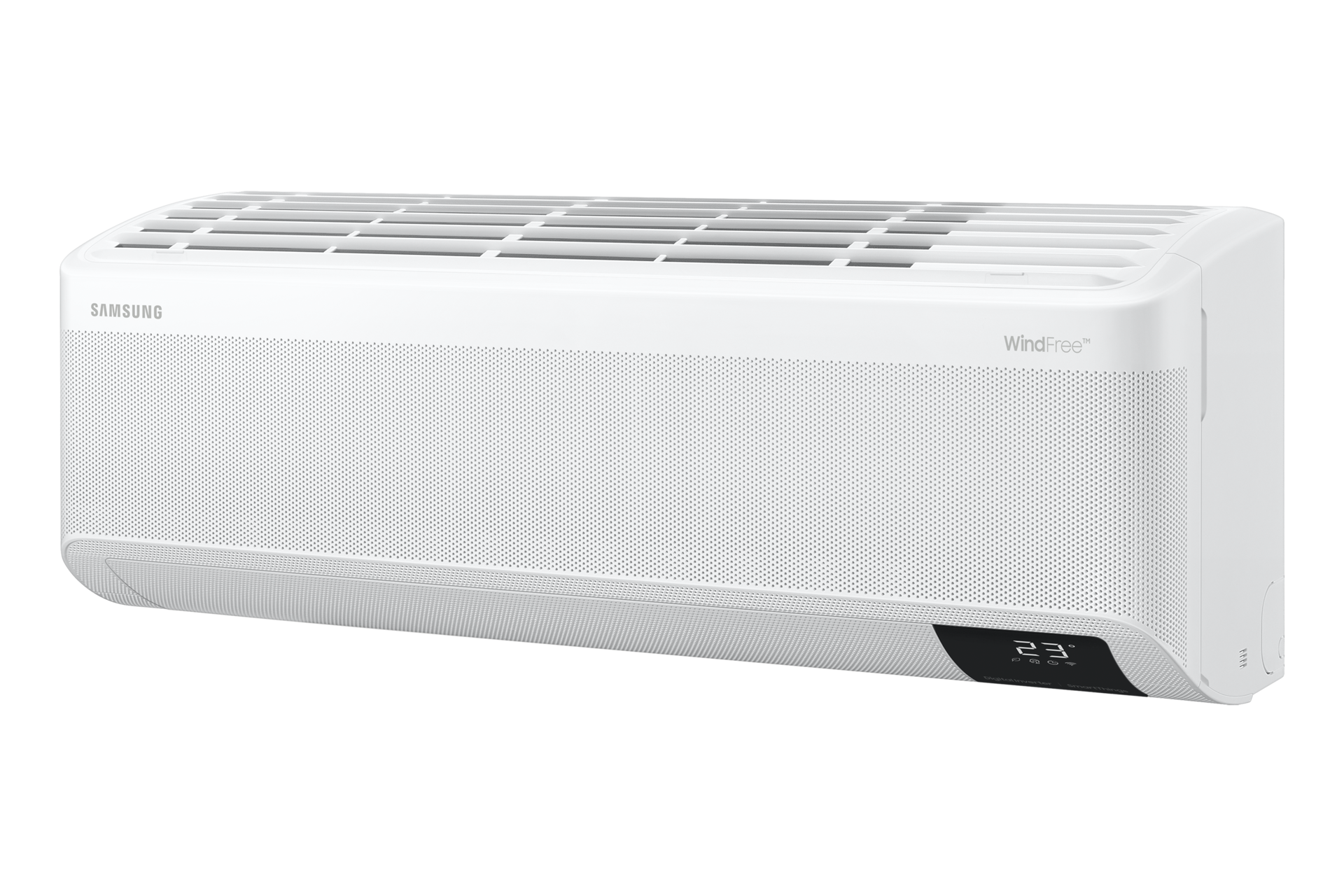

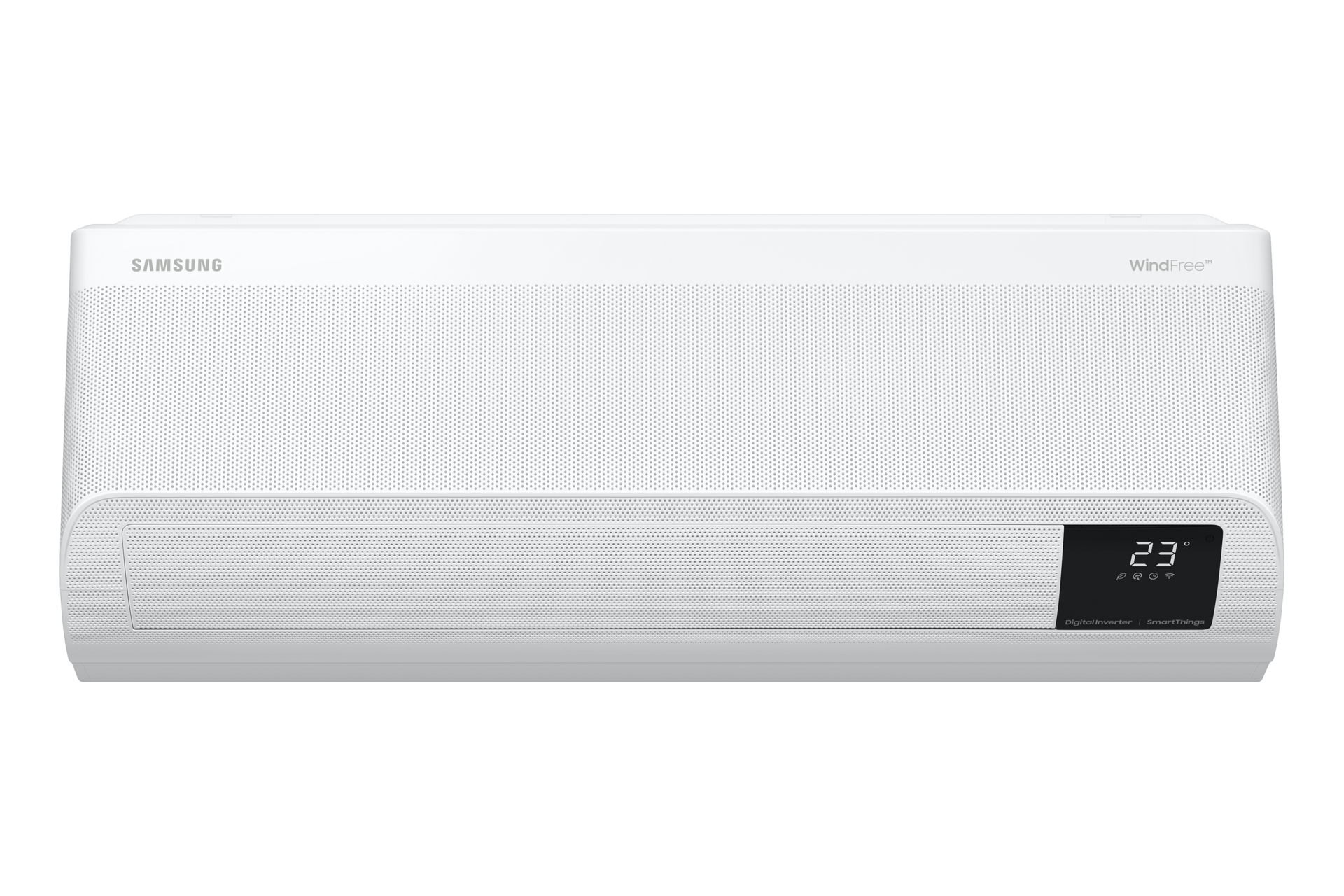

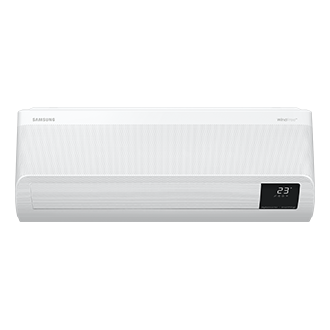

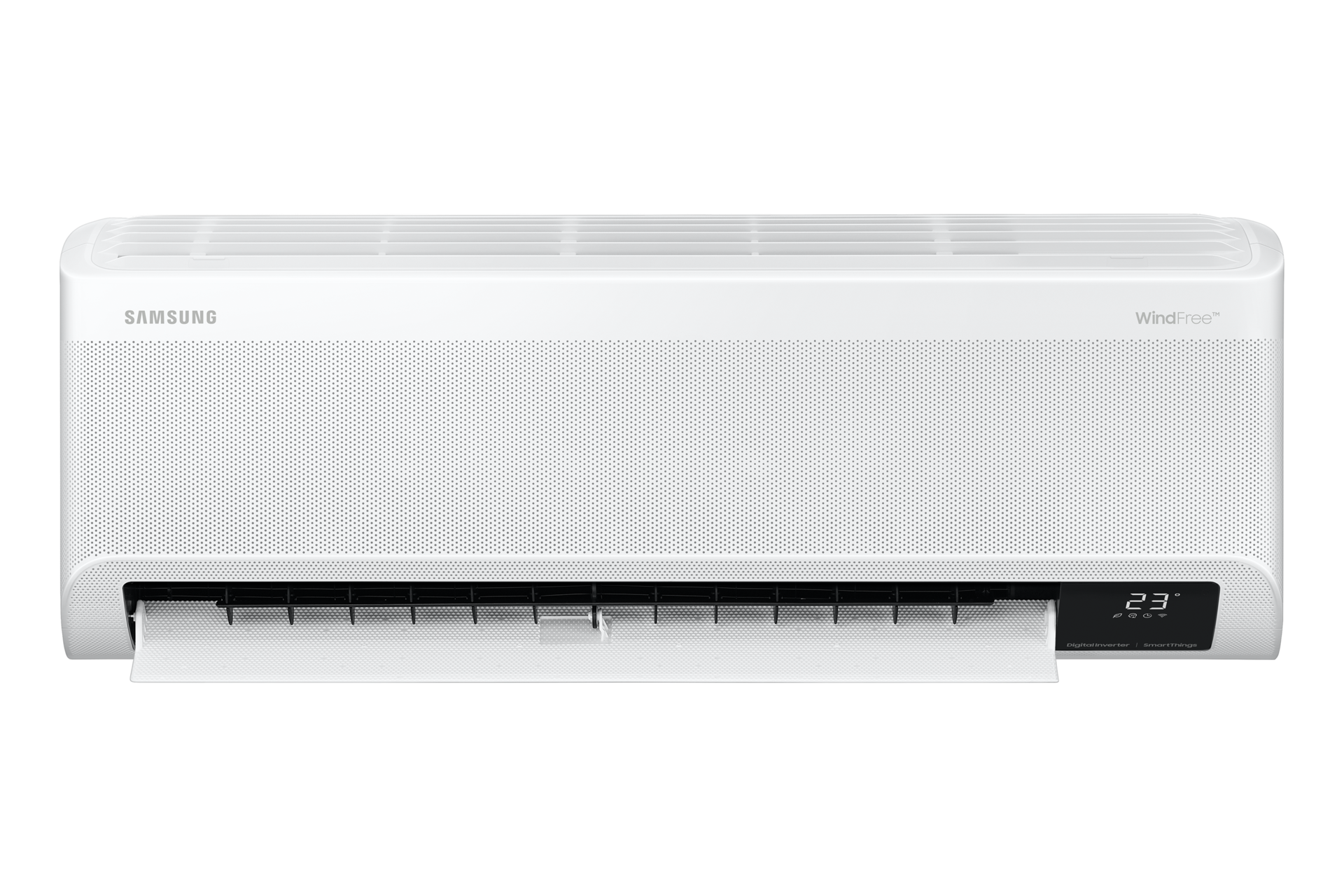

1.5 HP WindFree™ Air Conditioner Wall-mount -SmartThings

AR13CYEAAWKNTC

3.7 ( 3 )

Choose your Color

Color : White

Choose your Capacity

Offer

  • Samsung Rewards

    Sign up now to receive Samsung Rewards Points. Blue : 1% | Gold : 2% | Platinum : 3%

    Learn More
  • Samsung Shop App

    Download and save on Shop App. Get extra ₱1,000 off on your first purchase. Instant discount in cart prior checkout. Valid from January 1 to December 31, 2025. Terms and Conditions apply.

    Learn More
  • Special Offer

    Free Galaxy Fit3 and Galaxy Tab A9 Wifi.

1.5 HP WindFree™ Air Conditioner Wall-mount -SmartThings
White 1.5 HP

₱52,245.00

₱54,995.00 Save ₱2,750.00

Add to cart Where to buy

Features

Cool more, sleep more

It shows the AR9500T installed in the living room. It shows the AR9500T installed in the living room.

Stay comfortably cool

WindFree™ Cooling

Stay comfortable cool with WindFree™ Cooling. It gently and quietly disperses air through 23,000 micro air holes, so there is no unpleasant feeling of cold wind on your skin. Its advanced airflow also cools a wider and larger area more evenly. And it uses 77% less energy than Fast Cooling***.

Shows a wall-mounted air conditioner gently and quietly dispersing cool air through WindFree™ Cooling’s 23,000 micro air holes. Shows a wall-mounted air conditioner gently and quietly dispersing cool air through WindFree™ Cooling’s 23,000 micro air holes.

* ASHRAE (American Society of Heating, Refrigerating, and Air-Conditioning Engineers) defines “Still Air” as air currents at speeds below 0.15m/s that lack the presence of cold drafts.** Tested on the AR12TXCAAWKNEU model. WindFree™ mode generates only 23dB of noise, compared to 26dB with the Samsung conventional model.*** Tested on the AR07B9350MA3 model by Intertek, a leading Total Quality Assurance provider to industries worldwide, comparing the power consumption of Fast Cooling mode vs. WindFree™ Cooling mode. Results may vary depending on the actual usage conditions.

Enjoy a good night’s sleep & save energy

WindFree™ Good Sleep

Get a really good night’s sleep every night. The WindFree™ Good Sleep mode creates the ideal climate for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™ cooling helps you fall asleep fast, sleep deeply and comfortably and wake up feeling fully refreshed

Shows a young child sleeping peacefully in a comfortable bedroom environment. A chart shows how the air conditioner switches between Cooling and Heating modes to maintain the optimum temperature during the 3 stages of the sleep cycle: Falling asleep, Sound sleep and Wake up. Shows a young child sleeping peacefully in a comfortable bedroom environment. A chart shows how the air conditioner switches between Cooling and Heating modes to maintain the optimum temperature during the 3 stages of the sleep cycle: Falling asleep, Sound sleep and Wake up.

Cools you faster

Fast Cooling

Cool rooms quickly from corner to corner, so feel comfortable wherever you are. Digital Inverter technology cools the air 43% faster*. Its advanced design also has a 15% larger fan, 18% wider inlet and a 31% wider blade. So cool air is dispersed farther and wider**, reaching up to 15 meters.

Shows a wall-mounted air conditioner quickly dispersing cool air across a room. It has a 15% bigger fan to increase the air flow, an 18% wider inlet to take in more air and a 31% wider blade to expel more air. Shows a wall-mounted air conditioner quickly dispersing cool air across a room. It has a 15% bigger fan to increase the air flow, an 18% wider inlet to take in more air and a 31% wider blade to expel more air.

* Tested on the AR12TXCAAWKEU model compared with the Samsung conventional AQ12EASER model, measuring the time taken to reduce the room temperature from 33°C to 25°C.** Tested on the AR24TXFCAWKNEU model.

Easy to clean, removes airborne bacteria

Copper Anti-bacterial Filter

Keep the air conditioner working efficiently with less effort. The Copper Anti-bacterial Filter is located outside, on the top, so it can easily be removed and cleaned. Its dense mesh keeps the Heat Exchanger clean. The copper material contained in the yarn helps reduce up to 99% harmful bacteria*.

Shows how the Copper Anti-bacterial Filter on the top of the air conditioner helps eliminate up to 99% of airborne bacteria. Shows how the Copper Anti-bacterial Filter on the top of the air conditioner helps eliminate up to 99% of airborne bacteria.

* Tested by Intertek. Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use.

Easy to clean Anti-bacterial Filter

Easy Filter Plus

Keep your air conditioner working efficiently with less effort. The Easy Filter Plus is located outside, on the top, so it can easily be taken out and cleaned. Its dense mesh keeps the Heat Exchanger clean and an anti-bacterial coating helps protect you against dangerous airborne contaminants*.

* Tested in Korea test lab (FITI). Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use.

Shows that the Easy Filter Plus can be easily removed by lifting up the cover of the air conditioner, so that it can be cleaned. Shows that the Easy Filter Plus can be easily removed by lifting up the cover of the air conditioner, so that it can be cleaned.

* Tested in Korea test lab (FITI). Data has been measured under specific testing conditions and may vary depending on environmental factors and individual use.

Simply smart control with a touch or voice

SmartThings

Control the air conditioner anytime and anywhere. The SmartThings App* lets you remotely control and monitor it with a touch. Using a voice recognition assistant**, like Samsung Bixby***, or Google Assistant****, you can tell it what to do. It even suggests the best settings.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** A Wi-Fi connection is required*** Bixby is Samsung’s brand of artificial intelligence (AI) / Internet of Things (IoT) voice assistant. Bixby service availability may vary depending on the country. Bixby recognizes certain accents/dialects of English (US, UK, Indian), Chinese, Korean, French, German, Italian, Spanish and Portuguese. The user interface may change and differ by device. The availability of Bixby features and content providers may vary depending on the country/carrier/language/device model/OS version. A Samsung account log-in and data network connection (Wi-Fi or data network) are required.**** Google is a trademark of Google LLC.

-Shows a person relaxing while controlling the air conditioning with their voice using a voice assistant on their smartphone, such as Samsung Bixby, Amazon Alexa or Google Assistant. The example voice command shown says: "Hi, Bixby! Turn on the wind free of the air conditioner." -Shows a person relaxing while controlling the air conditioning with their voice using a voice assistant on their smartphone, such as Samsung Bixby, Amazon Alexa or Google Assistant. The example voice command shown says: "Hi, Bixby! Turn on the wind free of the air conditioner."

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** A Wi-Fi connection is required*** Bixby is Samsung’s brand of artificial intelligence (AI) / Internet of Things (IoT) voice assistant. Bixby service availability may vary depending on the country. Bixby recognizes certain accents/dialects of English (US, UK, Indian), Chinese, Korean, French, German, Italian, Spanish and Portuguese. The user interface may change and differ by device. The availability of Bixby features and content providers may vary depending on the country/carrier/language/device model/OS version. A Samsung account log-in and data network connection (Wi-Fi or data network) are required.**** Google is a trademark of Google LLC.

Automatically stays fresh and hygienic

3-step Auto Clean

Keep the inside of the air conditioner hygienic by doing nothing! After it’s been working, the Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes***.

* Models without WindFree™ mode will operate with the blade open, if additional cleaning is required. ** Only available in WindFree™ models that have a humidity sensor.*** The Auto Clean time will vary depending on the condition of the air conditioner.

Shows the air conditioner cleaning itself by blowing mild air for 10 minutes, or adding an extra 10 or 20 minutes of WindFree™ air if necessary. Shows the air conditioner cleaning itself by blowing mild air for 10 minutes, or adding an extra 10 or 20 minutes of WindFree™ air if necessary.

* Models without WindFree™ mode will operate with the blade open, if additional cleaning is required. ** Only available in WindFree™ models that have a humidity sensor.*** The Auto Clean time will vary depending on the condition of the air conditioner.

Automatically smarter

AI Auto Cooling

Experience an intelligent way of living with AI Auto Cooling*. It automatically optimizes the various modes by analyzing the room conditions and usage patterns**. Based on your preferred temperature, it automatically switches to the most appropriate mode*** to maintain the optimal conditions.

Shows how the air conditioner optimizes its performance by learning the operating time, set temperature and indoor and outdoor temperatures. A chart shows how Fast Cooling quickly reduces the room temperature to the set level, before entering Dehumidification Mode and then WindFree™ Cooling to keep the room at the set temperature. Shows how the air conditioner optimizes its performance by learning the operating time, set temperature and indoor and outdoor temperatures. A chart shows how Fast Cooling quickly reduces the room temperature to the set level, before entering Dehumidification Mode and then WindFree™ Cooling to keep the room at the set temperature.

* A Wi-Fi connection and a Samsung account are required.** Stores user data, preferences and usage patterns to suggest the most useful options.*** When a Wi-Fi connection is not available, the preferred mode is based on the result of big data analysis.

Optimized comfort, more energy savings

Digital Inverter Boost

Save money every day with highly energy-efficient Digital Inverter Boost technology. It maintains the desired temperature with less fluctuation. It also has strong magnets and a Muffler, so it works efficiently and produces less noise and vibration. And it reduces energy usage by up to 73%*.

Shows an air conditioner with some of the internal components exposed. Close-up images highlight the Neodymium Magnets and the Twin Tube Muffler. Shows an air conditioner with some of the internal components exposed. Close-up images highlight the Neodymium Magnets and the Twin Tube Muffler.

* Tested on the AR09TXCAAWKNEU model compared with the Samsung conventional model AQ09TSLXEA.

Saves energy & money, cools effectively

ECO Mode

Save energy, but still stay cool. ECO mode uses less compressor capacity compared to Normal mode, which reduces energy consumption*. It lets you cool more efficiently when it’s not too hot outside or just save energy and money at any time, so you don’t have to worry about the electricity bills.

* Tested on the AR12TVEAAWKNAP compared with Samsung conventional models, measuring the accumulated power consumption of Normal mode vs. ECO mode.

Shows a chart that highlights how ECO Mode reduces the maximum level of hertz (Hz) that the air conditioner operates at compared to Fast Cooling Mode, so it saves up to 35% more energy over time. Shows a chart that highlights how ECO Mode reduces the maximum level of hertz (Hz) that the air conditioner operates at compared to Fast Cooling Mode, so it saves up to 35% more energy over time.

* Tested on the AR12TVEAAWKNAP compared with Samsung conventional models, measuring the accumulated power consumption of Normal mode vs. ECO mode.

Smart energy savings

SmartThings Energy

Control energy usage to reduce your bills. SmartThings Energy* lets you easily check your power consumption**. If the estimated amount*** exceeds your target, it adjusts the energy usage of all smart appliances. When the air conditioner is on it draws the blinds and alerts you if you go out.

Shows a wall-mounted air conditioner in a living room. The SmartThings Energy App is also shown on a smartphone. It includes an option to find the best energy supply rates based on your personal energy use. It also shows a chart of your estimated energy use and cost for the month. Below this it shows a diagram of the total energy used and the percentage amount saved. Shows a wall-mounted air conditioner in a living room. The SmartThings Energy App is also shown on a smartphone. It includes an option to find the best energy supply rates based on your personal energy use. It also shows a chart of your estimated energy use and cost for the month. Below this it shows a diagram of the total energy used and the percentage amount saved.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** Some Wi-Fi models may not be able to use the Energy Monitor function.*** Only available on models with a power measuring capability.

Automatically use up to 20% less energy

SmartThings AI Energy Mode

Monitor and reduce the air conditioner’s energy use. AI Energy mode* lets you check the power use and estimates the electricity bill. By learning your usage patterns and analyzing the room conditions, it reduces energy use by up to 20%** by adjusting the temperature*** and compressor frequency.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. Available for specific models from December 2022 through wifi update.** Based on the internal testing and the results may differ depending on the user’s actual environment and usage patterns.*** The target temperature may increase in cooling and decrease in heating when operating in AI Energy mode. The user can manually adjust the target temperature, in which case the AI Energy mode is changed to Normal Cooling/Heating mode and the energy saving effect is not guaranteed.**** Optimizing rate of the compressor frequency can be different between cooling and heating mode.

Personalized comfort welcomes you home

Welcome Cooling (with Geofencing functionality)

Feel comfortably cool as soon as you get home. Welcome Cooling, part of the SmartThings App*, detects your location by tracking your phone’s GPS**. When you come within a preset distance, it automatically sets the room temperature at the desired level, using your preferred mode and settings.

Shows a wall-mounted air conditioner cooling a living room. A wireless symbol and dotted line to a street map show that it can track your phone’s GPS location. It also shows an App that you can use to activate Welcome Cooling. When this is switched on, it will automatically turn the air conditioner’s power on when you are near to your home. Shows a wall-mounted air conditioner cooling a living room. A wireless symbol and dotted line to a street map show that it can track your phone’s GPS location. It also shows an App that you can use to activate Welcome Cooling. When this is switched on, it will automatically turn the air conditioner’s power on when you are near to your home.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** This function may be affected by the GPS conditions.

More efficient Heat Exchanger performance

DuraFin

Enhance the performance and efficiency of the Heat Exchanger using the DuraFin. It is made of a much denser material and is thicker in design. Its improved coating also has more corrosion resistance. So it passes the accelerated Sea Water Acetic Acid Test (SWAAT) for corrosion over 100 days*.

* Based on the AR13TYHYBWKNST model compared with the Samsung conventional model AR18JRFNFWK.

Shows the structure of the DuraFin, which is made of a much denser material and is thicker in design. Its improved coating also has more corrosion resistance. Shows the structure of the DuraFin, which is made of a much denser material and is thicker in design. Its improved coating also has more corrosion resistance.

* Based on the AR13TYHYBWKNST model compared with the Samsung conventional model AR18JRFNFWK.

Long-lasting protection, optimal cooling

Triple Protector Plus

Enjoy a long-lasting performance in challenging environments. Triple Protector Plus technology prevents damage from power surges and fluctuating electrical currents, without a separate voltage stabilizer*. Its anti-corrosion coating also protects the condenser and cabinet in harsh conditions.

* Tested on the AR12TXEAAWKNEU model compared with the Samsung conventional model AS18FCMID.

Illustrates how the air conditioner is at risk from electrical surges. Illustrates how the air conditioner is at risk from electrical surges.

* Tested on the AR12TXEAAWKNEU model compared with the Samsung conventional model AS18FCMID.

Eco-friendly cooling – zero ozone impact

R32 Refrigerant

Protect the planet by reducing the impact of climate change. The air conditioner uses the next generation R32 refrigerant, which helps conserve the ozone layer and has a low impact on global warming compared to conventional R22 or R410A refrigerants. So it’s much more environmentally friendly*.

* Tested on R32 refrigerant compared with Samsung conventional refrigerants R410A and R22.

Shows that R32 (HFC) refrigerant is superior to the conventional RSS (HCFC) and R410A (HCFC) refrigerants for ozone layer protection, LCCP, energy efficiency, economic performance and safety. Shows that R32 (HFC) refrigerant is superior to the conventional RSS (HCFC) and R410A (HCFC) refrigerants for ozone layer protection, LCCP, energy efficiency, economic performance and safety.

* Tested on R32 refrigerant compared with Samsung conventional refrigerants R410A and R22.

Enjoy an even temperature across a room

4-way Swing

Create a comfortable environment with an even temperature in every corner of a room. The 4-way Swing function lets you remotely control the air direction or automatically expels air in every direction. As well as the auto up-down swing function it also has an auto left-right swing function.

Shows a wall-mounted air conditioner and illustrates how the direction of the air flow can be adjusted in 4 directions, horizontally (left to right) and vertically (up and down), to distribute air across a room quickly and evenly. Shows a wall-mounted air conditioner and illustrates how the direction of the air flow can be adjusted in 4 directions, horizontally (left to right) and vertically (up and down), to distribute air across a room quickly and evenly.

Enjoy a quieter & more tranquil home

Less Noise

Cool your living spaces with less noise, so it doesn’t disturb you. The compressor creates a powerful airflow, but works really quietly as it includes a Twin Tube Muffler. It reduces the refrigerant flow noise when operating at high speed and minimizes ambient noise during low speed operation.

* Based on testing conducted in an internal laboratory. Generates a 40% reduction in the 1kHz noise band, which is the weakest level of sound that humans are sensitive to.

Enjoy a quieter & more tranquil home Enjoy a quieter & more tranquil home

* Based on testing conducted in an internal laboratory. Generates a 40% reduction in the 1kHz noise band, which is the weakest level of sound that humans are sensitive to.

Easy, seamless shopping

Free delivery

Learn more

Flexible Payment Methods

Learn more

Service and warranty

Register your product and find out what's covered.

Learn more

Interest free installment plans

Learn more

Specifications

  • Capacity (Cooling, kJ/h)

    12660 kJ/hW

  • Refrigerant (Type)

    R32

  • Noise Level (Indoor, High/Low, dBA)

    40 / 20 dBA

  • Noise Level (Outdoor, High/Low, dBA)

    48 dBA

  • Capacity (Cooling, kJ/h)

    12660 kJ/hW

  • Capacity (Cooling, Min - Max, kJ/h)

    3,000 - 13,600 kJ/hW

  • Noise Level (Indoor, High/Low, dBA)

    40 / 20 dBA

  • Noise Level (Outdoor, High/Low, dBA)

    48 dBA

  • Power Source(Φ/V/Hz)

    1 / 220~240 / 60

  • Power Consumption(Cooling, W)

    1050 W

  • Operating Current(Cooling, A)

    5.2 A

  • Net Dimension (Indoor, WxHxD, mm)

    820*299*215 mm

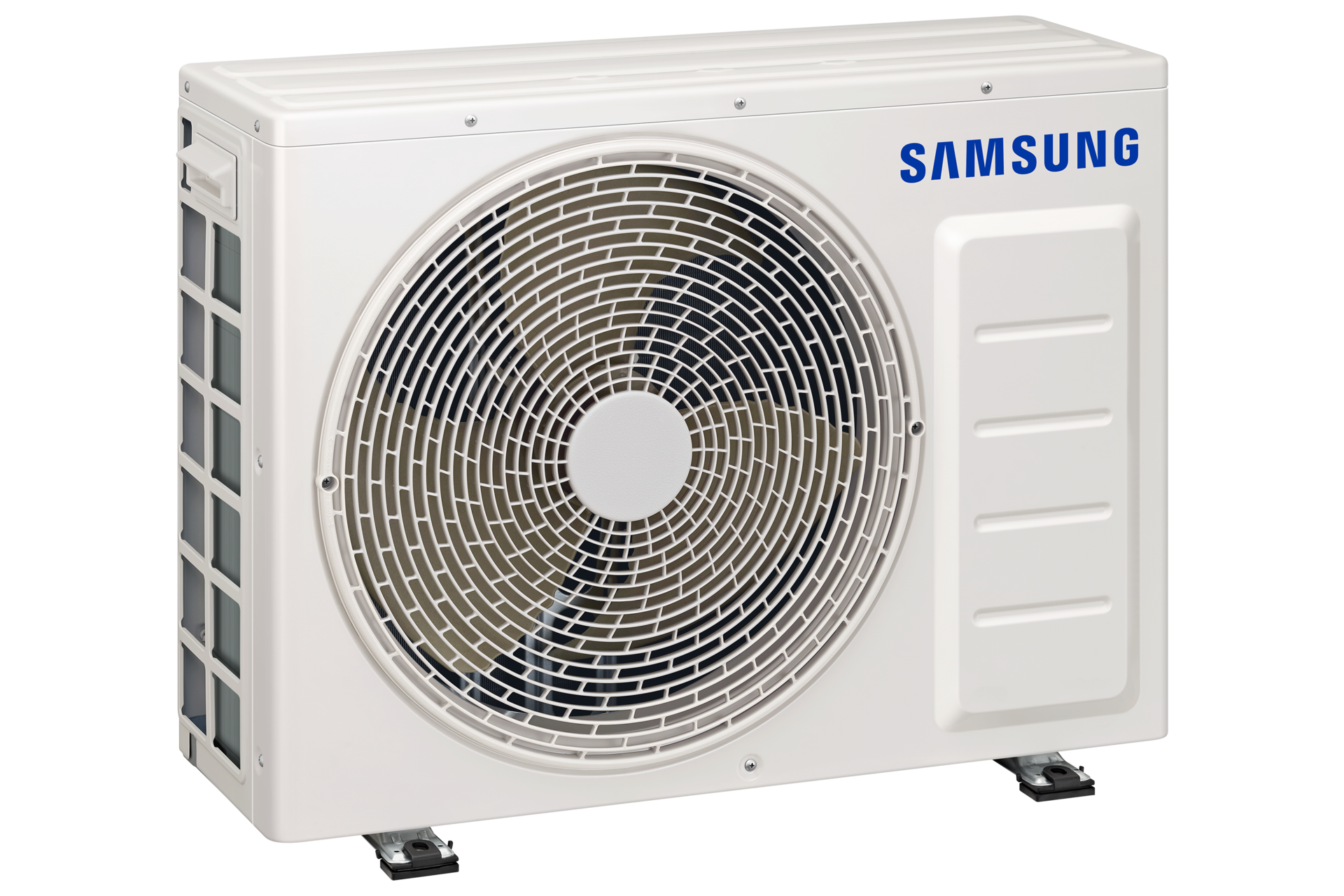

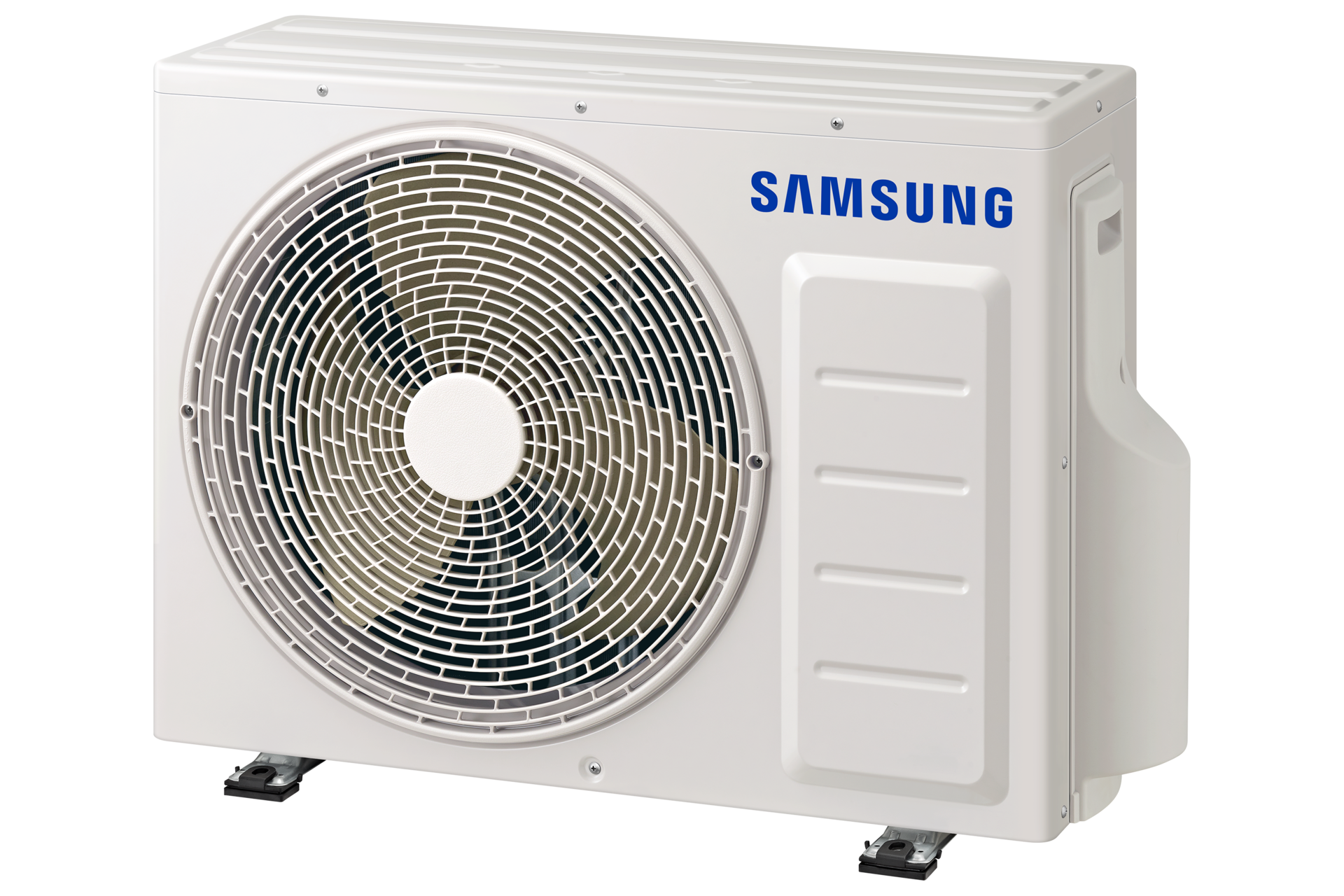

  • Net Dimension (Outdoor, WxHxD, mm)

    660*475*242 mm

  • Net Weight (Indoor, kg)

    9.0 kg

  • Net Weight (Outdoor, kg)

    20.3 kg

  • Piping Length (Max, m)

    15 m

  • Piping Height (Max, m)

    8 m

  • SVC Valve (Liquid (ODxL))

    6.35

  • SVC Valve (Gas (ODxL))

    9.52

  • Moisture Removal (l/hr)

    1.4 l/hr

  • Air Circulation (Cooling, ㎥/min)

    11.7 ㎥/min

  • Refrigerant (Type)

    R32

  • Low Ambient (Cooling, ℃)

    16~46 ℃

  • Outdoor Unit (Compressor Type)

    BLDC

  • Outdoor Unit (Anti-Corrosion Fin)

    Yes

  • WindFree Cooling

    Yes

  • Air Direction Control (Up/Down)

    Auto

  • Air Direction Control (Left/Right)

    Auto

  • Air Flow Control Step (Cool/Fan)

    5/4

  • PM 1.0 Filter

    No

  • 4-in-1 Care Filter

    Yes

  • Easy Filter Plus (Anti-Bacteria)

    Yes

  • Copper Anti-bacterial Filter

    Yes

  • Auto Clean (Self Cleaning)

    Yes

  • SmartThings

    Yes

  • AI Auto Cooling

    Yes

  • Motion Detect Sensor

    No

  • Freeze Wash

    No

  • Beep On/Off

    Yes

  • 24-Hour Timer

    Yes

  • Auto Restart

    Yes

  • Auto Mode

    Yes

  • Fast Cool

    Yes

  • Good Sleep

    Yes

  • Eco Mode

    Yes

  • Dehumidification

    Yes

  • Fan Mode

    Yes

  • Quiet

    Yes

  • WiFi Embedded

    Yes

  • SmartThings App Support

    Yes
