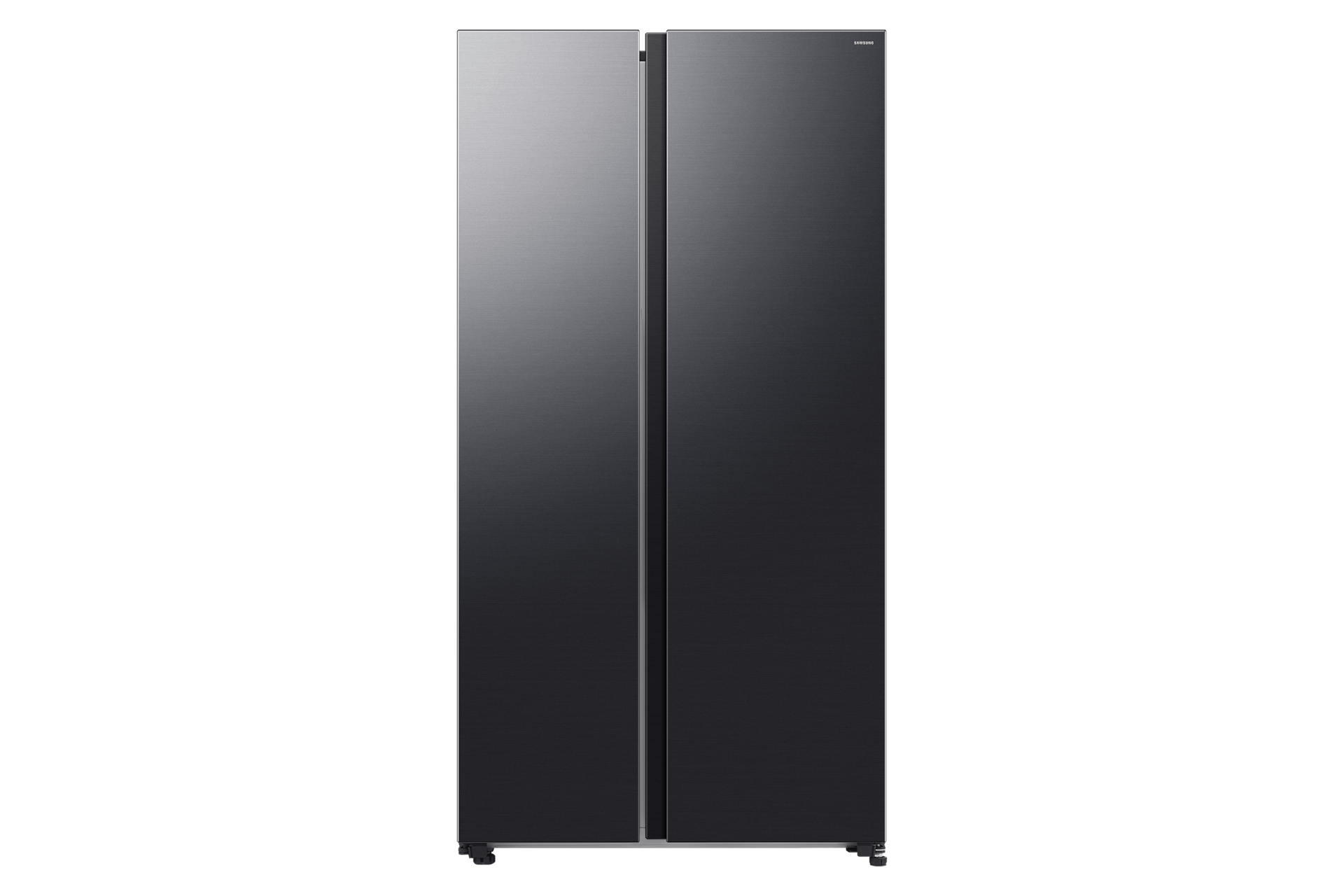

655L Bespoke Refrigerator SBS -AI Energy Mode Black DOI

RS70F65Q5FSA

0 ( 0 )

Choose your Colour

Colour :

Choose your Capacity

Highlights

A person is managing refrigerator remotely via smartphone and wi-fi.

Wi-Fi Embedded

AI Energy Mode icon

AI Energy Mode

Large Capacity with Space max icon

Large Capacity with Space max

Features

Intelligent freshness

The refrigerator is installed in the modern Kitchen. The refrigerator is installed in the modern Kitchen.

Save energy intelligently

AI Energy Mode

Reduce your energy use by up to 10%* with AI Energy mode in SmartThings Energy**. If your estimated energy usage exceeds your preset target, it gives you an option to save energy***. It intelligently adjusts the compressor speed and defrost cycle, based on your usage pattern and surroundings.

The refrigerator installed in the kitchen with the Activate “SmartThings AI Energy Mode” button OFF. A graph shows energy usage of Normal Mode. The refrigerator installed in the kitchen with the Activate “SmartThings AI Energy Mode” button OFF. A graph shows energy usage of Normal Mode.
The refrigerator installed in the kitchen with the Activate “SmartThings AI Energy Mode” button ON. The AI Energy Mode is turned on, AI activated to check internal and manage the compressor, and a graph shows the UP to 10% Energy Saving effect when in AI Energy Mode compared to Normal mode. The refrigerator installed in the kitchen with the Activate “SmartThings AI Energy Mode” button ON. The AI Energy Mode is turned on, AI activated to check internal and manage the compressor, and a graph shows the UP to 10% Energy Saving effect when in AI Energy Mode compared to Normal mode.
* Based on internal testing. The test results are based on a comparison of the factory setting temperature when using AI Energy mode and without using AI Energy mode. Results may vary depending on the usage conditions and patterns. ** Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. *** SmartThings will display a notification before activating the saving algorithm in both 'Maximum mode' and 'Custom mode'.

Control anywhere

SmartThings

Monitor and manage your refrigerator anytime, anywhere. Its embedded Wi-Fi lets you track and adjust its performance using the SmartThings App*. You can easily control the cooling mode, change the temperature and get alerts if the door is left open. It will also detect and help diagnose issues.

A person is managing refrigerator remotely via smartphone and wi-fi. A person is managing refrigerator remotely via smartphone and wi-fi.

* To use SmartThings, download the App from the Galaxy Store, Google Play Store, or Apple App Store. The SmartThings App requires Android OS 10↑ with a minimum of 3GB RAM space or iOS 15↑. Supported OS specifications and app screen configuration may change with app updates.

⠀

* The 635L capacity is based on the two-door Water & Ice dispenser model and the capacity may vary according to refrigerator type. ** Compared to Samsung conventional models without SpaceMax™ technology.

More space inside

Large Capacity with SpaceMax™

Store plenty of food in a spacious 635 liter interior*. SpaceMax™ technology makes the walls much thinner*. So it creates more usable storage space without increasing the external dimensions or compromising energy efficiency. The flat cooling duct in the rear wall also reduces ‘dead space’.

Performance

A refrigerator filled with various foods is open. Cool air comes out through vents in each compartment to maintain the optimum temperature for the food to stay fresh. A refrigerator filled with various foods is open. Cool air comes out through vents in each compartment to maintain the optimum temperature for the food to stay fresh.

Cools every corner

All-around Cooling

Make sure food is properly cooled – wherever it is. All-around Cooling cools each compartment evenly from corner to corner*, so everything is kept at the right temperature. It continually checks the temperature and circulates cool air everywhere in the fridge through strategically placed vents.

* Based on internal testing. Results may vary depending on the usage conditions.

Do the SmartThings at Home

A person is using the SmartThings Energy and checks the energy usage. A person is using the SmartThings Energy and checks the energy usage.

SmartThings Energy

Total energy management

Manage your energy usage anytime. SmartThings Energy* provides helpful tips on how to be energy efficient. It also lets you monitor the energy consumption of appliances** in real time and compare it to the previous month. And you can get alerts if your monthly targets are likely to be exceeded.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ** SmartThings Energy works with appliances that have Wi-Fi connectivity, which currently includes washers, dryers, dishwashers, air conditioners, air purifiers, vacuum cleaners, ovens, hoods, cooktops, microwaves, TVs and energy meters.

Efficiency

The refrigerator has a 20-year warranty on Digital Inverter Compressor. It has energy efficiency and little noise features. The refrigerator has a 20-year warranty on Digital Inverter Compressor. It has energy efficiency and little noise features.

Quietly efficient

Digital Inverter Compressor (20 year warranty)

Enjoy great energy efficiency, little noise and a long-lasting performance. The Digital Inverter Compressor automatically adjusts its speed in response to cooling demand. So it’s quiet, uses power efficiently and keeps working for a long time, backed-up by a 20 year warranty* on the compressor.

* 20 year warranty is limited to the compressor only, and excludes labour and other costs.

Convenience

A lot of vegetables and fruits are stored in the big veg box. A lot of vegetables and fruits are stored in the big veg box.

Store vegetables

Big Vegi Box

Stop struggling to find space for the things you use every day. The large capacity Big Vegi Box provides a convenient space to store a large amount of fresh vegetables and fruit. It makes it easy to find everything you eat regularly. They are all in one place, without taking up kitchen space.

How to measure

The refrigerator is 1,780mm high including the hinge, 912mm wide, and 716mm deep. Detailed sizes for installation are explained in the TOP view. Excluding door, the depth is 610mm. The both door can be opened 165 degrees maximum. When both doors are opened to the max, the total width is 1,726mm. When both doors are opened to 90 degrees, the total depth is 1,165mm. When installed, the refrigerator needs more than 50mm of space from the rear wall and side walls. The refrigerator is 1,780mm high including the hinge, 912mm wide, and 716mm deep. Detailed sizes for installation are explained in the TOP view. Excluding door, the depth is 610mm. The both door can be opened 165 degrees maximum. When both doors are opened to the max, the total width is 1,726mm. When both doors are opened to 90 degrees, the total depth is 1,165mm. When installed, the refrigerator needs more than 50mm of space from the rear wall and side walls.

Specifications

  • Net Total

    655 ℓ

  • Cooling Type

    Mono Cooling

  • Number of Shelf (Total)

    4 EA

  • Net Width(mm)

    912 mm

  • Net Depth with Door Handle(mm)

    716 mm

  • Net Case Height with Hinge(mm)

    1780 mm

  • Net Weight(kg)

    98 kg

  • Net Total

    655 ℓ

  • Net Width(mm)

    912 mm

  • Net Case Height with Hinge(mm)

    1780 mm

  • Net Case Height without Hinge(mm)

    1744 mm

  • Net Depth with Door Handle(mm)

    716 mm

  • Net Depth without Door Handle(mm)

    716 mm

  • Net Depth without Door(mm)

    610 mm

  • Packing Width(mm)

    974 mm

  • Packing Height(mm)

    1909 mm

  • Packing Depth(mm)

    776 mm

  • Net Weight(kg)

    98 kg

  • Packing Weight(kg)

    105 kg

  • Power Cool Function

    Yes

  • Power Freeze Function

    Yes

  • Cooling Type

    Mono Cooling

  • Number of Shelf (Total)

    4 EA

  • Wine Rack

    No

  • Number of Door Pocket

    5 EA

  • Egg Container(Egg Tray)

    Yes

  • Interior LED Light

    Top LED

  • Shelf Material

    Tempered Glass

  • Number of Vegetable&Fruit Drawer

    2 EA

  • Number of Shelf (Total)

    4 EA

  • Number of Door Pocket

    5 EA

  • Icemaker

    Twist I/M

  • Interior LED Light

    Top LED

  • Number of Drawer

    2 EA

  • Refrigerant

    R-600a

  • Autonomy Hour (Temp rising)

    6 h

  • Compressor

    AI Inverter Compressor

  • Display Type

    Internal (Simple UX)

  • Door Handle

    Recess

  • Colour

    Black DOI (Dark Stainless)

  • Energy Consumption

    385 kWh/year

  • Energy Grade

    5 Star

  • Depth

    Counter Depth

  • WiFi Embedded

    Yes

  • Camera

    No

  • Mobile Bixby

    Yes

  • Set Bixby (Mic)

    No

  • Speaker

    No

  • Bluetooth

    No

  • SmartThings App Support

    Yes
