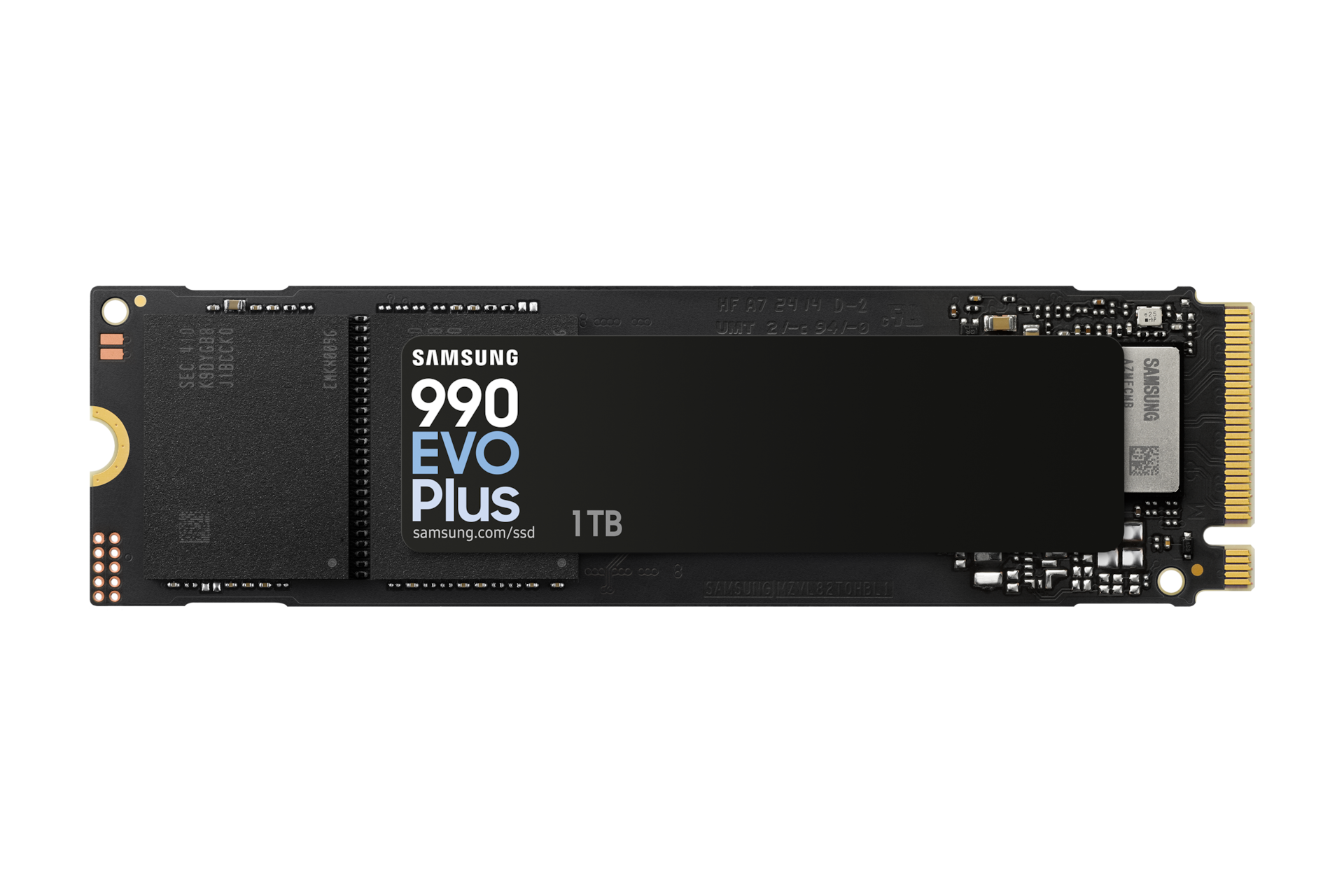

990 EVO Plus NVMe™ M.2 SSD 1TB

MZ-V9S1T0BW

Choose your Colour

Colour : Black

Choose your Memory

990 EVO Plus NVMe™ M.2 SSD 1TB
Black 1 TB

Features

Upgrade everyday performance

A 990 EVO Plus is installed inside the computer motherboard. A 990 EVO Plus is installed inside the computer motherboard.

Spectacular speed everyday

Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7,250/6,300MB/s. Huge files, instant transfer.

With so many curves, the 990 EVO Plus looks like it's going to fly fast.Underneath it are icons that say "Sequential Read up to 7,250MB/s", "Sequential Write up to 6,300MB/s". With so many curves, the 990 EVO Plus looks like it's going to fly fast.Underneath it are icons that say "Sequential Read up to 7,250MB/s", "Sequential Write up to 6,300MB/s".

* Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.* Test system configuration: AMD Ryzen9 7950x 16-Core Processor CPU@4.5GHz, DDR5 4800MHz 16GBx2 (PC5-38400), OS-Windows 11 Pro 64bit, Chipset - ASRock X670E Taichi* To maximize the performance of the 990 EVO Plus, please check whether your system supports PCIe® 4.0 or PCIe® 5.0 at the Intel or AMD website.* Product image shown for illustrative purposes only; actual product may differ.

Increased power efficiency

Optimised efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73%, compared to previous model, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.

On the left is the 990 EVO Plus with the instrument dashboard, and inside it is written "73% up Power Efficiency". On the right is the 990 EVO Plus with a downward arrow, and inside it is written "Thermal Control" with an icon. On the left is the 990 EVO Plus with the instrument dashboard, and inside it is written "73% up Power Efficiency". On the right is the 990 EVO Plus with a downward arrow, and inside it is written "Thermal Control" with an icon.

*As compared to the previous model (990 EVO)

Extra space. Extra speed.

Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.

Inside the two connected circles is the 990 EVO Plus, with an icon on the left that says "Up to 4TB" and an icon on the right that says "Turbowrite 2.0". Inside the two connected circles is the 990 EVO Plus, with an icon on the left that says "Up to 4TB" and an icon on the right that says "Turbowrite 2.0".

*990 EVO Plus 2TB has a TurboWrite region of 216GB, compared to 990 EO 2TV that has a TurboWrite region of 108GB.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimisation tools ensure SSD performance best fit for your unique needs. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

* For detailed information, please visit Samsung Magician software website https://semiconductor.samsung.com/consumer-storage/magician/

Samsung magician software is running on the PC screen.Below that, the three core functions "Firmware update", "Performance optimization", and "Encrypted drive" are indicated in text and icons. Samsung magician software is running on the PC screen.Below that, the three core functions "Firmware update", "Performance optimization", and "Encrypted drive" are indicated in text and icons.

* For detailed information, please visit Samsung Magician software website https://semiconductor.samsung.com/consumer-storage/magician/

Bringing innovations to life

For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Samsung's memory products are installed on the motherboard. Samsung's memory products are installed on the motherboard.

Specifications

  • Interface

    PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0

  • Application

    Client PCs

  • Weight

    Max 9.0g Weight

  • Dimension (WxHxD)

    Max 80.15 x Max 22.15 x Max 2.38 mm

  • Application

    Client PCs

  • Capacity

    1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

  • Form Factor

    M.2 (2280)

  • Interface

    PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0

  • Dimension (WxHxD)

    Max 80.15 x Max 22.15 x Max 2.38 mm

  • Weight

    Max 9.0g Weight

  • Storage Memory

    Samsung V-NAND TLC

  • Controller

    Samsung in-house Controller

  • Cache Memory

    HMB(Host Memory Buffer)

  • TRIM Support

    Supported

  • S.M.A.R.T Support

    Supported

  • GC (Garbage Collection)

    Auto Garbage Collection Algorithm

  • Encryption Support

    AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

  • WWN Support

    Not supported

  • Device Sleep Mode Support

    Yes

  • Sequential Read

    Up to 7,150 MB/s * Performance may vary based on system hardware & configuration

  • Sequential Write

    Up to 6,300 MB/s * Performance may vary based on system hardware & configuration

  • Random Read (4KB, QD32)

    Up to 850,000 IOPS * Performance may vary based on system hardware & configuration

  • Random Write (4KB, QD32)

    Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration

  • Average Power Consumption (system level)

    Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration

  • Power consumption (Idle)

    Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration

  • Power Consumption (Device Sleep)

    Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration

  • Allowable Voltage

    3.3 V ± 5 % Allowable voltage

  • Reliability (MTBF)

    1.5 Million Hours Reliability (MTBF)

  • Operating Temperature

    0 - 70 ℃ Operating Temperature

  • Shock

    1,500 G & 0.5 ms (Half sine)

  • Installation Kit

    Not Available

  • Management SW

    Magician Software for SSD management

  • 5-year Limited Warranty or 600TBW Limited Warranty
