76L Oven -Dual Cook Black

NV7B4430ZAB/SA

3.7 ( 3 )

Choose your Colour

Colour : Black
76L Oven -Dual Cook Black
Black

From $149.92/mo* with 0% interest with Q Card for 12 months or $1,699.00

$2,299.00 Save $600.00

Add to cart Where to buy

Highlights

Dual Cook

Dual Cook

Air Sous Vide

Air Sous Vide

SmartThings Cooking

SmartThings Cooking

Features

Download your one page guide here

Download NV7B4430ZAB/SA Download NV7B4430ZAS/SA

Awards

Trusted Brand logo Trusted Brand logo
Canstar Blue Ovens Canstar Blue Ovens

Even more choice, less time and effort

Shows the built-in oven installed in a kitchen, with two cooking zones and a hinged door, next to a Microwave Combi oven. Shows the built-in oven installed in a kitchen, with two cooking zones and a hinged door, next to a Microwave Combi oven.

Highlights

Shows the upper and lower zones of the Dual Cook system being used independently to cook different dishes at the same time with different settings.

Dual Cook

Choose how you cook different meals to optimize results. Dual Cook’s upper and lower zones work independently or together.

Shows a joint of meat inside the oven, which is tightly sealed in a plastic bag and on a metal tray, being cooked using the Air Sous Vide system.

Air Sous Vide1

Cook food more evenly without it overcooking or drying out.

1Requires a dedicated sous vide cooking bag, which is not included with the oven.

Shows a joint of meat inside the oven, which is tightly sealed in a plastic bag and on a metal tray, being cooked using the Air Sous Vide system.

SmartThings Cooking

Make your kitchen experience more joyful. SmartThings Cooking2 saves time and minimises the burden of cooking.

2Requires a wireless network, a Samsung account and the Samsung SmartThings App. The Samsung SmartThings App supports Android OS 8.0 (Oreo) or later, which is optimised for Samsung smartphones. This App also supports iOS 13 or later for iPhone models. The SmartThings App is available in the App Store and Play Store.

Enjoy more ways to cook more effectively

Dual Cook

Choose how you cook different meals to optimize results. Dual Cook’s upper and lower zones work independently or together. So you can prepare a variety of dishes with different settings and achieve tasty results, or use the whole oven for large dishes.

Shows the upper and lower zones of the Dual Cook system being used independently to cook different dishes at the same time with different settings: the upper zone using top heat + convection for 1 hour at 160°C and the lower zone using bottom heat + convection for 20 minutes at 190°C. Or the whole oven can be used to cook a large meal like a holiday turkey. Shows the upper and lower zones of the Dual Cook system being used independently to cook different dishes at the same time with different settings: the upper zone using top heat + convection for 1 hour at 160°C and the lower zone using bottom heat + convection for 20 minutes at 190°C. Or the whole oven can be used to cook a large meal like a holiday turkey.

Totally even heat for even better cooking

Air Sous Vide1

Cook food more evenly without it overcooking or drying out. An Air Sous Vide* system accurately senses the temperatures in each cavity and maintains an even temperature for a long period. So everything is cooked thoroughly, wherever it is in the oven, and tastes deliciously tender and juicy.

Shows a joint of meat inside the oven, which is tightly sealed in a plastic bag and on a metal tray, being cooked using the Air Sous Vide system. Shows a joint of meat inside the oven, which is tightly sealed in a plastic bag and on a metal tray, being cooked using the Air Sous Vide system.

1Requires a dedicated sous vide cooking bag, which is not included with the oven.

More joyful, less burdensome cooking

SmartThings Cooking

Make your kitchen experience more joyful. SmartThings Cooking2 saves time and minimises the burden of cooking. By understanding your needs it recommends personalised recipes3 and creates a weekly meal plan.

2Requires a wireless network, a Samsung account and the Samsung SmartThings App. The Samsung SmartThings App supports Android OS 8.0 (Oreo) or later, which is optimised for Samsung smartphones. This App also supports iOS 13 or later for iPhone models. The SmartThings App is available in the App Store and Play Store.
3Available in certain languages, including English, French, German, Italian and Spanish.
Shows 3 smartphone screens from the SmartThings Cooking app, which lets you access personalized recipes and meal plans, view guided cooking instructions and create a grocery shopping list to buy ingredients. Shows 3 smartphone screens from the SmartThings Cooking app, which lets you access personalized recipes and meal plans, view guided cooking instructions and create a grocery shopping list to buy ingredients.

Always keeps the oven neat with heat

Pyrolytic Cleaning4

Keep the inside of your oven neat and clean without wasting time and effort scrubbing or using costly cleaning products. A Pyrolytic Cleaning4 system heats the cavity to burn off any grease and residue left from cooking. Everywhere is left spotless with only a few ashes to wipe away.

4Only available on certain models.

Shows the inside of the oven \before\ and \after\ cleaning using the Pyrolytic Cleaning system. Shows the inside of the oven \before\ and \after\ cleaning using the Pyrolytic Cleaning system.

4Only available on certain models.

Closes smoothly, gently and silently

Soft Close Door6

Enjoy a more peaceful cooking experience with the Soft Close Door. It closes safely, gently and silently. The hinge makes the door move smoothly in the final few centimeters, so it slowly and quietly shuts, with no vibration or banging sounds.

6Specifications may vary by model.

Soft Close Door Soft Close Door

6Specifications may vary by model.

Cook much more in a larger oven space

Big capacity (76L)

Create more and larger dishes with a massive 76 litre capacity oven. It opens up more possibilities in home cooking. You can prepare lots of different food together, like everything you need for a party. Or it can easily accommodate large items, like a roast lamb, for a family gathering.

Shows a large turkey cooking inside the spacious oven with arrows illustrating its 76 liter capacity. Shows a large turkey cooking inside the spacious oven with arrows illustrating its 76 liter capacity.

Effortlessly easy to load & unload dishes

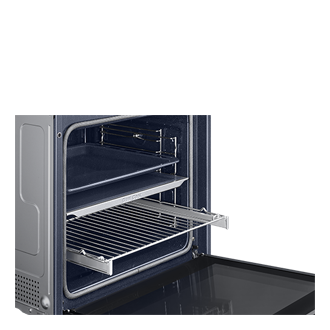

Telescopic Rail

Get things in and out of the oven easily. The Telescopic Rail slides in and out smoothly with hardly any effort, even if you’re using large or heavy dishes. It creates much less friction, so it’s much easier to load and unload. You can baste, turn and season food without any spills.

Shows a large roast turkey sliding out of the oven on the Telescopic Rail. Shows a large roast turkey sliding out of the oven on the Telescopic Rail.

How to measure

Diagrams highlight the dimensions of the oven: height (front) = 596mm, height (back) = 559mm + 20mm to height in middle, width = 595mm (incl. front) / 560mm (excl. front), depth = 550mm + 21mm for the door (excl. handle). Another diagram shows the minimum size of the built-in cabinet space that the oven can be installed in: height = min. 590mm / max. 600mm, width = min. 560mm, depth = min. 550mm + a space of min. 50mm behind the oven. It also shows that the doors extends out 481mm when fully open. The text says that there must be vents on the rear floor of the built-in cabinet space that are a min. 460mm x min 50mm to ventilate heat and circulate the air. Diagrams highlight the dimensions of the oven: height (front) = 596mm, height (back) = 559mm + 20mm to height in middle, width = 595mm (incl. front) / 560mm (excl. front), depth = 550mm + 21mm for the door (excl. handle). Another diagram shows the minimum size of the built-in cabinet space that the oven can be installed in: height = min. 590mm / max. 600mm, width = min. 560mm, depth = min. 550mm + a space of min. 50mm behind the oven. It also shows that the doors extends out 481mm when fully open. The text says that there must be vents on the rear floor of the built-in cabinet space that are a min. 460mm x min 50mm to ventilate heat and circulate the air.

Specifications

  • Convection

    1200 / 1200 W

  • Outside (WxHxD)

    595 x 596 x 550 mm

  • Weight (Net)

    41.0 kg

  • Oven Type

    Dual Cook

  • Oven Color

    Black Stainless Steel

  • Door Type

    Drop Down

  • Oven Door Glass

    Quadruple

  • Soft Closing Door

    No

  • Display Type

    LED / White

  • Cavity Material

    Ceramic Enamel

  • Control Method

    Dual Dial & Touch

  • Steam Type

    No

  • Upper Grill (In/Out)

    1600 / 1100 W

  • Lower Grill

    1100 W

  • Single Mode (Top Heat + Convection)

    Yes

  • Single Mode (Large Grill)

    Yes

  • Single Mode (Eco Grill)

    Yes

  • Single Mode (Bottom + Convection)

    Yes

  • Convection

    1200 / 1200 W

  • Cleaning Method

    Pyrolytic

  • Steam Clean

    Yes

  • Wi-Fi Connection

    Yes

  • Auto Programs

    Single 40ea / Dual Cook 10ea

  • Air Fry

    No

  • Air Sous Vide

    Yes

  • Cook Timer

    Yes

  • Camera

    No

  • Child Safety Lock

    Yes

  • End Timer

    Yes

  • Clock

    Yes

  • Interior Lamp

    25W / 40W (Halogen)

  • Interior Light (Position)

    Top / Side

  • Light (Lamp) On/Off

    Yes

  • Language Option

    No

  • Usable Volume (Whole)

    76 L

  • Cavity (WxHxD)

    560 x 579 x 549 mm

  • Outside (WxHxD)

    595 x 596 x 550 mm

  • Shipping (WxHxD)

    694 x 660 x 660 mm

  • Weight (Net)

    41.0 kg

  • Weight (Gross)

    45.8 kg

  • Square Baking Tray

    2ea

  • Square Wire Rack

    1ea

  • Telescopic Rail

    1 Level (Half)

  • Power Source

    230-240 V ~ 50 Hz

  • Output Power

    3650-3950 W

  • Oven Temp. Ranges (Single)

    30~250 (Grill 100~270)

  • Oven Temp. Ranges (Upper, Lower)

    40~250 °C

  • Oven Temp. Ranges (Twin)

    40~250 °C

  • WiFi Embedded

    Yes

  • SmartThings App Support

    Yes

User manual & downloads

User Manual

ver 1.0 | 14.99 MB

19 November 2024

ENGLISH

Download
