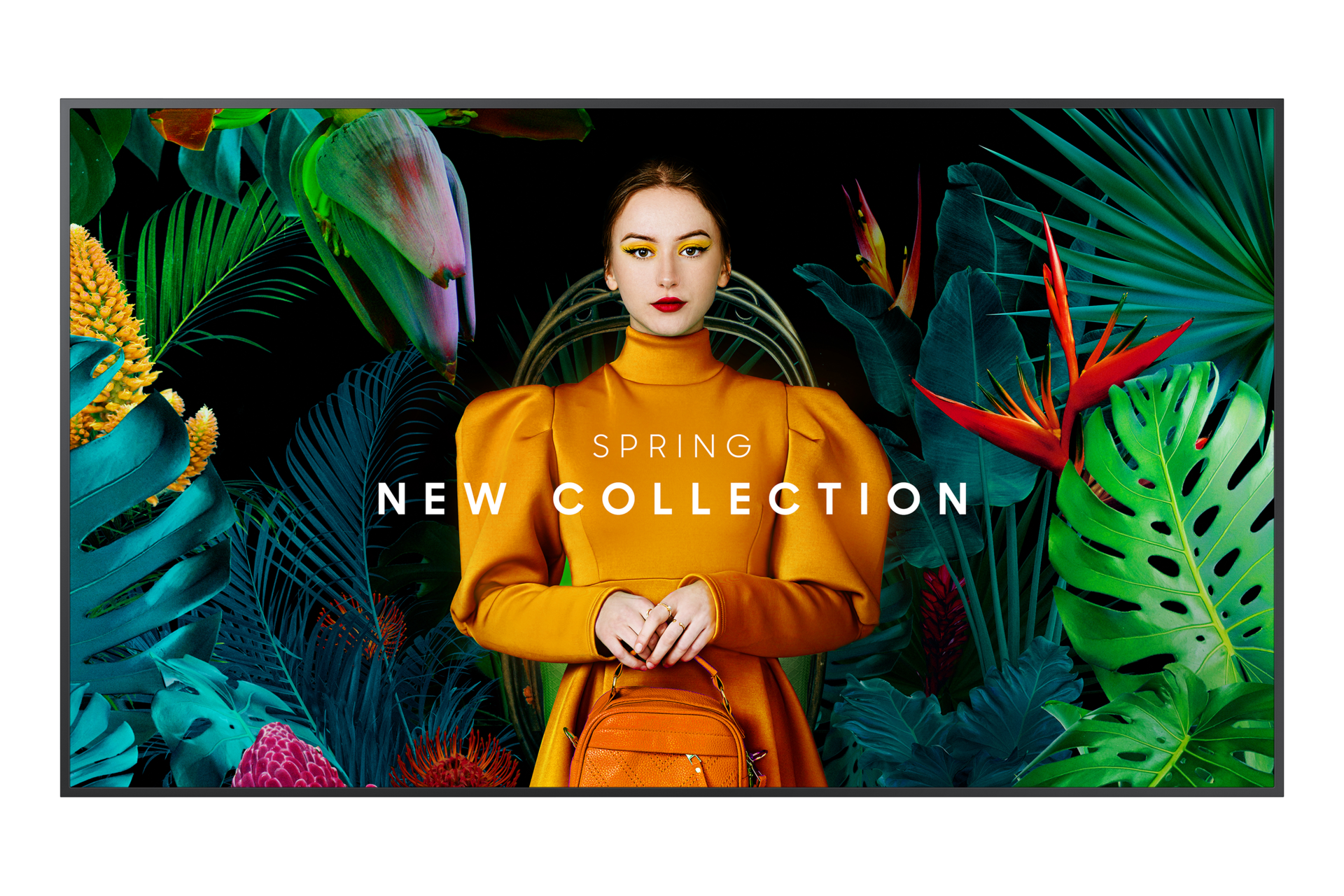

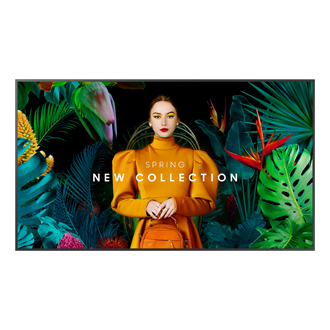

Crystal UHD Signage QHC

LH65QHCEBGCXEN

  • Slank design med liten samlet dybde
  • Blendingsfri og lyssterk med 700 nits
  • Profesjonell skjerm optimalisert for døgnkontinuerlig drift.

Velg størrelse

Crystal UHD Signage QHC

65"

Slankt design. Enestående ytelse.

Vi presenterer QHC, den tynneste skjermen i Samsung UHD Signage. Eleganse møter business i en slank formfaktor. Oppgraderte interne løsninger og intuitiv startskjerm gir økt brukervennlighet. Den innovative og slanke QHC-skjermen er perfekt for voksende bedrifter.

QHC is installed on the wall of the cosmetics store, next to a counter with beauty products on a shelf. QHC is installed on the wall of the cosmetics store, next to a counter with beauty products on a shelf.

Optimal effekt og slankt design

Ultra Slim Depth

Den ultraslanke QHC-skjermen på kun 28,5 mm er den tynneste skjermen i Samsungs UHD-serie. Med tilbehøret Slim Fit Wall Mount kan produktet monteres på en pen og enkel måte i alle omgivelser. QHC har et slankt design som passer sømløst inn i virksomheten din.

QHC is installed on the wall of the store. A store clerk hangs a picture frame next to the QHC. The QHC is 27.5mm thick, which is thinner than the picture frame the staff is hanging on. QHC is installed on the wall of the store. A store clerk hangs a picture frame next to the QHC. The QHC is 27.5mm thick, which is thinner than the picture frame the staff is hanging on.

Skarpe bilder i liggende eller stående modus

Nytt rammedesign

Rammene har samme tykkelse og mål på alle fire sider. Det nye rammedesignet forhindrer visuelle problemer når skjermen brukes i stående modus.

There are two displays hanging in a cafe. On the left is a conventional display, and on the right is QHC. The conventional display has a thicker left side bezel than the others. But the QHC has bezels of the same thickness on all four sides. There are two displays hanging in a cafe. On the left is a conventional display, and on the right is QHC. The conventional display has a thicker left side bezel than the others. But the QHC has bezels of the same thickness on all four sides.

*Sammenlignet med tidligere Samsung UHD Signage-modeller.

Sikker montering og jevn vektfordeling

Sentrerte VESA monteringshull

Den sentrerte plasseringen av VESA monteringshull på skjermens bakside sørger for jevn vektfordeling og sikker montering. Sentrerte VESA monteringshull lar brukere rotere skjermen til stående modus uten at skjermen vippes utilsiktet.

* Plasseringen av VESA-hullene kan variere litt etter modell
There is the back of the QHC where the VESA hole is placed in the middle. QHC is installed vertically in a clothing store. There is the back of the QHC where the VESA hole is placed in the middle. QHC is installed vertically in a clothing store.

Livfulle farger og flotte detaljer

Dynamic Crystal Color

En milliard fargenyanser gir en altoppslukende seeropplevelse. Dynamic Crystal Color leverer naturtro farger for enestående kundeopplevelser.

Conventional and Dynamic Crystal Color displays are compared, with the conventional display on the left, and Dynamic Crystal Color on the right. Conventional is less bright and not as colorful, and the screen is not clear. Dynamic Crystal Color has a variety of bright colors, and the screen is crisp and clear. Conventional and Dynamic Crystal Color displays are compared, with the conventional display on the left, and Dynamic Crystal Color on the right. Conventional is less bright and not as colorful, and the screen is not clear. Dynamic Crystal Color has a variety of bright colors, and the screen is crisp and clear.

Opplev livfulle farger i 4K

Crystal Processor 4K

Samsungs industriledende videobehandlingsteknologi bidrar til krystallklart innhold og utmerket kvalitet. Intelligent UHD-oppskaleringsteknologi drevet av Samsungs Quantum Processor Lite 4K, konverterer video med lav oppløsning til UHD, for profesjonell bildekvalitet.

Conventional and QHC displays are compared, with the conventional display on the left, and QHC on the right. The screen on both displays reads WINTER SEASONAL DRINKS, and there are two drinks pictures. In the conventional display, the corners are broken when the SE part of the text on the screen is enlarged. In the QHC Series, the corners are naturally connected when the SE part of the screen text is enlarged. Conventional and QHC displays are compared, with the conventional display on the left, and QHC on the right. The screen on both displays reads WINTER SEASONAL DRINKS, and there are two drinks pictures. In the conventional display, the corners are broken when the SE part of the text on the screen is enlarged. In the QHC Series, the corners are naturally connected when the SE part of the screen text is enlarged.

*Sammenlignet med Samsung FHD-modell*Seeropplevelsen kan variere avhengig av type innhold og format

Viser alltid viktig informasjon

Antirefleks

QMC har pålitelige antireflekspaneler for bedre synlighet fra alle vinkler hele døgnet. Antirefleksskjermen lar bedrifter levere nøyaktig informasjon på viktige steder som flyplasser og togstasjoner.

There is a map labelled "Floor Guide" on two screens, and a light shining on each screen. The left screen is labeled "Conventional Glare Panel" and the right screen labeled "Non-Glare Panel." The Conventional Glare Panel causes light bleed when the light is shining, so it is difficult to accurately check the contents. The Non-Glare Panel allows you to see the contents of the screen accurately and clearly even when the light of the light shines through. There is a map labelled "Floor Guide" on two screens, and a light shining on each screen. The left screen is labeled "Conventional Glare Panel" and the right screen labeled "Non-Glare Panel." The Conventional Glare Panel causes light bleed when the light is shining, so it is difficult to accurately check the contents. The Non-Glare Panel allows you to see the contents of the screen accurately and clearly even when the light of the light shines through.

Praktisk tilkobling

Brukergrensesnitt

Oppgrader brukergrensesnitt gjør QHC mer brukervennlig enn noensinne. Populære kategorier som Favoritter, Kilder og Innstillinger vises på samme skjermbilde for økt brukervennlighet. Favoritter-mappen gir brukere rask og enkel tilgang til de mest brukte funksjonene med ett klikk.

The QHC home screen shows the user interface.  There are button for Favorites, Features, Source and Settings.  With Favorites selected, frequently used functions are displayed like VXT, and Smartview+. The QHC home screen shows the user interface.  There are button for Favorites, Features, Source and Settings.  With Favorites selected, frequently used functions are displayed like VXT, and Smartview+.

Samarbeid mellom skjermer med trådløs hastighet

SmartView+

SmartView+ sørger for trådløs skjermdeling, for enkelt samarbeid. Brukere kan nå aktivere skjermdeling ved møtestart, slik at møteadministrator raskt kan bytte mellom skjermer med ett klikk.

Four people are having a meeting in front of a QHC display in a meeting room. Each person has a personal device such as a notebook PC or a tablet. The 4 screens of the personal devices are displayed in 4 divisions on the screen of the QHC at once. At the top, 1, 2, 3, 4, 5, 6 screens each screen display method is explained with an icon. Four people are having a meeting in front of a QHC display in a meeting room. Each person has a personal device such as a notebook PC or a tablet. The 4 screens of the personal devices are displayed in 4 divisions on the screen of the QHC at once. At the top, 1, 2, 3, 4, 5, 6 screens each screen display method is explained with an icon.

Enklere kalibrering mellom skjermer via mobilapp

Smart Calibration

Sørg for et konsekvent varemerke overalt. Ved hjelp av Samsung-appen sikrer Smart Calibration at alle skjermer er riktig kalibrert, og viser logoer og lignende med høy fargenøyaktighet.

The Smart Calibration APP of Smart Phone includes the functions of Professional Color meter, Video pattern generator, PC software solution, and PC. QHC screens are installed in each of the three locations, displaying the same image in different colors. Adjust each image with Smart Calibration app to make it the same color. The Smart Calibration APP of Smart Phone includes the functions of Professional Color meter, Video pattern generator, PC software solution, and PC. QHC screens are installed in each of the three locations, displaying the same image in different colors. Adjust each image with Smart Calibration app to make it the same color.

Oppgrader profesjonelle miljøer med ekspertverktøy

Professional Modes

Innebygde profesjonelle moduser gir bedrifter flere muligheter. Director Mode minimerer etterbehandling og justerer innholdet slik det var tiltenkt. Legeteam kan blant annet simulere røntgenbilder med DICOM Simulation Mode, som oppfyller DICOM-standardene for full gråskala

In Director Mode, the shooting scene on the set is sent directly to QHB. In DICOM Simulation Mode, medical personnel are having a meeting while looking at the X-ray images sent to the QHB. In Director Mode, the shooting scene on the set is sent directly to QHB. In DICOM Simulation Mode, medical personnel are having a meeting while looking at the X-ray images sent to the QHB.

Enkel innholds- og enhetsstyring

Samsung VXT

Samsung VXT CMS er en skybasert løsning for innholdsstyring og fjernadministrasjon, slik at brukerne enkelt kan fjernstyre maskinvareinnstillinger og feilsøke problemer samtidig som de skaper og distribuerer innhold.

Content creation GUI screens of Samsung VXT CMS. There are many menuboard templates. Select the design you want from Templates. Content creation GUI screens of Samsung VXT CMS. There are many menuboard templates. Select the design you want from Templates.

*VXT CMS må kjøpes separat.

En mer bærekraftig hverdag

Energy Star / EPEAT*

Samsung iverksetter tiltak for å redusere vår miljøpåvirkning innen smarte, digitale skilt og oppmuntrer brukerne til en mer bærekraftig hverdag. QHC-serien har en rekke miljøsertifiseringer fra anerkjente institutter i USA.

A signage product shows a natural environment with an aerial view of a river running through a forest. Around the signage, the forest is seen within an arrow that loops around the display, representing a sustainable product cycle. At the bottom, there are badges for Energy Star and EPEAT Bronze. A signage product shows a natural environment with an aerial view of a river running through a forest. Around the signage, the forest is seen within an arrow that loops around the display, representing a sustainable product cycle. At the bottom, there are badges for Energy Star and EPEAT Bronze.

*QHC-serien er ENERGY STAR 8.0-sertifisert av Environmental Protection Agency for sin energieffektivitet og Electronic Product Environmental Assessment Tool (EPEAT)-sertifisert for miljøbevissthet, blant annet for bruk av resirkulert plast.

Spesifikasjoner

Skjerm

  • Diagonal størrelse 65"
  • Panel Type VA
  • Oppløsning 3,840 x 2,160
  • Pixel Pitch (HxV) 0.372x0.372mm
  • Brightness (Typ) 700 nit
  • Kontrastforhold 4,000:1
  • Innsynsvinkel (H/V) 178/178
  • Responstid 8ms
  • Fargeområde 72% (NTSC)
  • Matt glass 25%
  • H-skannefrekvens 30~81kHz
  • Maks. pikselfrekvens 594MHz
  • V-skannefrekvens 48~75Hz
  • Contrast Ratio (Dynamic) Mega
  • Operation Time Support 24/7

Tilkobling

  • HDMI inn 3
  • DP inn 1
  • Version of HDMI 2
  • Version of DP 1.2
  • Version of HDCP 2.2
  • USB 2
  • IR inn Yes
  • Audio Inn No
  • Lyd ut Stereo Mini Jack
  • RS232 inn Yes
  • RS232 ut Yes
  • RJ45 Inn Yes
  • WiFi Yes
  • Bluetooth Yes

Strøm

  • Strømforsyning AC100-240V 50/60Hz
  • Strømforbruk (i innstilling På) 203.5 W
  • Strømforbruk (hvilemodus) 0.5 W

Dimensjon

  • Mål sett (BxHxD) 1456.8 x 831.9 x 28.5 mm
  • Dimensjoner, pakke (WxHxD) 1616 x 945 x 164 mm

Vekt

  • Vekt sett 22.7 kg
  • Pakkevekt 29.6 kg

Driftsbetingelser

  • Temperatur 0℃~ 40℃
  • Luftfuktighet 10 ~ 80%, non-condensing

Mekanisk spesifikasjon

  • VESA-feste 400 x 300 mm
  • Kantbredde 11.5mm (even)
  • Rammemateriale Non-Glossy

Valgfri funksjon

  • Feste WMN-B50SC
  • Fot STN-L6585C

SoC

  • OS Version Tizen 7.0
  • Flash Memory Size 16GB

Miljø

  • Energiklasse G

Sertifisering og overholdelse

  • EMC Class B
  • Sikkerhet 60950-1, 62368-1
