Highlights
Omnidirectional outlet
Bladeless Design
Innovative circular design
Features
Evenly circulates & cools every corner
Omnidirectional outlet
Unlike 4-way, cassette type air conditioners that create areas of uneven airflow where cool air can’t reach*, a circular outlet blows cool air in all directions, so every corner of a room is the same temperature**.
* Samsung testing compared to a general 4 way cassette type air conditioner.
** Within an 9.3m radius the temperature difference is less than 0.6°C.
Comfortable cool, not unpleasantly cold
Bladeless Design
A bladeless design softly disperses cool air across the room, making you comfortably cool without feeling a cold draft**. With no blades to block the air flow, it also expels 25% more air* and spreads it farther.
* Samsung testing compared to a general 4 way cassette type air conditioner.
** Within a 5m radius, no cold draft between 0~1.5m in height (with 14.0kw).
Circular to perfectly fit in everywhere

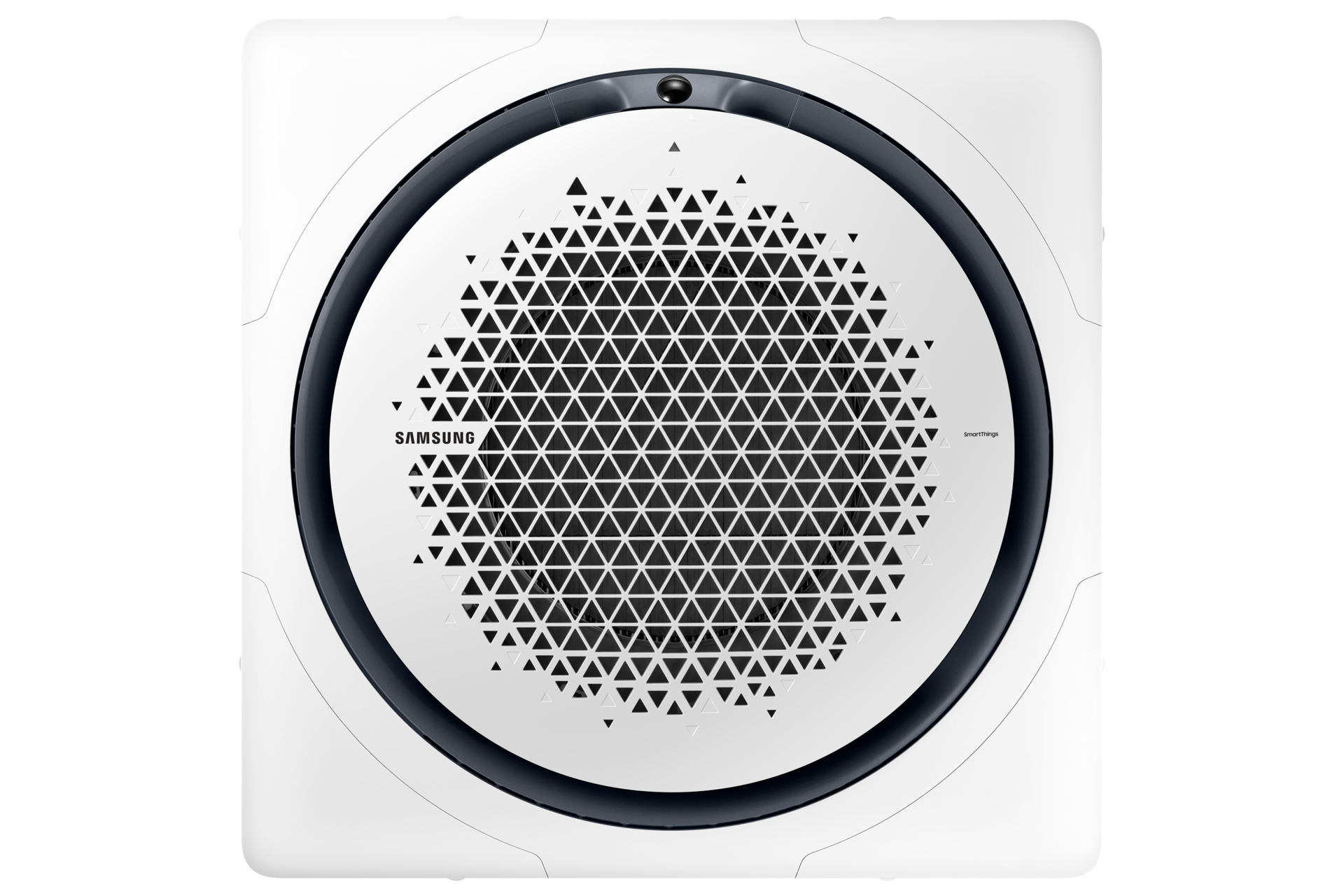

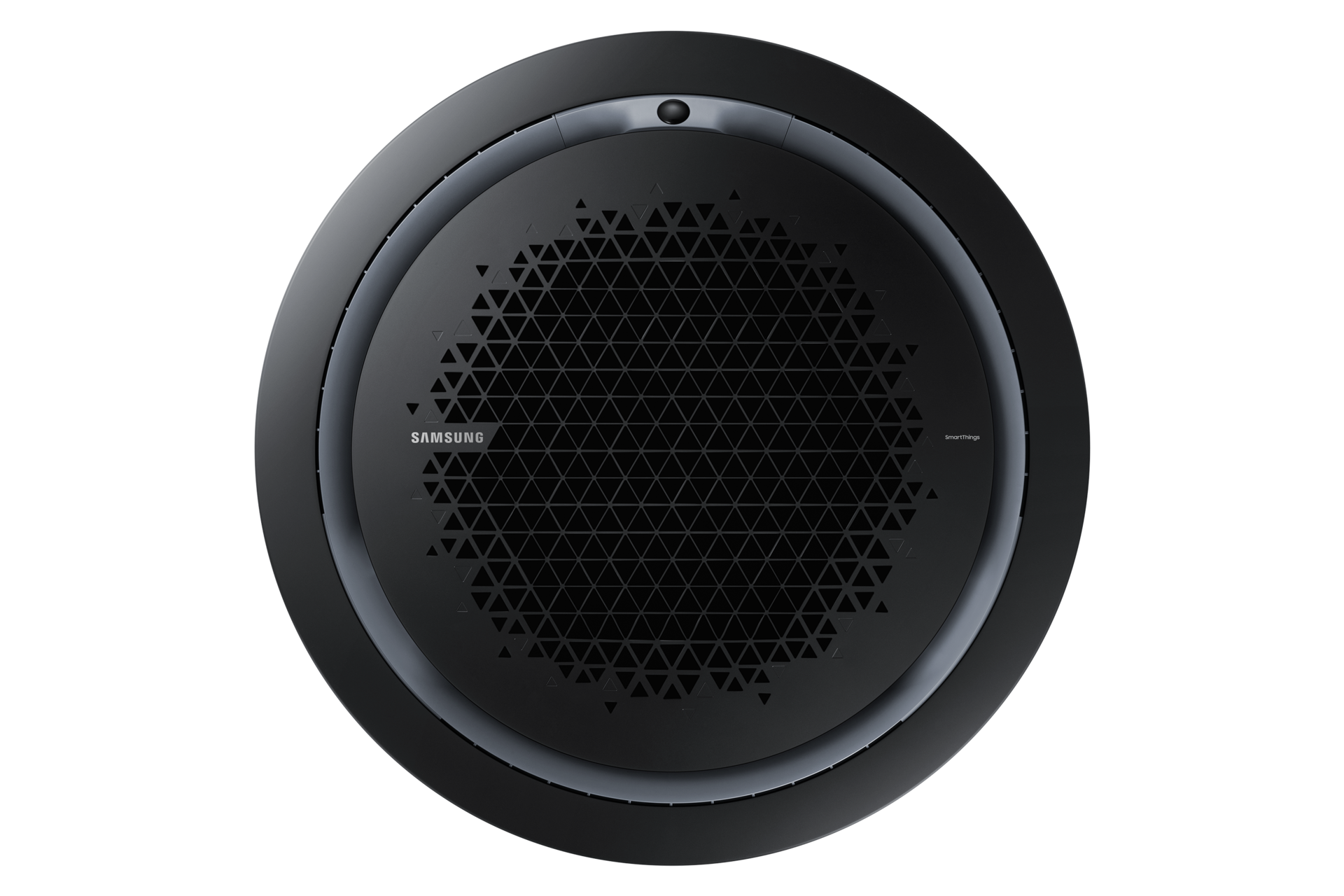

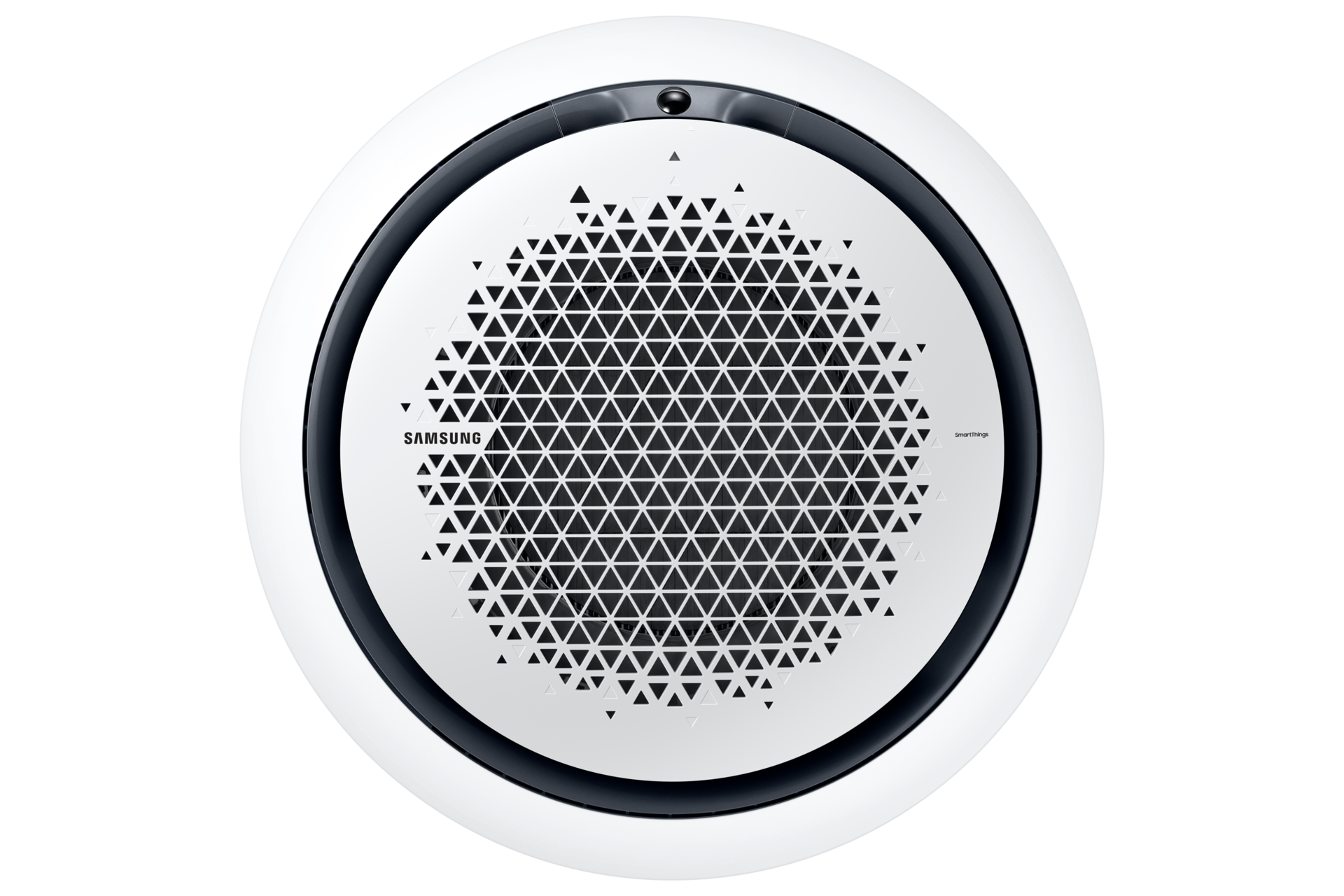

Circular design
Its innovative circular design can match a multitude of interior designs, so it perfectly fits in everywhere. Its minimalist modern styling creates a sophisticated look and its circular shape stands out beautifully.
Spreads much more air in many more ways
Booster Fan
An innovative Booster Fan enables cool air to be expelled at much lower angles. It creates a low pressure area around the outlet, so that cool air comes out parallel to the ceiling and disperses across a wider area.
* Samsung testing compared to a general 4 way cassette type air conditioner.
* Samsung testing compared to a general 4 way cassette type air conditioner.
All round simpler & intuitive control

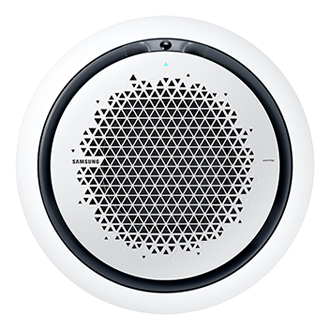

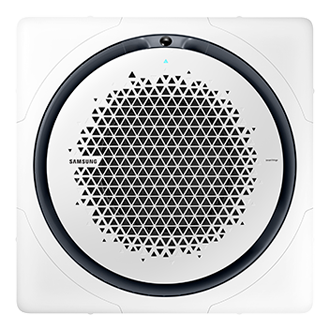

Wireless Remote Controller + Circular LED Display
Intuitively control its performance and see where the air is going. The Wireless Remote Controller’s* Jog shuttle and button offer a fun way to adjust the air flow and a Circular LED Display shows its direction.
* Optional.
* Optional.
Specifications
-
Cooling [Btu/h]
19100
-
Capacity
5.6
-
Heating [kW]
6.3
-
System
HP/HR
-
Type
360 Cassette
-
Indoor Unit
AM056KN4DEH/EU
-
1,2,220-240,50
-
Mode
HP/HR
-
Cooling [kW]
5.6
-
Cooling [Btu/h]
19100
-
Heating [kW]
6.3
-
Heating [Btu/h]
21500
-
Cooling [kW]
0.030
-
Heating [kW]
0.030
-
Cooling
0.21 A
-
Heating
0.21 A
-
Type
Turbo Fan
-
Motor (Output) [W]
65 x 1
-
Air Flow Rate(High/Mid/Low)[L/S]
266.67/241.67/225.00
-
Air Flow Rate (High / Mid / Low) [m3/h]
960/870/810
-
Liquid Pipe (Φ, mm)
6.35
-
Liquid Pipe (Φ, inch)
1/4
-
Gas Pipe (Φ, mm)
12.7
-
Gas Pipe (Φ, inch)
1/2
-
Drain Pipe (Φ,mm)
VP25(OD32/ID25)
-
Type
R410A(Contains fluorinated greenhouse gas, GWP=2,088)
-
Control Method
EEV INCLUDED
-
Sound Power Level
51.0 dBA
-
Sound Pressure (High / Mid / Low) [dB(A)]
34/32/29
-
Panel Net Weight (kg)
21.0
-
Shipping Weight (kg)
25.9
-
Net Dimensions (WxHxD) (mm)
947 x 281 x 947
-
Shipping Dimensions (WxHxD) (mm)
990 x 330 x 990
-
Model Name
PC4NUDMAN
-
Panel Net Weight (kg)
3.6
-
Shipping Weight (kg)
6.0
-
Net Dimensions (WxHxD) (mm)
1000 x 66 x 1000
-
Shipping Dimensions (WxHxD) (mm)
1093 x 85 x 1083
-
Drain Pump
Built In
-
Drain Pump Max. Lifting Height/Displacement (mm/Liter/h)
750/24
-
Power Source Wire
1.5 ~ 2.5
-
Transmission Cable
0.75 ~ 1.50
