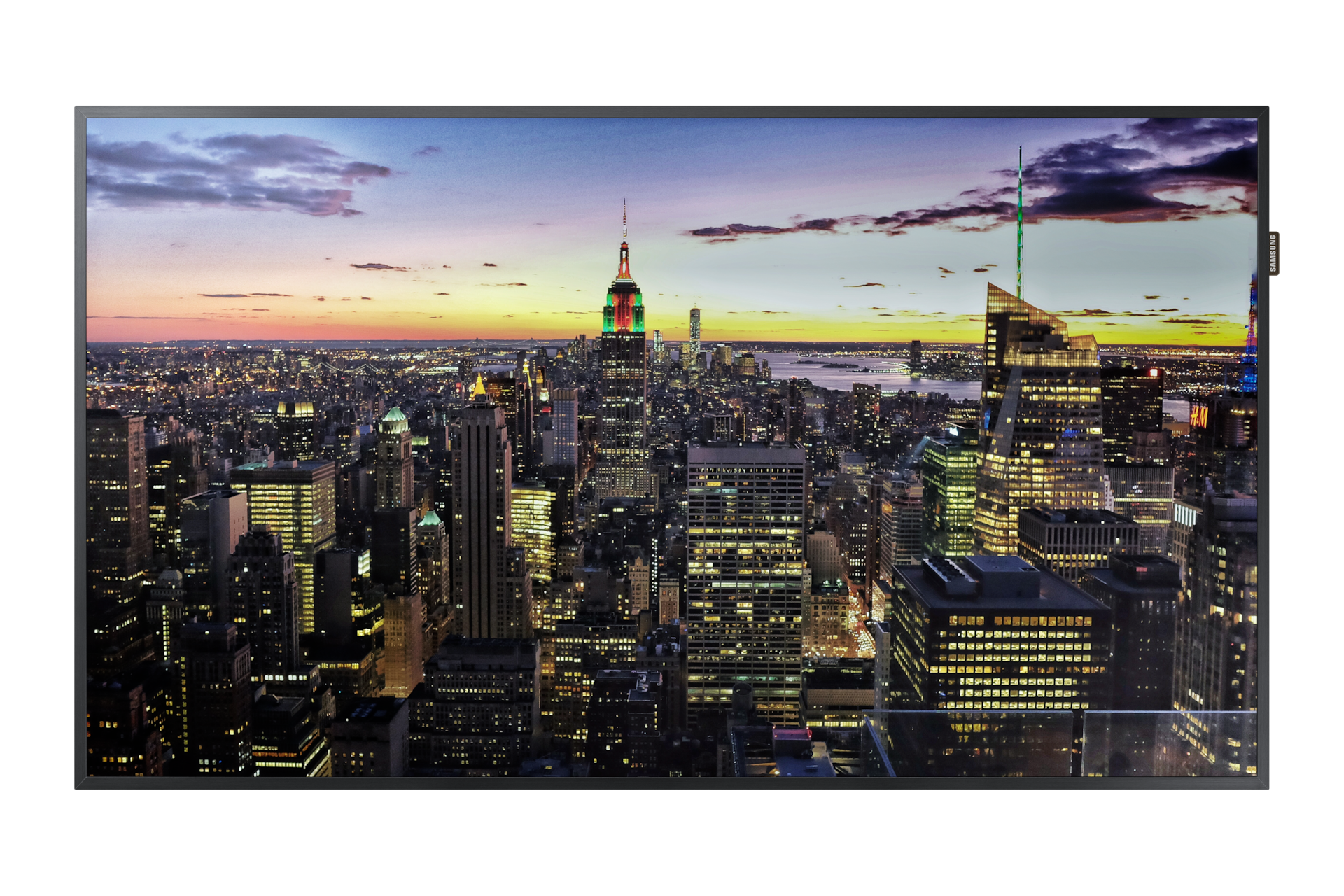

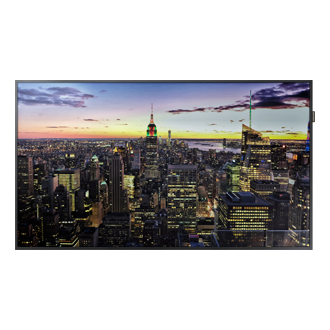

QM65H Series 65"

LH65QMHPLGC/UE

  • UHD picture quality
  • SSSP 5.0 with TIZEN OS
  • Enhanced security

Choose your size

QM65H Series 65"

65"

Deliver Impactful Content through an All-Inclusive Display

Samsung’s QMH Series displays deliver content with visual impact while also improving operational efficiency. Through UHD picture quality, the displays foster an inviting and memorable viewing environment. Additionally, these displays undergo thorough testing and certification to ensure round-the-clock performance. Backed by the powerful SSSP 5.0 and TIZEN 3.0 operating system, the displays feature a host of business-ready functionalities while also protecting business data through enhanced security.

Deliver Impactful Content through an All-Inclusive Display Deliver Impactful Content through an All-Inclusive Display

Enliven Commercial Content with UHD Picture Quality

Featuring state-of-the-art UHD picture quality, the QMH Series displays empower users to deliver more impactful messaging. Each QMH Series display showcases content with four times the ultra-realistic detail and clarity of standard alternatives, with a wider screen offering more space for imagery. When combined with performance features, such as portrait mode, this next-level presentation makes the QMH Series ideal for any commercial setting.

Enliven Commercial Content with UHD Picture Quality Enliven Commercial Content with UHD Picture Quality

Enjoy Greater Operational Flexibility with the TIZEN OS

The QMH Series displays are among the first in Samsung’s lineup to feature the upgraded SSSP 5.0, backed by the powerful TIZEN 3.0 operating system. Through this integration, users receive a host of business-critical capabilities, ranging from secure in-platform application development to remote management. Not only do the QMH Series displays feature advanced graphic presentation, but the display also allows users to deliver targeted real-time messaging through the Beacon management technology.

Enjoy Greater Operational Flexibility with the TIZEN OS Enjoy Greater Operational Flexibility with the TIZEN OS

Protect Business and Customer Data through Extensive Security

For government, financial and other information-based businesses, data protection is paramount for efficient operations. Samsung’s QMH Series displays accommodate this need through intense security measures. The embedded TIZEN 3.0 OS offers defense across the application, platform and system layers, restricting file and data access to an exclusive user base.

Protect Business and Customer Data through Extensive Security Protect Business and Customer Data through Extensive Security

Ensure Continuous Performance in any Condition

A durable design enables the QMH Series displays to deliver content around the clock without interruption, regardless of the surrounding conditions. Prior to distribution, the QMH Series displays undergo rigorous IP5x validation to deter any potential impact from dust exposure. In turn, transportation hubs and other settings that face a host of natural and man-made variables can implement the displays without an external enclosure.

Ensure Continuous Performance in any Condition Ensure Continuous Performance in any Condition

* IP5x validation ensures satisfactory operation even with a certain level of dust inside the product. However, product operation is not guaranteed when exposed to particular types of dust, such as metal dust.

Achieve Brilliant, Glare-Free Picture Quality

Samsung’s QMH Series displays ensure readability in any environment through a rigid non-glare front panel. This enhanced design reduces reflection and maintains clear visibility for featured text and imagery. As a result, indoor and outdoor businesses who face frequent exposure to bright natural or ambient lighting can deploy compelling content without having to worry about interference.

Achieve Brilliant, Glare-Free Picture Quality Achieve Brilliant, Glare-Free Picture Quality

Configure Multiple Displays Seamlessly at Optimal Connectivity

An upgrade on more limited alternatives, the QMH Series displays support a range of content and elevate overall display performance through both HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source. Additionally, users can leverage the HDMI 2.0 option to configure multi-display UHD daisy chains up to 2x2 in size.

Configure Multiple Displays Seamlessly at Optimal Connectivity Configure Multiple Displays Seamlessly at Optimal Connectivity

Specifications

Display

  • Diagonal Size 65"
  • Panel Type Edge LED, 60Hz
  • Resolution 3,840 x 2,160
  • Pixel Pitch (HxV, mm) 0.105 x 0.315
  • Brightness (Typical) 500
  • Contrast Ratio 4700:1
  • Viewing Angle (H/V) 178/178
  • Response Time 8ms (Typ.)
  • Color Gamut 72%
  • Glass Haze 25%
  • H-Scanning Frequency 30 ~ 81kHZ
  • Maximum Pixel Frequency 594MHz
  • V-Scanning Frequency 48 ~ 75HZ
  • Contrast Ratio (Dynamic) Mega

Connectivity

  • HDMI In 2
  • DP In Yes
  • DVI In 1
  • USB 2
  • IR In Yes
  • HDBaseT In No
  • Audio In Yes
  • Audio Out Stereo Mini Jack
  • Video Out Yes
  • RS232 In Yes
  • RS232 Out Yes
  • RJ45 In Yes
  • RJ45 Out No
  • WiFi Yes
  • Bluetooth Yes

Power

  • Power Supply AC100-240V 50/60Hz
  • Power Consumption (On Mode, W) ‎198‎
  • Power Consumption (Sleep Mode, W) ‎0.5‎

Dimension

  • Set Dimension (WxHxD, mm) ‎1456.1 x 835.6 x 37.5‎
  • Package Dimension (WxHxD, mm) ‎1571 x 956 x 212‎

Weight

  • Package Weight ‎30.5‎

Operation Conditions

  • Temperature 0℃~40℃
  • Humidity 10~80%

Mechanical Specification

  • VESA Mount (mm) ‎400 x 400‎
  • Bezel Width (mm) 12.0 (Top/Side), 12.0 (Bottom)
  • Frame Material Non-Glossy

Optional Feature

  • Mount Yes
  • Stand Yes

Internal Player (MagicInfo)

  • MagicInfo Daisychain Videowall Support Yes

Eco

  • Energy Efficiency A+

Certification and Compliance

  • EMC FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 / 2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009CCC (China) : GB9254-2008 GB17625.1-2012GOST (Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
  • Safety CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore) : PSB+IEC60950-1NOM (Mexico) : NOM-001-SCFI-1993IRAM (Argentina) : IRAM+IEC60950-1SASO (Saudi Arabia) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM (Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC (Korea) : K 60950-1EAC (Russia) : EAC+IEC60950-1INMETRO (Brazil) : INMETRO+IEC60950-1BSMI (Chinese Taiwan) : BSMI+IEC60950-1RCM (Australia) : IEC60950-1/AS/NZS 60950-1UL (USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE
