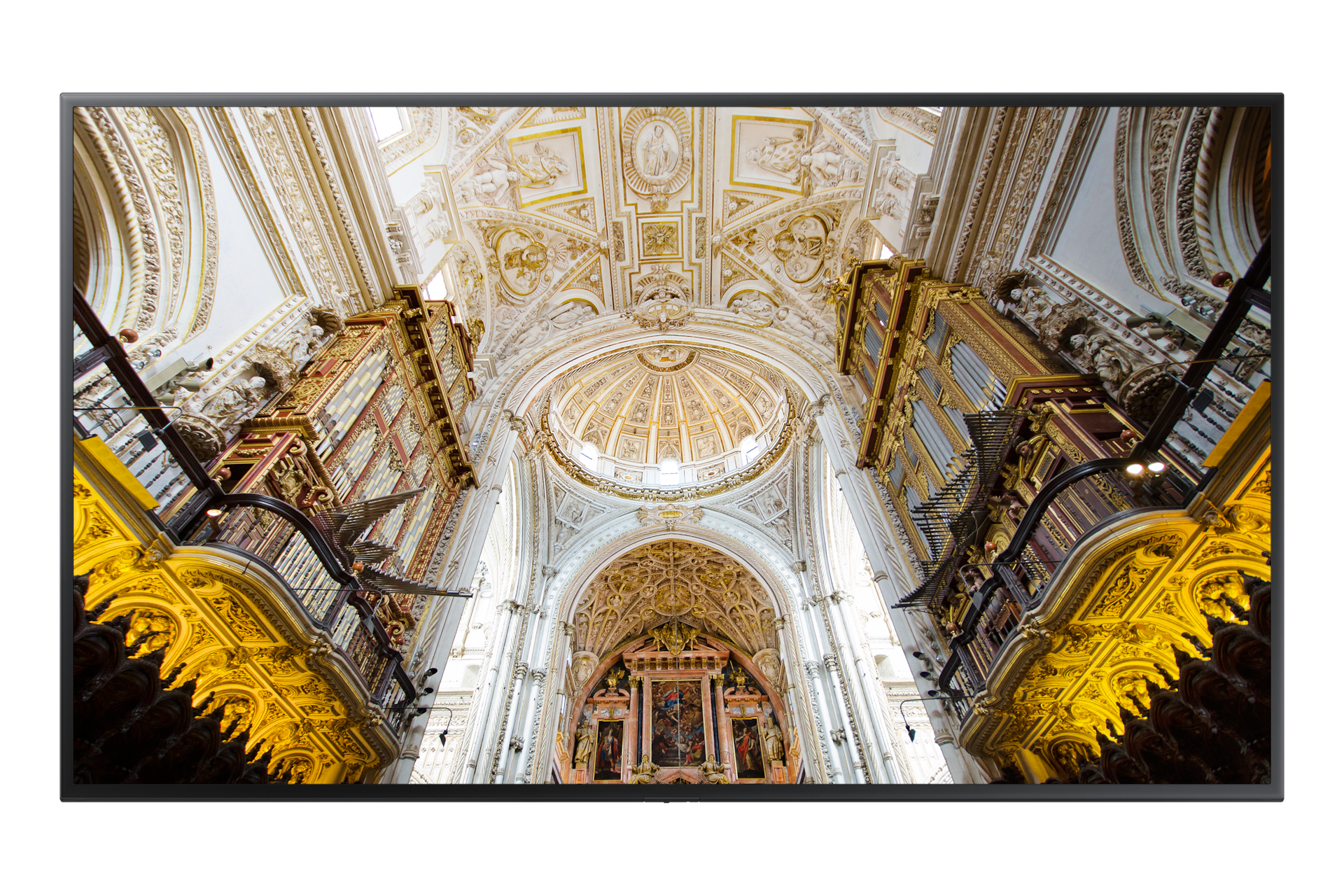

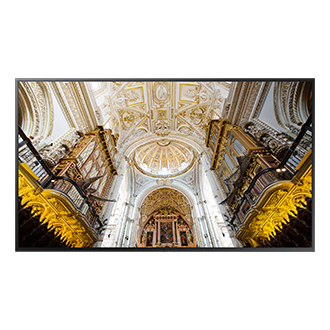

QB75N Series 75"

LH75QBNEBGC/UE

  • Intelligent Picture Quality
  • Embedded MagicINFO S6 backed by TIZEN OS
  • Enhanced Security and Remote Management

Choose your size

QB75N Series 75"

75"

Bring Creative Content Ideas to Life

As more businesses turn to UHD displays for differentiation, Samsung’s QBN Series offer the ideal customer engagement forum. The displays’ UHD picture quality and sleek, stylish design capture audience eyes, while seamless and consistent presentation expands message sharing possibilities.

Bring Creative Content Ideas to Life Bring Creative Content Ideas to Life

Share Intelligent, High-Quality Content

Intelligent Picture Quality

The QBN Series displays leverage Samsung’s Intelligent Picture Quality technology to elevate content delivery in any setting. This refined presentation transforms content from any source to UHD-level quality, and optimizes on-screen text and imagery with crisp edges and fine detail.

Share Intelligent, High-Quality Content Share Intelligent, High-Quality Content

Streamline Operational Efficiency

The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the displays overall performance, allows for painless content management and ensures seamless content transition and playback.

Streamline Operational Efficiency Streamline Operational Efficiency

Empower Secure and Remote Collaboration

Samsung’s KNOX platform provides rigid three-layer protection while also securing and controlling USB and user network exchange through dedicated signage device management. With added security, businesses can facilitate remote, PC-free meetings without risk or complexity.

Empower Secure and Remote Collaboration Empower Secure and Remote Collaboration

Maintain Continuous Display Performance

Beyond security and content management, QBN Series users can trust the displays’ remote management for fast, efficient issue mitigation. Users can monitor and diagnose irregularities – both on their own and with help from Samsung’s Network Operations Center – from any location.

Maintain Continuous Display Performance Maintain Continuous Display Performance

Enjoy Convenient Display Management

The QBN Series’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. Each display receives signals on individual panels via Central IR, and users can navigate the IR functionality from various locations to further augment uninterrupted performance.

Enjoy Convenient Display Management Enjoy Convenient Display Management

Shield Content from Outside Interference

The QBN Series’ durable, IP5x-validated design ensures continuous content delivery regardless of environmental conditions. As a result, transportation hubs and other arenas susceptible to dust, dirt and lighting exposure can activate and run the displays without an external enclosure.

Shield Content from Outside Interference Shield Content from Outside Interference

* IP5x validation ensures satisfactory operation even with a certain level of dust inside the product. However, product operation is not guaranteed when exposed to particular types of dust, such as metal dust.

Specifications

Display

  • Diagonal Size 75"
  • Panel Type New Edge, 60Hz
  • Resolution 3,840 x 2,160
  • Pixel Pitch (HxV, mm) 0.42975(H) x 0.42975(V)
  • Brightness (Typical) 350
  • Contrast Ratio 6,000:1
  • Viewing Angle (H/V) 178/178
  • Response Time 8ms(Typ)
  • Color Gamut 72%
  • Glass Haze 0.02 %
  • H-Scanning Frequency 30~81kHz
  • Maximum Pixel Frequency 594Mhz
  • V-Scanning Frequency 48~75Hz
  • Contrast Ratio (Dynamic) Mega

Connectivity

  • HDMI In 2
  • DP In No
  • DVI In 1(DVI-D)
  • USB 2
  • IR In Yes
  • HDBaseT In No
  • Audio In Yes
  • Audio Out Stereo Mini Jack
  • Video Out No
  • RS232 In Yes
  • RS232 Out Yes
  • RJ45 In Yes
  • RJ45 Out No
  • WiFi Yes

Power

  • Power Supply AC100-240V 50/60Hz
  • Power Consumption (On Mode, W) ‎220‎
  • Power Consumption (Sleep Mode, W) ‎0.5‎

Dimension

  • Set Dimension (WxHxD, mm) ‎1684.6 x 966.7 x 60.4‎
  • Package Dimension (WxHxD, mm) ‎1871 x 1131 x 234‎

Weight

  • Set Weight ‎38.0‎
  • Package Weight ‎50.5‎

Operation Conditions

  • Temperature 0℃~ 40℃
  • Humidity 10~80%

Mechanical Specification

  • VESA Mount (mm) ‎400 x 400‎
  • Bezel Width (mm) 13.5(top,side,bottom)
  • Frame Material Non-Glossy

Optional Feature

  • Mount WMN6575SE
  • Stand No

Internal Player (MagicInfo)

  • MagicInfo Daisychain Videowall Support No

Eco

  • Energy Efficiency A

Certification and Compliance

  • EMC FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009CCC(China) :GB9254-2008 GB17625.1-2012GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
  • Safety CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE
