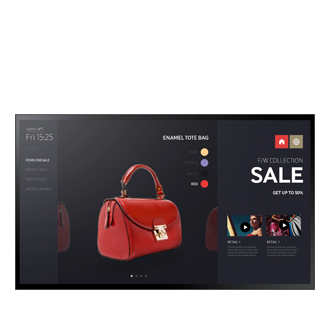

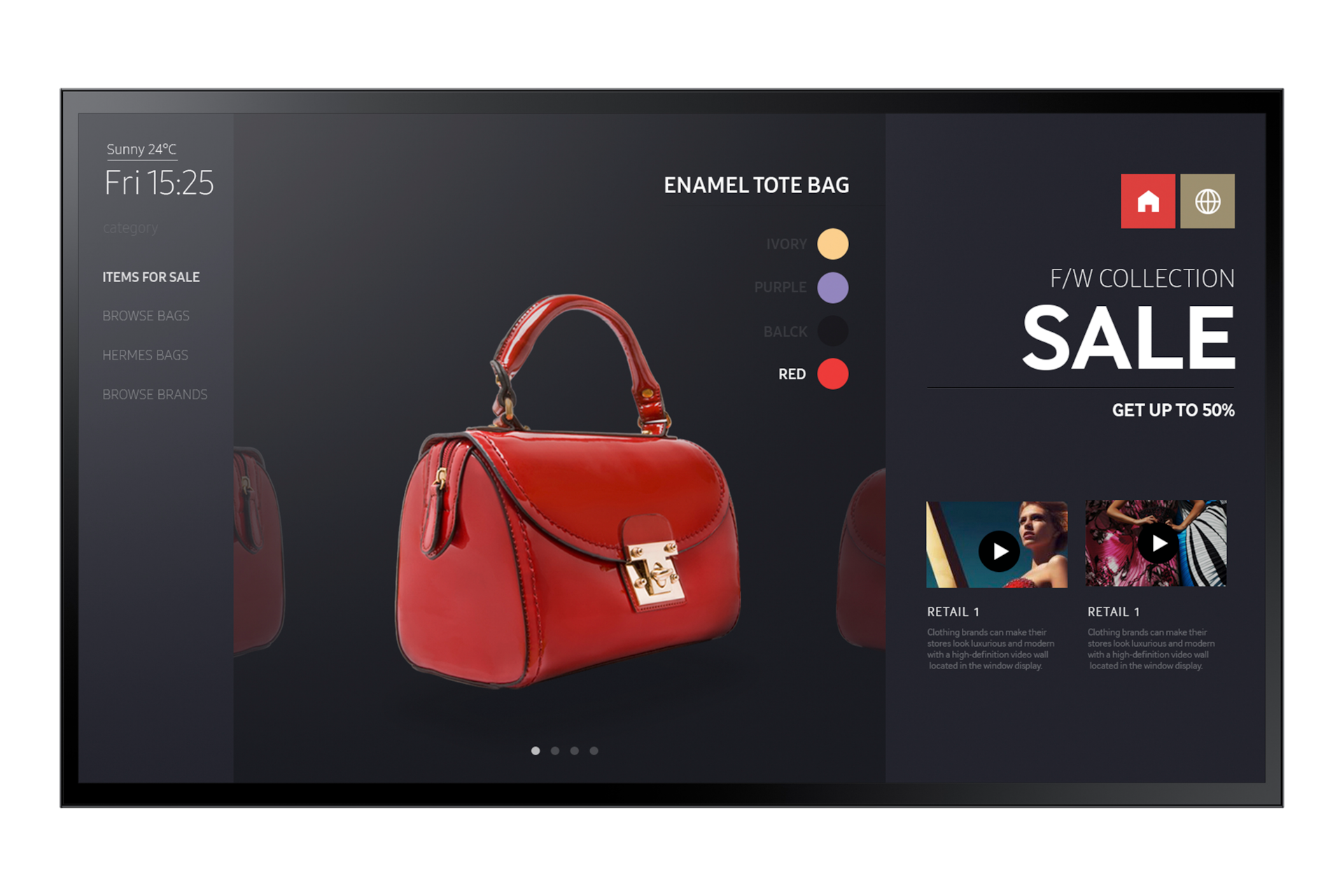

Interactive Display PMF-BC Series 55”

Interactive Display PMF-BC Series 55”

LH55PMFXTBC/UE

  • Slim All-in-One Interactive Screen
  • Embedded Tizen 2.4 SoC Media Player
  • New Capacitive Touch Technology

Choose your size

Interactive Display PMF-BC Series 55”

55"

Boost Engagement with Touch Displays

Samsung’s PMF-BC displays align cutting-edge visuals with capacitive touch technology for a more informative, interactive customer experience. The displays’ glare-free design deters light interference, while an all-inclusive composition drives performance at reduced operational burden.

Boost Engagement with Touch Displays Boost Engagement with Touch Displays

Versatile Touch-Driven Interaction

The PMF-BC displays’ user-friendly design fosters comfortable, productive digital writing. Capacitive touch technology offers 10 unique touch points while maintaining the smooth, familiar feel of pen-and-paper writing. Users also can overcome interference from dust, sunlight and other variables.

Versatile Touch-Driven Interaction Versatile Touch-Driven Interaction

Reliable and Continuous Content Delivery

Samsung’s durable PMF-BC displays empower uninterrupted message delivery. Each PMF-BC display is designed to resist environmental factors that can impede picture clarity and utility, making them ideal for transportation hubs and other locations frequently exposed to dust, dirt and weather.

Reliable and Continuous Content Delivery Reliable and Continuous Content Delivery

Convenient All-in-One Management

By condensing the powerful TIZEN OS, an embedded media player and capacitive touch technology into a single solution, Samsung’s PMF-BC displays deliver dynamic content without external PCs or devices. The PMF-BC’s intuitive interface further drives seamless content and application navigation.

Convenient All-in-One Management Convenient All-in-One Management

Brilliant, Glare-Free Visual Quality

The PMF-BC displays’ non-glare, glass-touch front panel presents content at consistent elevated contrast and 400nit brightness against a range of natural and ambient lighting conditions. A complementary anti-haze coating further maintains clear readability at any time or location.

Brilliant, Glare-Free Visual Quality Brilliant, Glare-Free Visual Quality

Seamless, Centralized Display Control

Unlike standard displays which place the IR in hard-to-access locations, the PMF-BC displays’ centralized IR grants users more convenient and flexible control. Each PMF-BC display receives IR signals across its individual panels, allowing for fast, anywhere activation and uninterrupted management.

Seamless, Centralized Display Control Seamless, Centralized Display Control

Specifications

Display

  • Diagonal Size 55"
  • Panel Type S-VA
  • Resolution 1,920 x 1,080
  • Pixel Pitch (HxV, mm) 0.63 x 0.63
  • Brightness (Typical) 400, 400
  • Contrast Ratio 4,000:1
  • Viewing Angle (H/V) 178/178
  • Response Time 6MS
  • Color Gamut 72%
  • Glass Haze 15% (with Touch glass)
  • H-Scanning Frequency 30 ~ 81kHZ
  • Maximum Pixel Frequency 148.5MHz
  • V-Scanning Frequency 48 ~ 75HZ
  • Contrast Ratio (Dynamic) MEGA DCR

Connectivity

  • HDMI In 2
  • DP In Yes
  • DVI In 1
  • USB 2
  • Component In No
  • Composite In No
  • RGB In DVI-I Common
  • IR In No
  • Audio In Stereo Mini Jack, RGB/DVI/HDMI
  • Audio Out Stereo Mini Jack
  • Video Out Yes
  • RS232 In Mini Stereo Jack
  • RS232 Out Mini Stereo Jack
  • RJ45 In Yes
  • WiFi Yes
  • Bluetooth No

Power

  • Power Supply AC100-240V~50/60Hz
  • Power Consumption (Off Mode, W) ‎0.00‎
  • Power Consumption (On Mode, W) ‎187‎
  • Power Consumption (Sleep Mode, W) ‎0.5‎

Dimension

  • Set Dimension (WxHxD, mm) ‎1248.4 X 733.4 X 58.4‎
  • Package Dimension (WxHxD, mm) ‎1375 x 863 x 200‎

Weight

  • Set Weight ‎26.4‎
  • Package Weight ‎32‎

Operation Conditions

  • Temperature 0℃~ 40℃
  • Humidity 10% ~ 80%, non-condensing

Mechanical Specification

  • VESA Mount (mm) ‎400 x 400‎
  • Bezel Width (mm) ‎25 (top/bottom), 17.9 (side)‎
  • Frame Material Non-Glossy

Optional Feature

  • Mount WMN4270SD
  • Stand STN-L4655E

Internal Player (MagicInfo)

  • MagicInfo Daisychain Videowall Support Yes

Certification and Compliance

  • EMC Class A
  • Safety 60950
