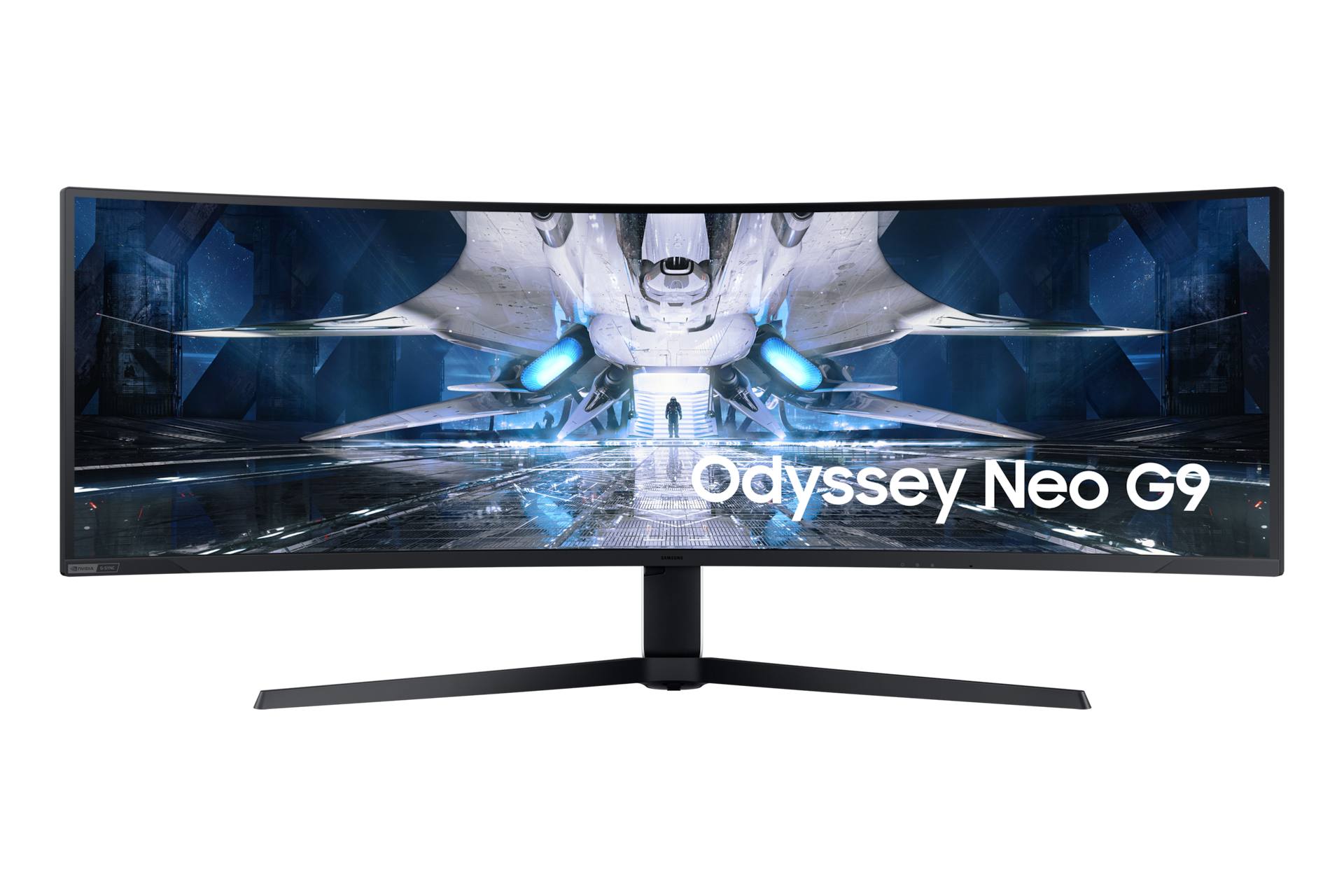

DQHD Monitor With Quantum Mini-LED

LS49AG950NMXZN

Choose your size

DQHD Monitor With Quantum Mini-LED
49"

Where to buy

Highlights

A video shows a split monitor screen with †Edge LED' on the left with a few large dots and †Quantum Mini-LED' on the right with many small dots. The left then shows ten local dimming zones and the right with 2,048. A shining star then appears on the screen as the monitor rotates to its left.

Quantum Matrix Technology

A video shows a first-person shooter game with †Conventional' colors focused on the entrance of an alley with a †VDE' badge displayed in the corner of the frame. Two black-and-white and color bars get longer and more sophisticated as it's changed from conventional to HDR. An enemy's shadow becomes m

Quantum HDR 2000

A G95NA monitor shows two spaceships blasting off into space. The monitor is split in two to show the difference in display quality comparing two different refresh rates and response time, one with 120Hz and 5ms and the other with 240Hz and 1ms which shows fewer lagging blurs.

240Hz

Two monitors are shown side-by-side with starships floating in space on both screens. One screen is shown with NVIDIA G-Sync on and displays a smooth ship movement while the other monitor is shown with G-Sync off and displays a scattered movement with tearing.

G-Sync

Features

Go beyond

Top 3 features

A monitor is shown with a multi-colored light beam trailing behind. The monitor's screen shows an alien spaceship traveling through space zipping past an unknown planet in the background.

Spellbinding visual quality

Quantum Mini-LED, which achieves next-generation depth with Quantum HDR2000, delivers exceptional picture quality, placing Odyssey Neo in its own class.

The back of a curved monitor and stand is shown with light reflecting off its shiny surface. A blue neon light flashes around where the monitor and stand attach.

A new dimension in design

With 1000R curvature inspired by the human eye, a 32:9 screen ratio and Samsung’s unique CoreSync lighting, Odyssey Neo delivers ultimate immersion.

On the monitor's screen, two jet fighter planes are speeding with light beams trailing from all around, suggesting they are traveling extremely fast. And NVIDIA G-Sync logo appears on the bottom left corner.

World class performance

One misstep can be the difference between victory and defeat. With a 240hz refresh rate, 1ms response time, G-Sync and FreeSync Premium Pro, prepare to win.

Critically acclaimed gamer gear

'The Quantum Mini LED display on the Samsung Odyssey Neo G9 is by far one of the best I've seen in a gaming monitor to date' - TechaerisCritically acclaimed. Award-winning. Globally recognized. Worldwide gaming innovation perfected by the Samsung Odyssey Neo G9. See what the buzz is about.

Lights which comes from top to bottom illuminates a place where Odyssey Neo G9 is placed.Above the monitor. †Odyssey Neo G9' is written in gold with laurel on each side.On the onscreen, a soldier is fighting with a gun in his hand on the battlefield. Award logos from Overclock, AVS forum, Newsweek, Techaeris, AV forums, Trusted Reviews are lining up near the stand. Lights which comes from top to bottom illuminates a place where Odyssey Neo G9 is placed.Above the monitor. †Odyssey Neo G9' is written in gold with laurel on each side.On the onscreen, a soldier is fighting with a gun in his hand on the battlefield. Award logos from Overclock, AVS forum, Newsweek, Techaeris, AV forums, Trusted Reviews are lining up near the stand.

Enter a new era of immersion

Quantum Matrix Technology

An unrivaled visual experience. Revolutionary Quantum Matrix Technology with Quantum Mini LEDs creates controlled brightness and perfect contrast for refined definition. Local dimming zones were increased to 2,048 and combined with the highest 12-bit black levels to create unmatched picture quality.

Catch the detail, defeat your enemies

Quantum HDR 2000

See every detail in all its glory. From gloomy shadows to sun-scorched scenes, 2,000 nit peak brightness and 1,000,000:1 contrast ratio enable enhanced color expression and depth. Get a competitive edge while playing Ray Tracing games by spotting hidden enemies using their reflections.

Double your discoveries

Dual QHD

The gaming world of your imagination made real. The 49-inch DQHD resolution brings you a display as wide as two QHD monitors sitting side by side, with incredibly detailed, pin-sharp images. Experience a more encompassing view with maximum space to take in all the action.

A G95NA monitor is shown with a starship blasting through space towards a light source. The screen is split into two equal sections with †QHD' shown in the middle of each section. Above the monitor a line stretches the length of both sides with the word †DQHD' along with the pixel count of 5120 x 1440. A G95NA monitor is shown with a starship blasting through space towards a light source. The screen is split into two equal sections with †QHD' shown in the middle of each section. Above the monitor a line stretches the length of both sides with the word †DQHD' along with the pixel count of 5120 x 1440.

Overwhelm your senses

1000R curved screen

Vivid scenes wrap even more tightly around you. Experience the next level of heart-pounding gaming that's superior to anything you've seen before. The 1000R 49-inch super ultra-wide display fills your peripheral vision and draws you into the character's shoes.

The top of a curved screen monitor is shown with the core lighting on its back lighting up in blue. The logo for TUV is located in the left lower corner. Lines next to the monitor also represent curvatures of flat and 1800R monitors for comparison against 1000R. The top of a curved screen monitor is shown with the core lighting on its back lighting up in blue. The logo for TUV is located in the left lower corner. Lines next to the monitor also represent curvatures of flat and 1800R monitors for comparison against 1000R.

Designed to light up your world

Core lighting design with CoreSync

Surround yourself in every scene. With core lighting, add personality to your setup with multiple color modes that leap off the screen and into your reality. Gaming escapes beyond the screen with CoreSync technology that matches your game's on-screen colors for world-blending immersion.

Giving you the edge in every playthrough

240Hz refresh rate & 1ms response time

Supreme speed in every scene. Industry-leading 240Hz refresh rate eliminates lag for exhilarating gameplay and ultra-smooth action scene-by-scene. With 1ms response time and blur-free frames, players have a competitive edge with optimized technology – every playthrough.

A G95NA monitor shows two spaceships blasting off into space. The monitor is split in two to show the difference in display quality comparing two different refresh rates and response time, one with 120Hz and 5ms and the other with 240Hz and 1ms which shows fewer lagging blurs. A G95NA monitor shows two spaceships blasting off into space. The monitor is split in two to show the difference in display quality comparing two different refresh rates and response time, one with 120Hz and 5ms and the other with 240Hz and 1ms which shows fewer lagging blurs.

Make every second count

Low Input Lag

Seize winning control. The incredibly-low 2ms input lag brings never-before-experienced response accuracy to catch notoriously-agile enemies. It's so fast, that action begins instantly when you turn on the screen, with virtually no delay between your peripherals and the game.

Two screens are shown side-by-side both with starships aiming their guns at another starship flying over an unknown planet. On the right the starship has successfully fired and shows †Low input Lag ON' but on the left the starship has yet to fire and shows †Low input Lag off.' Two screens are shown side-by-side both with starships aiming their guns at another starship flying over an unknown planet. On the right the starship has successfully fired and shows †Low input Lag ON' but on the left the starship has yet to fire and shows †Low input Lag off.'

Focus without ever breaking flow

G-Sync compatible

Hyper action made seamless. G-Sync compatibility keeps the GPU and panel synced up to eliminate choppiness, screen-lag, and image tears. Fast-action and complex game scenes are stable and stutter-free with AMD FreeSync Premium Pro for your competitive edge.

Two monitors are shown side-by-side with starships floating in space on both screens. One screen is shown with NVIDIA G-Sync on and displays a smooth ship movement while the other monitor is shown with G-Sync off and displays a scattered movement with tearing. Two monitors are shown side-by-side with starships floating in space on both screens. One screen is shown with NVIDIA G-Sync on and displays a smooth ship movement while the other monitor is shown with G-Sync off and displays a scattered movement with tearing.

Make the most of every moment

Picture-by-Picture

Game, watch, chat—all at the same time. With PBP, view input from two sources simultaneously at their native resolution. Use PIP to resize the second source to up to 25% of the screen. Place windows anywhere using Samsung's screen-splitting Easy Setting Box SW.

A monitor is shown with its screen split into two boxes with the words †PBP (Picture-by-Picture)' displayed above. The left side with †A' in the left upper corner shows a video of vehicles traveling across a desert. In the upper right, another streamer screen is shown within a separate box. The monitor's right side with †B' in the left upper corner shows a third-person video game scene of †Black Desert'. A monitor is shown with its screen split into two boxes with the words †PBP (Picture-by-Picture)' displayed above. The left side with †A' in the left upper corner shows a video of vehicles traveling across a desert. In the upper right, another streamer screen is shown within a separate box. The monitor's right side with †B' in the left upper corner shows a third-person video game scene of †Black Desert'.

Connect automatically, in an instant

Auto Source Switch+

Power on for instant play. With Auto Source Switch+, your monitor detects when connected devices are turned on and instantly switches to the new source signal. This helps you get to your game action faster without flipping through multiple input sources.

Convenience in mind

Height Adjustable Stand

Find your winning position. Swivel, tilt, and adjust the height until you're set up for victory. Fully compatible with VESA-standard monitor arms, the screen can be moved effortlessly to your ideal position. Multiple ports are easy to access, and hook up to your favorite devices with no mess.

The backs of three G95NA monitors are shown to demonstrate the tilting, swiveling and height adjustment capabilities of the stand. Blue arrows are overlaid over the monitors to show the monitor's areas of motion that allows it to be positioned comfortably for the user. Above the monitors displays two icons, where ergonomic efficiency icon is highlighted with white on the left. The backs of three G95NA monitors are shown to demonstrate the tilting, swiveling and height adjustment capabilities of the stand. Blue arrows are overlaid over the monitors to show the monitor's areas of motion that allows it to be positioned comfortably for the user. Above the monitors displays two icons, where ergonomic efficiency icon is highlighted with white on the left.

Specifications

  • Resolution

    5,120 x 1,440

  • Aspect Ratio

    32:9

  • Screen Curvature

    1000R

  • Brightness (Typical)

    420cd/㎡

  • Contrast Ratio Static

    1,000,000:1

  • Response Time

    1(GTG)

  • Refresh Rate

    Max 240Hz

  • Viewing Angle (H/V)

    178°(H)/178°(V)

  • Screen Size (Class)

    49

  • Flat / Curved

    Curved

  • Active Display Size (HxV) (mm)

    1191.936(H) * 335.232(V)

  • Screen Curvature

    1000R

  • Aspect Ratio

    32:9

  • Panel Type

    VA

  • Brightness (Typical)

    420 cd/㎡

  • Peak Brightness (Typical)

    2000 cd/㎡

  • Brightness (Min)

    300 cd/㎡

  • Contrast Ratio Static

    1,000,000:1

  • Contrast Ratio (Dynamic)

    Mega DCR

  • HDR(High Dynamic Range)

    Yes

  • HDR10+

    Yes

  • Mini LED Local Dimming

    Yes (2,048 zones)

  • Resolution

    5,120 x 1,440

  • Response Time

    1(GTG)

  • Viewing Angle (H/V)

    178°(H)/178°(V)

  • Color Supported

    Max 1.07B

  • Color Gamut (NTSC 1976)

    88%(Typ.)

  • Color Gamut (DCI Coverage)

    95%(Typ.)

  • sRGB Coverage

    125%(Typ.)

  • Adobe RGB Coverage

    92%(Typ.)

  • Refresh Rate

    Max 240Hz

  • Eye Saver Mode

    Yes

  • Flicker Free

    Yes

  • Picture-In-Picture

    Yes

  • Picture-By-Picture

    Yes

  • Quantum Dot Color

    Yes

  • USB Super Charging

    No

  • Windows Certification

    Windows 10

  • FreeSync

    FreeSync Premium Pro

  • G-Sync

    G-Sync Compatible

  • Off Timer Plus

    Yes

  • Screen Size Optimizer

    Yes

  • Black Equalizer

    Yes

  • Low Input Lag Mode

    Yes

  • Refresh Rate Optimizor

    Yes

  • Custom Key

    YES

  • Super Arena Gaming UX

    Yes

  • Auto Source Switch+

    Yes

  • Wireless Display

    No

  • D-Sub

    No

  • DVI

    No

  • Dual Link DVI

    No

  • Display Port

    1 EA

  • Display Port Version

    1.4

  • Display Port Out

    No

  • Display Port Out Version

    No

  • Mini-Display Port

    No

  • HDMI

    2 EA

  • HDMI Version

    2.1

  • Audio In

    No

  • Headphone

    Yes

  • USB Hub

    2

  • USB Hub Version

    3

  • USB-C

    No

  • USB-C Charging Power

    No

  • Speaker

    No

  • Temperature

    10 ~ 40 ℃

  • Humidity

    10 ~ 80, non-condensing

  • Factory Tunning

    YES

  • Color Mode

    High-Brightness/Custom/FPS/RTS/RPG/sRGB/AOS/Cinema/Dynamic Contrast

  • Color

    BLACK

  • Stand Type

    HAS

  • HAS(Height Adjustable Stand)

    120.0 ± 5.0 mm

  • Tilt

    -3.0(±2.0) ~ +13.0(±2.0)

  • Swivel

    -15.0(±2.0) ~ +15.0(±2.0)

  • Wall Mount (mm)

    100 x 100

  • Energy Efficiency Class

    C

  • Power Supply

    AC 100~240V

  • Power Consumption (Typ)

    95.0 W

  • Power Consumption (DPMS, W)

    0.50 W

  • Power Consumption (Off Mode, W)

    0.30 W

  • Power Consumption (Yearly)

    139 kWh/year

  • Type

    Internal Power

  • Set Dimension with Stand (WxHxD, mm)

    1149.5 x 537.2 x 418.3 mm

  • Set Dimension without Stand (WxHxD, mm)

    1149.5 x 363.5 x 287.4 mm

  • Package Dimension (WxHxD, mm)

    1265.0 x 366.0 x 481.0 mm

  • Set Weight with Stand

    14.5 kg

  • Set weight without Stand

    11.9 kg

  • Package Weight

    20.4 kg

  • Power Cable Length (m)

    1.5 m

  • DVI Cable

    No

  • HDMI Cable

    No

  • DP Cable

    Yes

  • Mini-Display Gender

    No

  • USB 3.0 Cable

    Yes

  • Remote Controller

    No
