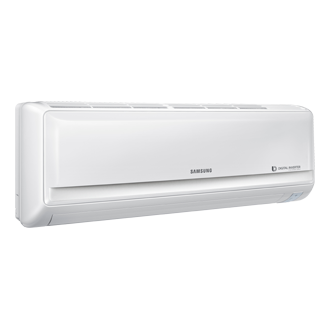

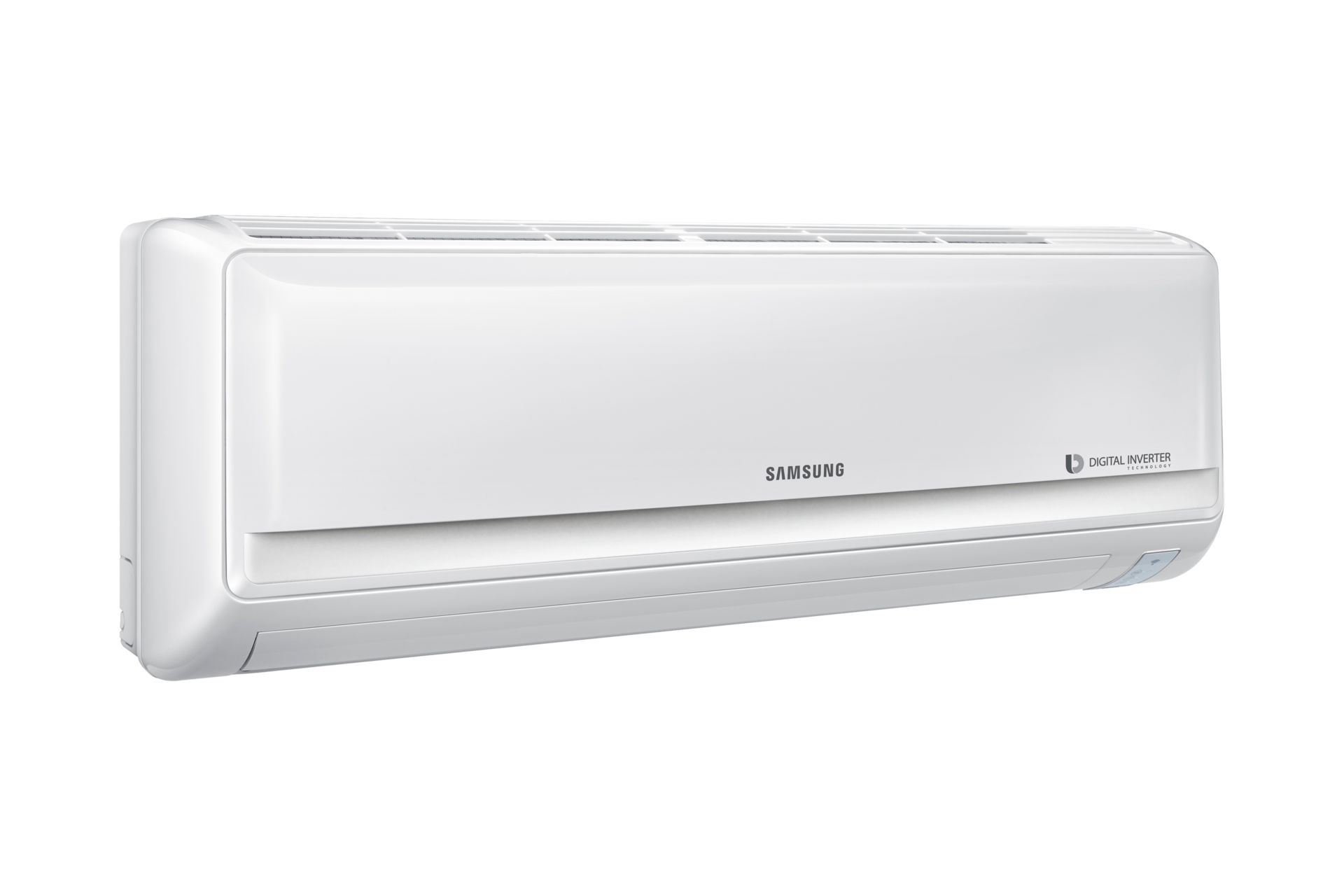

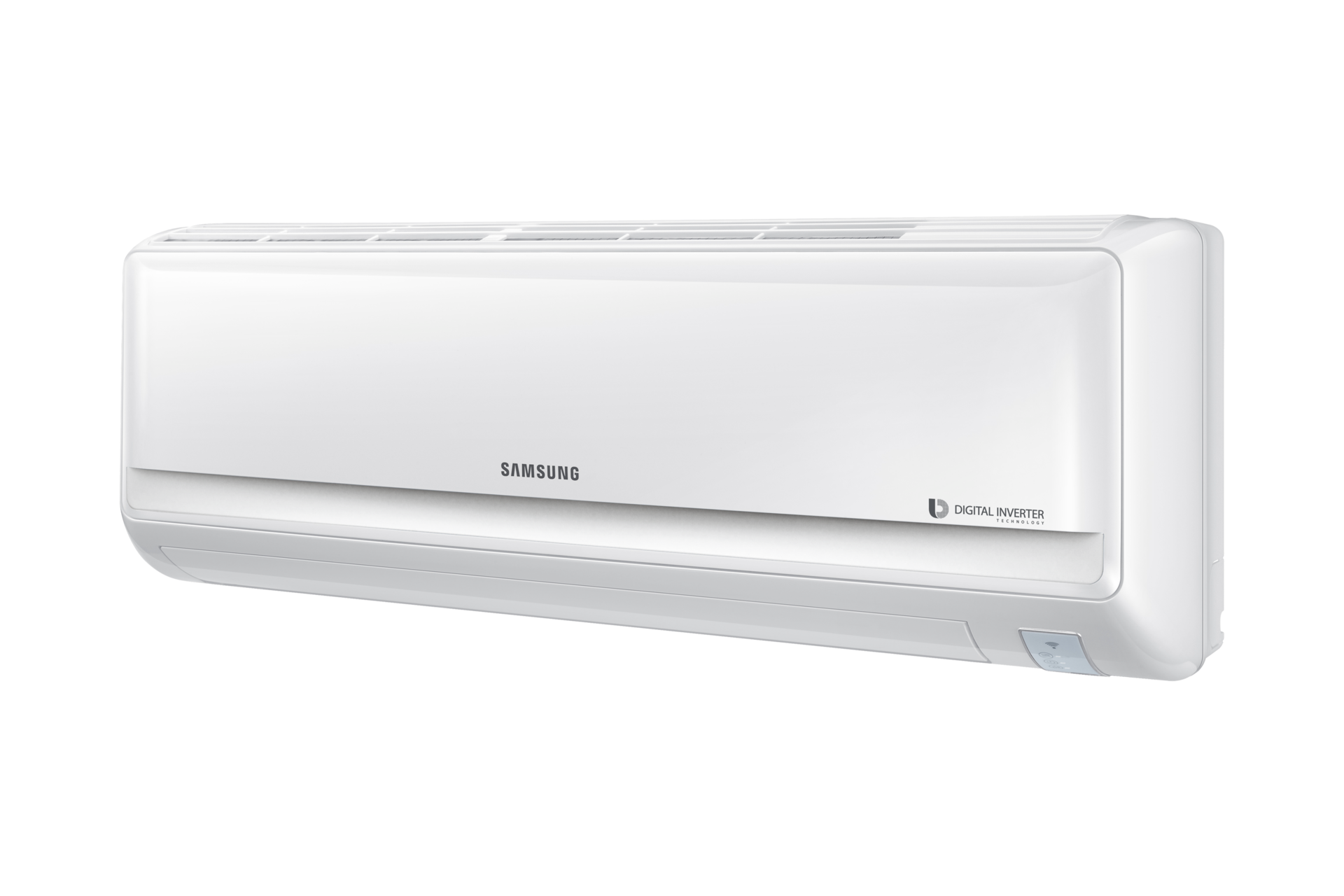

36,000 BTU, Inverter Indoor Unit

AQN36VFUAGM/CV

Choose your Capacity

36,000 BTU, Inverter Indoor Unit
36,000 BTU/h

Highlights



SmartThings

Features

Save energy and maintain coolness — Smart Inverter

Samsung’s air conditioners with Smart Inverter technology not only use less power than conventional models, they also earned one of the best Energy Efficiency Rating (EER) of 5.2 (K-series 9k). By using the compressor†s full capacity, they quickly reach your desired temperature setting faster than non-inverter models. Plus our Smart Inverter air conditioners adjust fluctuations to both maintain a constant temperature and keep things quiet.

Save energy and maintain coolness — Smart Inverter Save energy and maintain coolness — Smart Inverter

Full HD Filter

With Samsung†s advanced Full High Density Filter, you can ensure your room is kept fresh and clean. The Full HD Filter offers improved filtration by removing even the smallest microscopic dust particles and transforming polluted air into clean energized air. Filter cleaning gets convenient, too. All you need to do is simply wash out the dirt with flowing water to clean the filter. Always keep your air clean and fresh with simple and easy care of the filter.

Full HD Filter Full HD Filter

Inimitable Design in Color and Style

The elaborately designed Samsung†s new air conditioner is a perfect solution for your stylish and modern living room. We guarantee to support your stylish life with peerless beauty of the new air conditioner. This unique air conditioner is not only beautiful as pure snow but also delivers you the most fresh, clean, purified air even with low energy consumption.

Inimitable Design in Color and Style Inimitable Design in Color and Style

Good Sleep

Missing out on a good night’s sleep can mean bad news for your day. That’s why Samsung’s Good Sleep feature creates an ideally comfortable climate in your bedroom. With a precise temperature control system and automatic moisture adjustment, all three vital stages of your sleep is protected from humidity and heat so you wake up fully refreshed and ready to take on a new day. Good Sleep not only saves you precious minutes and hours of potentially lost sleep, it also saves up to 36% in energy consumption compared to the normal cooling mode.

Good Sleep  Good Sleep

S-Plasama ion

Samsung†s Virus Doctor system dramatically improves indoor air quality so your every breath is a pure, healthy one. It eliminates invisible, health-threatening biological contaminants such as viruses, bacteria and allergy-causing agents, protecting you from disease and everyday illnesses. Purifying over 19.16m3 of space, the Virus Doctor system not only blows a lot of fresh air into a home, it blows away the competition.

S-Plasama ion S-Plasama ion

Turbo Cooling

Samsung†s new air conditioner operates in its maximum speed in Turbo mode to quickly reach the set temperature. Cool down your space instantly with Samsung†s Turbo Cooling technology.

Turbo Cooling  Turbo Cooling

Auto Clean

You might not know it, but an air conditioner can produce mold and spread germs. That’s because the difference between internal and external air temperatures causes moisture to form inside the unit?and moisture equals bacteria. Our solution? Samsung air conditioners feature auto cleaning, which automatically runs the fan even after you turn it off, keeping everything dry and odor-free while preventing germs from spreading.

Auto Clean Auto Clean

MCC (Multi Channel Condenser)

Samsung's innovative MCC (Multi Channel Condenser) heat exchanger has an enlarged heat exchange surface which increases the cooling efficiency. The MCC's new flat surface design delivers quick cooling so you can always have cool fresh air anytime you want.

MCC (Multi Channel Condenser) MCC (Multi Channel Condenser)

Anti-bacteria Coating

Due to the anti-bacteria coating's unique structure, this filter can collect tiny dust particles and viruses you cannot even see. Enjoy complete protection from unwanted bacteria so you breathe cleaner, fresher air.

Anti-bacteria Coating Anti-bacteria Coating

Dehumidification

amsung†s new air conditioner would not allow your place stay damp and muggy. Samsung†s new air conditioner is the most appropriate choice to remove excess moisture from your environment. No need to empty a water bucket for sure!

Dehumidification Dehumidification

Specifications

  • Capacity

    33,000 Btu/hr

  • Capacity (Cooling, kW)

    9,67 kW

  • EER (Cooling, W/W)

    3,22 W/W

  • Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

    932 x 1,128 x 375 mm

  • Capacity (Cooling, Btu/hr)

    33,000 Btu/hr

  • Capacity (Heating, Btu/hr)

    34,000 Btu/hr

  • Capacity (Cooling, Min - Max, Btu/hr)

    9,000 ~ 38,000 Btu/hr

  • Capacity (Heating, Min - Max, Btu/hr)

    9,000 ~ 45,000 Btu/hr

  • Capacity (Cooling, kW)

    9,67 kW

  • Capacity (Heating, kW)

    9,96 kW

  • Capacity (Cooling, Kcal/hr)

    8,316 Kcal/hr

  • Capacity (Heating, Kcal/hr)

    8,568 Kcal/hr

  • EER (Cooling, W/W)

    3,22 W/W

  • COP (Heating, W/W)

    3,11 W/W

  • EER (Cooling, Btu/hW)

    11 Btu/hW

  • Energy Star Certification

    No

  • Noise Level (Indoor, High/Low, dBA)

    49 / 33 dBA

  • Noise Level (Outdoor, High/Low, dBA)

    59 dBA

  • Power Source(Φ/V/Hz)

    1 / 208 ~ 230 V / 60 Hz

  • Power Consumption(Cooling, W)

    3,000 W

  • Power Consumption(Heating, W)

    3,200 W

  • Operating Current(Cooling, A)

    14,2 A

  • Operating Current(Heating, A)

    15 A

  • Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

    1,279 x 345 x 229 mm

  • Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

    932 x 1,128 x 375 mm

  • Gross Weight (Indoor, kg)

    21,6 kg

  • Gross Weight (Outdoor, kg)

    96 kg

  • Net Weight (Indoor, kg)

    18,2 kg

  • Net Weight (Outdoor, kg)

    87 kg

  • Piping Length (Max, m)

    50 m

  • Piping Height (Max, m)

    30 m

  • SVC Valve (Liquid (ODxL))

    Liquid 6,35 mm x 7.5m

  • SVC Valve (Gas (ODxL))

    Gas 15,88 mm x 7.5 m

  • Low Ambient (Cooling, ℃)

    10 ~ 46 ℃

  • Low Ambient (Heating, ℃)

    15 ~ 24 ℃

  • Outdoor Unit (Compressor Type)

    BLDC

  • Outdoor Unit (Anti-Corrosion Fin)

    Yes

  • Optimal Single Blade

    Yes

  • Air Direction Control (Up/Down)

    Auto

  • Air Direction Control (Left/Right)

    Manual

  • Air Flow Control Step (Cool/Fan)

    4 / 3

  • Natural Breeze

    No

  • Auto Clean (Self Cleaning)

    Yes

  • Auto Changeover

    Yes

  • Auto Restart

    Yes

  • Good Sleep

    Yes

  • Dehumidification

    Yes

  • Fan Mode

    Yes

  • Quiet

    Yes
