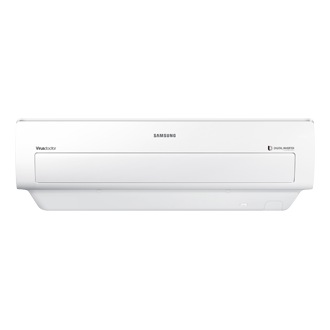

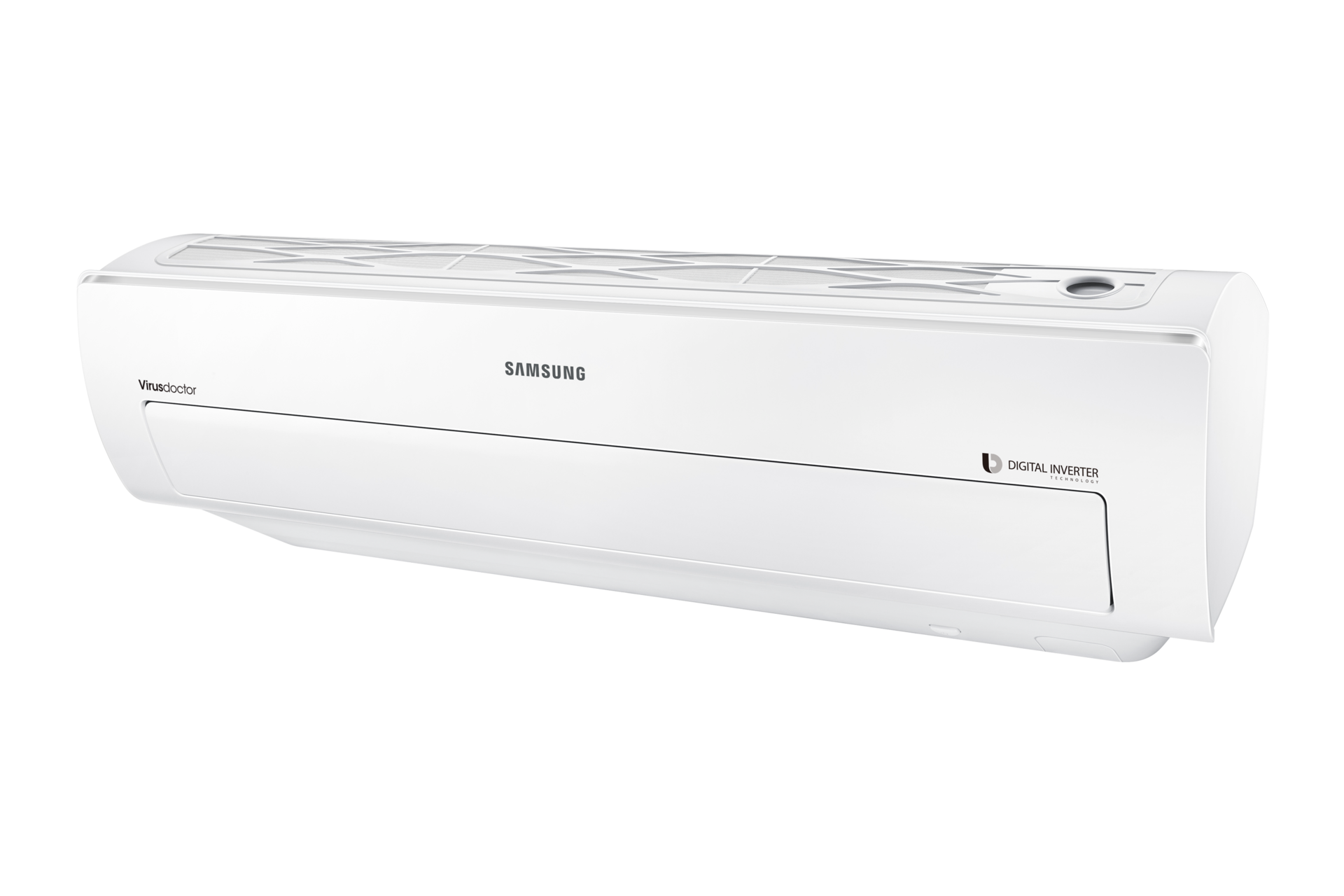

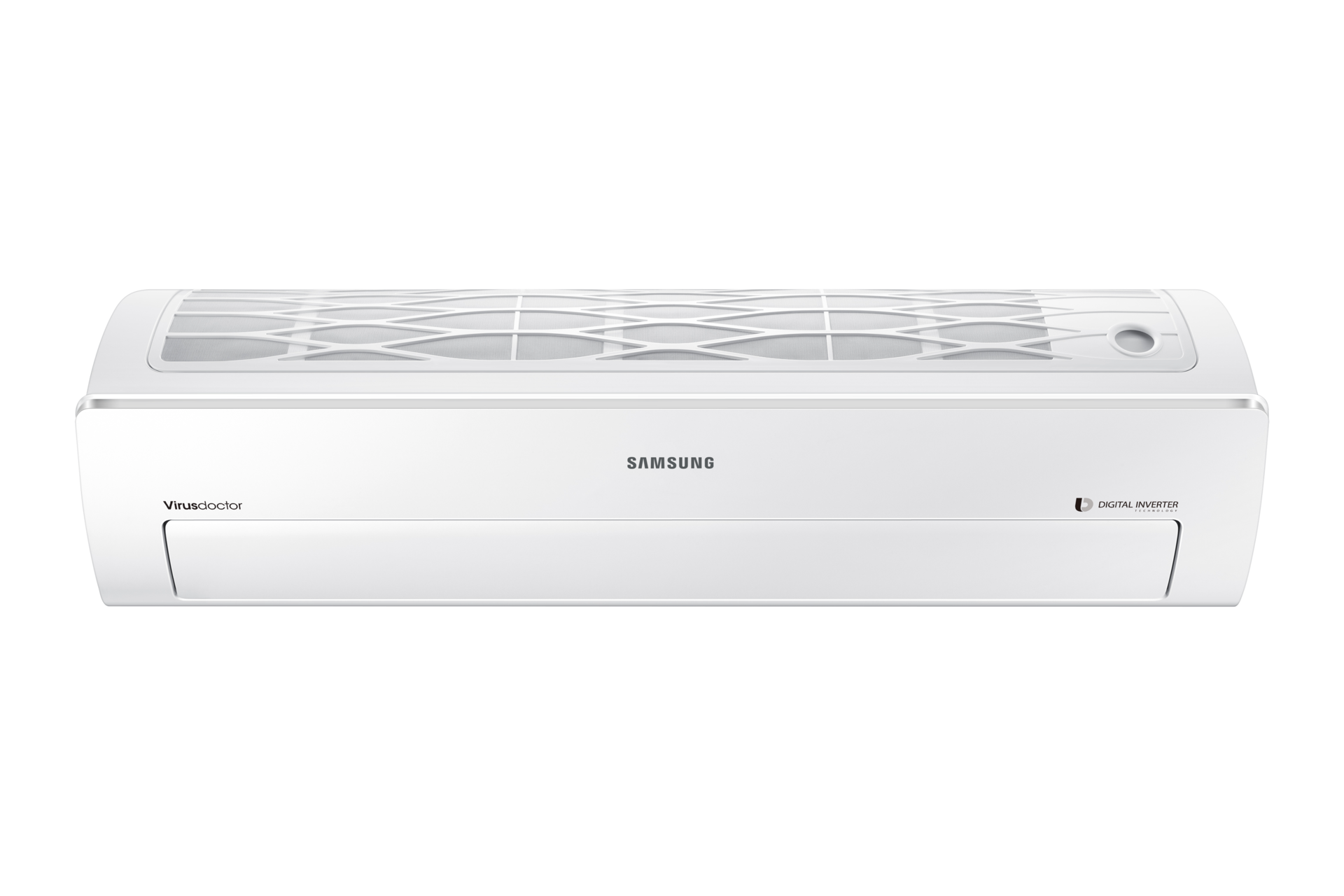

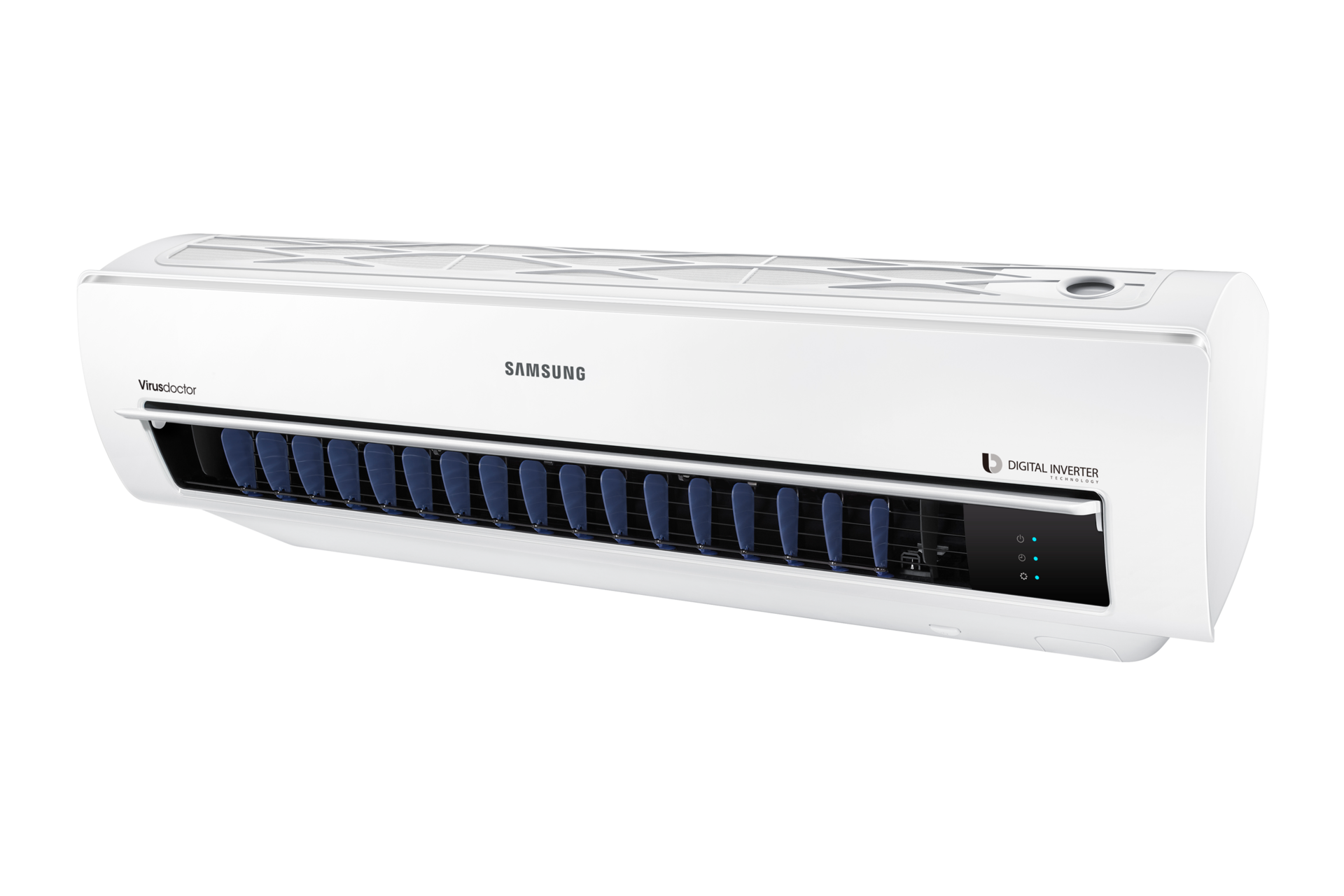

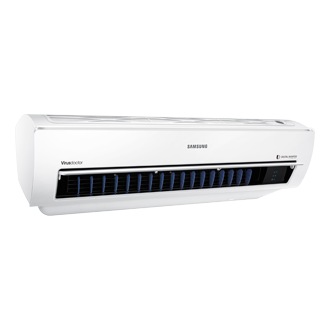

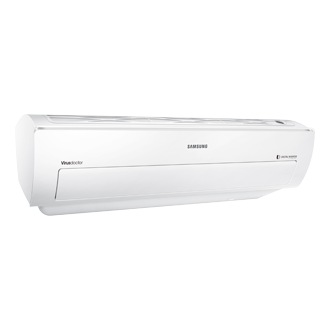

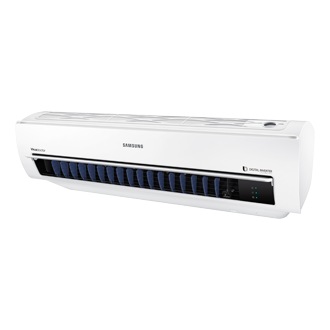

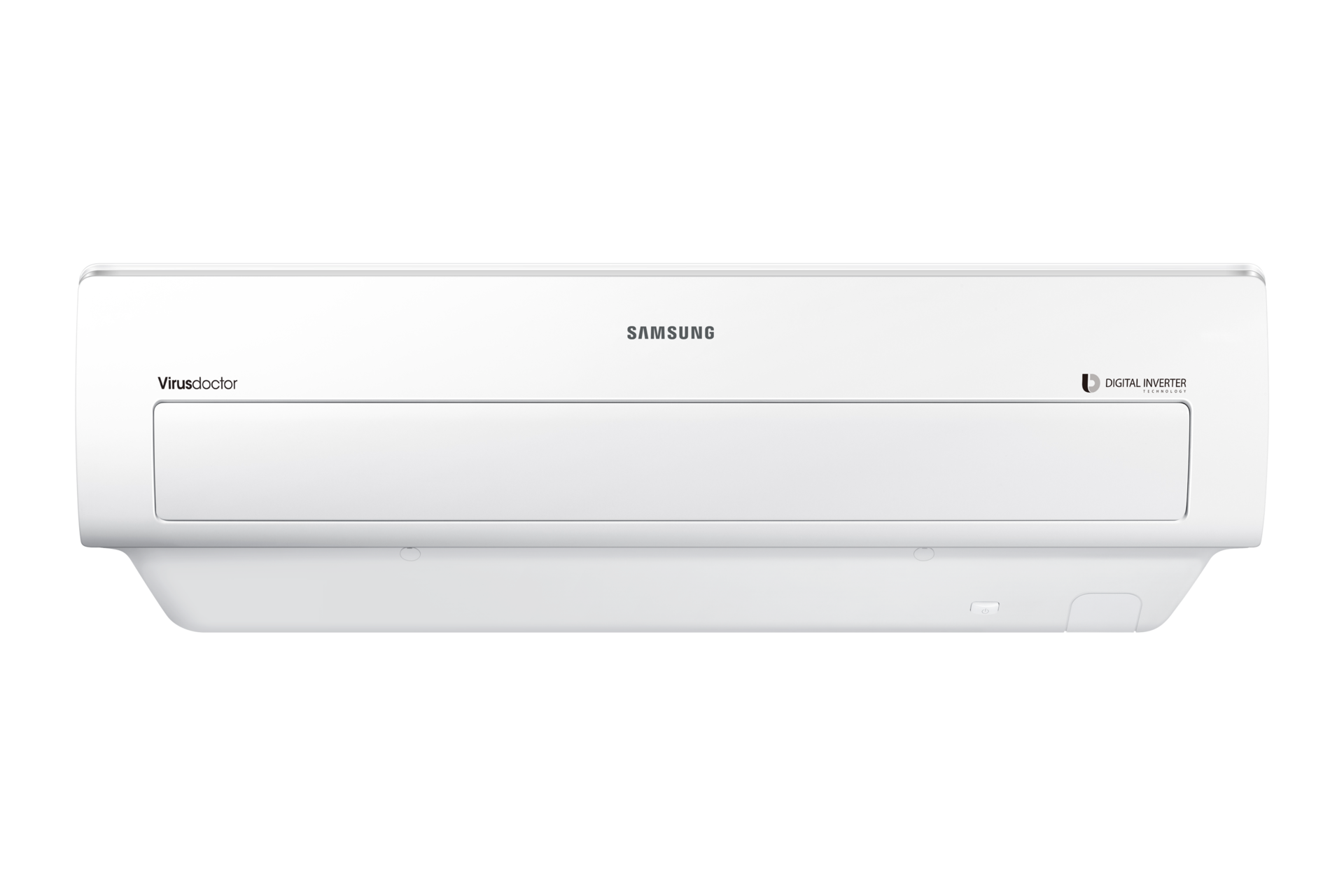

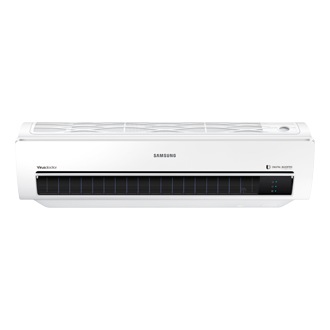

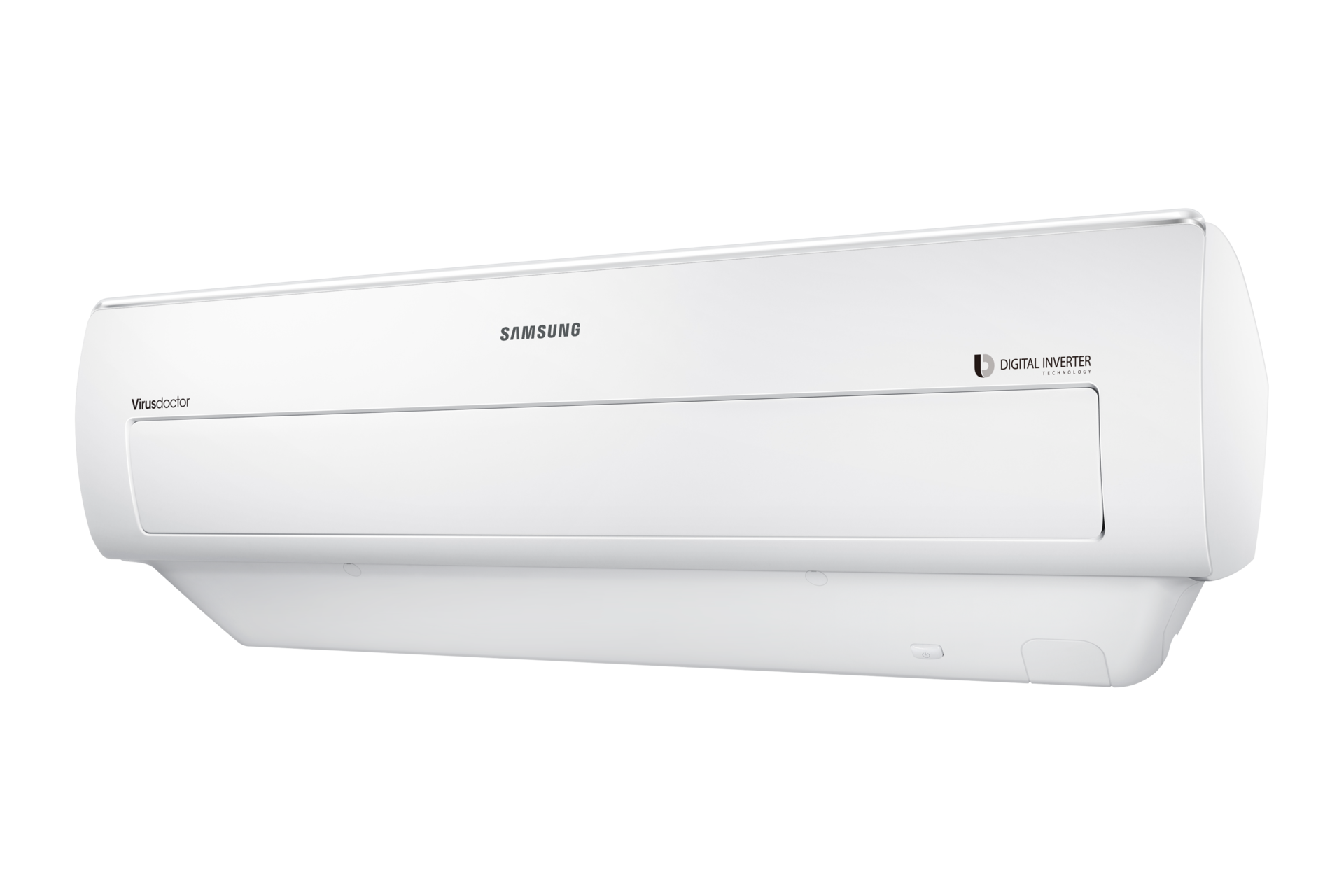

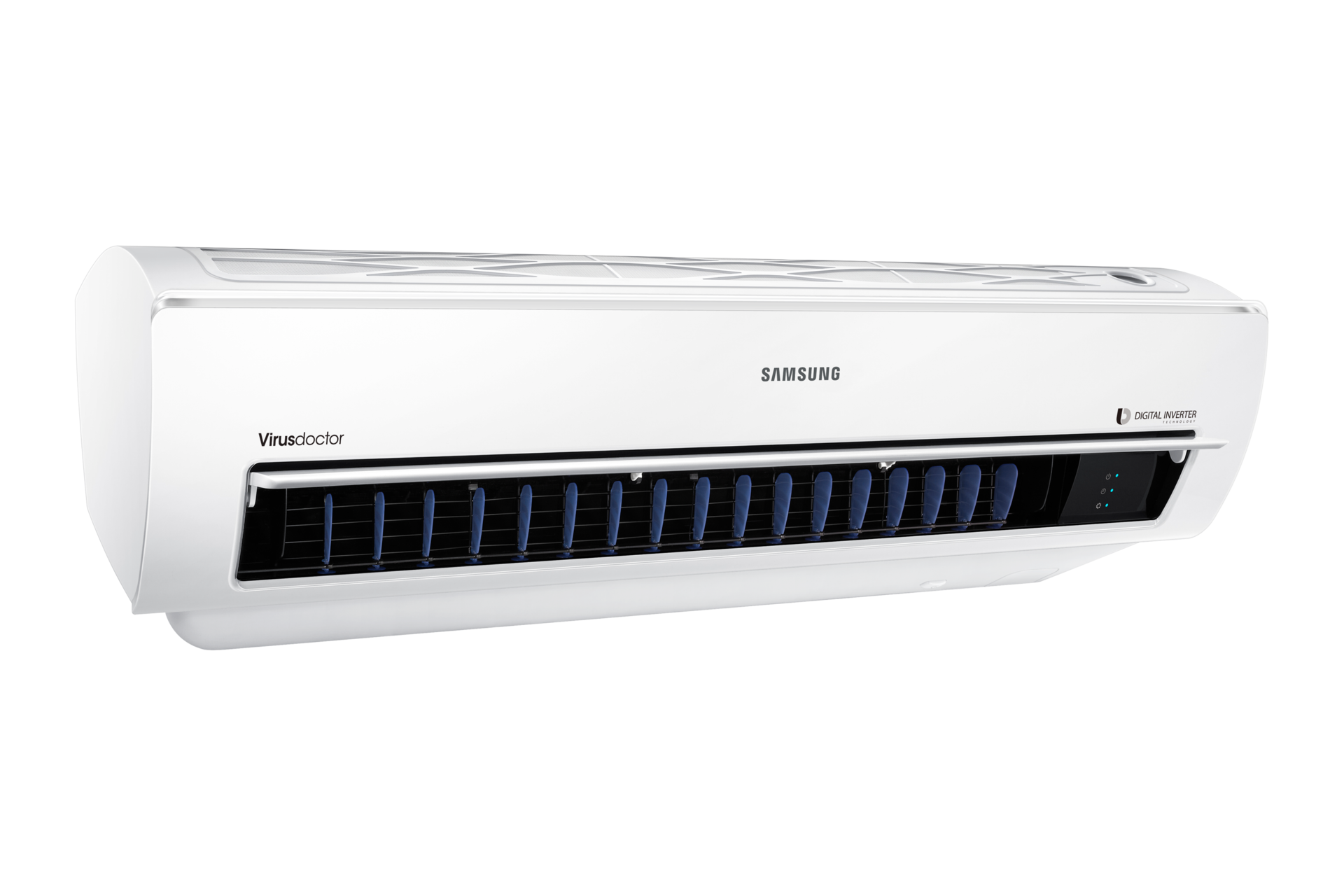

AR5500 Wall-mount with 38% Fast Cooling, 12,000 Btu/hr

AR12JVSSEWKNED

Choose your Capacity

AR5500 Wall-mount with 38% Fast Cooling, 12,000 Btu/hr
12,000 BTU/h

{{item.name}}

{{item.summaryPrice}}

{{price.priceWrapper.info.totalPrice}} {{price.priceWrapper.info.vatText}}

{{price.priceWrapper.info.orignalPriceAddText}}

{{price.priceWrapper.info.lowestWasPricetext}}

{{price.priceWrapper.info.orignalPrice}} {{price.priceWrapper.info.savePrice}}

{{price.priceWrapper.info.walkoutQtyText}}

{{price.priceWrapper.info.homeDeliveryQtyText}}

{{price.priceWrapper.info.salesPitch}}

{{price.priceWrapper.info.text}}

{{price.priceWrapper.info.text2}}

{{price.priceWrapper.info.text3}}

{{price.priceWrapper.info.shippingOrBack}}

not for sale
{{price.bespokeAttr.text}} {{price.containedAttr.text}} {{price.reserveInStoreAttr.text}} {{price.outlinedAttr.text}} {{price.wtbAttr.text}}
{{calculator.emiAttr.text}}

{{upgrade.title}}

{{upgrade.learnMoreCta.text}}

{{upgrade.description}}

{{upgradeResult.displayModelName}}

{{upgradeResult.discountText1}}

{{upgradeResult.description1}}

{{upgradeResult.description2}}

{{offerFinance.title}}

{{offerFinance.learnMoreCta.text}}

{{offerFinance.description}}

{{galaxyForever.title}}

{{galaxyForever.learnMoreCta.text}}

{{galaxyForever.description}}

{{galaxyForeverResult.displayModelName}}

{{galaxyForeverResult.discountText1}}

{{galaxyForeverResult.description1}}

{{galaxyForeverResult.description2}}

Bezel_Choose your color

Customizable bezels sold separately

Choose your skin color

Customizable skin sold separately

  • {{item.name}}

    Out Of Stock

Modern Type

  • {{item.name}}

    Out Of Stock

Beveled Type

  • {{item.name}}

    Out Of Stock

Skin color

  • {{item.name}}

    Out Of Stock

{{shippingOrBack.shippingOrBack}}
{{deliveryMessage.deliveryMessage}}

{{tradeIn.title}}

{{tradeIn.learnMoreCta.text}}

{{tradeIn.description}}

{{tradeInResult.displayModelName}}

{{tradeInResult.discountText1}}

{{tradeInResult.discountText2}}

{{tradeInResult.discountText3}}

{{tradeInResult.discountText4}}

{{tradeInResult.discountText5}}

{{tradeInResult.discountText6}}

{{tradeInResult.specialDiscountText}}

{{tradeInResult.description}}

{{tradeInResult.contentText}}

Dealer stock quantity

You can check the stock quantity for each region

Please select city

Only {0} left in stock.

Sorry, this product is not currently available in selected city.

{{assuredBuyBack.title}}

{{newAssuredBuyBack.title}}

{{newAssuredBuyBack.learnMoreCta.text}}

{{newAssuredBuyBack.description}}

Please select Samsung Assured Buyback or no coverage

{{care.title}}

{{care.learnMoreCta.text}}

{{care.description}}

  • {{item.specialText}}

{{warranty.title}}

{{warranty.learnMoreCta.text}}

{{warranty.description}}

{{warrantyResult.displayModelName}}

{{warrantyResult.discountText1}}

{{warrantyResult.description1}}

{{warrantyVd.title}}

{{warrantyVd.learnMoreCta.learnMoreText}}

{{warrantyVd.description}}

{{warrantyVdResult.title}}

{{warrantyVdResult.priceDisplay}}

{{delivery.headline}}

{{delivery.errorMessage}}

Apply

{{deliveryResult.priorityText}}

{{deliveryResult.mainText}}

{{deliveryResult.subText}}
Standard installation charges may apply.Click here for more details.

{{deliveryResult.decText}}

{{item.disclaimer}}

{{tariffOption.headline}}

Learn more

{{tariffOption.description}}

{{tariffOptionResult.displayModelName}}

{{tariffOptionResult.discountText1}}

{{tariffOptionResult.description1}}

{{tariffOptionResult.description2}}

{{tariffOptionResult.description}}

{{tariffOptionResult.price}}

{{tariffOptionResult.disclaimer}}

{{embedAddon.title}}

{{embedAddon.description}}

  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.modelCode}}

    {{item.description}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
  • {{item.imgAlt}} {{item.imgAlt}}
    {{item.iconTitle}}

    {{item.name}}

    {{item.description}}

    • {{item.dotList1}}
    • {{item.dotList2}}
    • {{item.dotList3}}

    {{item.finalPrice}}

    {{item.originalPrice}} {{item.savePrice}} Out Of Stock
{{offerItem.title}}

{{offerItem.offerText}}

{{offerItem.linkText}}
{{bundle.imgAttr.alt}} {{bundle.imgAttr.alt}}
{{bundle.title}}
{{bundle.price.original}} {{bundle.price.save}} {{bundle.price.now}}
{{bogo.item.headline}}

{{decmain.text}}

{{bogo.item.description.sub}}

{{bogo.item.description.date}}

{{bogo.item.price.original}} {{bogo.item.price.save}} {{bogo.item.price.now}}
{{gift.item.headline}}

{{decmain.text}}

{{gift.item.description.date}}

{{gift.item.learnMoreCta.text}}
{{combo.item.headline}}

{{decmain.text}}

{{combo.item.description.date}}

{{combo.item.learnMoreCta.text}}
{{delightDelivery.item.imgAttr.alt}} {{delightDelivery.item.imgAttr.alt}}
{{delightDelivery.item.headline}}

{{decmain.text}}

Learn more
{{finance.item.iconAttr.alt}} {{finance.item.iconAttr.alt}}
{{finance.item.description.text}}
{{finance.item.emiText}}
{{message.item.iconAttr.alt}} {{message.item.iconAttr.alt}}

{{decmain.text}}

{{offer.headline}}

Features

Instantaneous Cooling

38% Faster Cooling

An innovative triangle architecture cools the air 38% faster1, so you can quickly feel more comfortable. With a wider inlet and outlet and more air flow using a bigger fan, its unique shape cools your room rapidly.

Instantaneous Cooling

More air in

The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its unique triangular design allows for a wider inlet, so more air can be drawn in.

A top view of the AR5500 is emphasizing how the air intake is 139% wider.

Instantaneous Cooling

More air flow

The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its unique triangular design allows for a bigger fan to ensure that air is cooled and expelled faster.2

A side view of the AR5500 is showing how the triangle design allows for a fan that is 122% bigger, for a increase in air flow rate.

Instantaneous Cooling

More air out

The Samsung Air Conditioner has been designed from the ground up to be outstandingly efficient. Its uniquely triangular design allows for an outlet with improved width and angle, and extra v-blades ensure that air is expelled farther and wider.3

A front view of the AR5500 is showing that the outlet is 154% wider, allowing for more air to be expelled more powerfully.

Corner to corner cooling

Spreads cool air even further

Cools evenly for corner to corner comfort. Extra v-blades, with a wider4 angle of movement, disperse cool air across a wider area and its upward air flow structure expels air over a longer distance.

AR5500 has 30 degrees wider angle movement, 14 meters-long air flow capability, and extra v-blades to send cool air corner to corner.

Digital Inverter

Works smart. Saves energy.

An energy-efficient Digital Inverter with a SEER 10.1 rating maintains the desired temperature without frequently turning off and on. So it consumes less energy5 and helps you to stay comfortable for long periods.

Digital Inverter

Optimized 2-step cooling

The Samsung Air Conditioner begins cooling the air fast using its Fast Cool mode. It then automatically changes to Comfort Cool mode to maintain the desired temperature, so don’t have to keep changing the settings.

Digital Inverter

Save energy even when alone

Single User mode uses less compressor capacity, reducing power consumption6, while still providing a cool and comfortable environment. So you can use it when alone without worrying about the electricity bill.

In a living room, one lady is reading a book on the sofa, and the air conditioner is running in a single user mode to give her cool air with less energy than full mode. A graph shows that with Single user mode, you can save 26% of energy compared to full mode.

Virus doctor & Easy filter

Virus Doctor

Virus Doctor purifies the air by using S-Plasma ion technology to eliminate up to 99% of bacteria and viruses—including the Influenza A and Corona viruses7—keeping the air you breathe clean and healthy.

Virus doctor & Easy filter

Easy to clean filter

The Easy Filter is located outside, on the top, so it can easily be taken out and cleaned. Its anti-bacterial coating filters dust, dangerous airborne contaminants and allergens8.

Wi-Fi Control

Control it anywhere

Using an App9 on your smartphone, the Wi-Fi Control function10 lets you remotely turn it on and off, select the operating mode and temperature, schedule when to start and stop, and control other functions.

Triple Protector Plus

Fin & Chassis Protector

The AR5500 Air Conditioner can endure extremely hot temperatures, due to a larger condenser and optimized refrigerant flow. It also has anti-corrosion coating that stops the condenser and chassis from rusting.11

Triple Protector Plus

Compressor protector

The AR5500 Air Conditioner keeps going even in the most challenging environments with its Triple Protector Plus technology, which protects the compressor from low-voltage shock caused by an overload of power surges.12

The outdoor unit of the AR5500 is being shown in the desert under a hot sun. A graphic chart shows how the AR5500's Triple Protector Plus technology protects the compressor from low voltage attacks.

Triple Protector Plus

Controller Protector

Triple Protector Plus also includes technology that protects the controller from high-voltage discharge caused by fluctuating electrical currents13, so you don’t need to use a separate voltage stabilizer.

In the left half of the image, the outdoor unit of the AR5500 is being shown in the desert withstanding a lightning storm. In the right half of the image, the indoor unit of the AR5500 is being shown protected from the lightning strike.

More Features

  • Ensure a proper installation

    Smart Installation is a self-diagnosis feature that ensures your air conditioner is installed perfectly. It automatically checks for installation faults that can cause problems when using it.

  • Easy troubleshooting

    The Smart Check* automatic error-monitoring system detects and diagnoses problems and provides easy troubleshooting solutions using a smartphone App**. So it saves you time and potentially expensive repair bills***.

    * Available on the Wi-Fi model only.
    ** Available on iPhones and Android devices. A network connection is required.
    *** Service callouts will occasionally be required and may incur extra repair costs.

A Closer Look

  • Triangle Design For Powerful Cooling

    The Samsung Air Conditioner’s unique triangular design improves its performance, circulating cool air faster, farther and wider around your home.

  • Uniquely Stylish

    The pure Crystal Gloss™ finish and uniquely curved design of the Samsung Air Conditioner deliver a premium look and performance.

  • Ensure Perfect Installation

    Smart Installation is a self-diagnosis feature that ensures your Samsung Air Conditioner is installed perfectly by your service engineer.

  • Easy Filter

    Filters dust, dangerous airborne contaminants and allergens.

1 Tested on AR09JSPFAWK compared with Samsung conventional model AR09JQFPAUR.

2 Tested on AR09HSFSBWK model. Compared with Samsung conventional model AQV09TWS.

3 Tested on AR09HSFSBWK model. Compared with Samsung conventional model AQV09TWS.

4 Tested on AR09FSSSBWK compared with Samsung conventional model AQV12TWS.

5 Tested on AR09HSSDAWK/EU compared with Samsung conventional model AQ09TSB.

6 Tested on AR09FSSSCWK/SA compared with Samsung conventional models. Based on the accumulated power consumption of Normal mode vs. Single User mode.

7 Based on Kitasato Environmental Science Center (Japan) & Yonsei Univ. (Korea) test result. Effective on 4 viruser. Including Subtype H1N1. and Certain bacteria. Data has been measured under specific testing conditions and may differ based on environmental factors.

8 Tested in Korea test lab (FITI/KEMTI) and Japan test lab (ITEA). Data has been measured under specific testing conditions and may vary based on environmental factors.

9 Available on iPhones and Android devices. A network connection is required.

10 Available on the Wi-Fi model only.

11 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC

12 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC

13 Test on AR09HPSDDWK/SG. Compared with Samsung conventional model AR09HPSDFAP/RC

Specifications

  • Capacity (Cooling, Btu/hr)

    12,000

  • Capacity (Cooling, kW)

    3,52

  • EER (Cooling, W/W)

    3,23

  • Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

    720 x 548 x 265

  • Capacity (Cooling, Btu/hr)

    12,000

  • Capacity (Cooling, Min - Max, Btu/hr)

    4,026 ~ 13,648

  • Capacity (Cooling, kW)

    3,52

  • EER (Cooling, W/W)

    3,23

  • EER (Cooling, Btu/hW)

    11,01

  • Noise Level (Indoor, High/Low, dBA)

    37 / 20

  • Noise Level (Outdoor, High/Low, dBA)

    48

  • Power Source(Φ/V/Hz)

    1 / 220 / 60

  • Power Consumption(Cooling, W)

    1,090

  • Operating Current(Cooling, A)

    5

  • Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

    826 x 261 x 261

  • Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

    720 x 548 x 265

  • Gross Weight (Indoor, kg)

    11,2

  • Gross Weight (Outdoor, kg)

    30

  • Net Weight (Indoor, kg)

    9,8

  • Net Weight (Outdoor, kg)

    26

  • Loading Quantity (20/40/40Hft without Pipe)

    96 / 203 / 233

  • Piping Length (Max, m)

    15

  • Piping Height (Max, m)

    7

  • SVC Valve (Liquid (ODxL))

    6,35

  • SVC Valve (Gas (ODxL))

    9,52

  • Moisture Removal (l/hr)

    1,2

  • Air Circulation (Cooling, ㎥/min)

    12

  • Refrigerant (Type)

    R-410A

  • Low Ambient (Cooling, ℃)

    16 ~ 46

  • Outdoor Unit (Compressor Type)

    BLDC

  • Outdoor Unit (Anti-Corrosion Fin)

    Yes

  • Optimal Single Blade

    Yes

  • Air Direction Control (Up/Down)

    Auto

  • Air Direction Control (Left/Right)

    Manual

  • Air Flow Control Step (Cool/Fan)

    5/4

  • Natural Breeze

    Yes

  • Full HD Filter

    60

  • Auto Clean (Self Cleaning)

    Yes

  • Virus Doctor

    Yes

  • Easy filter

    Yes

  • Filter Cleaning Indicatior

    Yes

  • Beep On/Off

    Yes

  • Real-Time Timer

    Yes

  • 24-Hour Timer

    Yes

  • Auto Restart

    Yes

  • 2 Step Cooling

    Yes

  • Fast Cool

    Yes

  • Comfort Cool

    Yes

  • Good Sleep

    Yes

  • Dehumidification

    Yes

  • Fan Mode

    Yes

  • Quiet

    Yes

User manual & downloads

User Manual

ver 00 | 18.37 MB

Aug 27. 2015

ENGLISH

Download

User Manual

ver 00 | 18.45 MB

Aug 27. 2015

SPANISH

Download
See more content

FAQs

Product support

Find answers the question you have about the product

Product support

Get the most from Samsung device and services.

Learn more

Live Chat

See how products work and get advice on which models fit your needs.

Learn more

Recently viewed

* Key feature may different from Key Spec

AR5500 Wall-mount with 38% Fast Cooling, 12,000 Btu/hr

{{priceAnchor.priceWrapper.info.noLineOrignal}}

{{priceAnchor.priceWrapper.info.totalPrice}}
{{priceAnchor.priceWrapper.info.totalPriceMonthly}}

{{priceAnchor.priceWrapper.info.ceExchangePrice}}

{{priceAnchor.priceWrapper.info.orignalPriceAddText}}
{{priceAnchor.priceWrapper.info.lowestWasPricetext}}
{{priceAnchor.priceWrapper.info.orignalPrice}}
{{priceAnchor.priceWrapper.info.savePrice}}
{{priceAnchor.priceWrapper.info.disclaimer}}
not for sale
{{price.anchorNaviAttr.text}}
