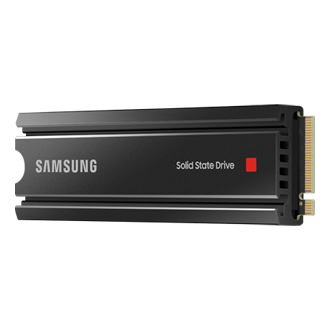

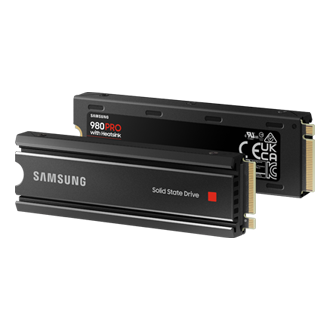

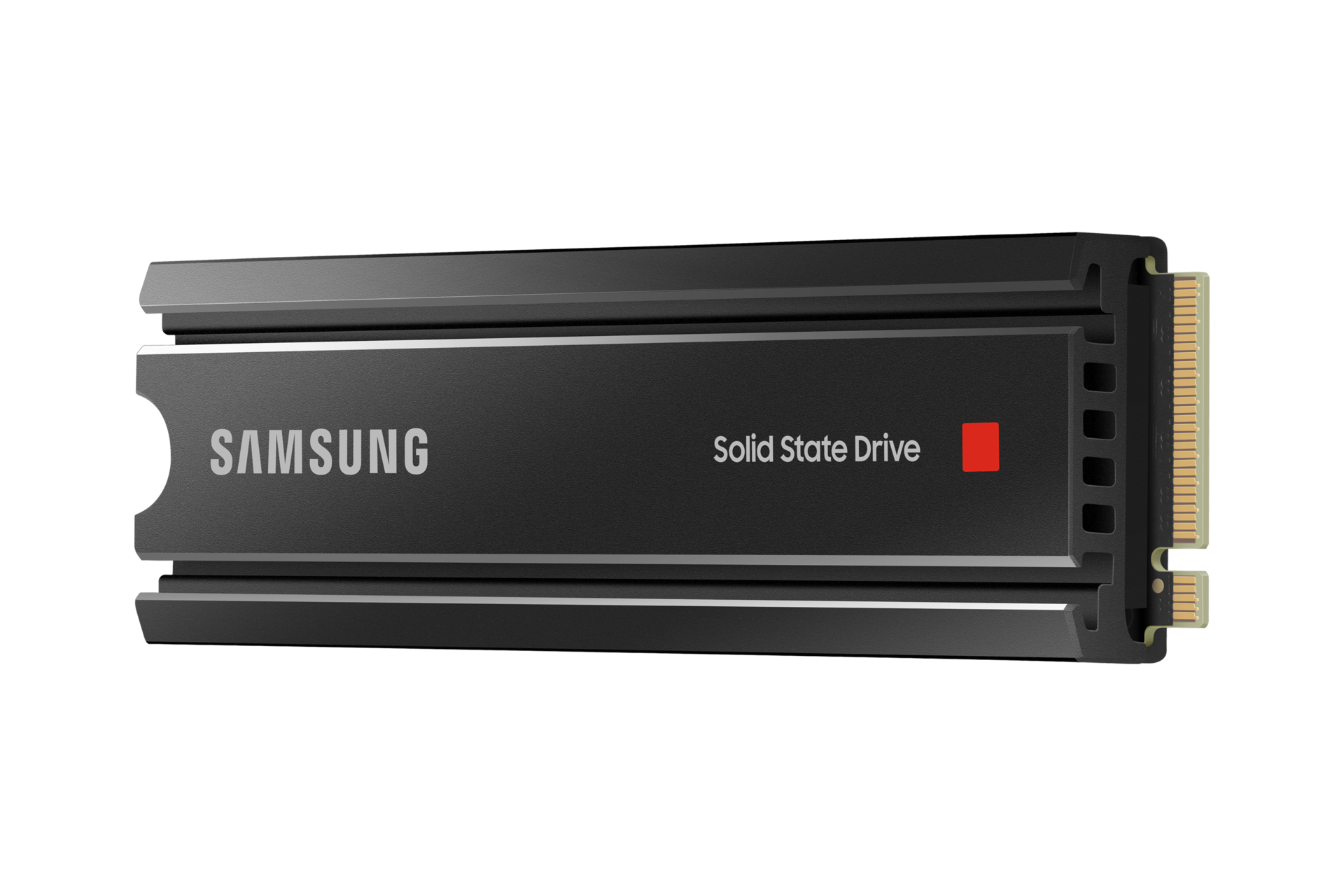

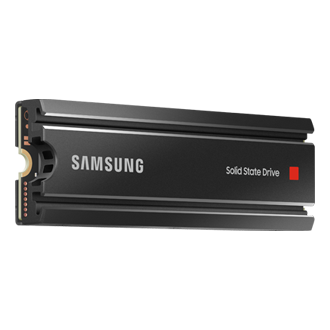

980 PRO with Heatsink PCIe 4.0 M.2 SSD 1TB
MZ-V8P1T0CW
Please scan the QR Code with your mobile device, and place the product image in desired place.
Highlights
Interface
Superfast Speeds
Integrated Heatsink
PlayStation®5 Compatible
Features
Next-level SSD performance
Unleash the power of the PCIe® 4.0 NVMe™ SSD 980 PRO for next-level computing. The PCIe® 4.0 delivers 2x the data transfer rate of PCIe® 3.0 while staying backward compatible for total versatility. The added heatsink elevates speed, power efficiency and thermal control to maximise gameplay.
* The NVMe ExpressTM design mark is a registered trademark of NVM ExpressTM, Inc.
Maximum speed
With Samsung’s in-house controller for PCIe® 4.0 SSD, the 980 PRO Series is optimised for speed. It delivers read speeds up to 7,000 MB/s, 2x faster than PCIe® 3.0 SSDs and 12.7x faster than SATA SSDs. The 980 PRO series achieves max speeds on PCIe® 4.0 and may vary in other settings.
* Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware and configuration and other factors. For detailed information, please contact your local service centre * Test system configuration: AMD Ryzen 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA* Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.* To maximise the performance of the 980 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.
Smart thermal control
Samsung’s nickel-coated controller reliably manages NAND chip heat levels. The 980 PRO's heat spreader label allows thermal control access. The 980 PRO Heatsink uses proven data centre SSD technology to dissipate heat, for continuous high-performance gaming on most consoles and PC systems.
A winning combination
Gamers, techies and designers benefit from thermal control, high-performance bandwidth and sustained performance for heavy-duty applications. Games load fast for more play, less wait. Smart heat management reduces distracting noise and cooling fans work for uninterrupted, fully immersive gaming.
Efficient M.2 SSD
The 980 PRO with Heatsink minimises space limits with a thin 8.6mm body, compatible with PlayStation®5 plus desktops and laptops meeting PCI-SIG® D8 specs. The 980 PRO's compact, easy to plug-in M.2 form factor maximises board design flexibility for building efficient, high-performance systems.
* PCI-SIG® D8 standard spec: 8.8mm
Samsung Magician software
Unlock the full power of the 980 with Samsung Magician's intuitive yet advanced optimisation tools. Monitor drive health, optimise performance, protect valuable data and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.
World’s No.1 Flash Memory
Experience superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
*Source: 2003-Q4.2021 OMDIA data: NAND suppliers' revenue market share.
*Source: 2003-Q4.2021 OMDIA data: NAND suppliers' revenue market share.
Specifications
-
Application
Client PCs, Game Consoles
-
Interface
PCIe Gen 4.0 x4, NVMe 1.3c
-
Sequential Read
Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
-
Application
Client PCs, Game Consoles
-
Capacity
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
-
Form Factor
M.2 (2280)
-
Interface
PCIe Gen 4.0 x4, NVMe 1.3c
-
Dimension (WxHxD)
80 x 24 x 8.6 mm (with heatsink)
-
Weight
Max 30.5g
-
Storage Memory
Samsung V-NAND 3-bit MLC
-
Controller
Samsung in-house Controller
-
Cache Memory
Samsung 1GB Low Power DDR4 SDRAM
-
TRIM Support
Supported
-
S.M.A.R.T Support
Supported
-
GC (Garbage Collection)
Auto Garbage Collection Algorithm
-
Encryption Support
AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
-
WWN Support
Not supported
-
Device Sleep Mode Support
Yes
-
Sequential Read
Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
-
Sequential Write
Up to 5,000 MB/s * Performance may vary based on system hardware & configuration
-
Random Read (4KB, QD32)
Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
-
Random Write (4KB, QD32)
Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
-
Average Power Consumption (system level)
*Average: 6.2 W*Maximum: 8.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
-
Power consumption (Idle)
Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
-
Allowable Voltage
3.3 V ± 5 % Allowable voltage
-
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
-
Operating Temperature
0 - 70 ℃ Operating Temperature
-
Shock
1,500 G & 0.5 ms (Half sine)
-
Management SW
Magician Software for SSD management
-
Not Available
-
5-Year Limited Warrantyor 600 TBW Limited Warranty
