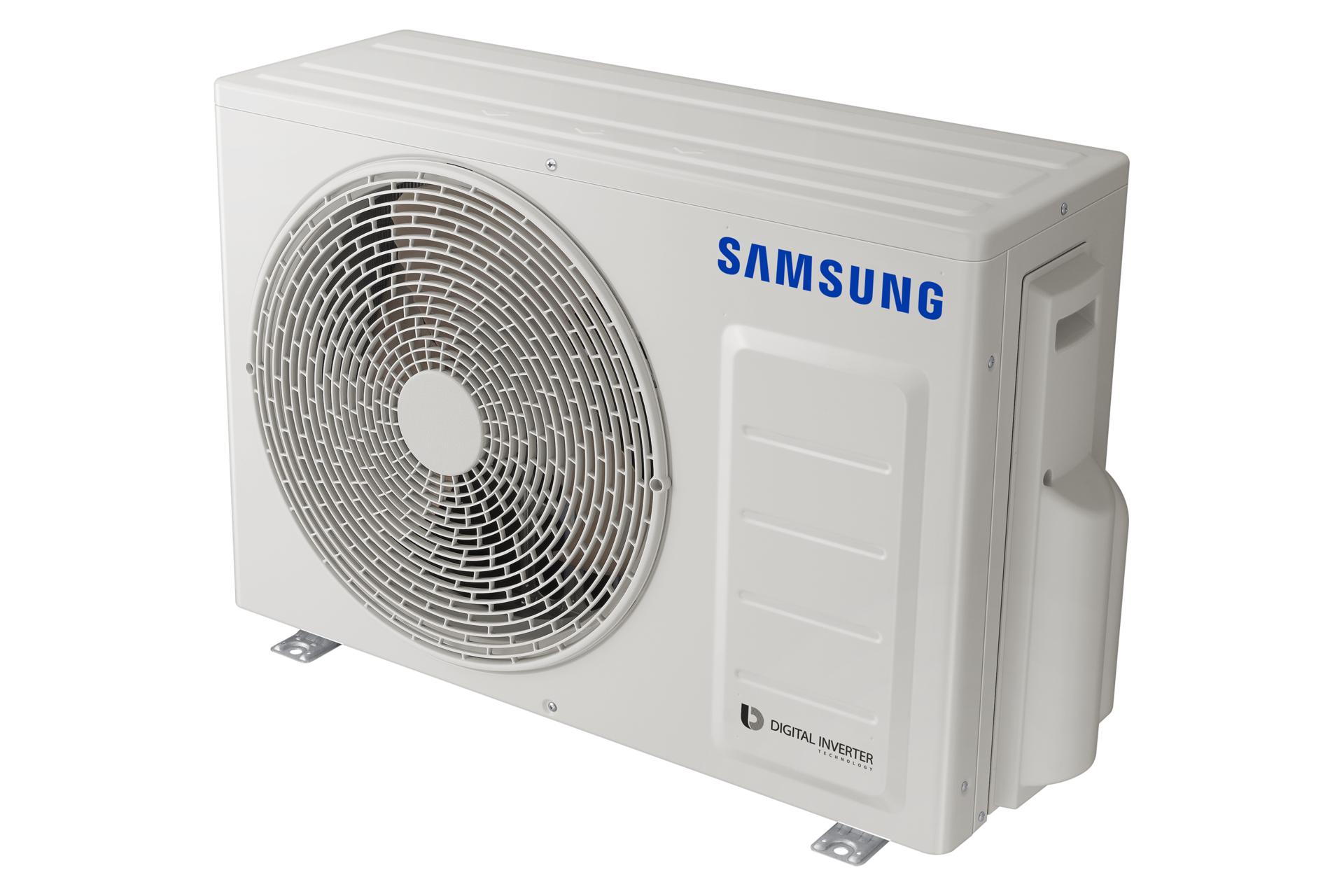

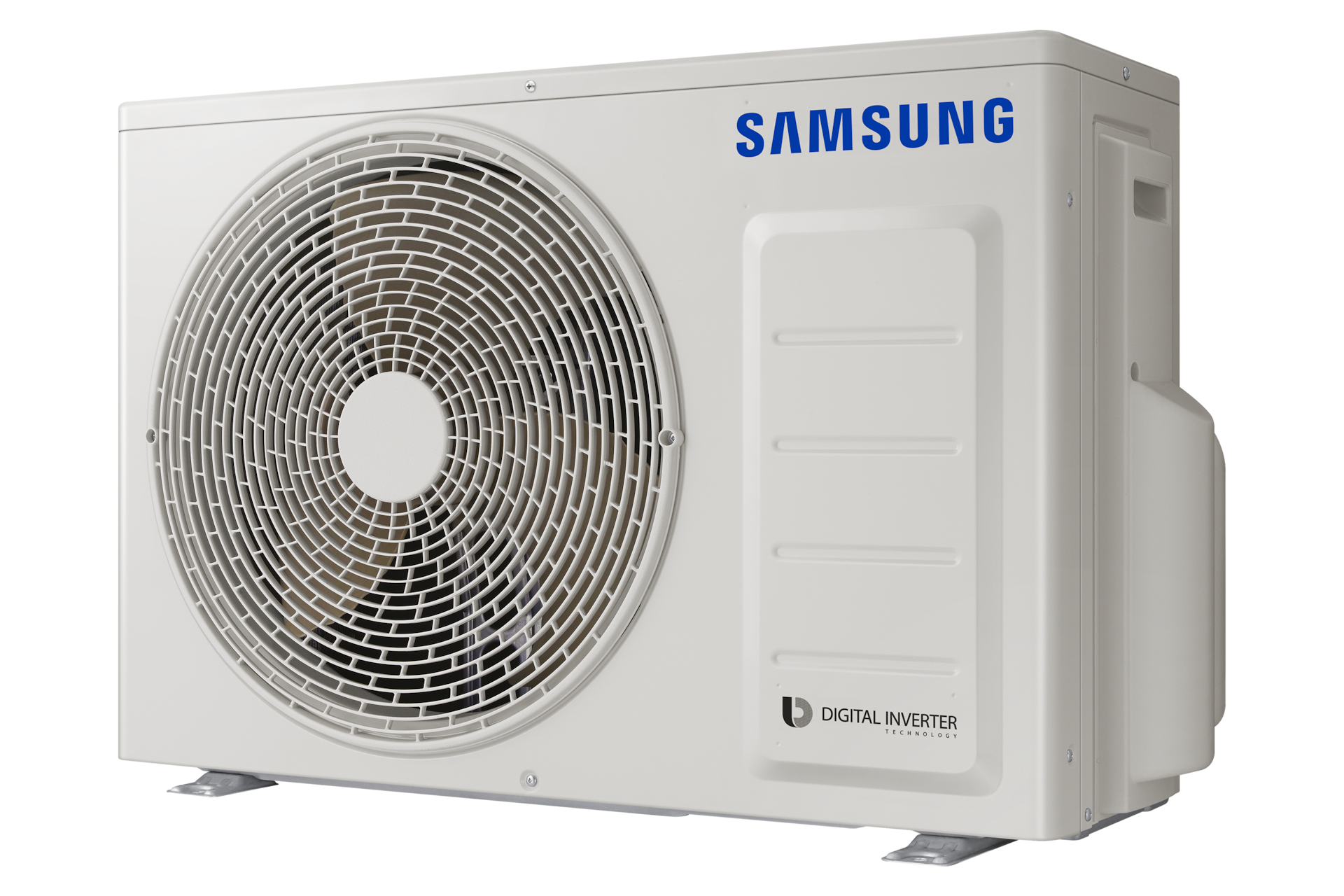

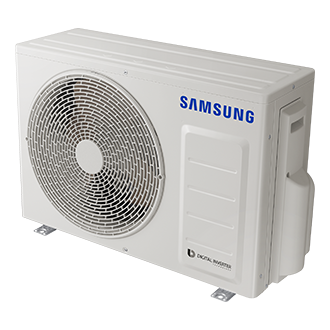

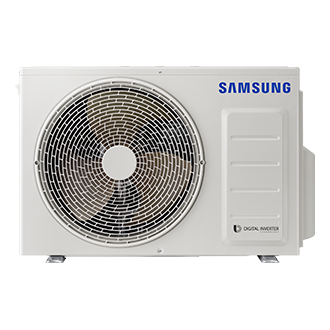

Multi Split (FJM) Inverter Outdoor Unit 5.0kW (2 Room)

Features
GALLERY
Spec
Review
Support
Compare

Where to buy

High Performance by Twin BLDC Compressor

Twin BLDC Compressor

A key contributor to Samsung Free Joint Multi(FJM)'s efficiency is its advanced compressor technology. Adopting Twin Brushless Direct Current(BLDC) rotary compressor with premium moving parts, Samsung FJM delivers efficient and reliable performance.

* Please note that the product image in the picture may be different from the actual one.

Wide Operation Outdoor Temperature Range

Smart Inverter System

Samsung FJM cools in outdoor temperature in 46°C and warms in -15℃*, eliminating need for additional units to cope with adverse weather. Its smart inverter system delivers your set temperature quickly, and keeps performing fine-tune adjustments to ensure a constant, comfortable environment.

* Test condition in accordance with EN 14511-2:2011.** Please note that the product image in the picture may be different from the actual one.

Specifications

Capacity 17100Btu/hr
Capacity (Cooling, kW) 5.0kW
Capacity (Heating, kW) 5.7kW
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) 790 x 548 x 285mm

Features

Type FREE JOINT MULTI

Model Name

Outdoor Unit AJ050TXJ2KH/EA

Power Supply (Outdoor Unit) [Φ, #, V, Hz]

1,2,220~240,50/60

System

Mode HEAT PUMP

Performance (nominal)

2 HP

Capacity

Cooling [kW] 5.0 kW
Cooling [Btu/h] 17,100 Btu/h
Heating [kW] 5.7 kW
Heating [Btu/h] 19,400 Btu/h

Power Input (Nominal)

Cooling 1) 1.32 kW
Heating 2) 1.35 kW

Current Input (Nominal)

Cooling 1) 6.0 A
Heating 2) 6.2 A

Power

MCA [A] 11.9 A
MFA [A] 13.8 A

Energy Efficiency

EER (Nominal Cooling) 3.79
COP (Nominal Heating) 4.22
Energy Grade (Cooling) 6.70(A++)
Energy Grade (Heating) 4.01(A+)

Compressor

Type Twin BLDC Rotary
Output(kW) 4.57 kW
Model UG9TK3150FE4
Oil (Type) POE
Oil (Initial Charge) [cc] 500 cc

Fan

Type Propeller Fan
Motor (Output) [W] 40 W
Air Flow Rate (High / Mid / Low) [CMM] 34.5 CMM
Air Flow Rate(High/Mid/Low)[L/S] 574

Piping Connections

Liquid Pipe (Ø,mm x EA) 6.35 x 2
Liquid Pipe (Ø,inch x EA) 1/4 x 2
Gas Pipe (Ø,mm x EA) 9.52 x 2
Gas Pipe (Ø,inch x EA) 3/8 + 1/2
Installation Max. Length [m] 30 m
Installation Max. Height [m] 15 m

Field Wiring

Power Source Wire 2.5 ~ 2.5
Transmission Cable 0.75 ~ 1.5

Refrigerant

Type R410A
Factory Charging (kg) 1.6 kg
Factory Charging (tCO2e) 3.34 tCO2e

Sound

Sound Pressure 46 dBA
Sound Power 61 dBA

External Dimension (Outdoor Unit)

Net Weight(kg) 36.0 kg
Shipping Weight (kg) 38.5 kg
Net Dimensions (WxHxD) (mm) 790 x 548 x 285 mm
Shipping Dimensions (WxHxD) (mm) 913 x 622 x 371 mm

Operating Temp. Range

Cooling (℃) -10.0 ~ 46.0 ℃
Heating (℃) -15.0 ~ 24.0 ℃

Hide All Specs
